Home >> Suzuki >> 1997 >> Esteem GL L4-1.6L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Distributor >> Service and Repair >> Removal

Removal

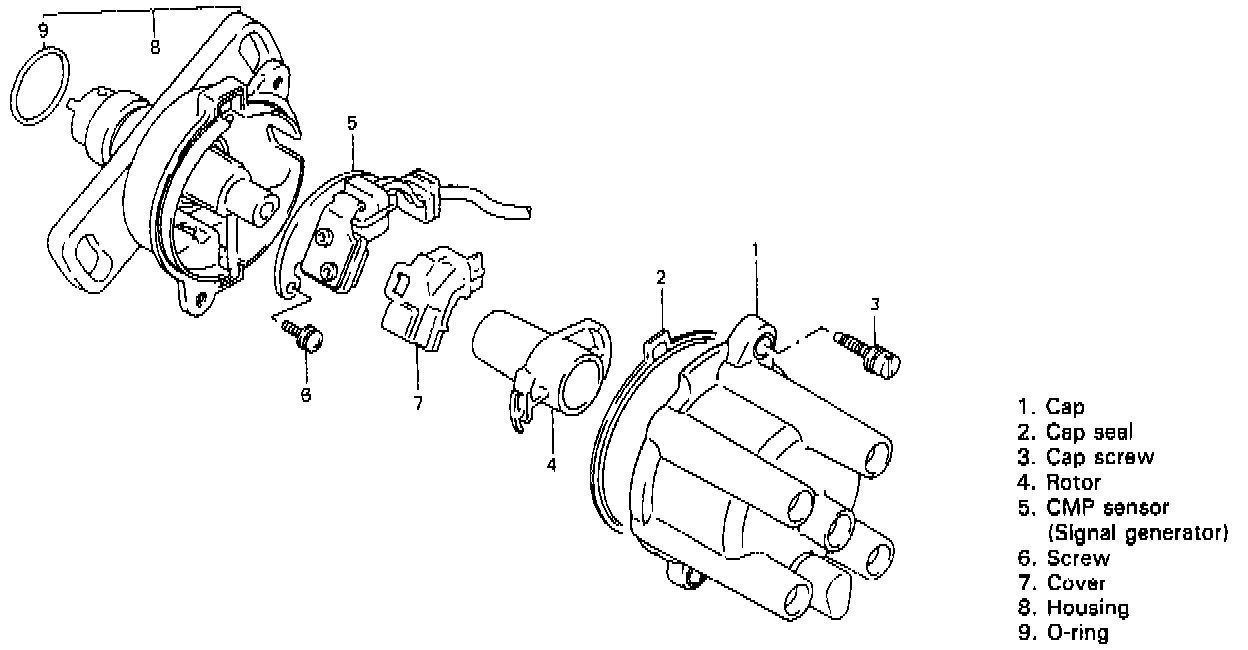

1. Disconnect distributor lead coupler.
2. Remove distributor cap screws and cap.
3. Remove distributor flange bolts.
4. Pull out distributor housing assembly.
