Transmission Controls
1. Disconnect negative cable at battery.
2. Disconnect A/T VSS coupler.

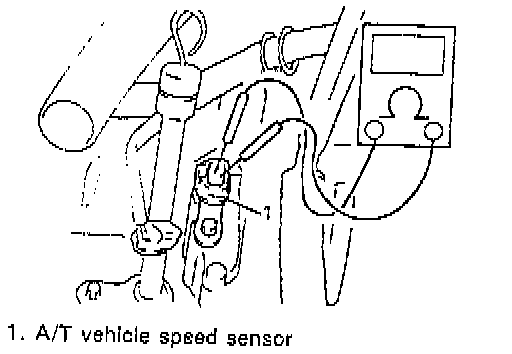

3. Check resistance between A/T VSS terminals.
A/T VSS standard resistance: 648 - 792 ohms at 20°C (68°F)
1. Disconnect negative cable at battery.
2. Disconnect A/T VSS coupler.
3. Check resistance between A/T VSS terminals.
A/T VSS standard resistance: 648 - 792 ohms at 20°C (68°F)
