Home >> Suzuki >> 1997 >> Esteem GL L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Computers and Control Systems >> Engine Control Module

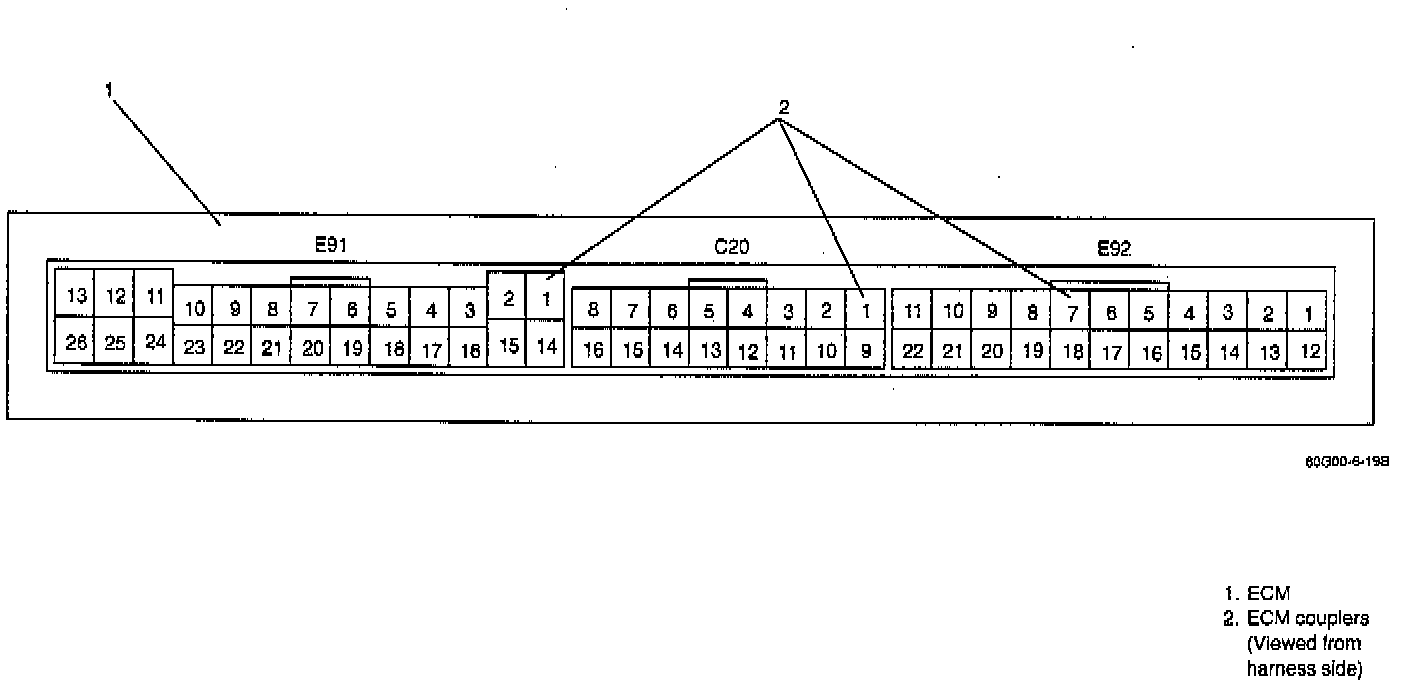

Engine Control Module

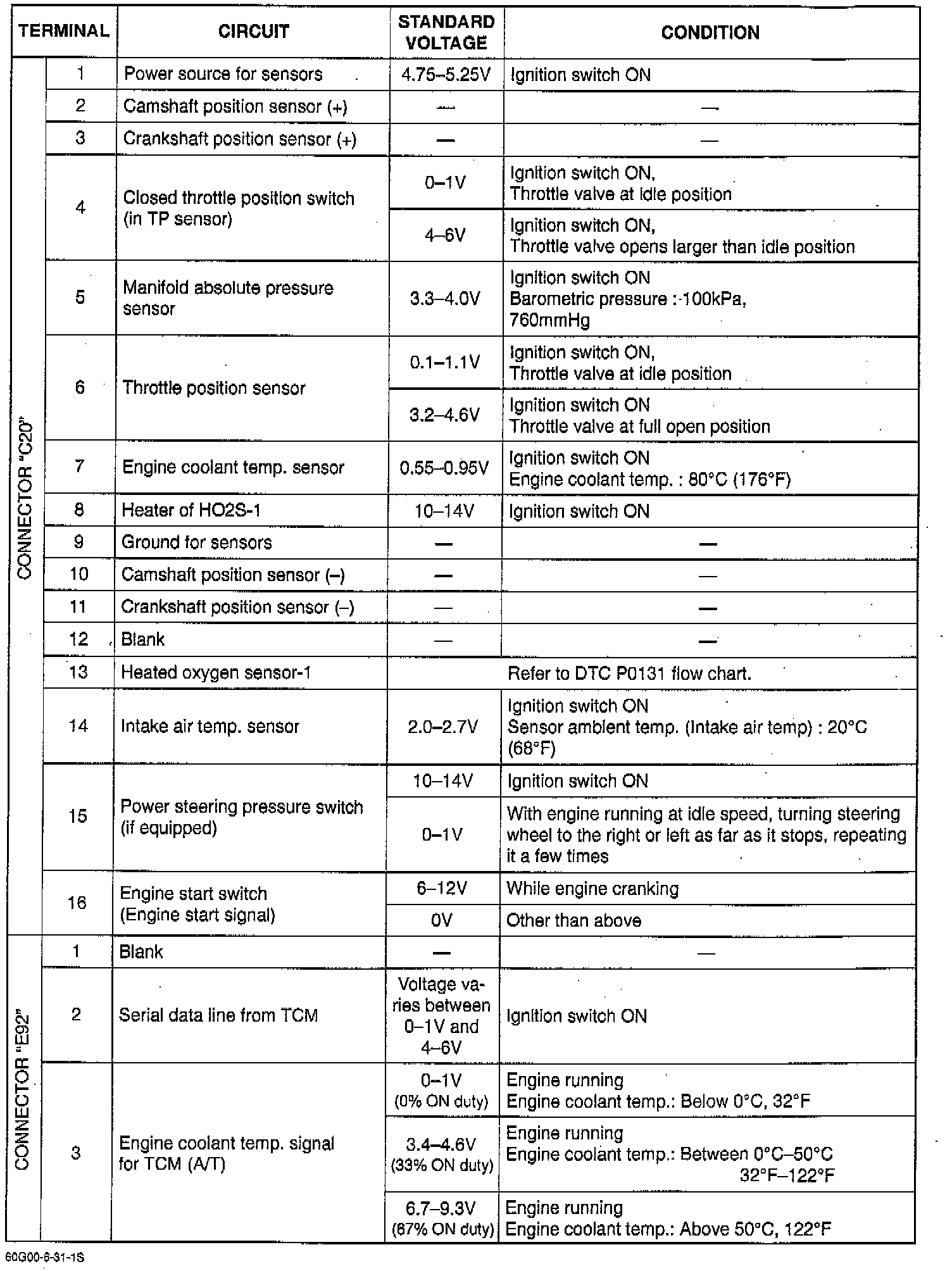

Part 1 Of 3:

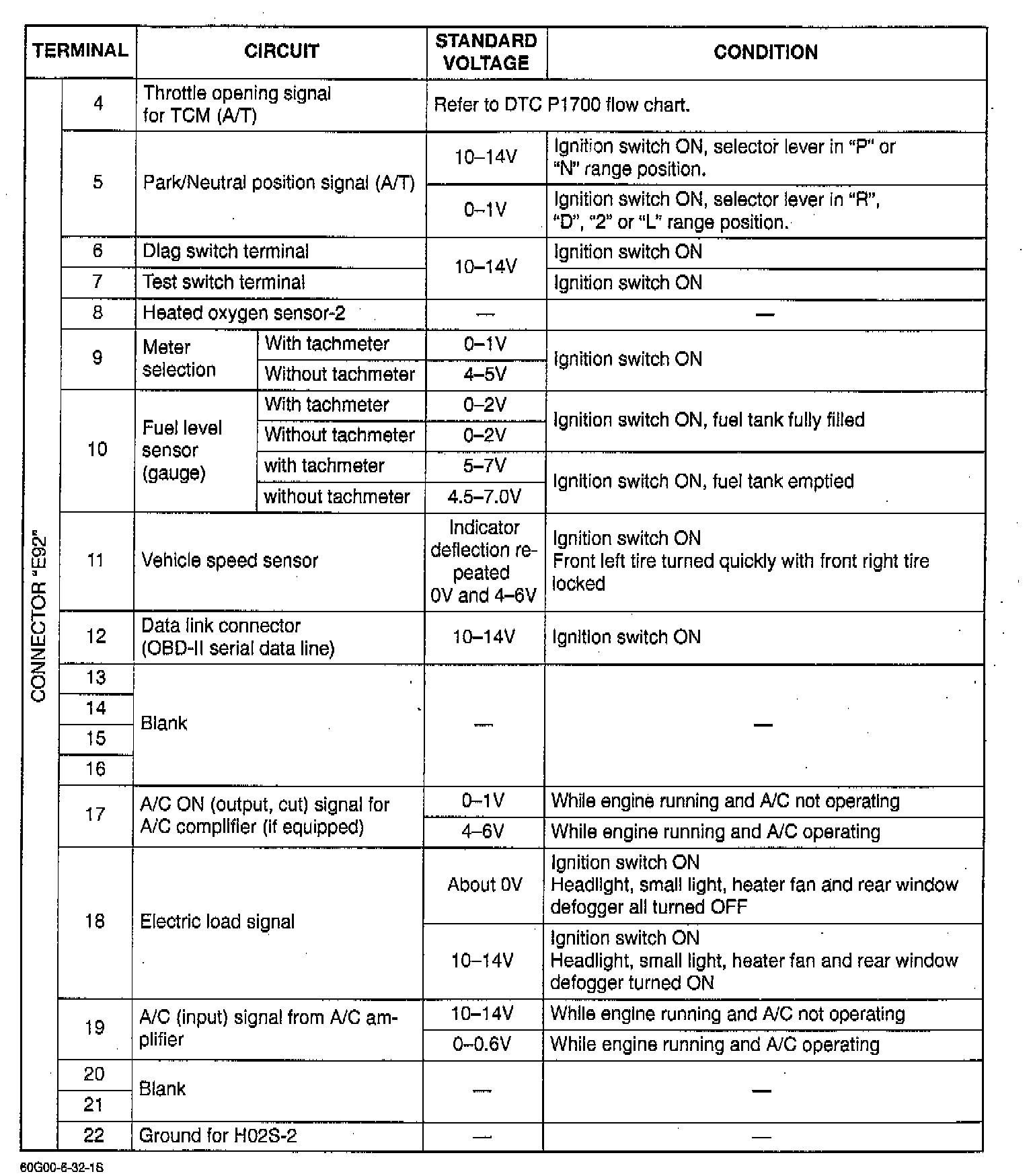

Part 2 Of 3:

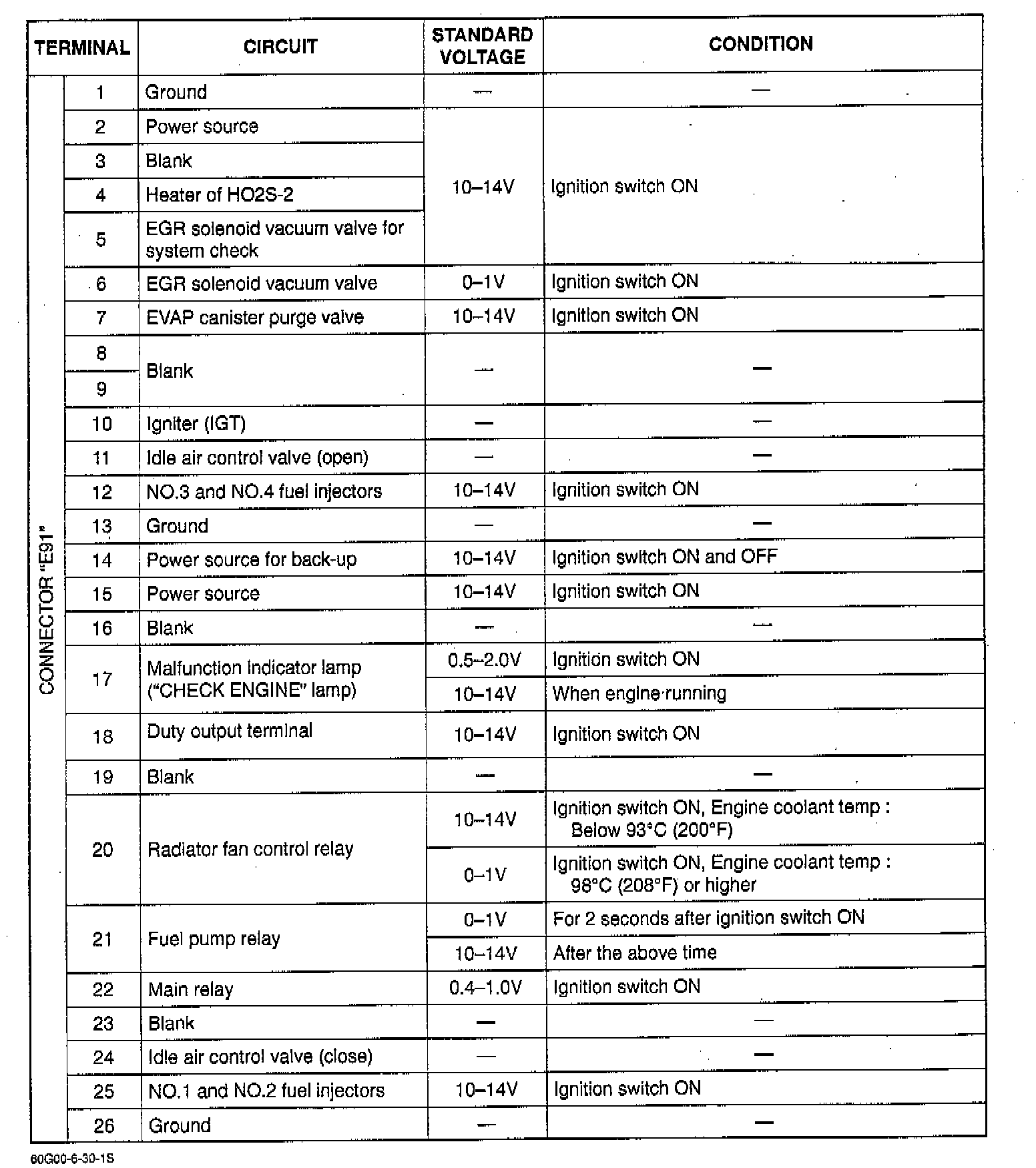

Part 3 Of 3:
