Home >> Subaru >> 2013 >> Outback F4-2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Electronic Brake Control Module

Electronic Brake Control Module

COMPONENT

VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM&H/U)

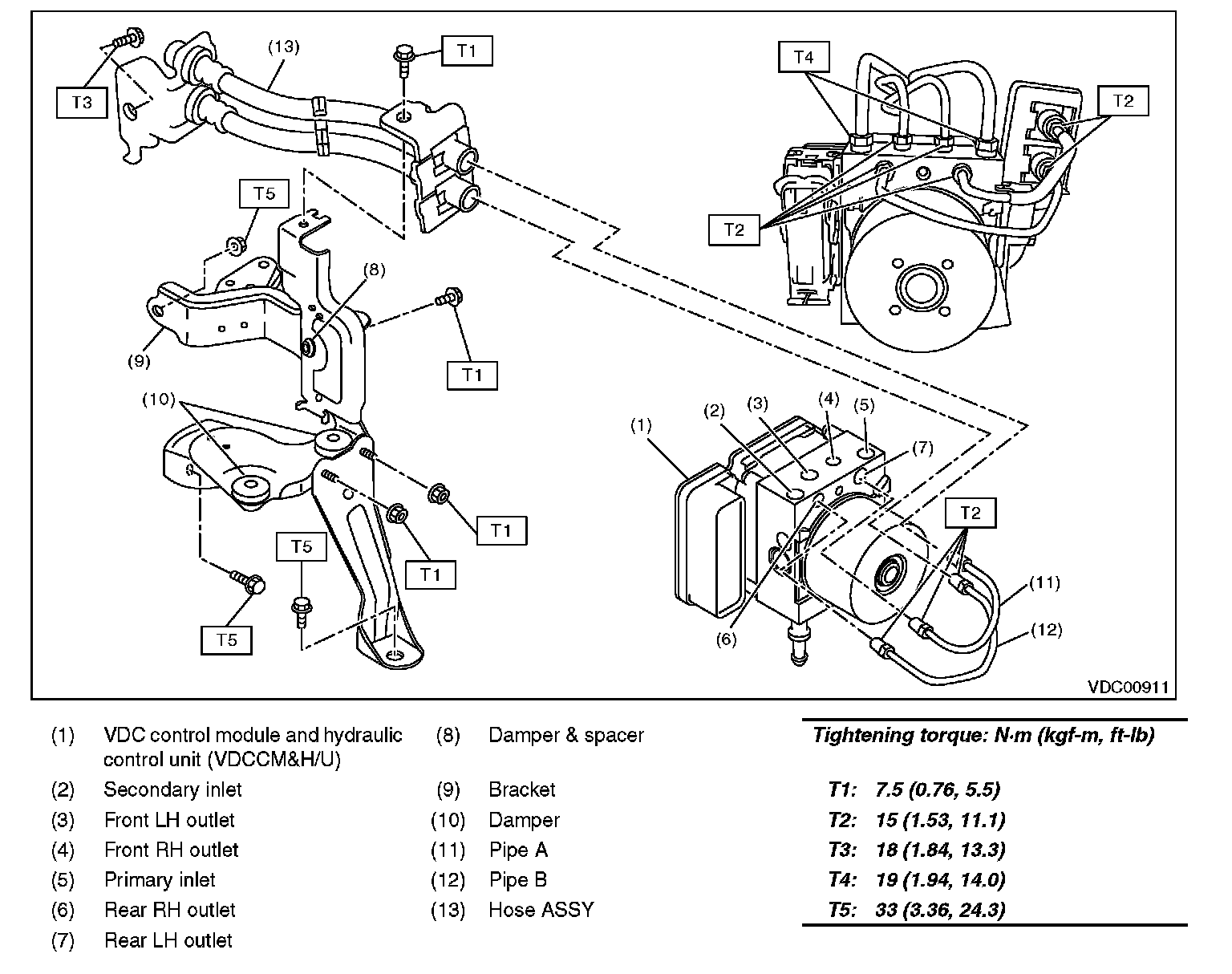

^ Models without EyeSight

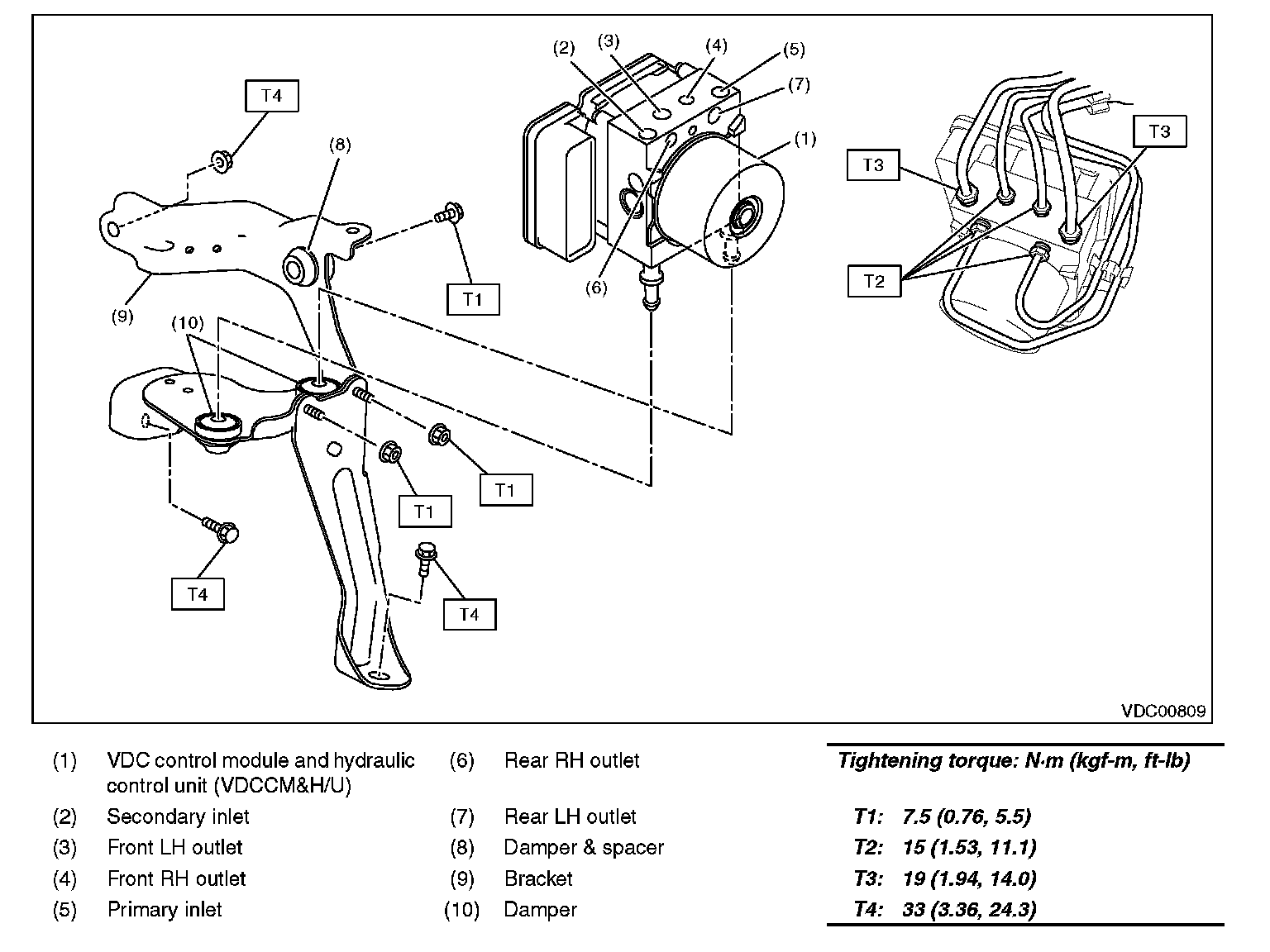

^ Models with EyeSight
