Removal

TPMS & KEYLESS CONTROL MODULE

NOTE:
TPMS control module is integrated with the keyless entry control module.

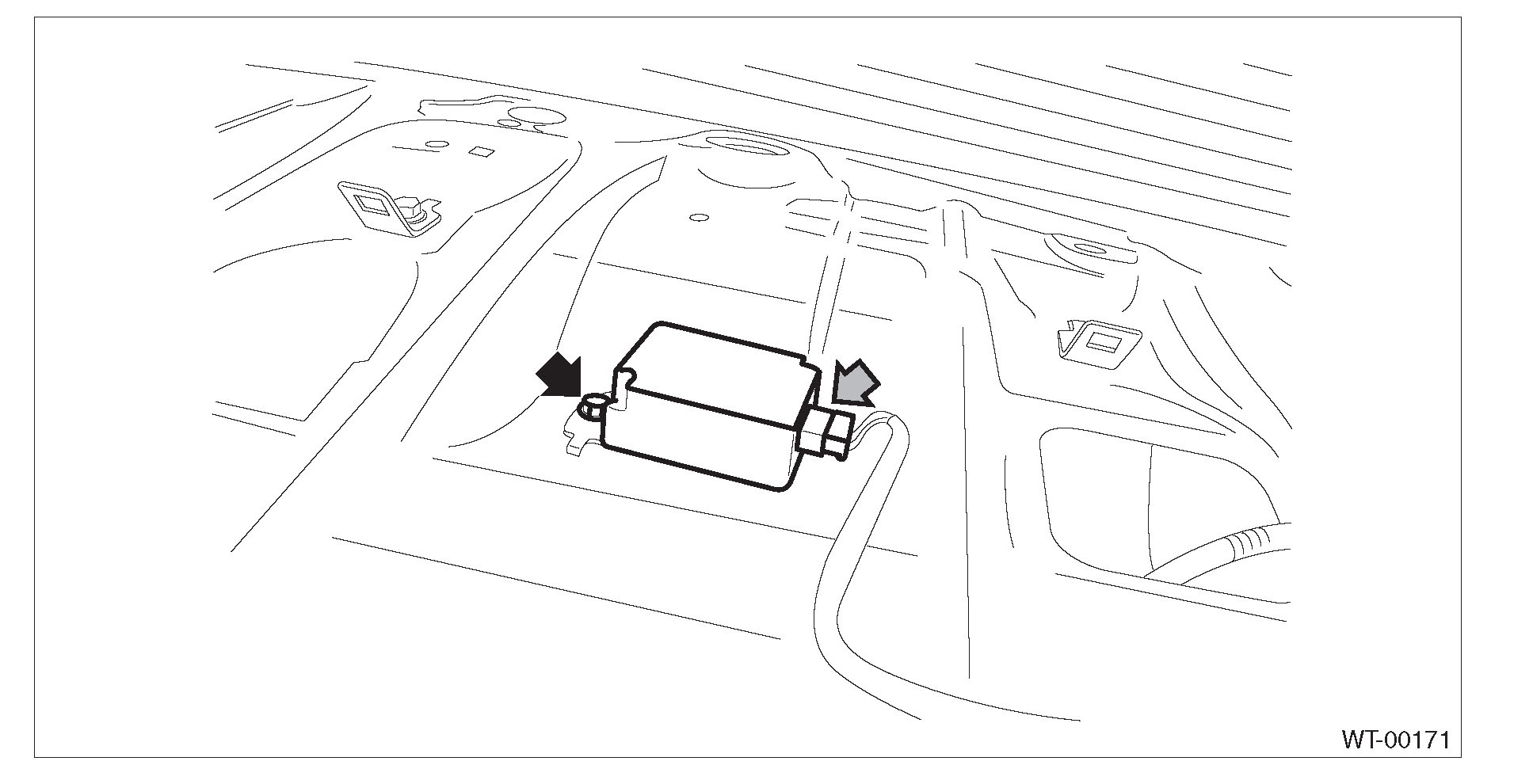

4 door model
1) Disconnect the ground cable from battery.
2) Remove the trim panel assembly - rear shelf.
3) Remove the TPMS & keyless control module.
(1) Disconnect the connector.
(2) Remove the bolt and then remove the TPMS & keyless control module.

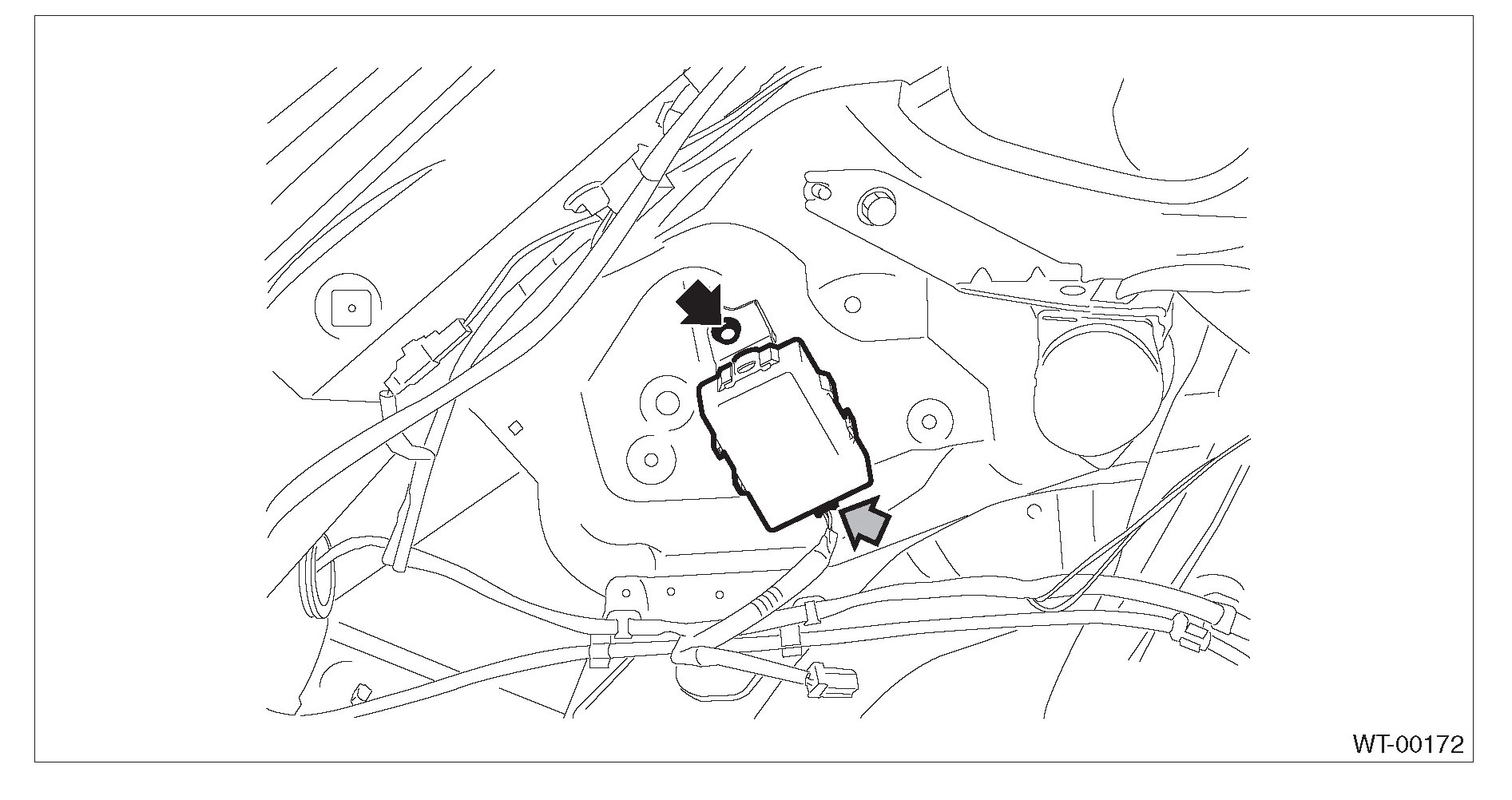

5 door model/XV model
1) Disconnect the ground cable from battery.
2) Remove the trim panel - rear apron LH.
3) Remove the TPMS & keyless control module.
(1) Disconnect the connector.
(2) Remove the bolt and then remove the TPMS & keyless control module.
