Ignition Lock: Testing and Inspection
Ignition Key LockINSPECTION
1. Disconnect the ignition switch connector.

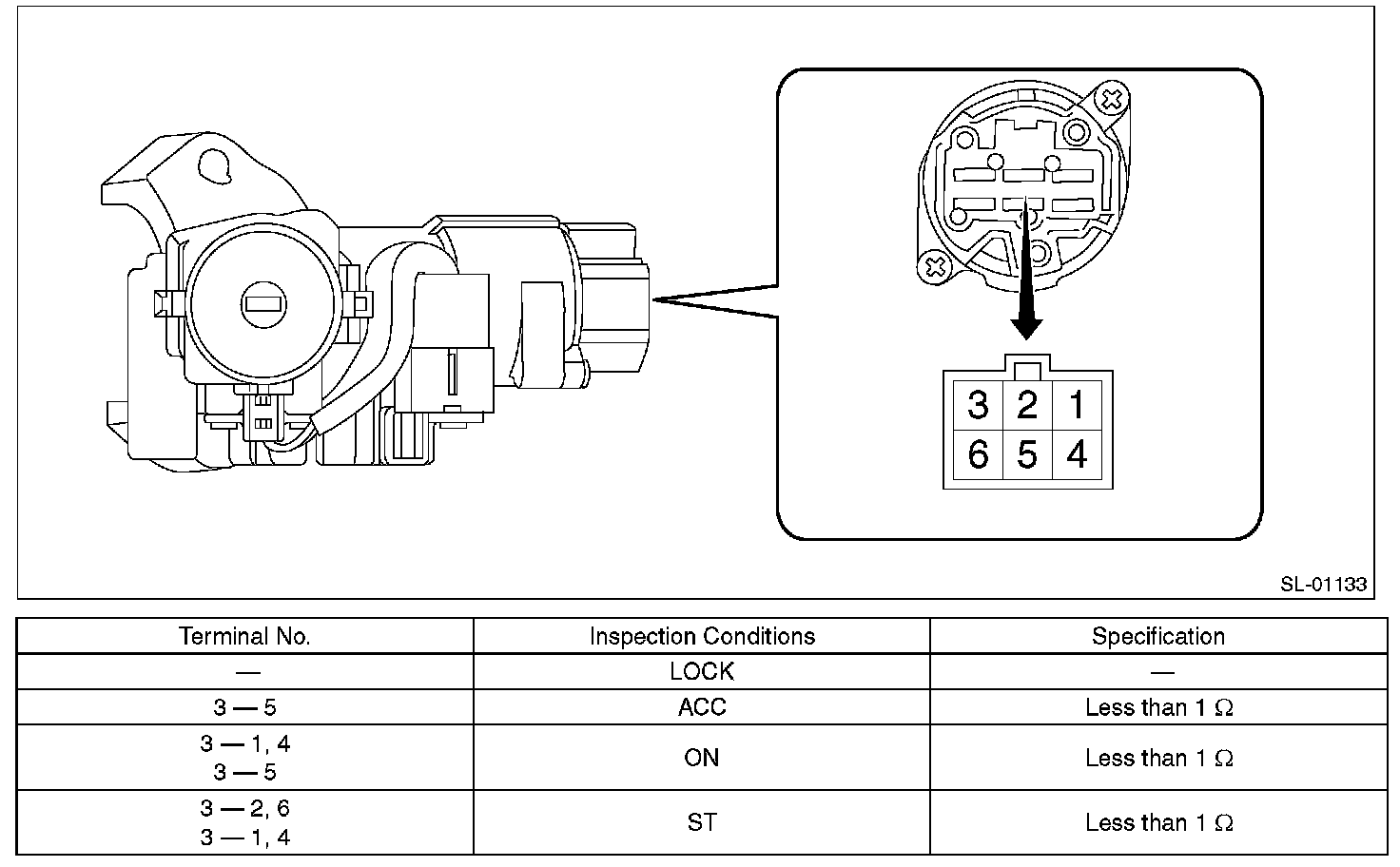

2. Measure the resistance between ignition switch terminals.
Preparation tool: Circuit tester
3. Replace the ignition switch if the inspection result is not within the standard value.
