Home >> Subaru >> 2012 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Fuel Injection (Fuel Systems)

Fuel Injection (Fuel Systems)

General Description

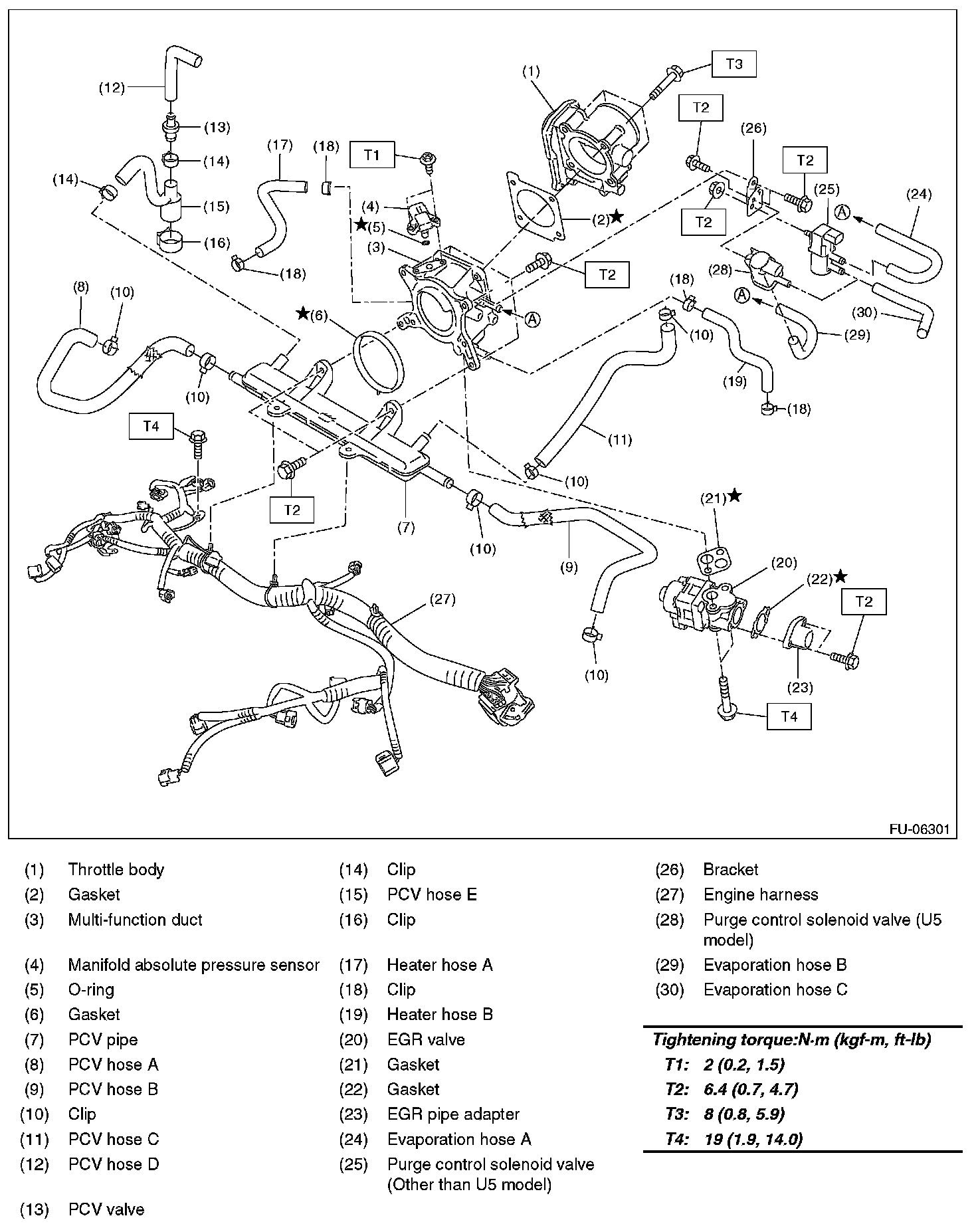

AIR INTAKE SYSTEM

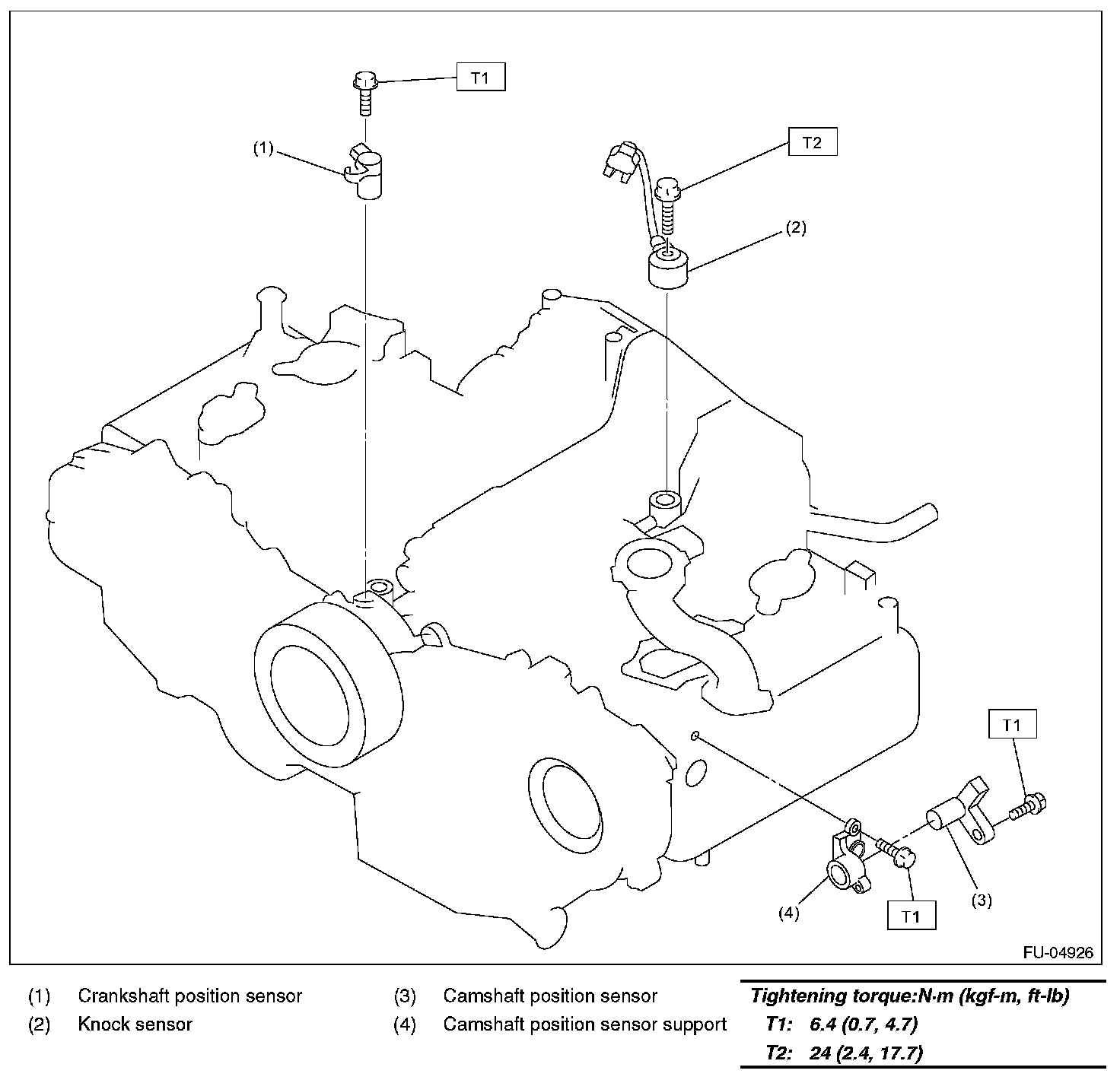

CRANKSHAFT POSITION, CAMSHAFT POSITION AND KNOCK SENSORS
