Coolant Temperature Sensor/Switch (For Computer): Service and Repair

Engine Coolant Temperature Sensor

REMOVAL

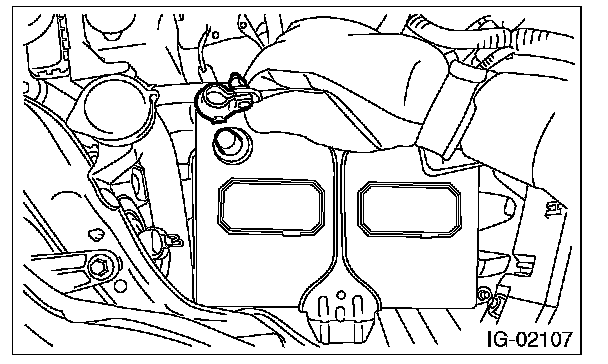

1. Disconnect the ground cable from battery.






2. Remove the generator.
3. Drain engine coolant.

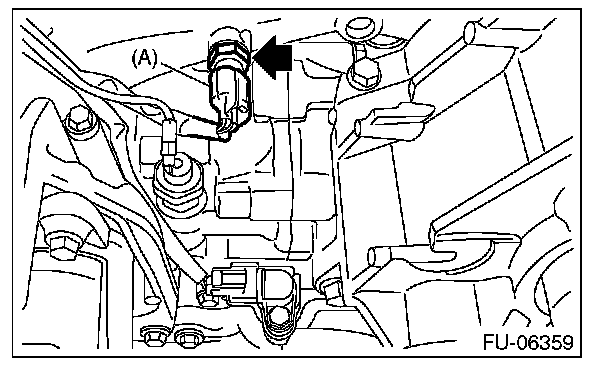

4. Disconnect the connector (A) from the engine coolant temperature sensor, and remove the engine coolant temperature sensor.






INSTALLATION

Install in the reverse order of removal.

NOTE: Use a new gasket.

Tightening torque: 18 N.m (1.8 kgf-m, 13.3 ft-lb)
