Seat Belt Systems
Seat Belt Systems
General Description
COMPONENT

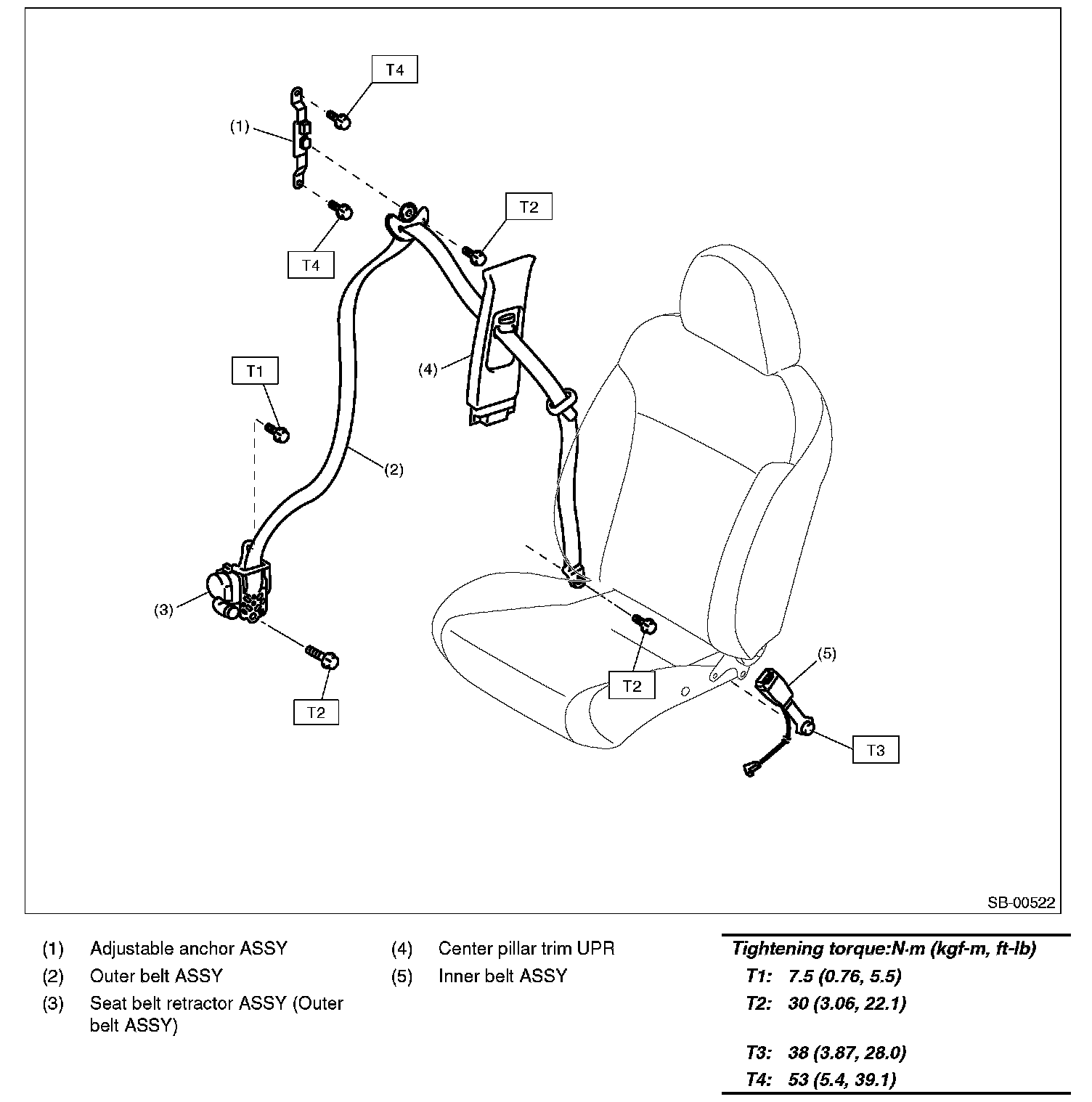

1.
FRONT
SEAT BELT

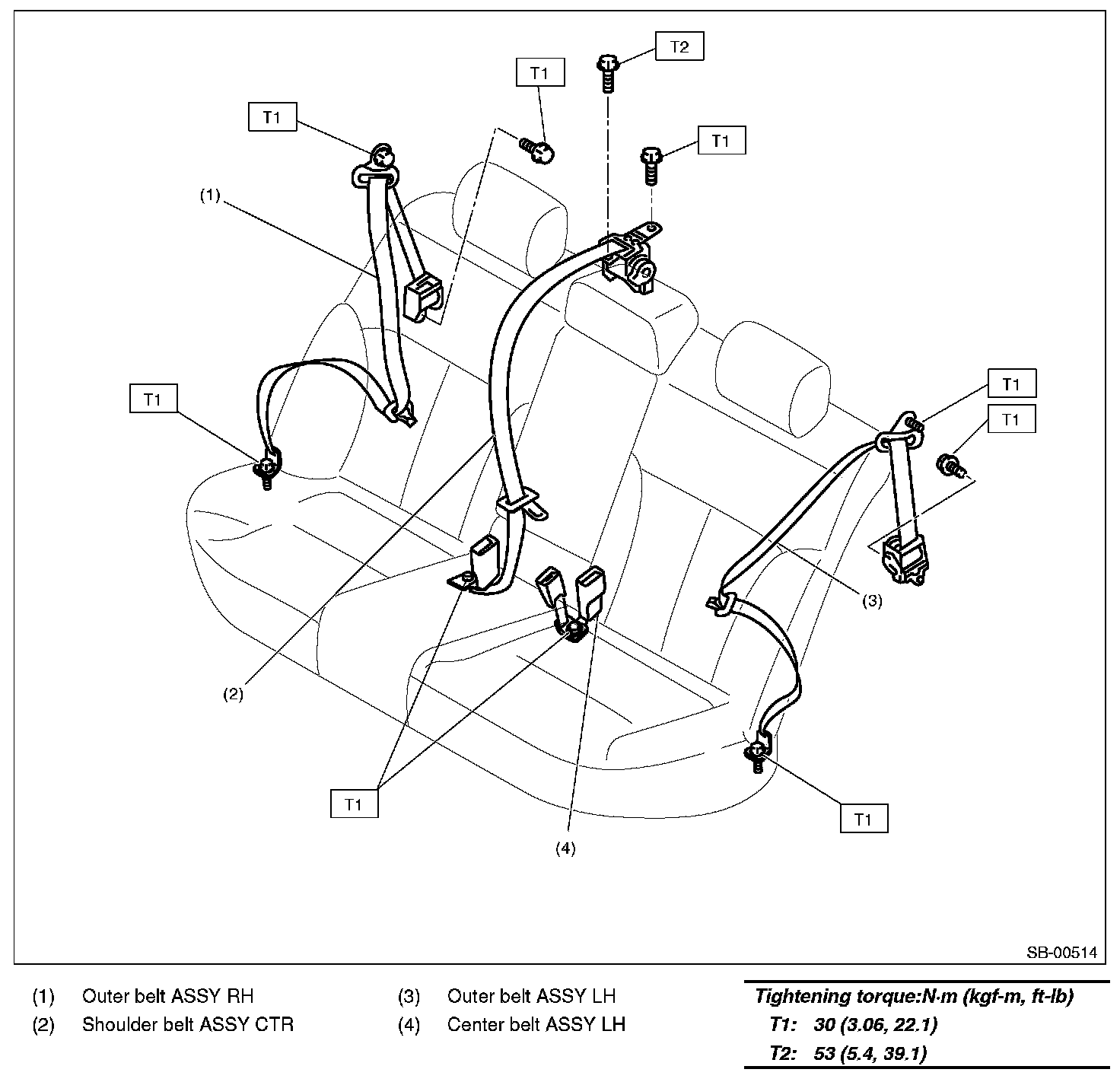

2.
REAR
SEAT BELT
(SEDAN MODEL)

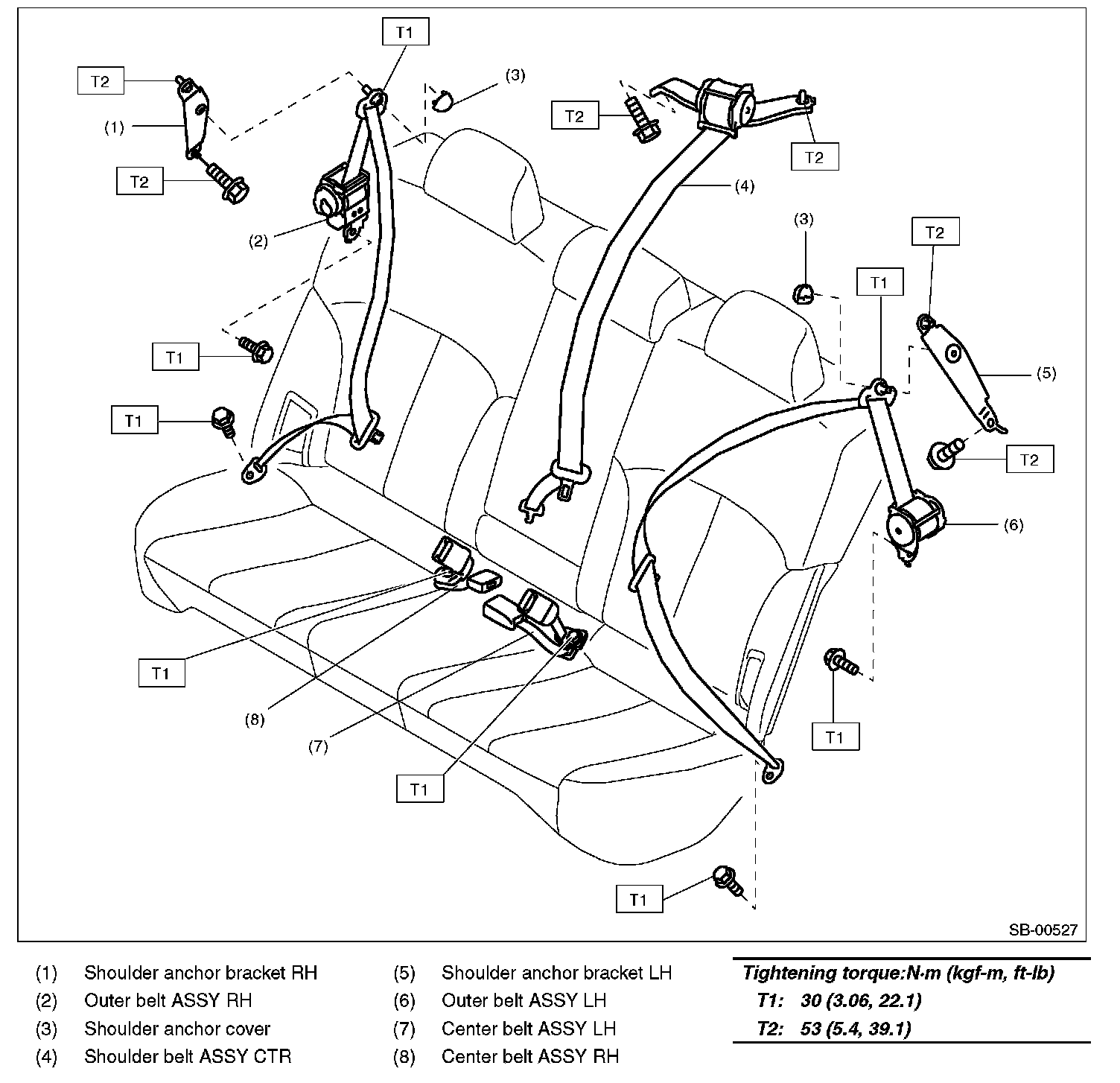

3.
REAR
SEAT BELT
(OUTBACK MODEL)
