Intake Manifold
INTAKE MANIFOLDInstall the intake manifold protector.
Tightening torque 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

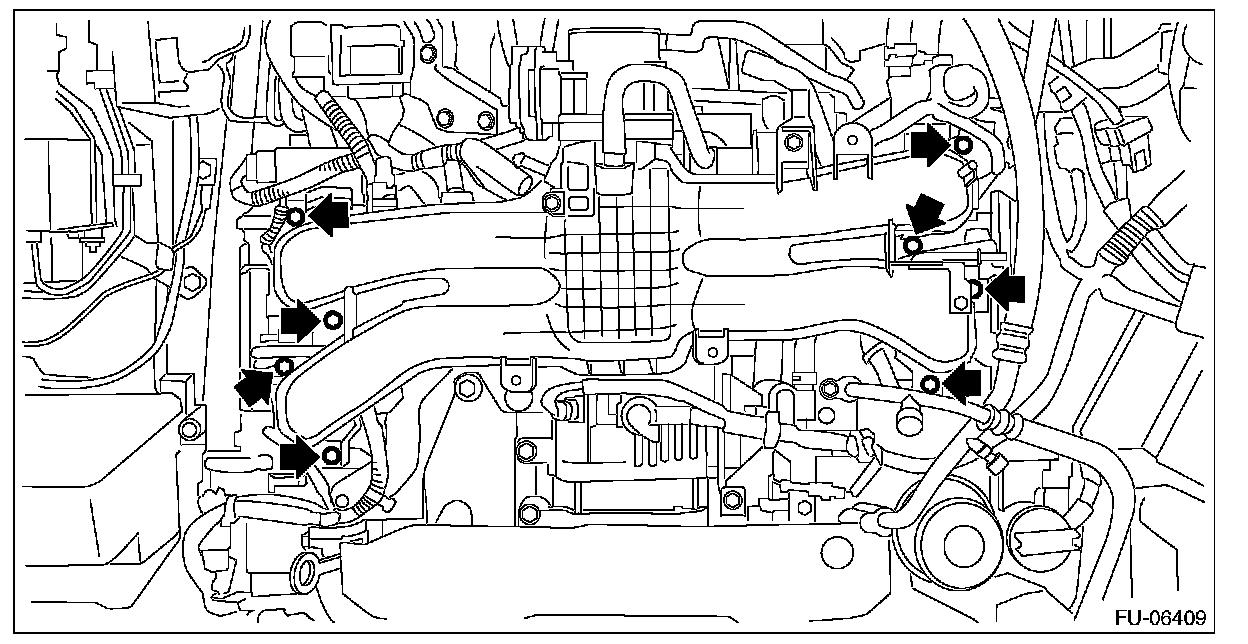

Install the intake manifold to the tumble generator valve assembly.
Tightening torque 8.3 N.m (0.8 kgf-m, 6.1 ft-lb)
Install the intake manifold protector.
Tightening torque 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
Install the intake manifold to the tumble generator valve assembly.
Tightening torque 8.3 N.m (0.8 kgf-m, 6.1 ft-lb)
