Main Relay (Computer/Fuel System): Service and Repair

Main Relay

REMOVAL
1. Disconnect the ground cable from battery.






2. Remove the back panel - pocket.

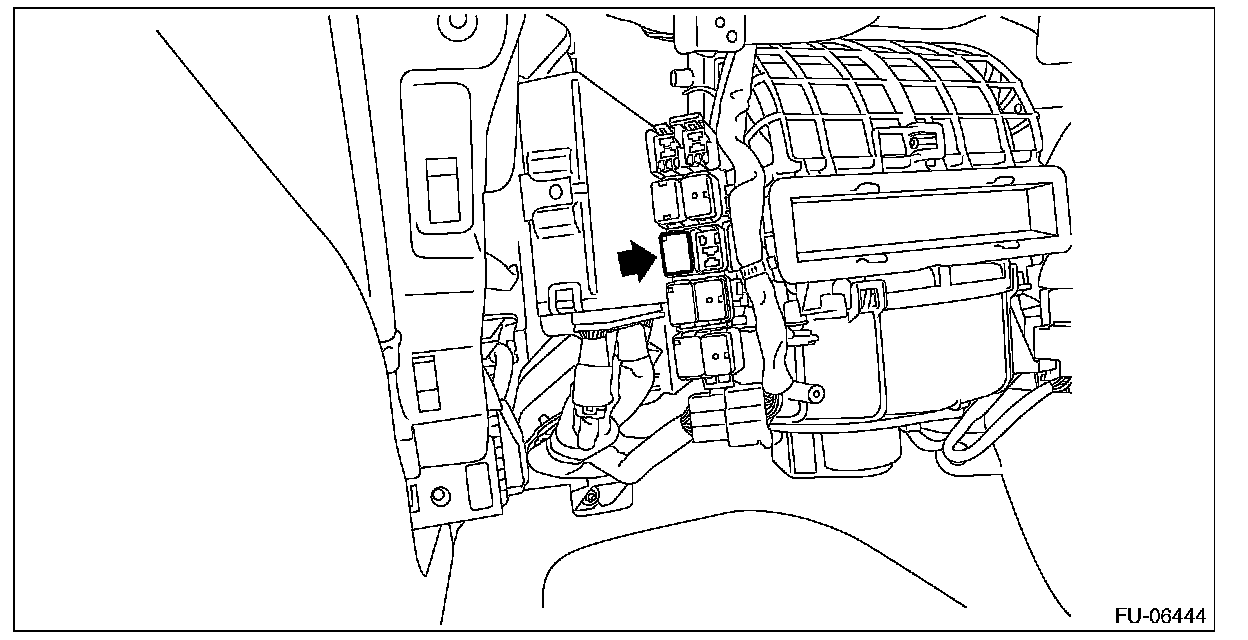

3. Remove the main relay from the relay block on the back side of the glove box.






INSTALLATION
Install in the reverse order of removal.
