Keyless Entry Transmitter: Testing and Inspection

Keyless Transmitter

INSPECTION

KEYLESS TRANSMITTER BATTERY

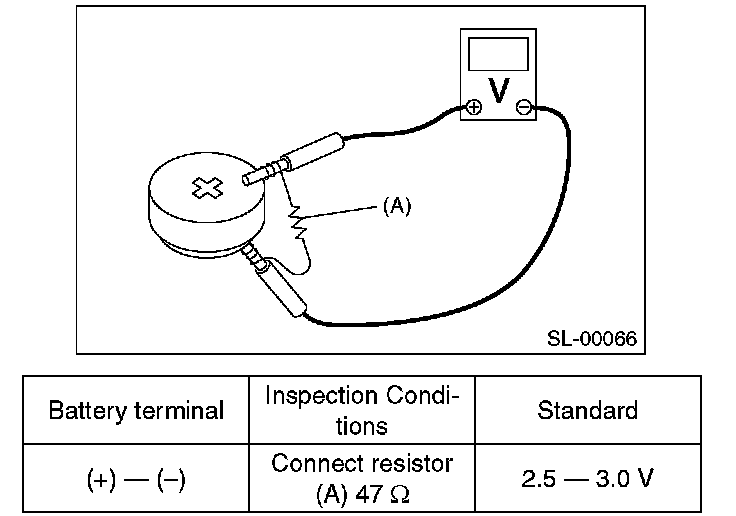

1. Check the keyless transmitter battery voltage.

PREPARATION TOOL: Circuit tester

NOTE: Complete the measurement within 5 seconds because the battery discharges during measurement.






2. Replace the battery if the inspection result is not within the standard. (Use CR1620 or equivalent.)
