Installation

INSTALLATION

1) Install the TCM to the bracket.

CAUTION:
To avoid the damage to bracket and TCM, do not remove after installing TCM to bracket. If installed by mistake, the part must be replaced with a new part.

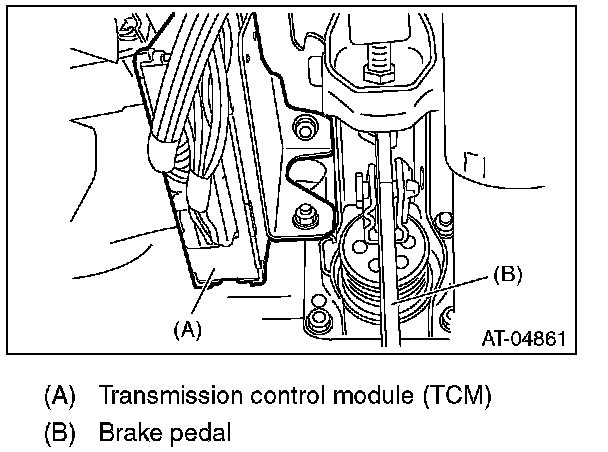

2) Install the TCM.

Tightening torque:
7.5 Nm (0.8 kgf-m, 5.5 ft-lb)





3) Connect the connector to TCM.
4) Install in the reverse order of removal.
5) Perform the diagnosis again. Programming and Relearning
