Locks

GENERAL DESCRIPTION

COMPONENT

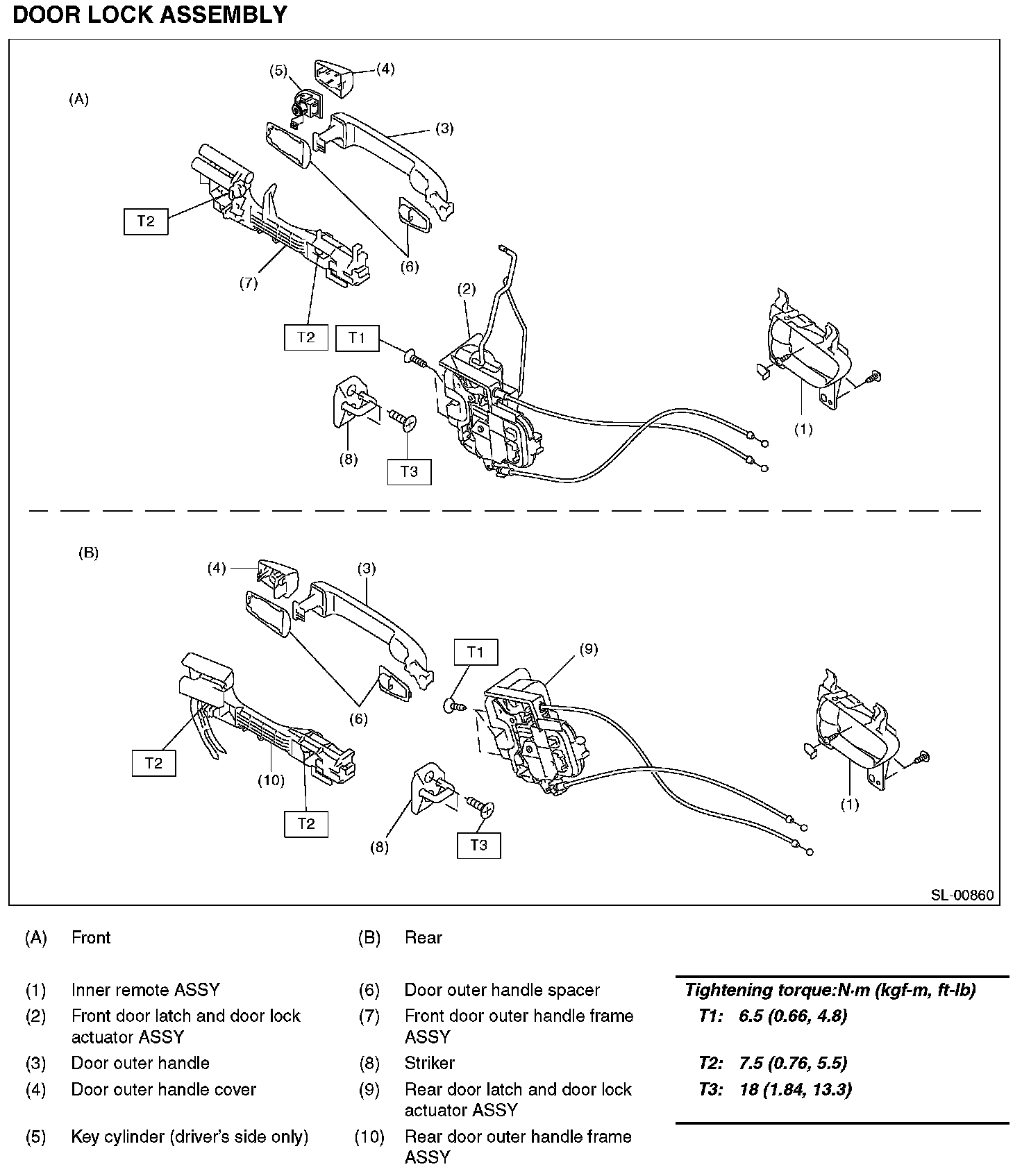

1. DOOR LOCK ASSEMBLY

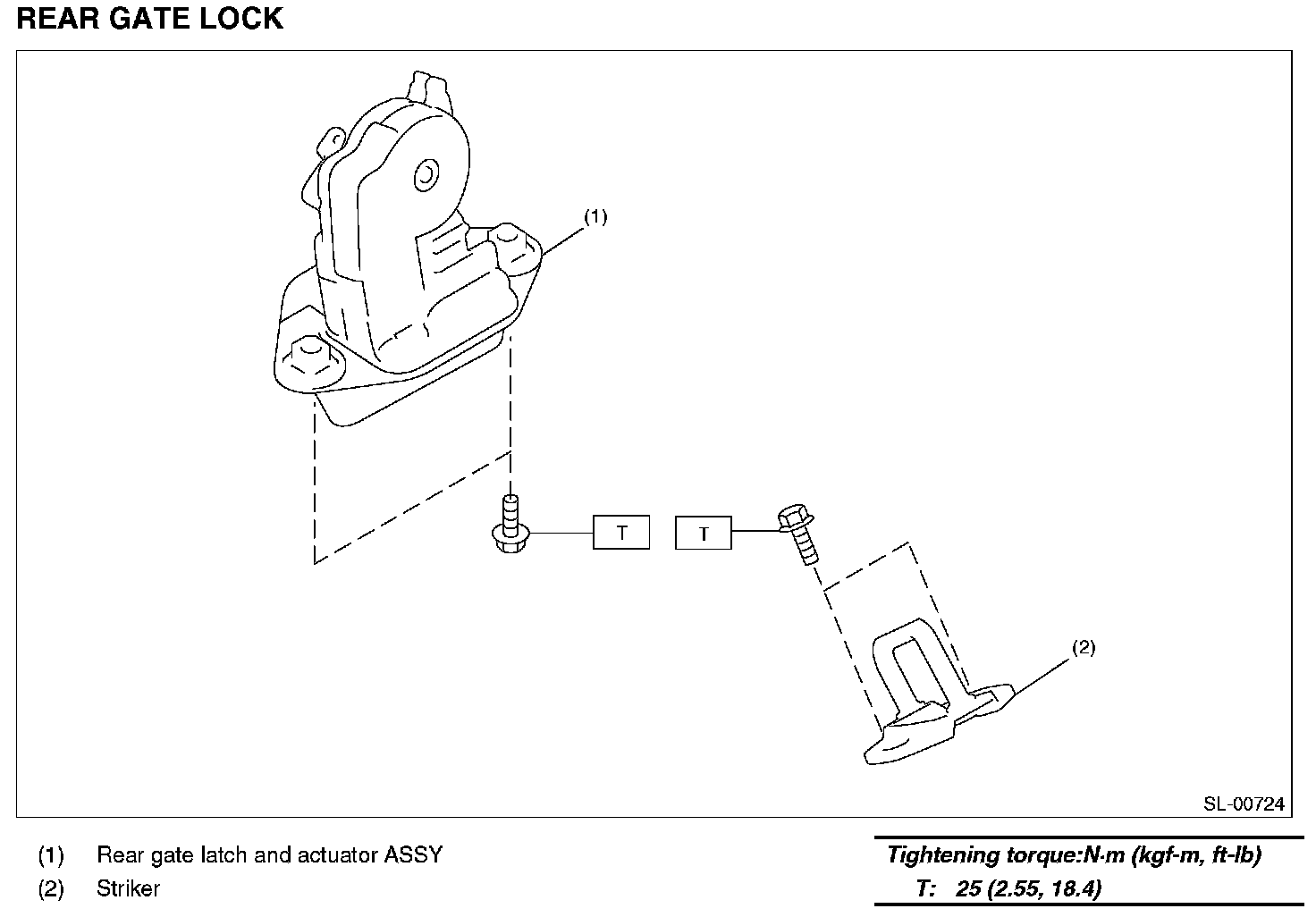

2. REAR GATE LOCK

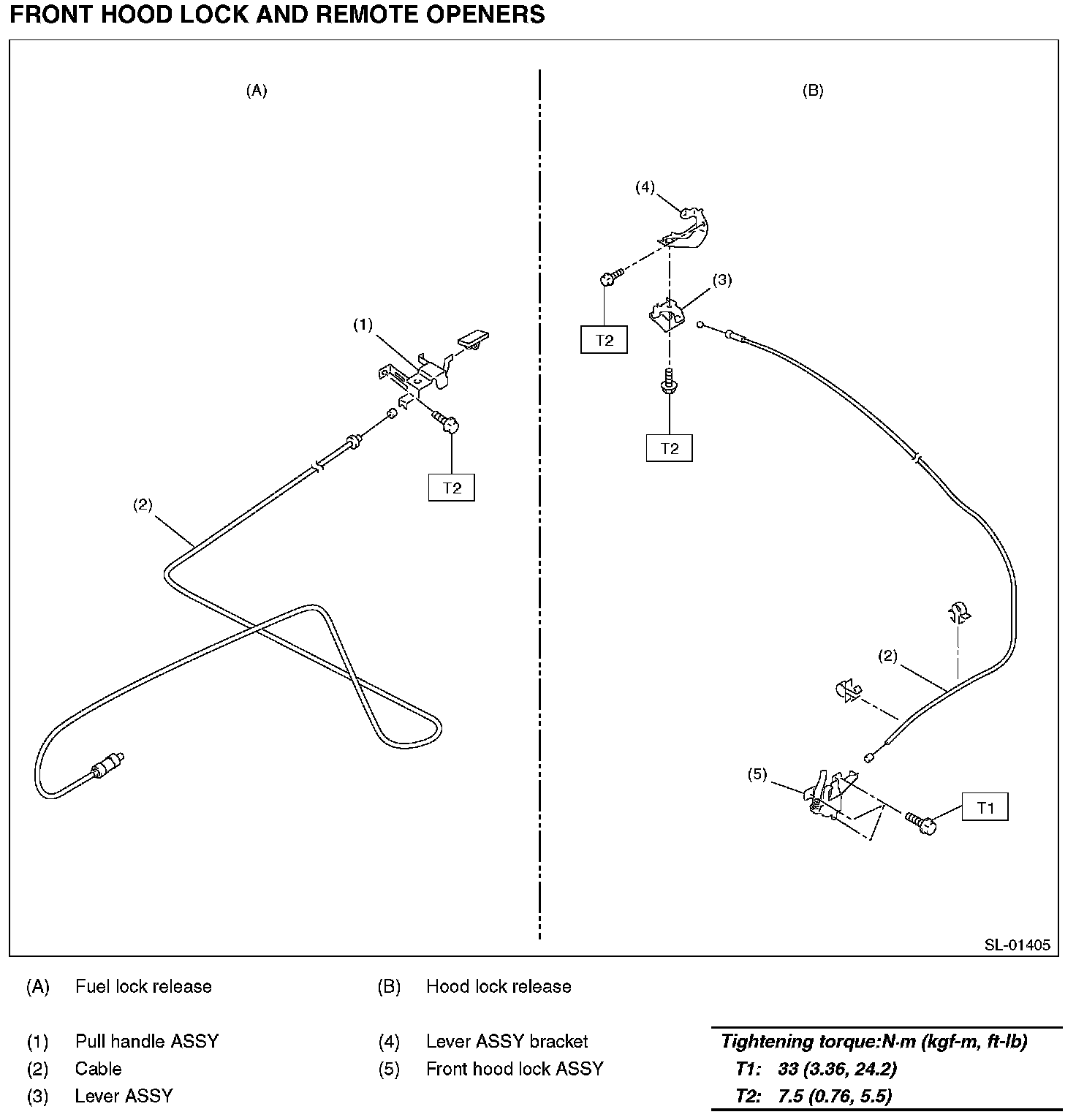

3. FRONT HOOD LOCK AND REMOTE OPENERS






4. KEYLESS ENTRY SYSTEM

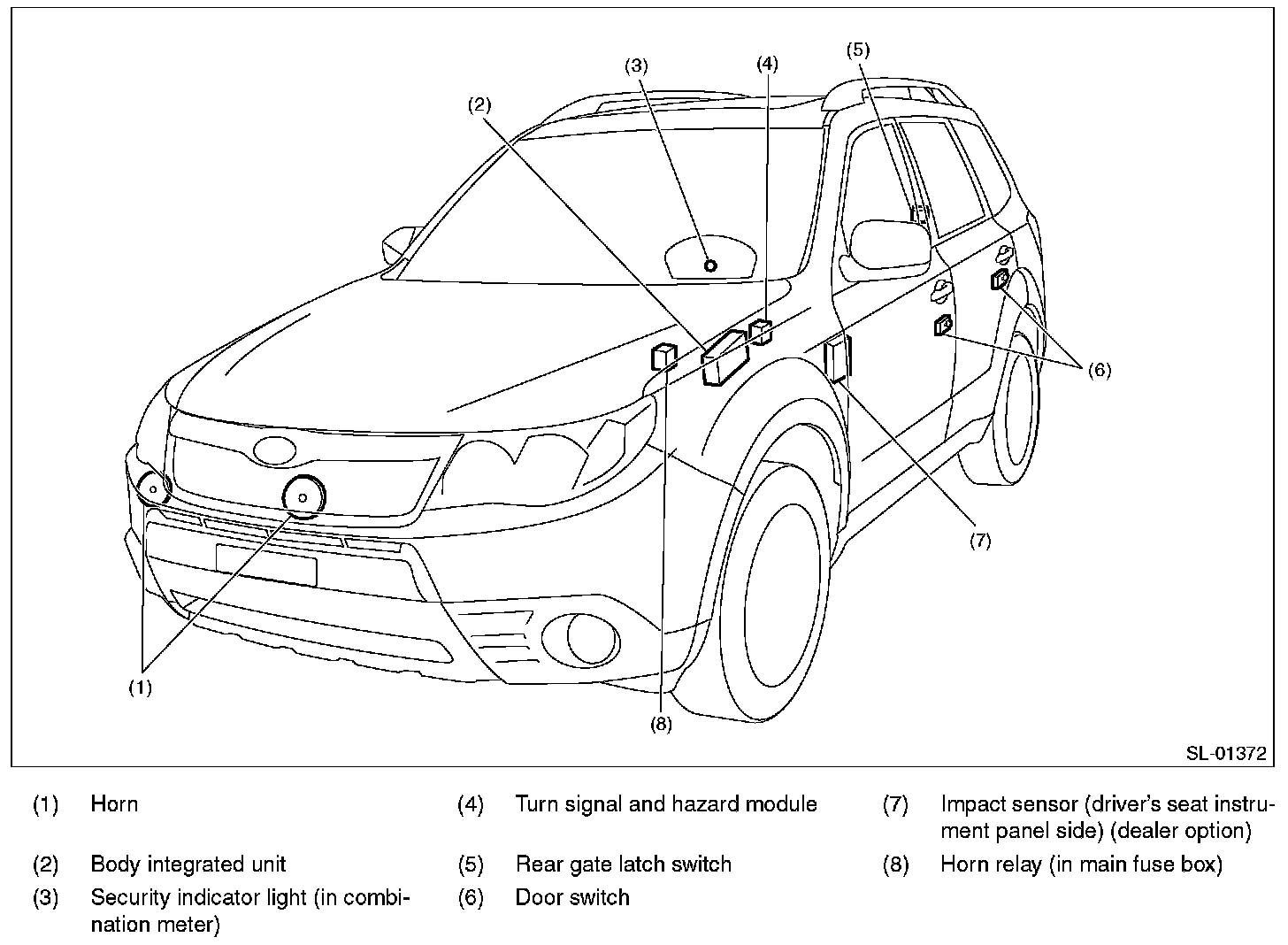

5. SECURITY SYSTEM
