Pinout Values and Diagnostic Parameters

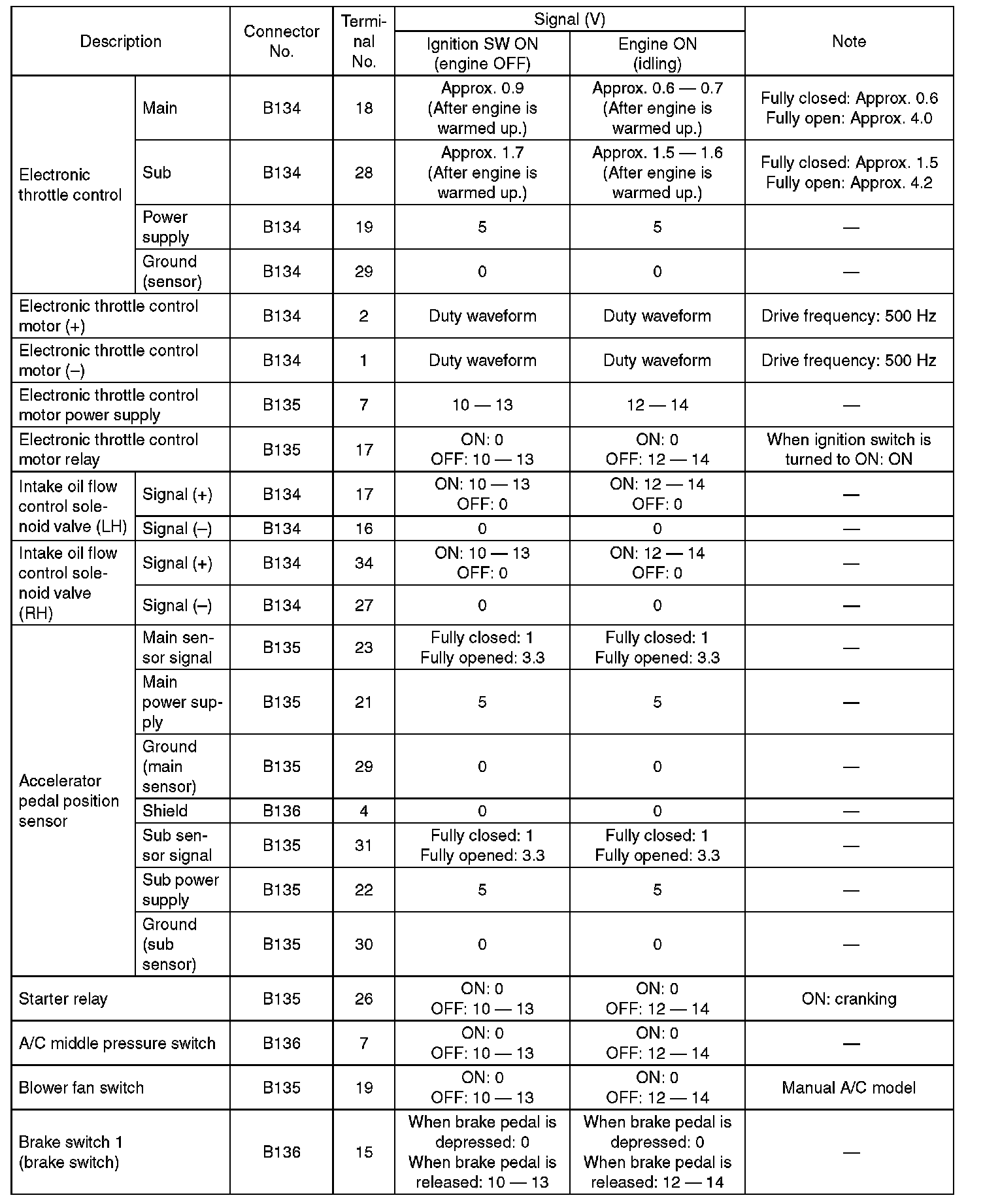

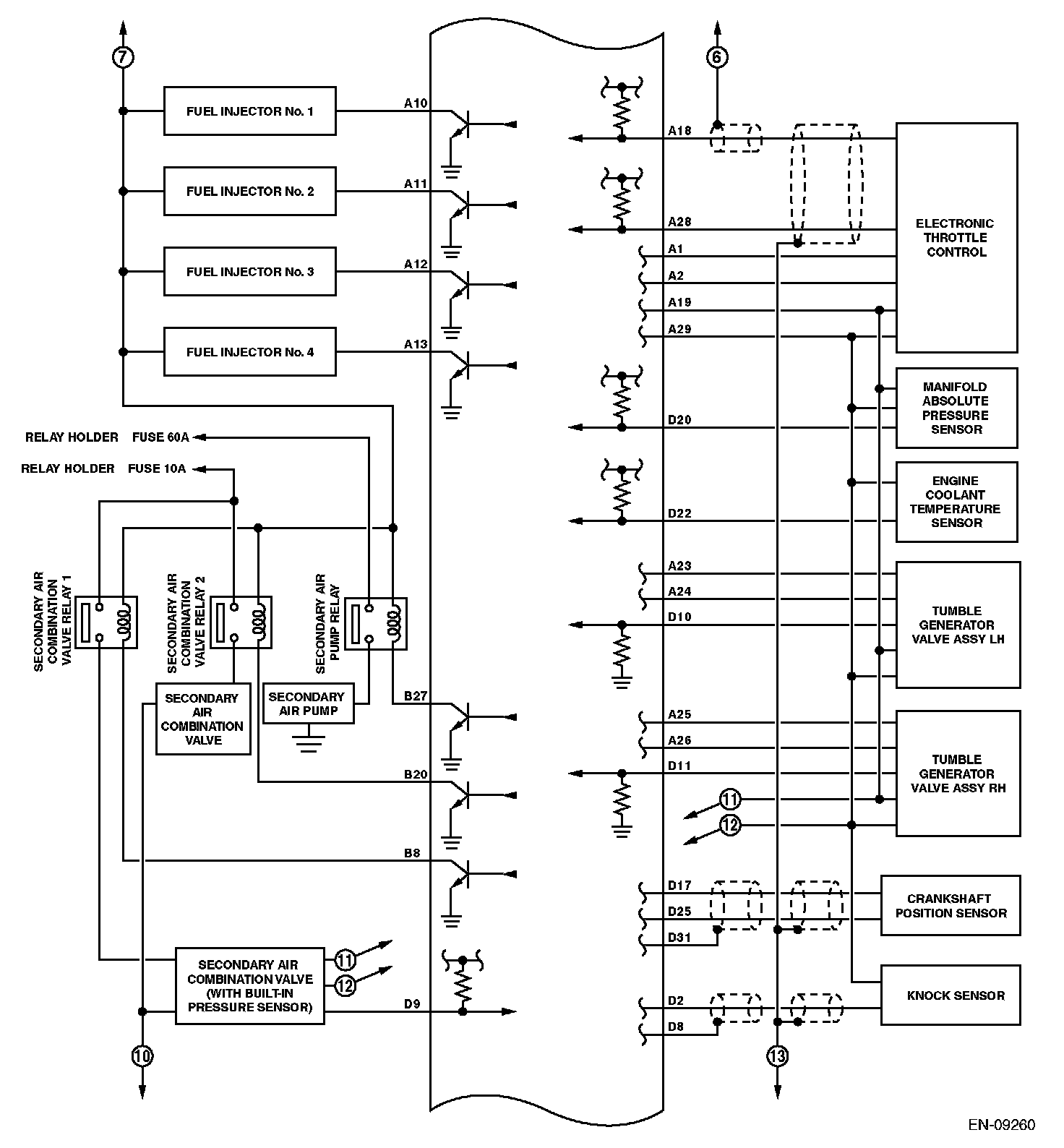

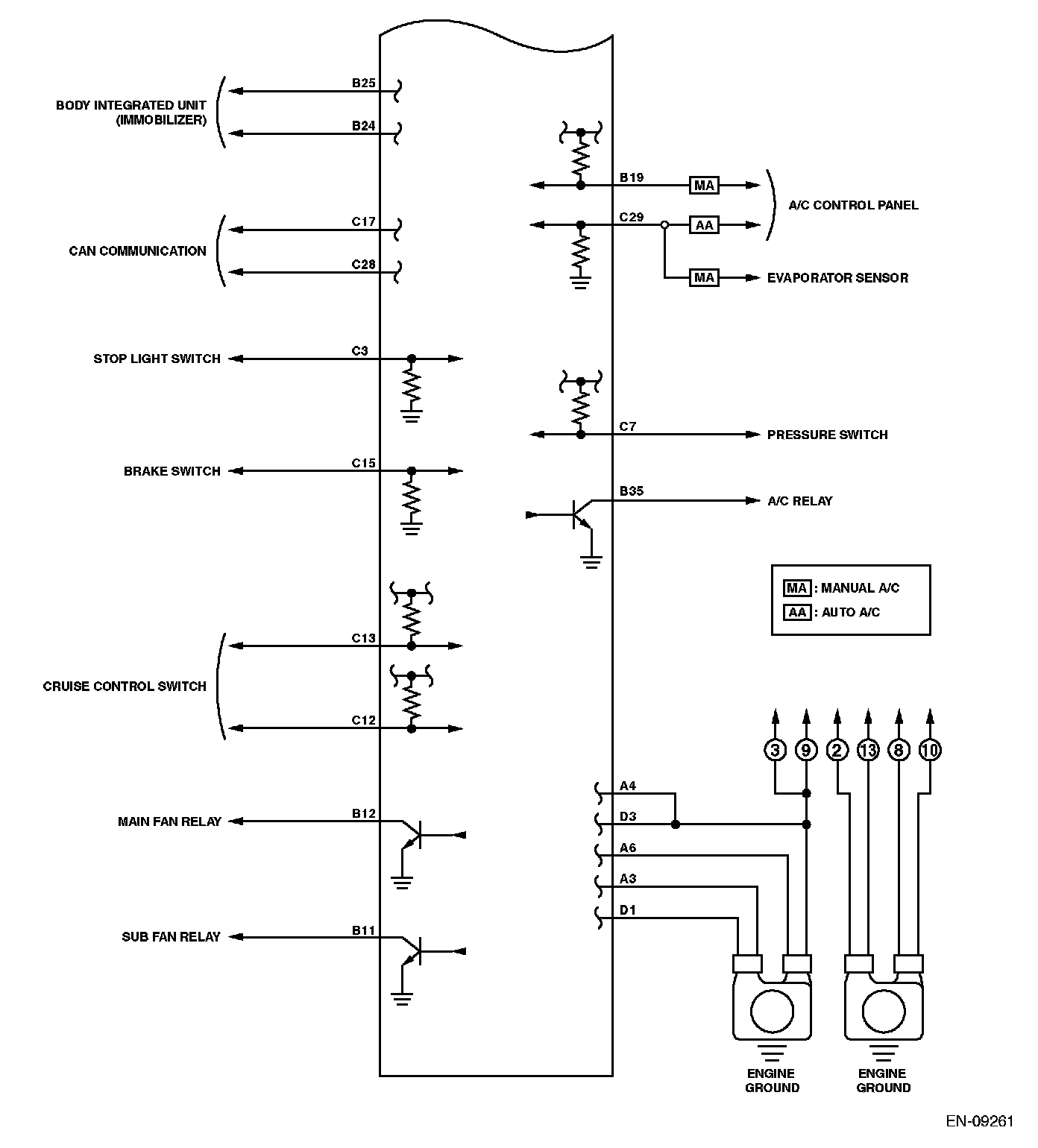

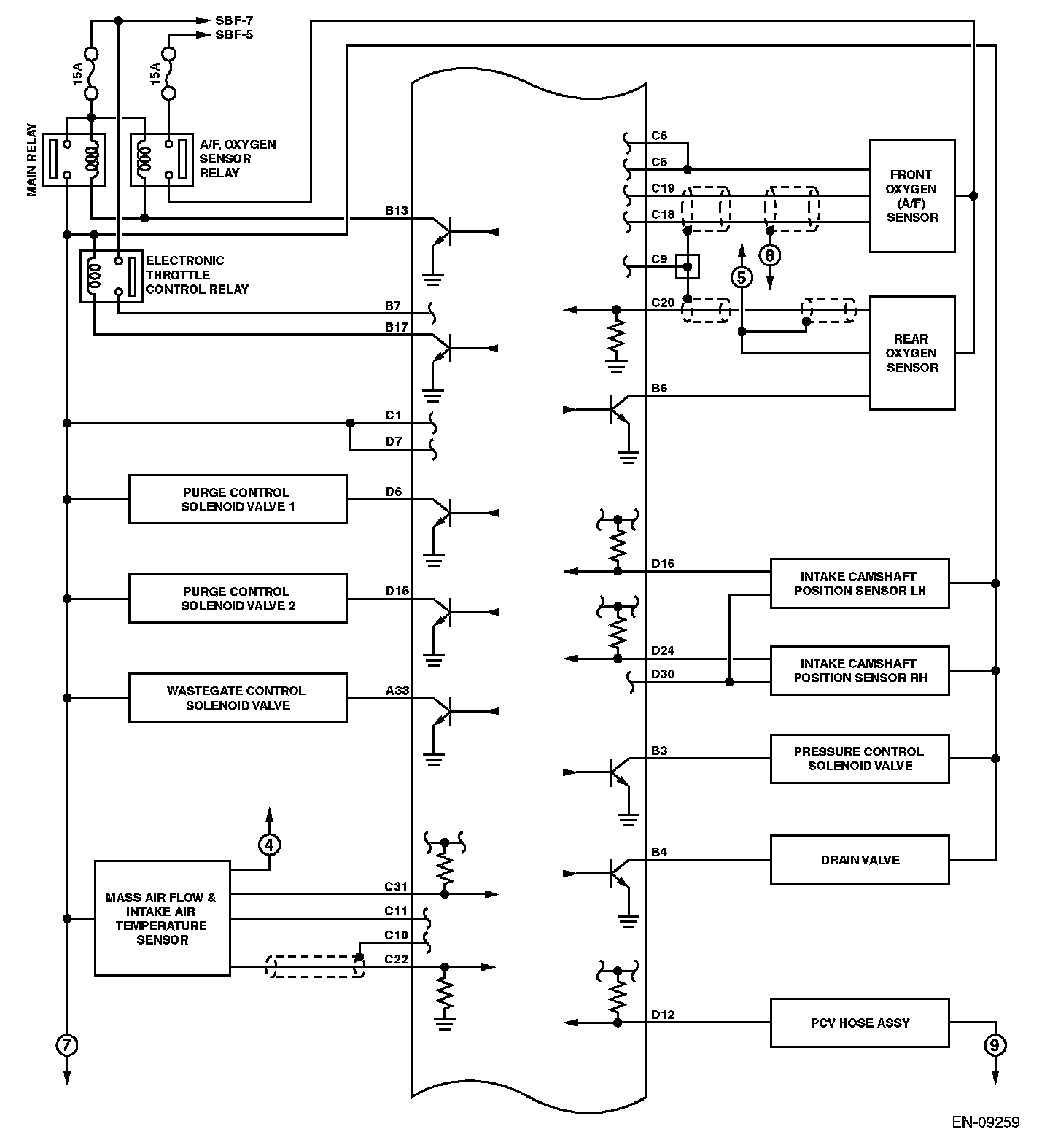

ENGINE CONTROL MODULE (ECM) I/O SIGNAL

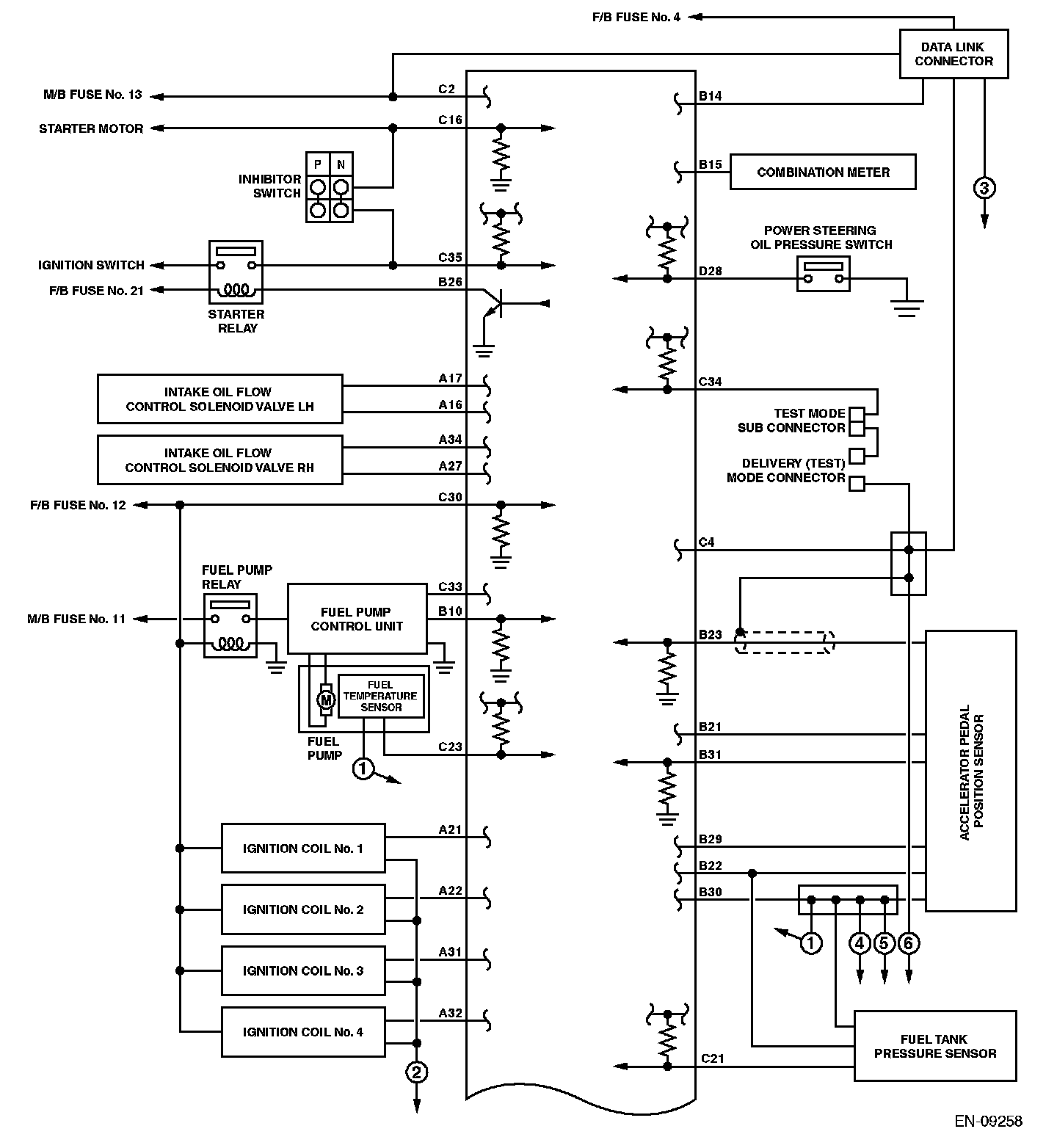

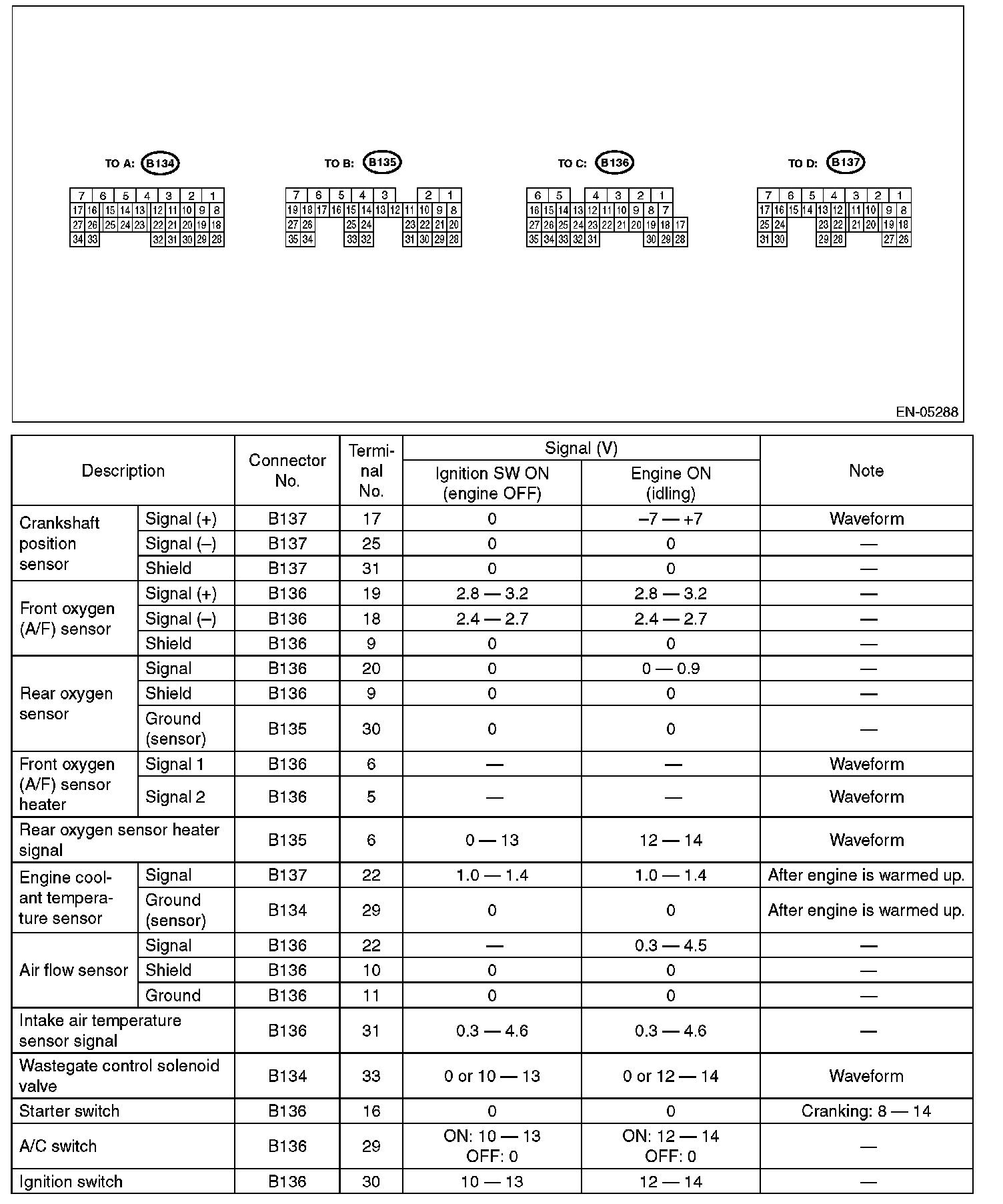

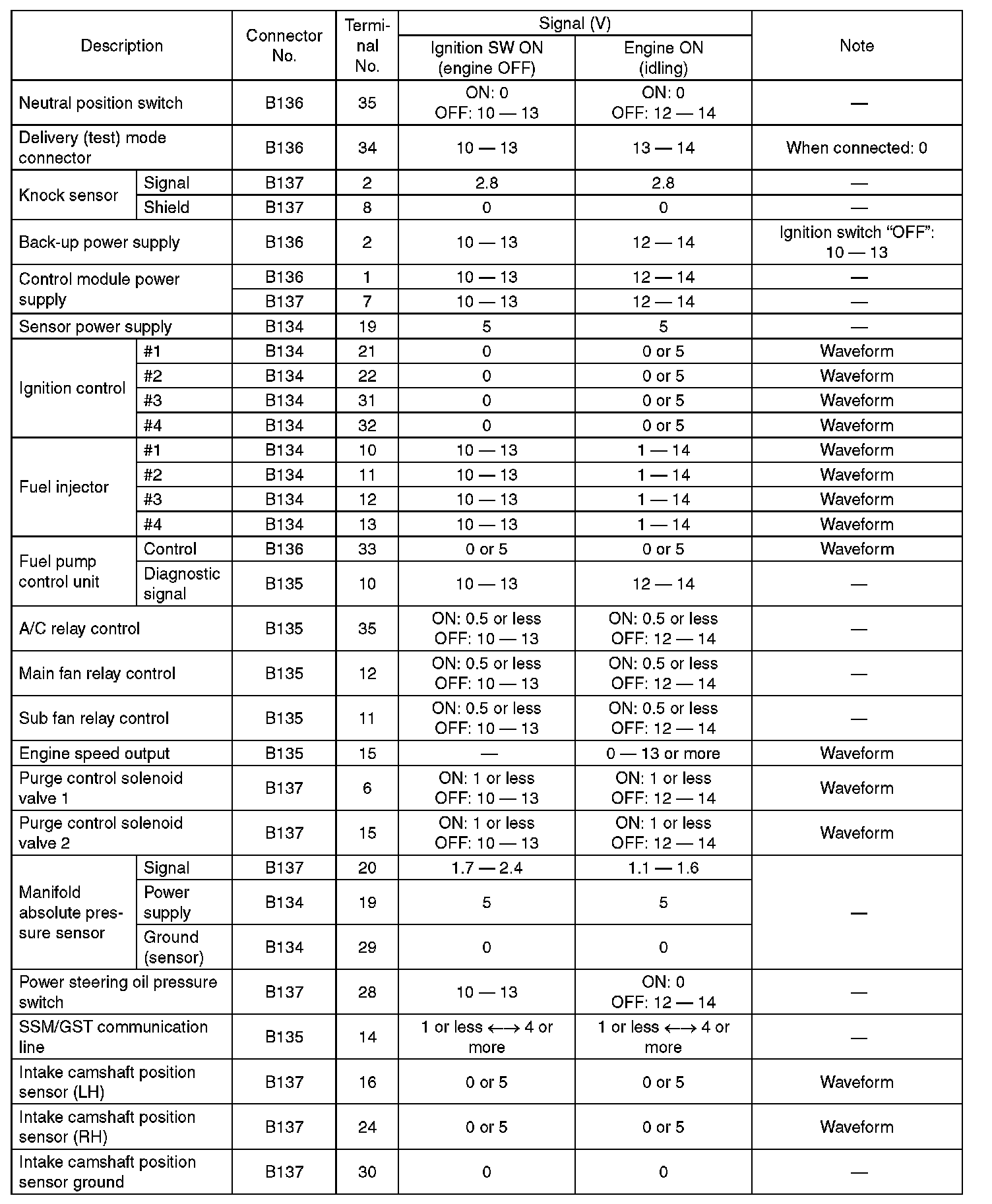

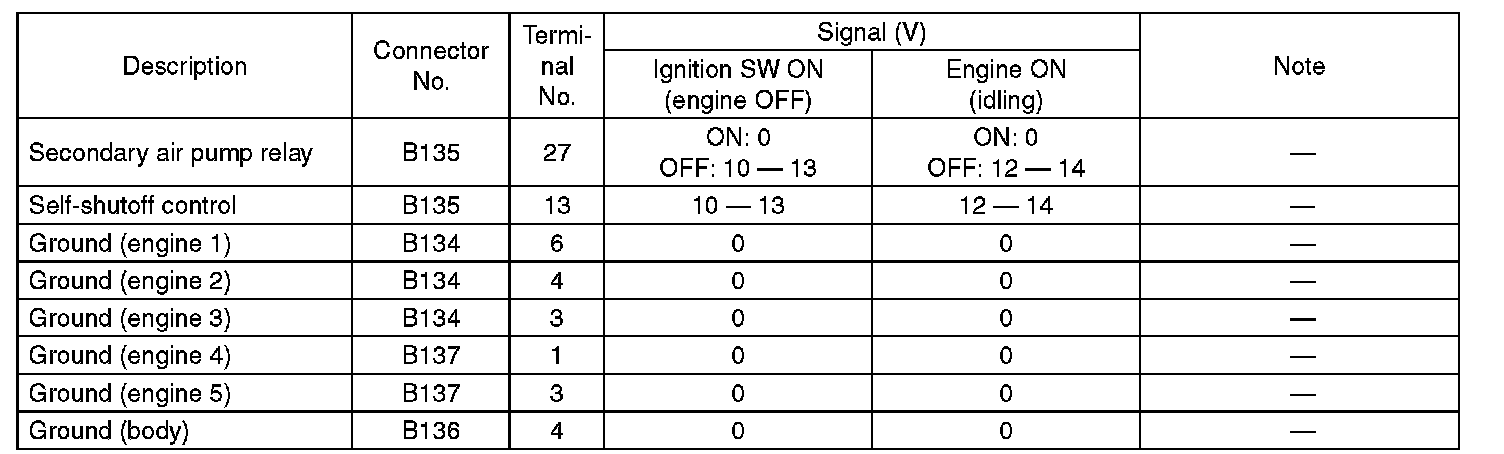

ELECTRICAL SPECIFICATION


















Input/output name:

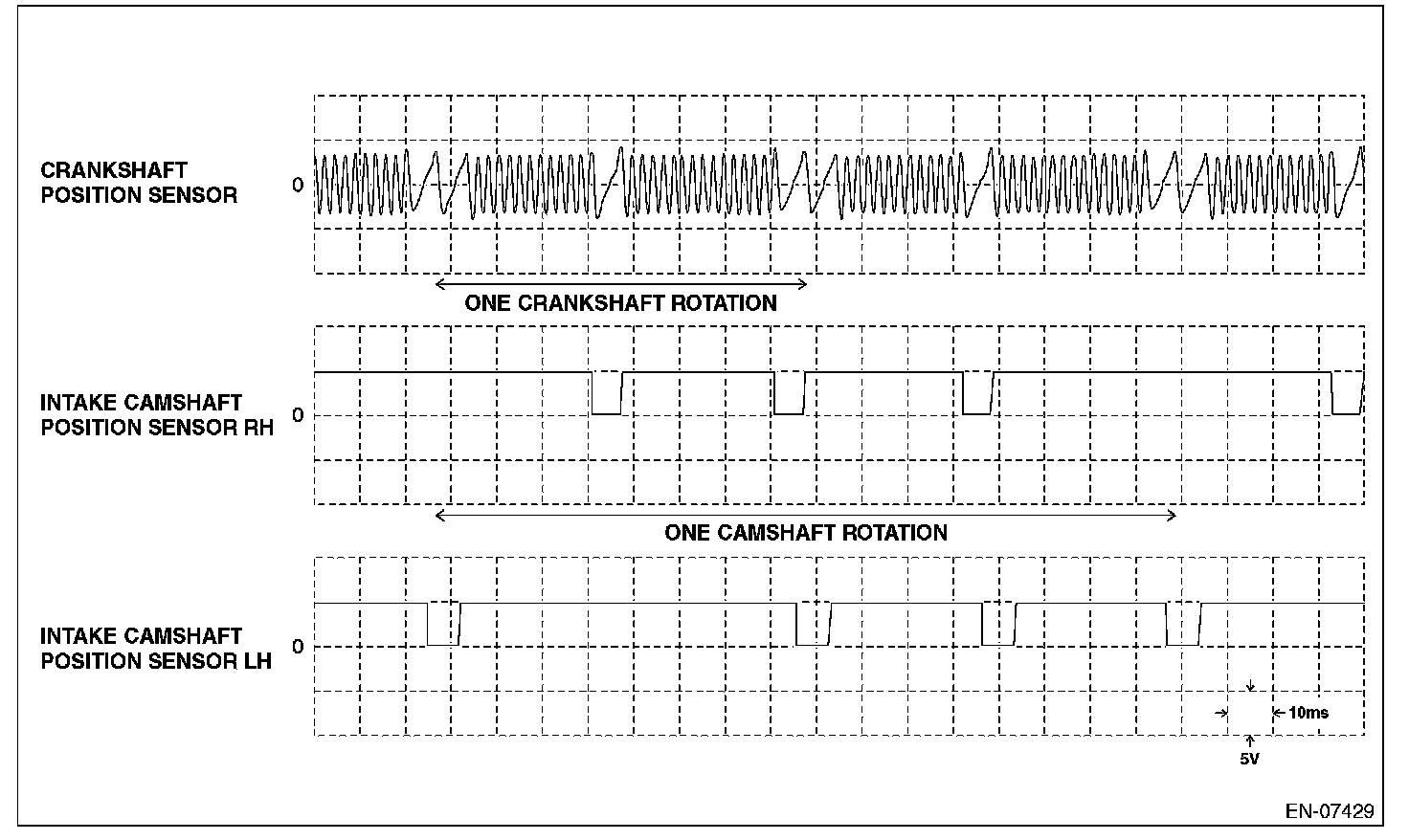

- Crankshaft position sensor
- Intake camshaft position sensor RH
- Intake camshaft position sensor LH

Measuring condition:
- After warming-up
- At idling
