Exploded Views

COMPONENT

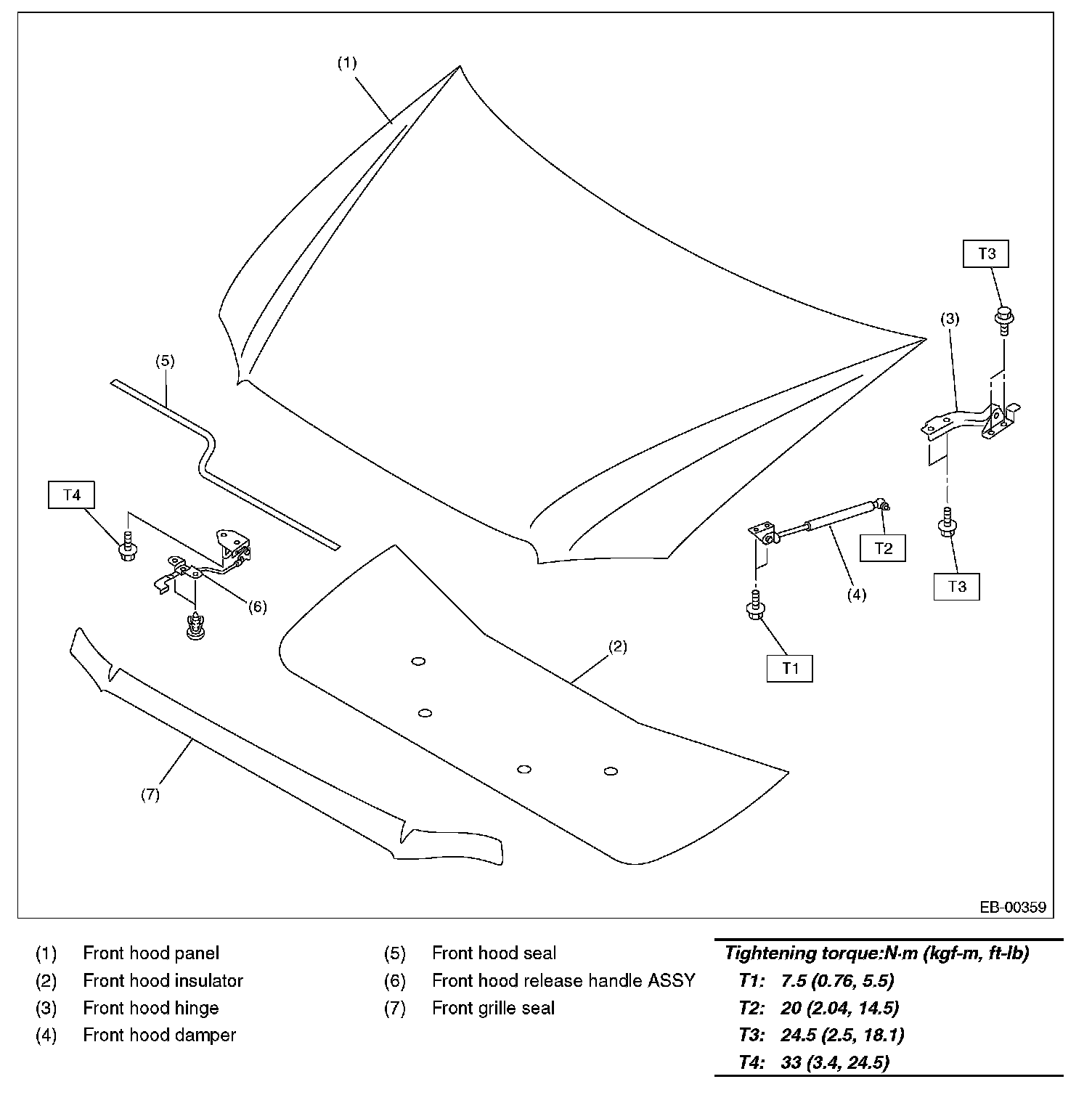

1. FRONT HOOD


Front Hood:

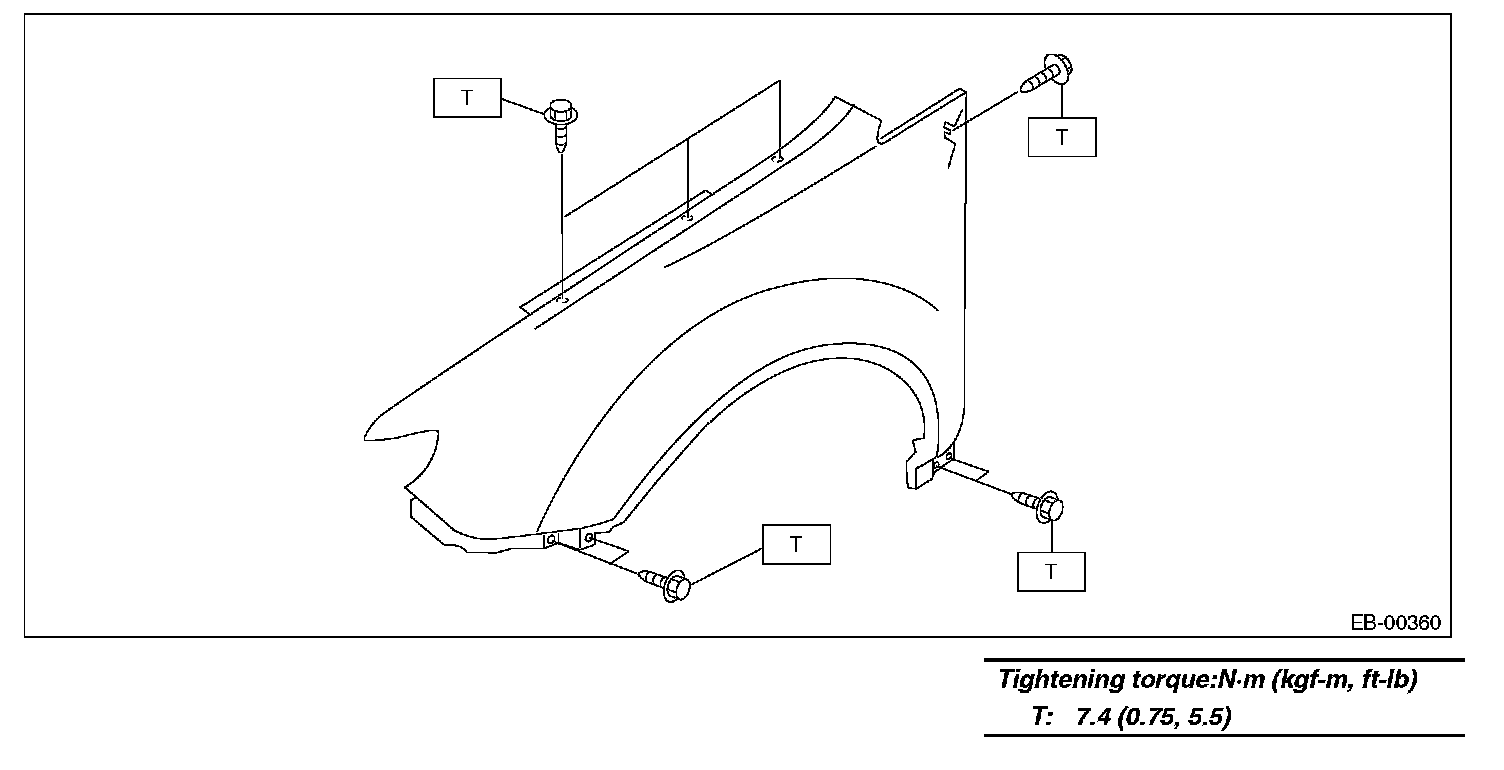

2. FRONT FENDER PANEL


Front Fender Panel:

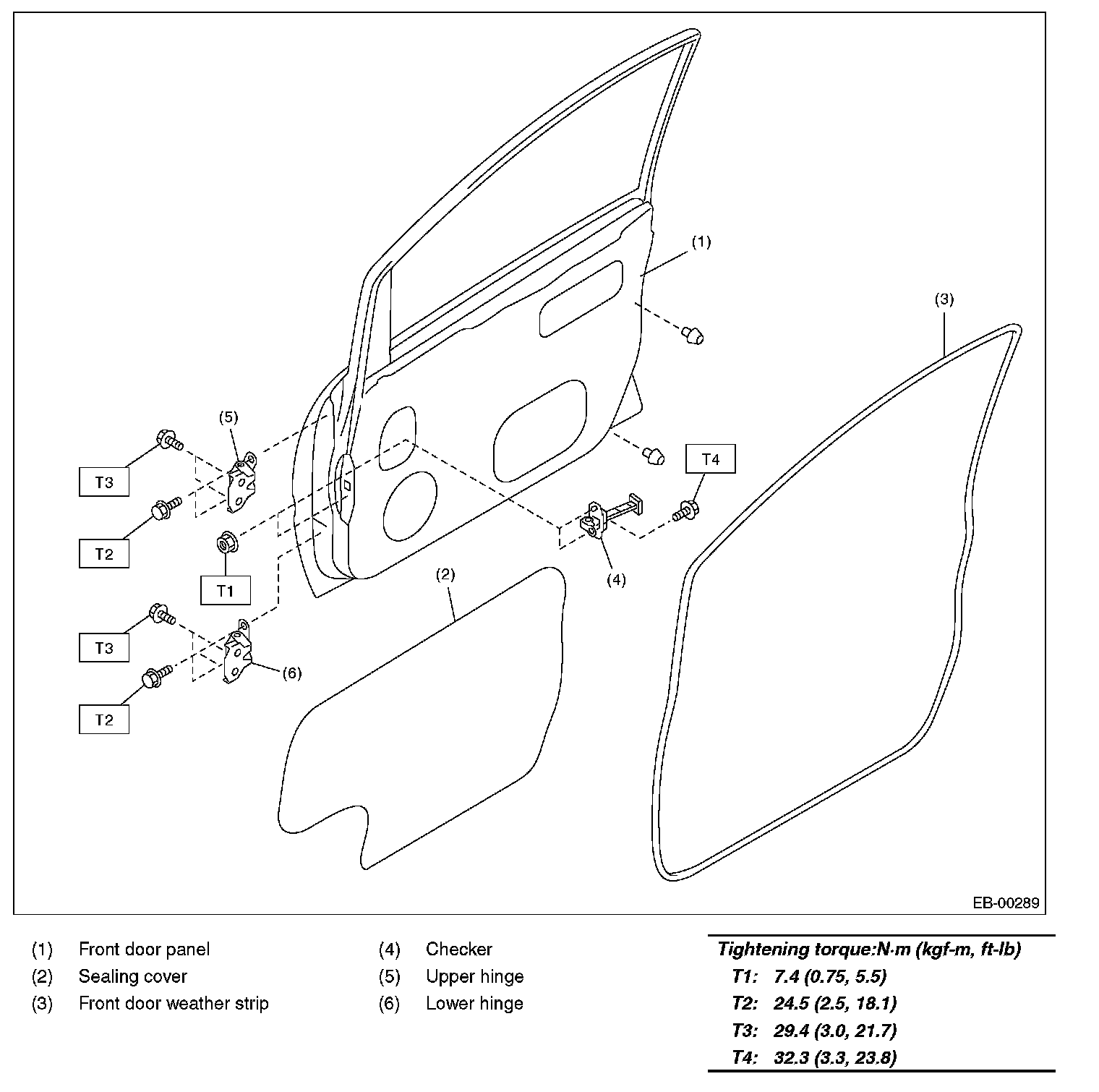

3. FRONT DOOR PANEL


Front Door Panel:

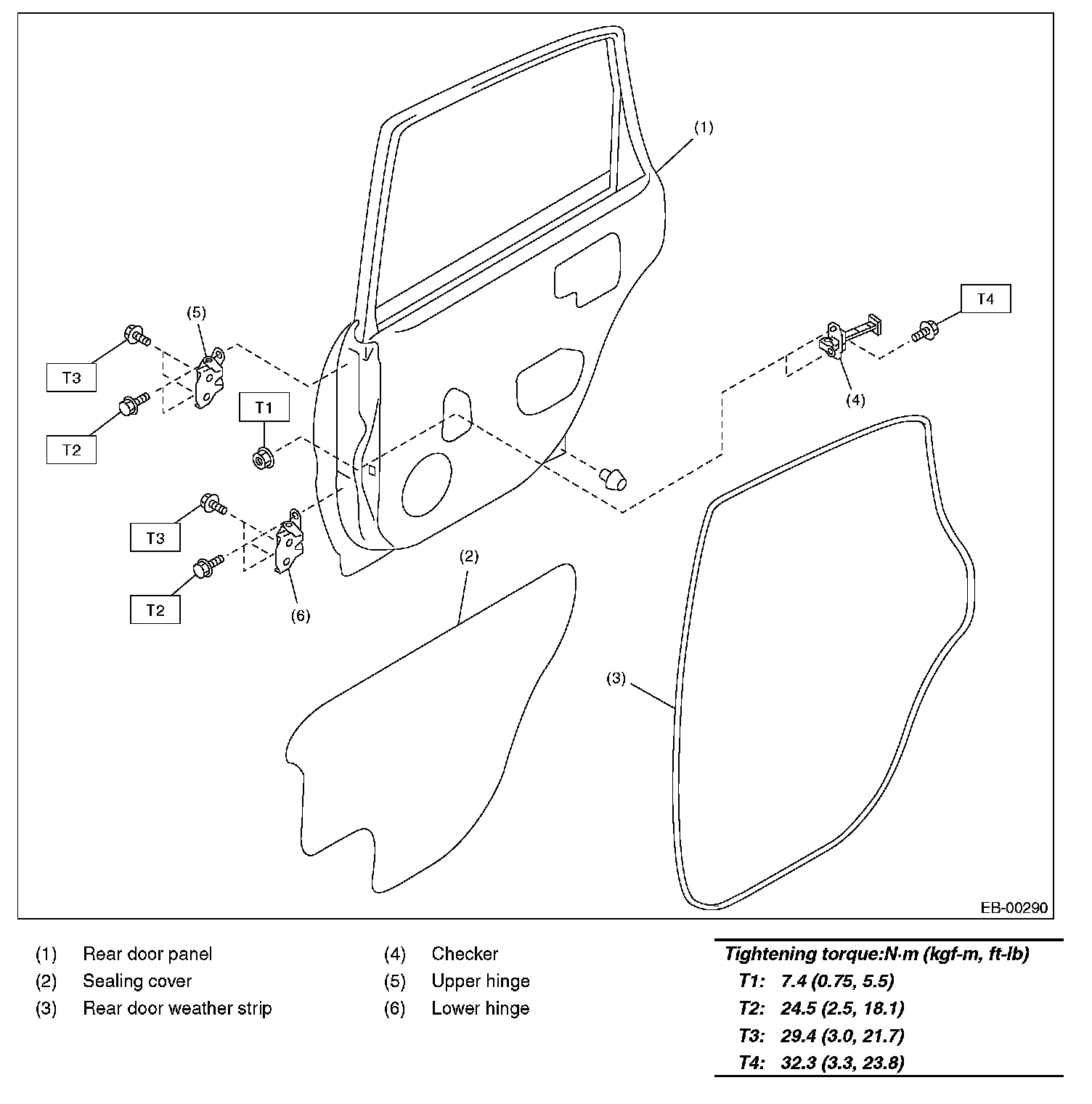

4. REAR DOOR PANEL


Rear Door Panel:

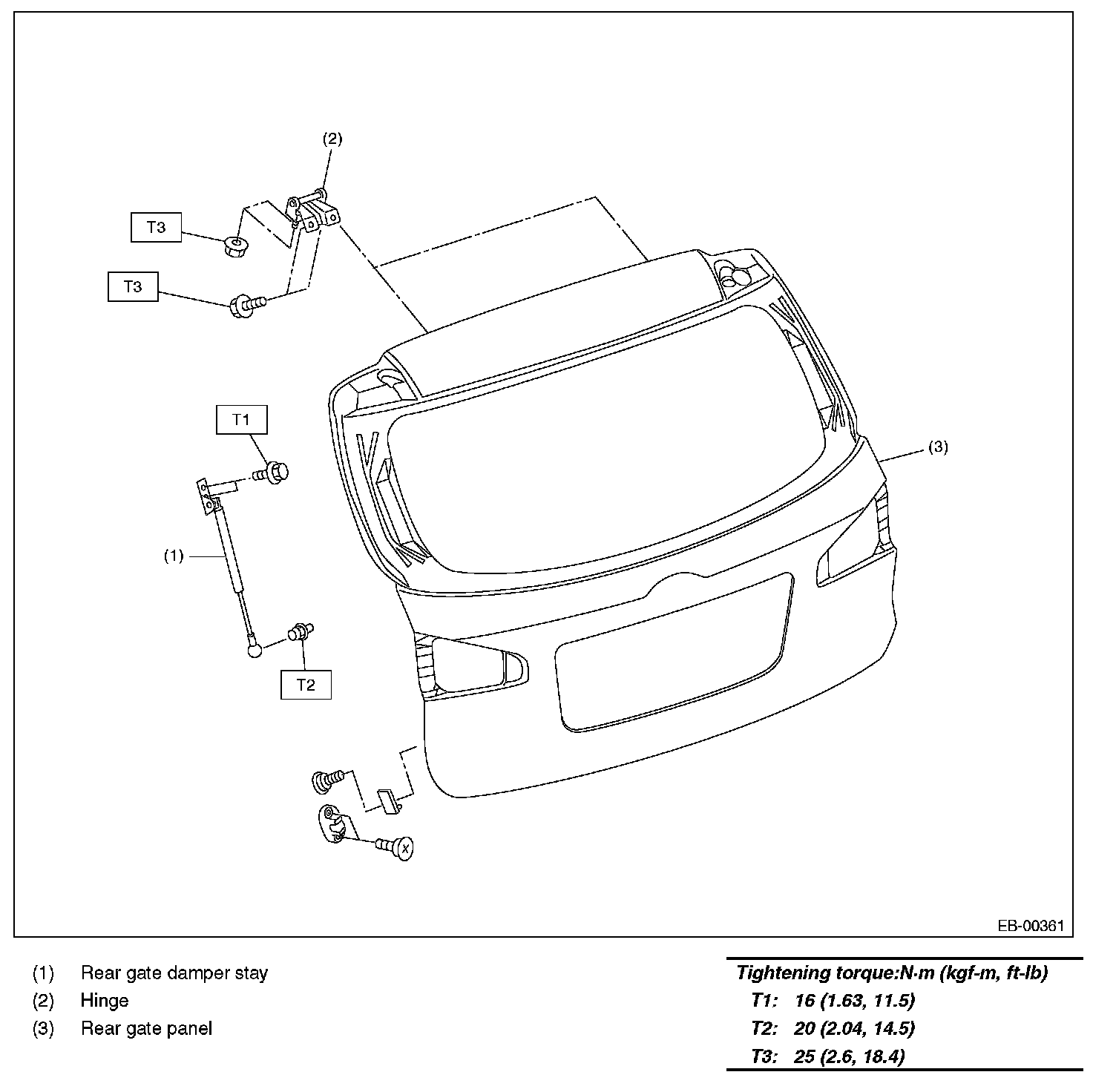

5. REAR GATE PANEL


Rear Gate Panel:
