System Diagram

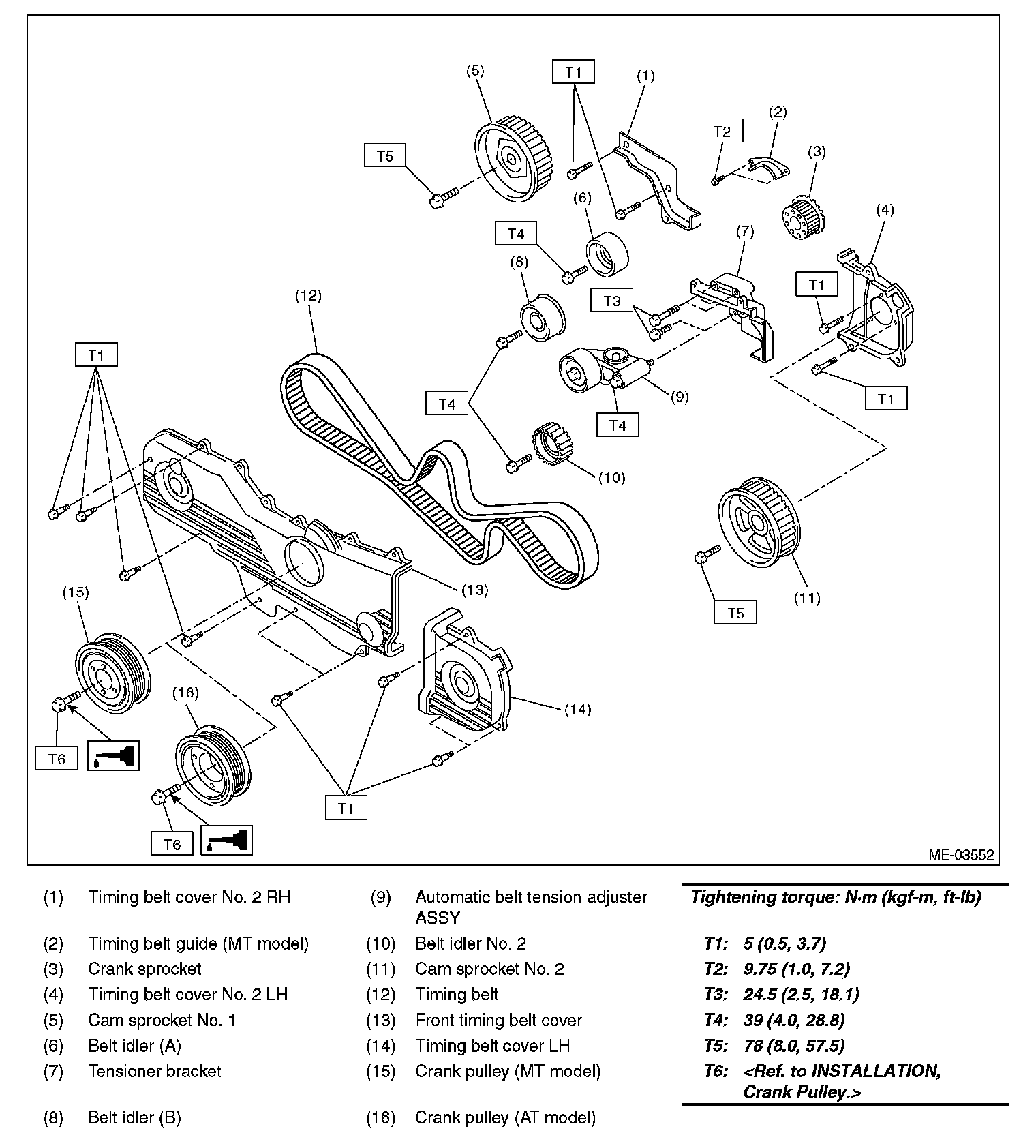

TIMING BELT

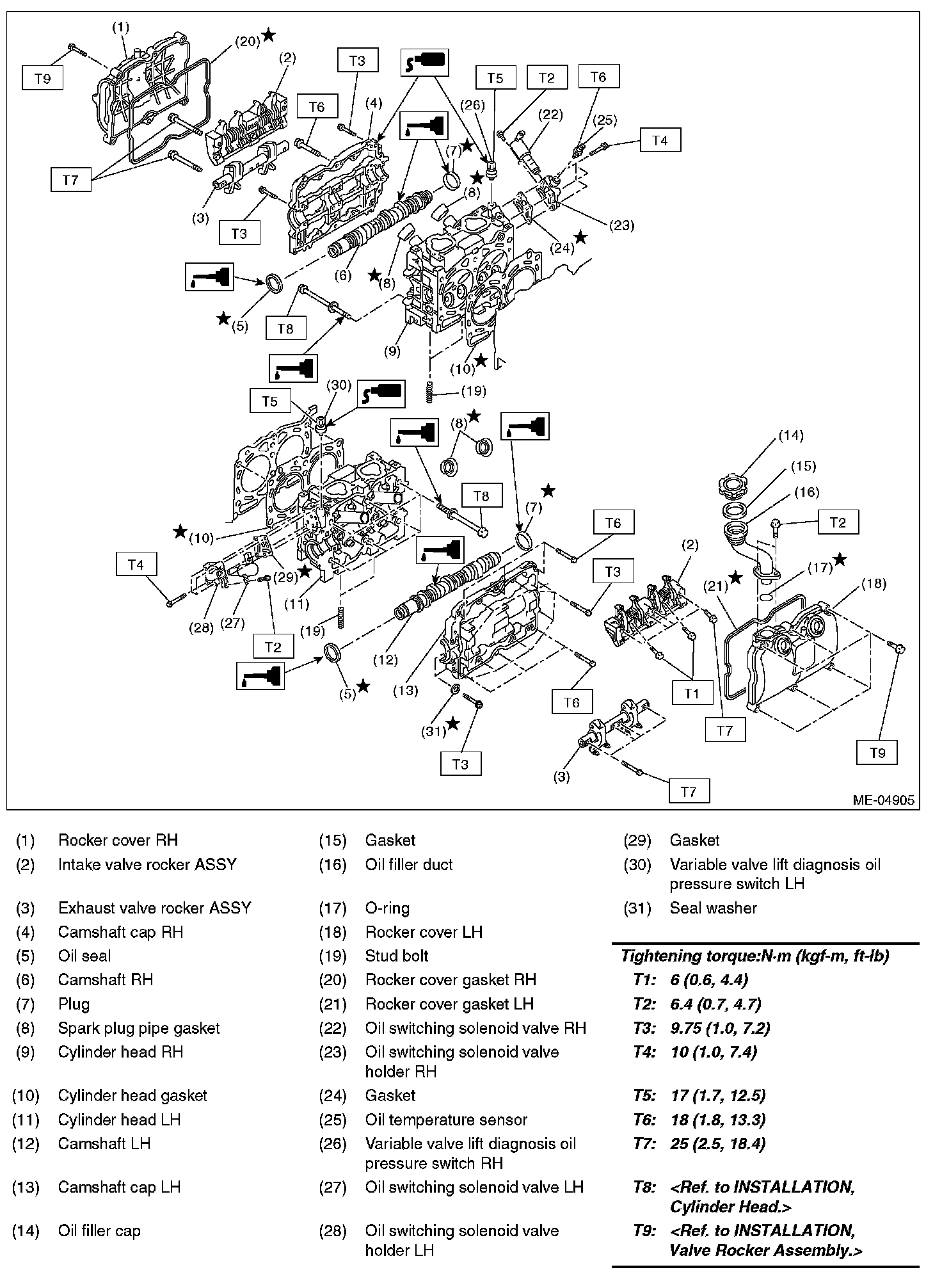

CYLINDER HEAD AND CAMSHAFT

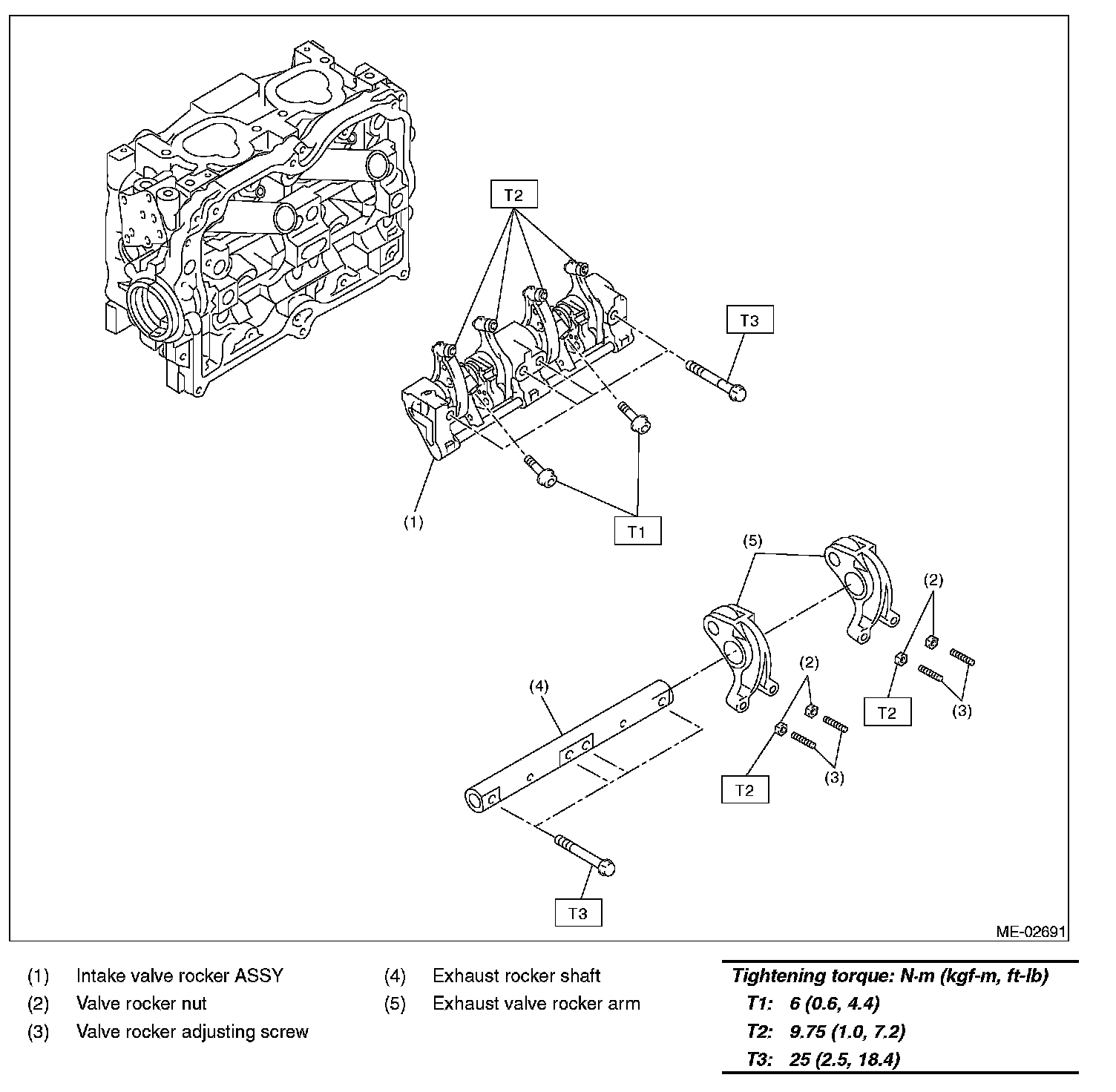

VALVE ROCKER ASSY

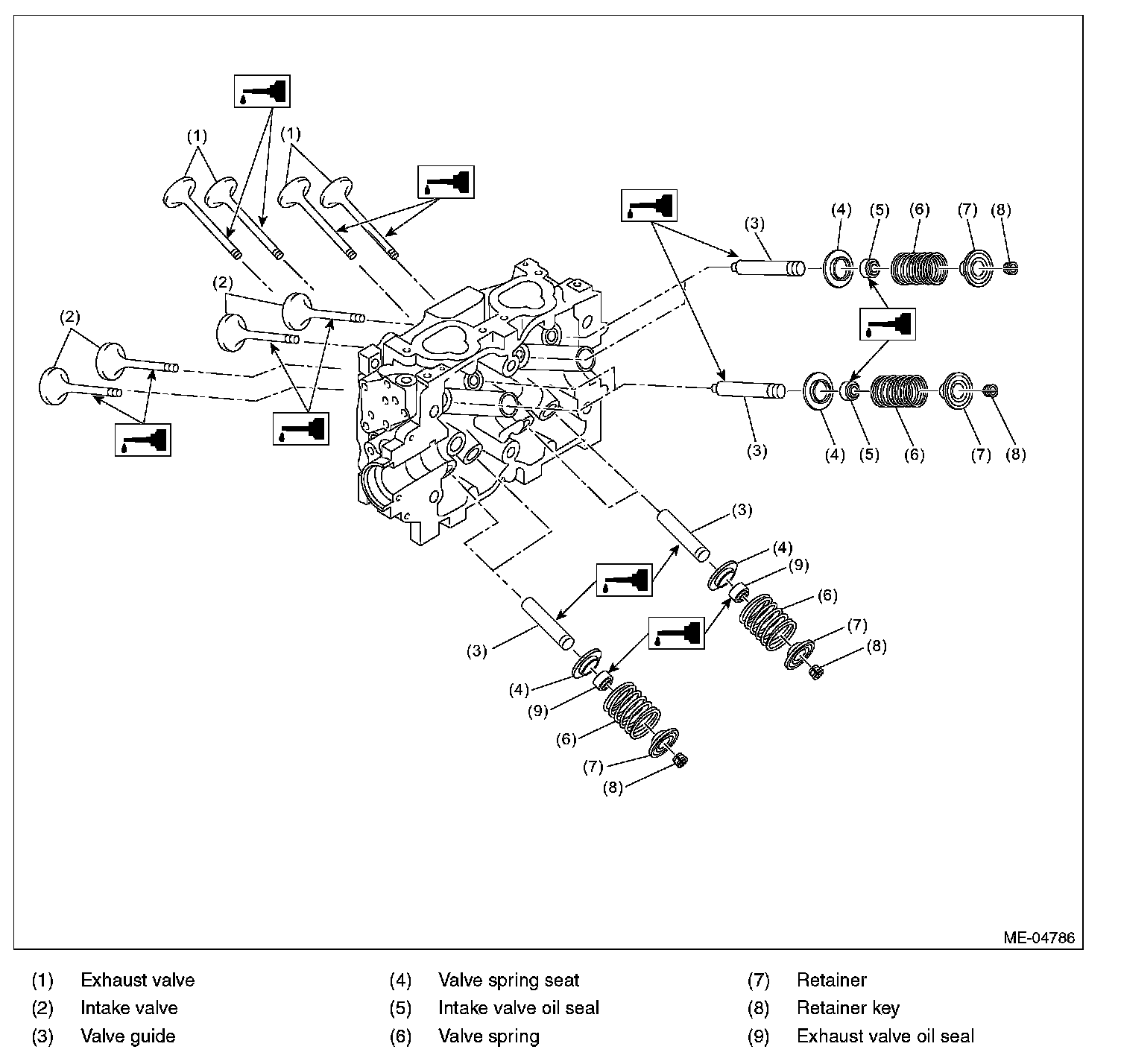

CYLINDER HEAD AND VALVE ASSEMBLY

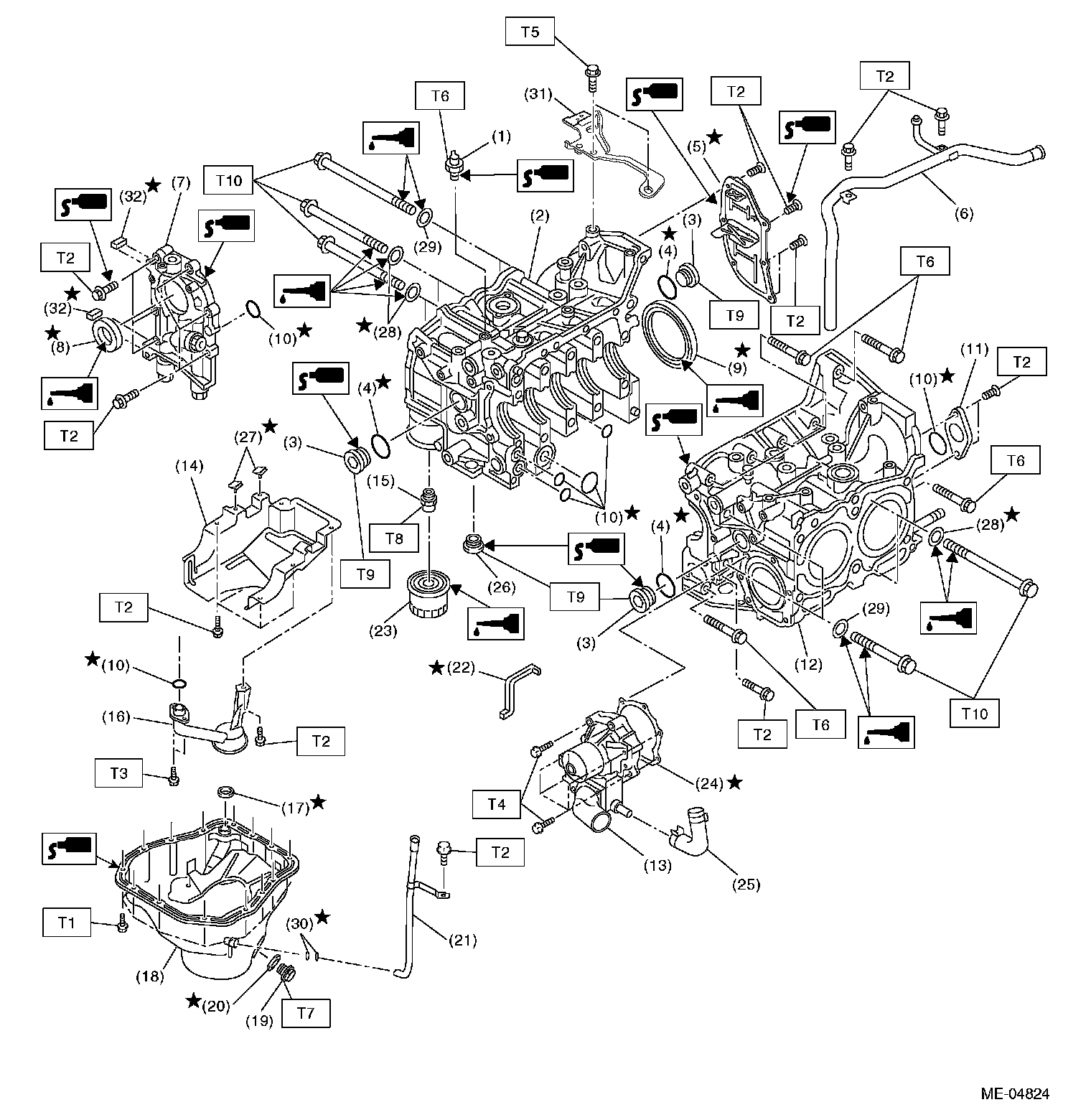

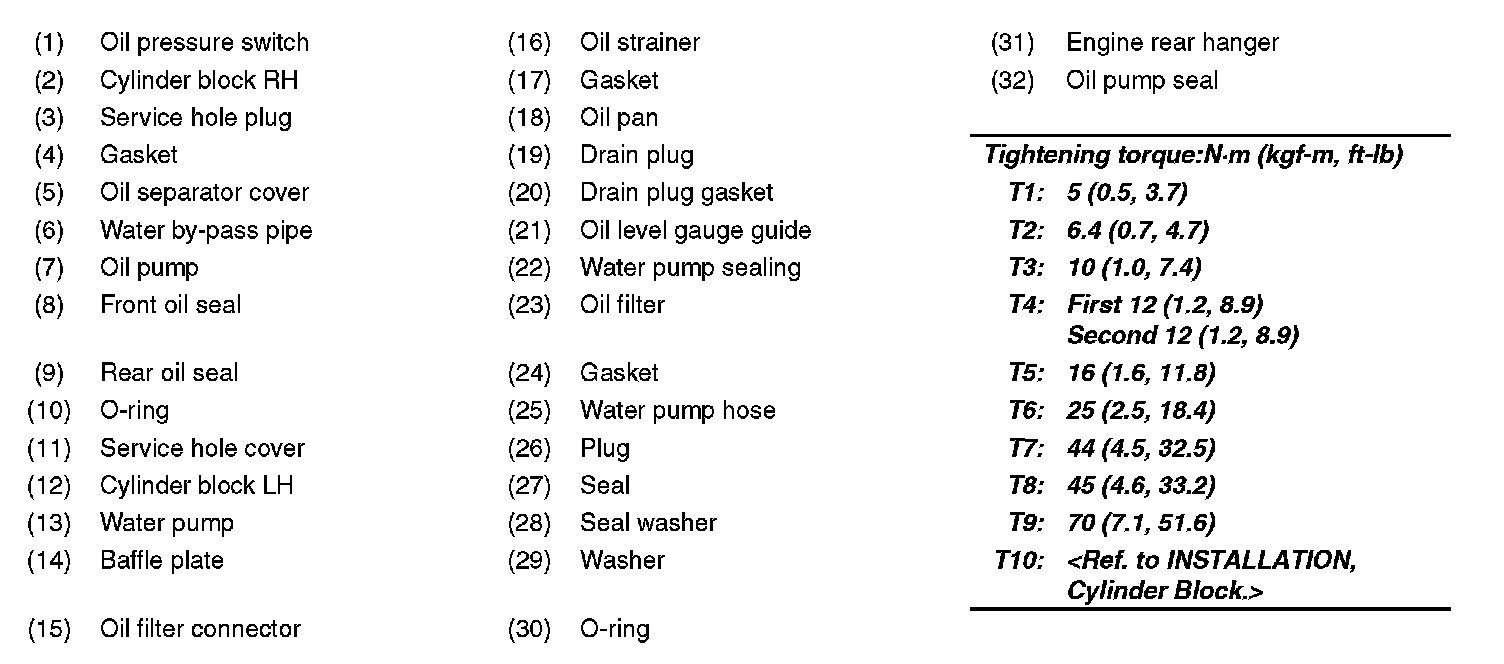

CYLINDER BLOCK

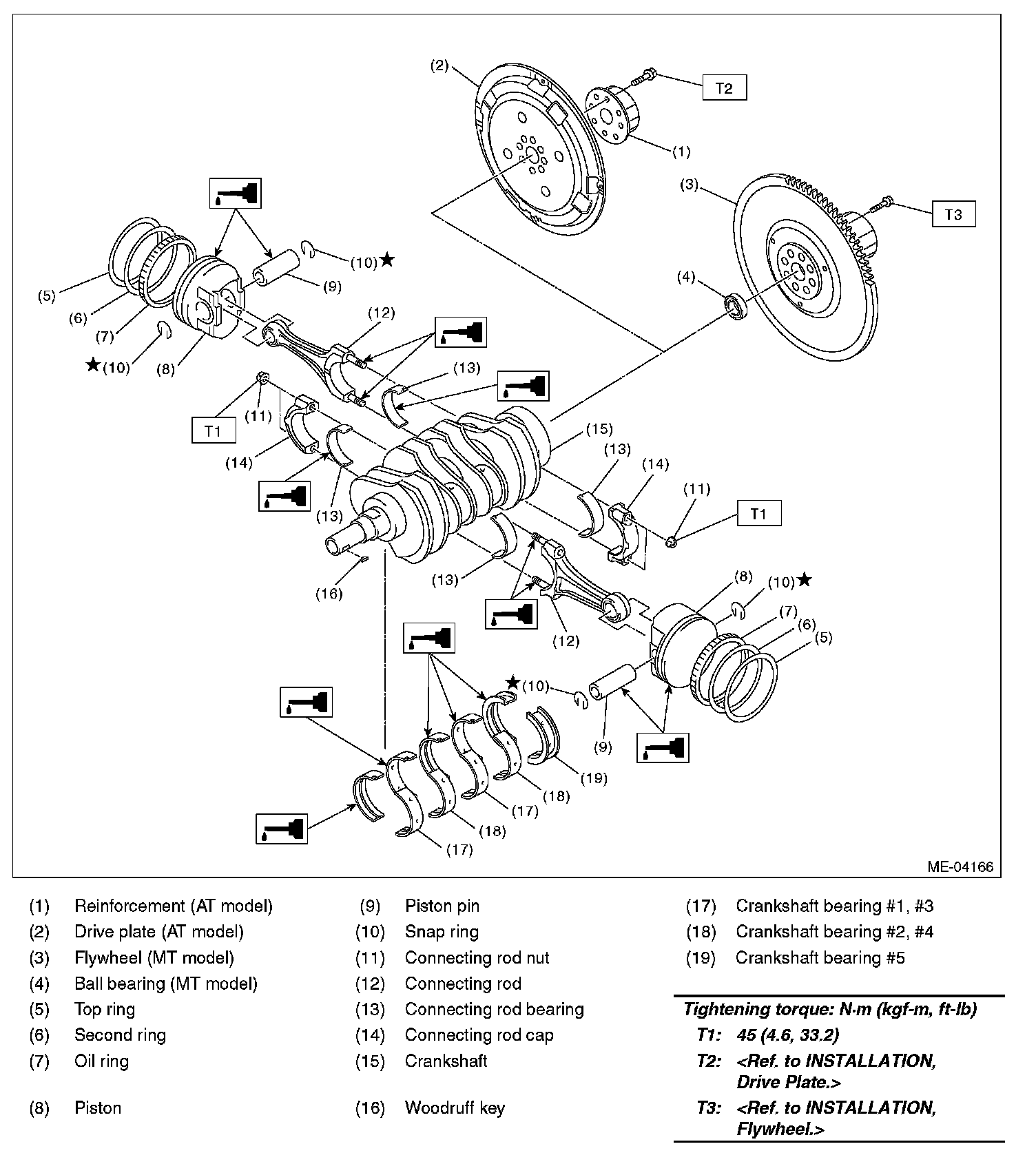

CRANKSHAFT AND PISTON

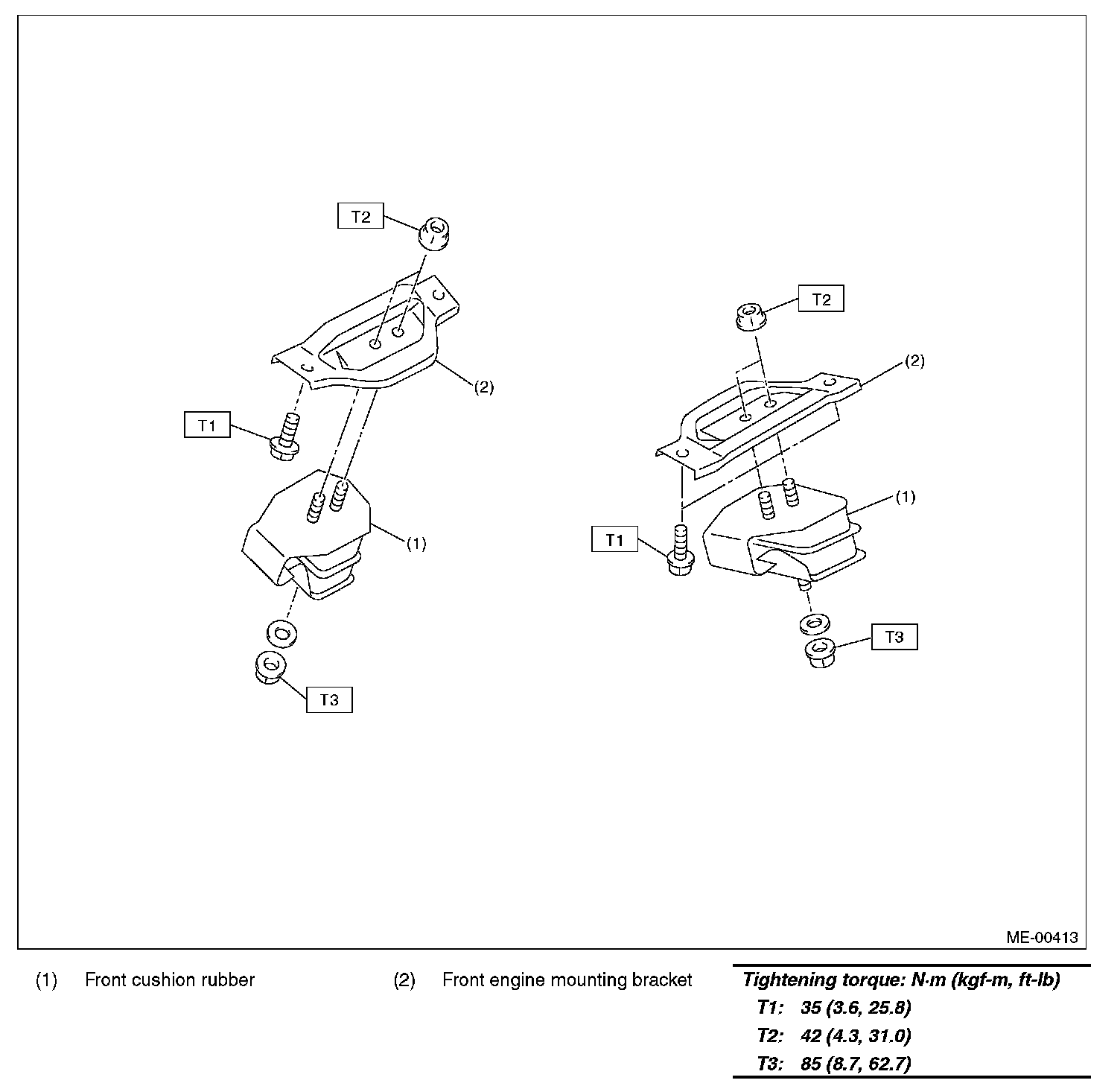

ENGINE MOUNTING
