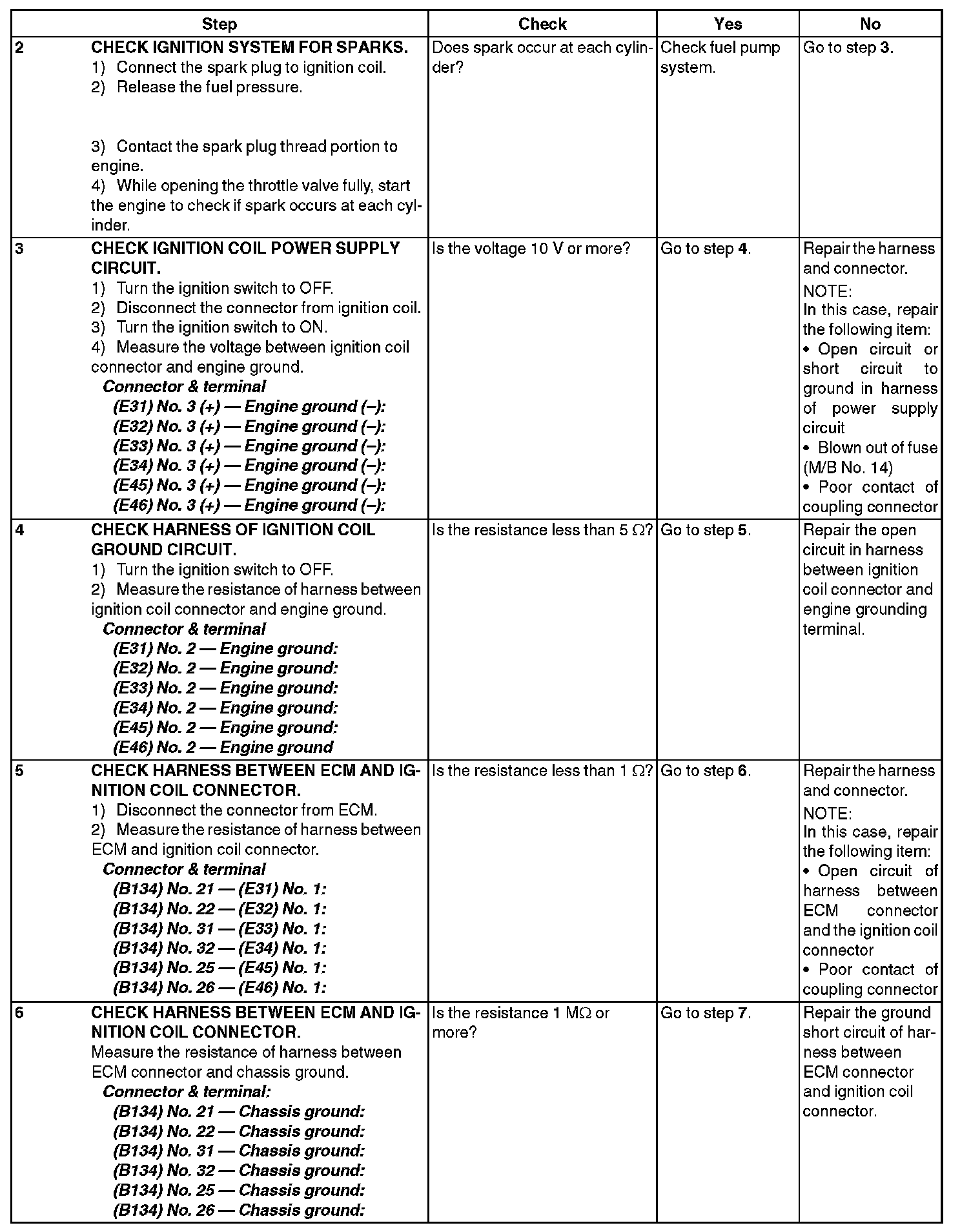

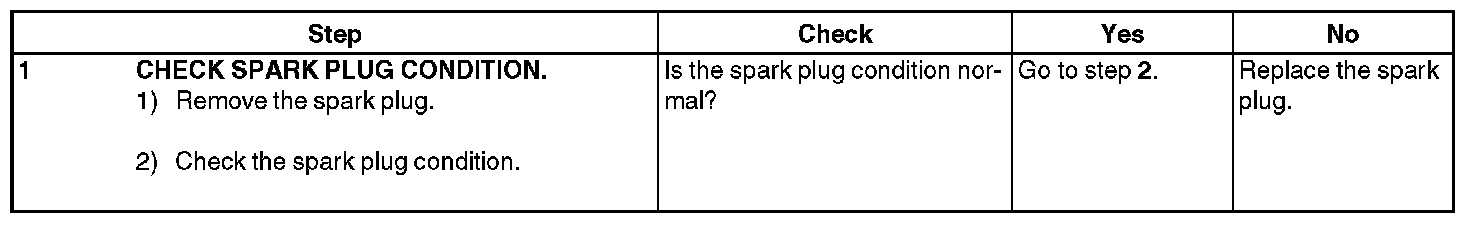

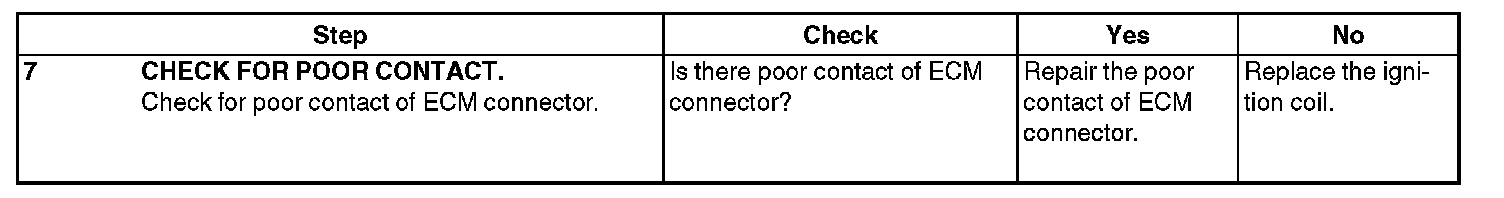

Ignition System: Testing and Inspection
Diagnostics for Engine Starting FailureIGNITION CONTROL SYSTEM
CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode, Clear Memory Mode and Inspection Mode. Inspection Mode

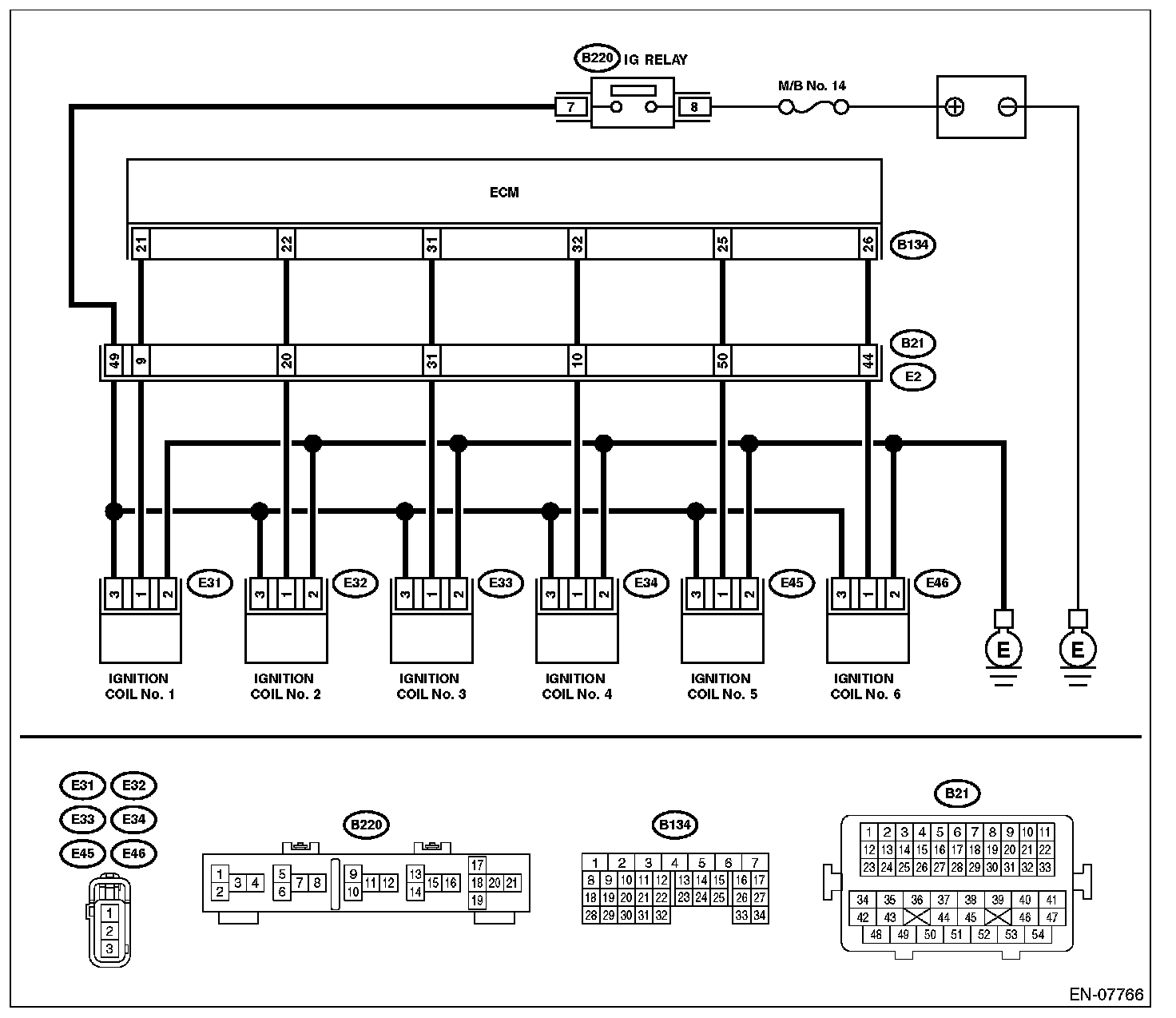

WIRING DIAGRAM:
