Engine - Coolant Temperature Sensor/Switch
Engine - Coolant Temperature Sensor/Switch

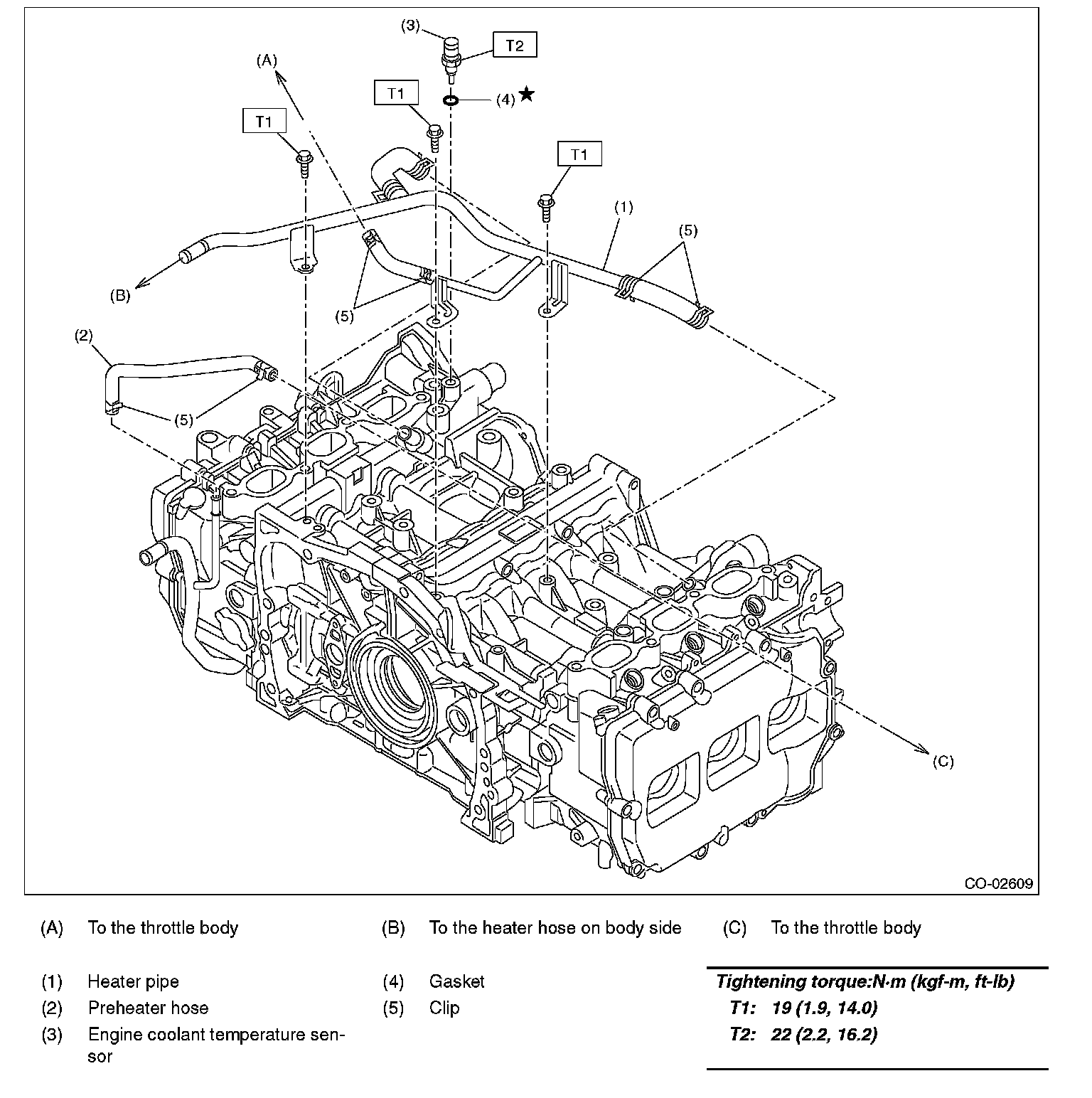

ENGINE COOLANT TEMPERATURE SENSOR AND HEATER HOSE
