Control Systems

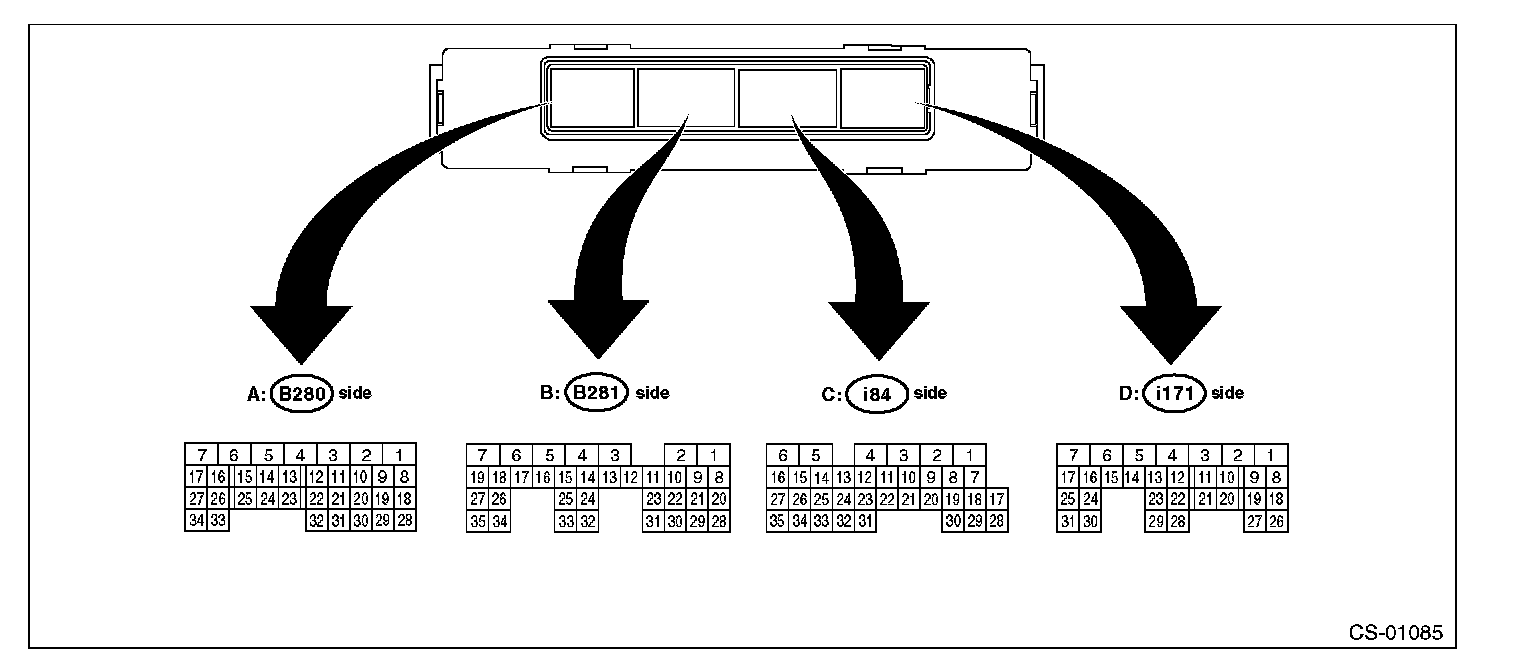

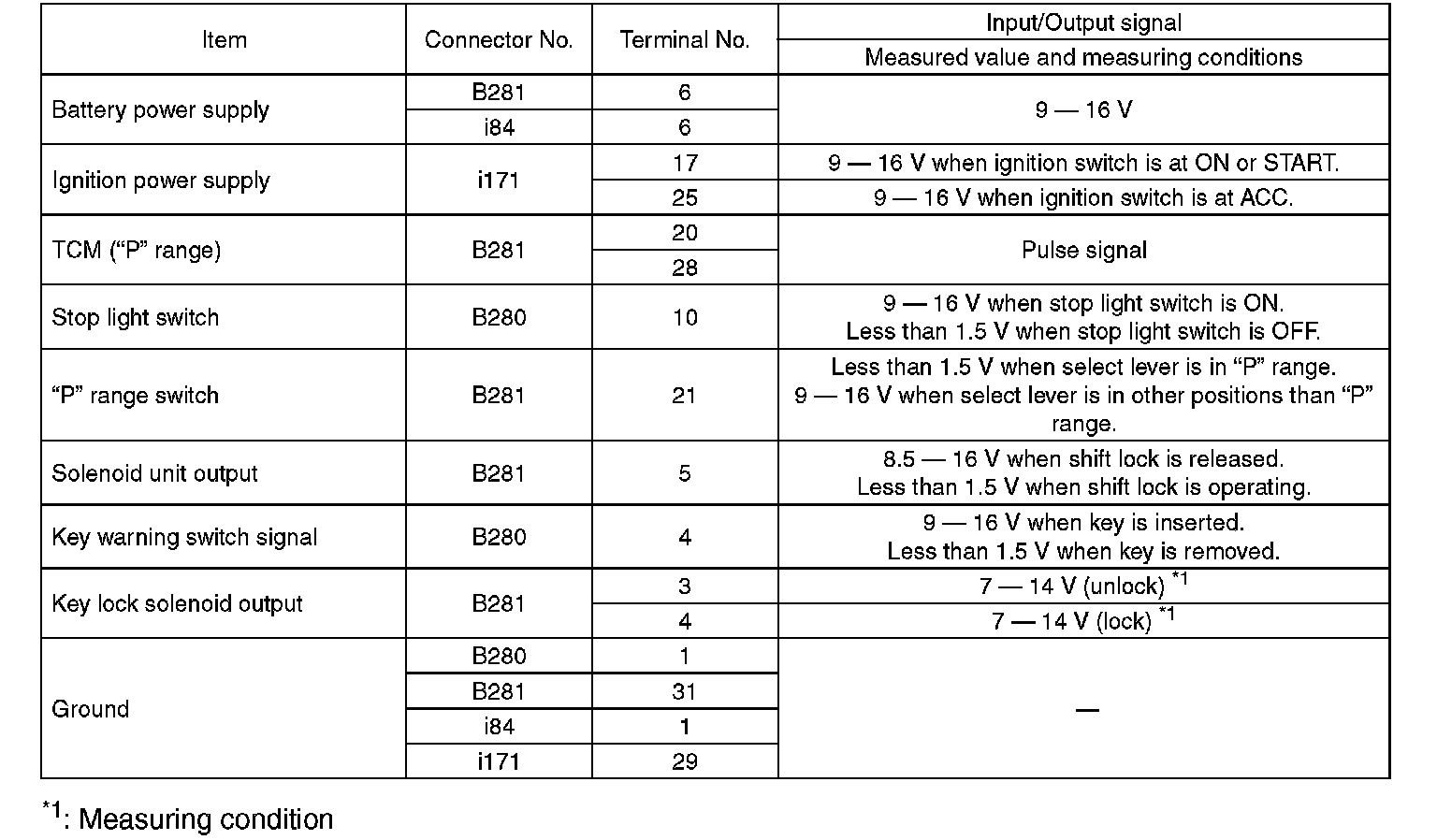

ELECTRICAL SPECIFICATION

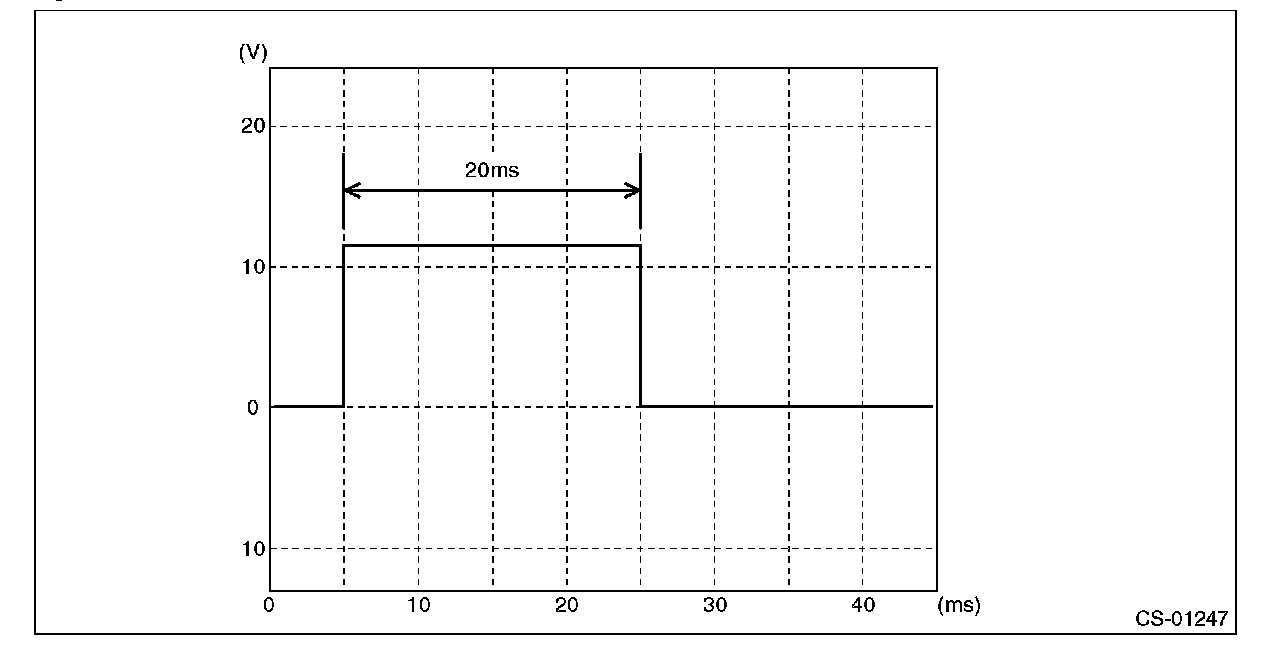

Output signal for key interlock solenoid (unlock)

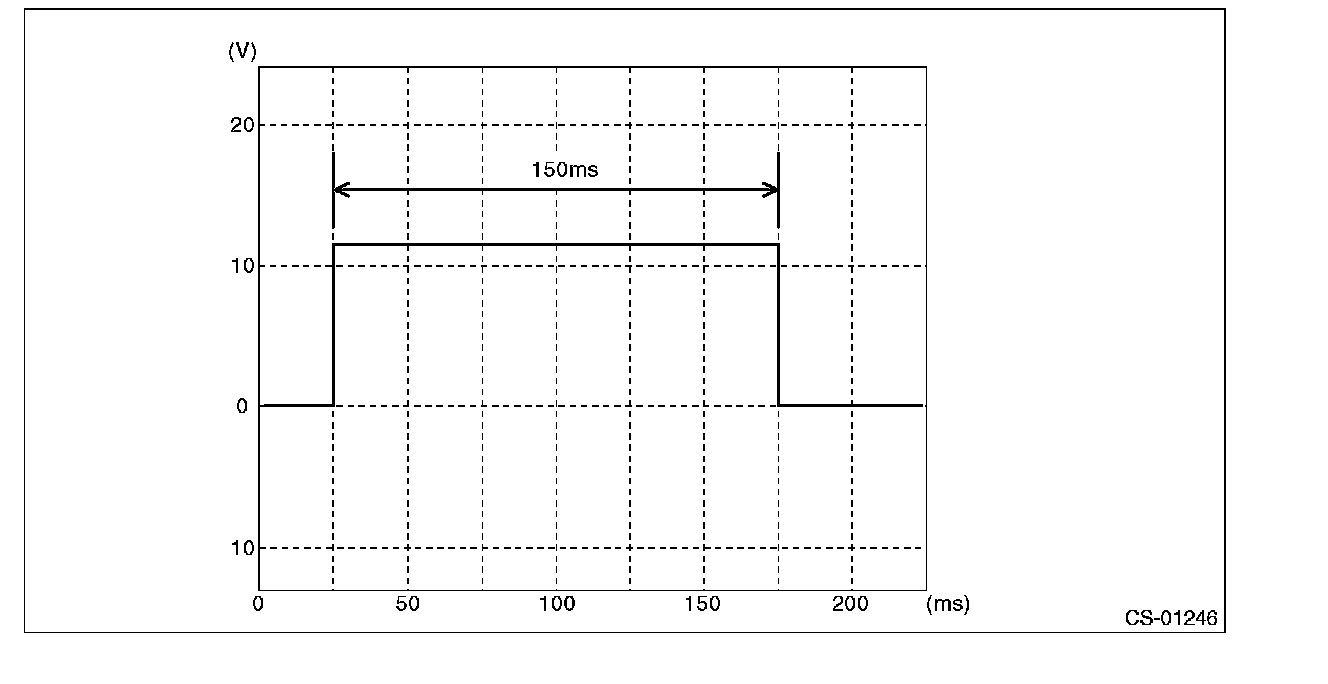

Output signal for key interlock solenoid (lock)
