Knock Sensor: Testing and Inspection

Knock Sensor

INSPECTION

1. Check that the knock sensor has no deformation, cracks or other damages.

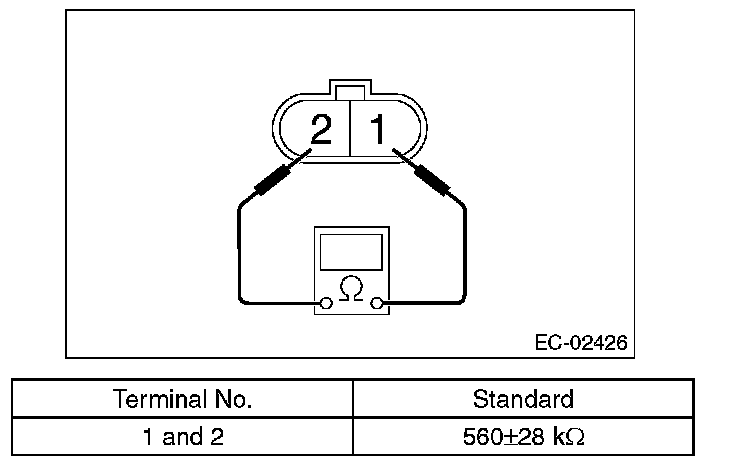

2. Measure the resistance between knock sensor terminals.
