Exploded Views
COMPONENT
1.

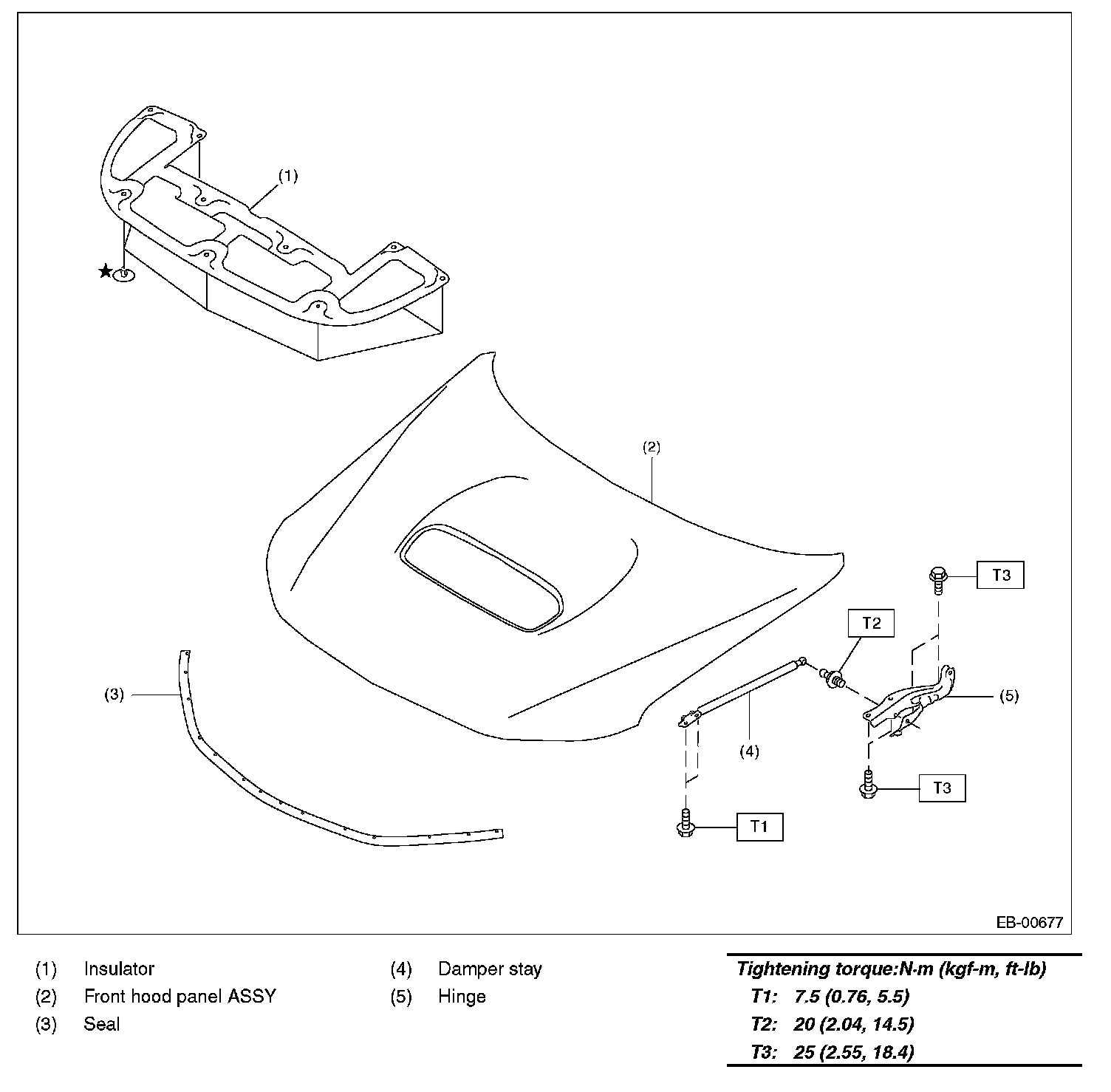

FRONT
HOOD
Front Hood:
2.

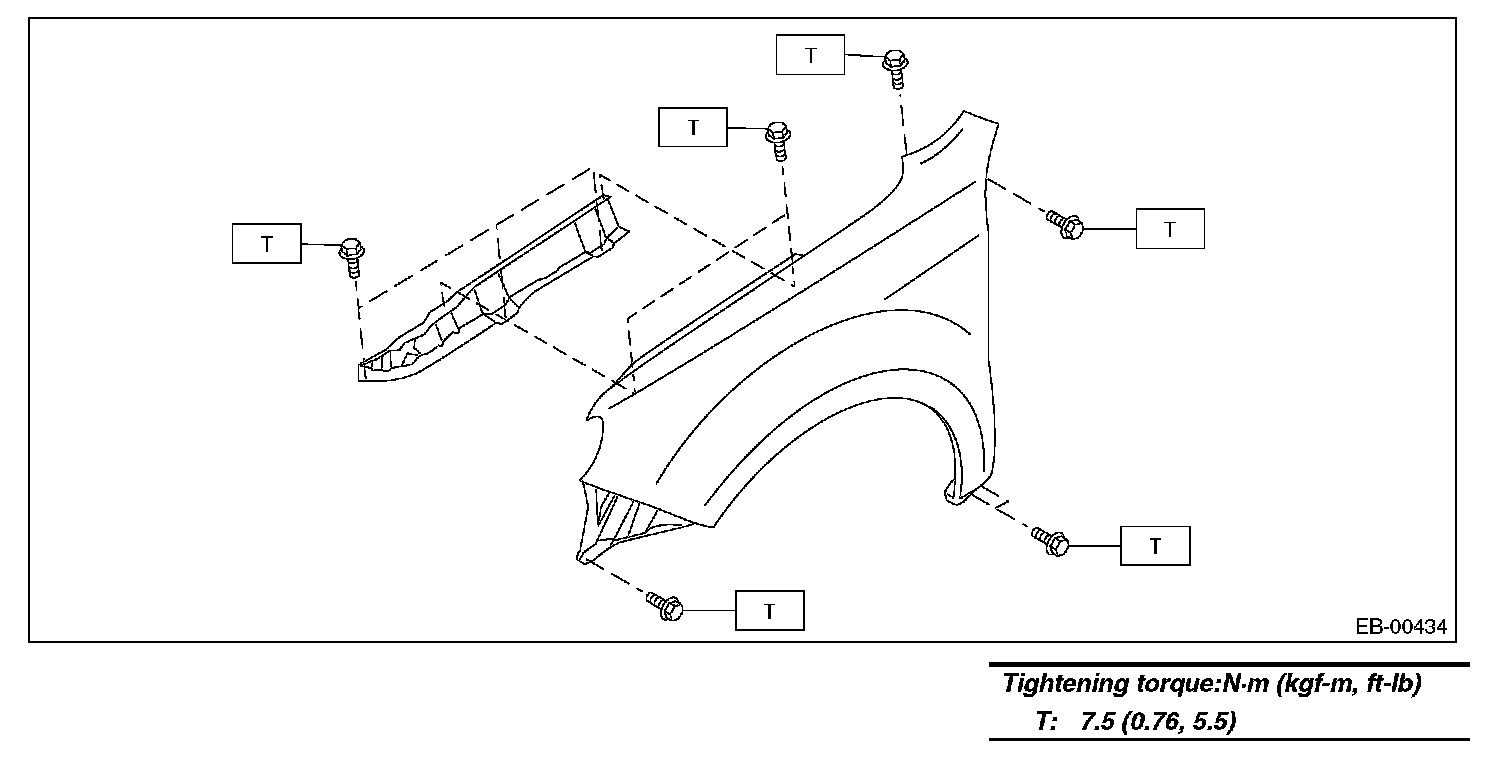

FRONT
FENDER
Front Fender:
3.

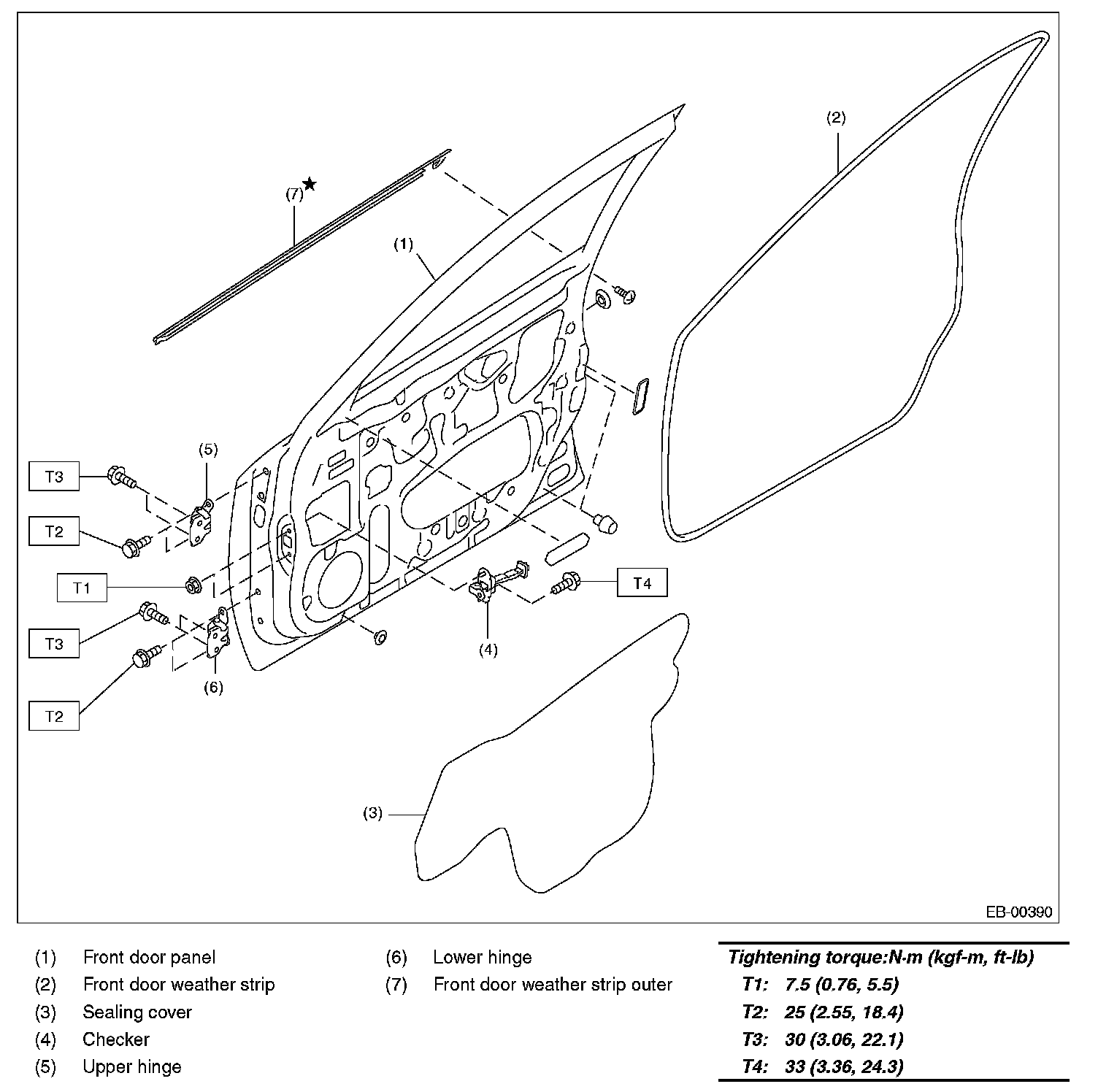

FRONT DOOR
Front Door:
4.

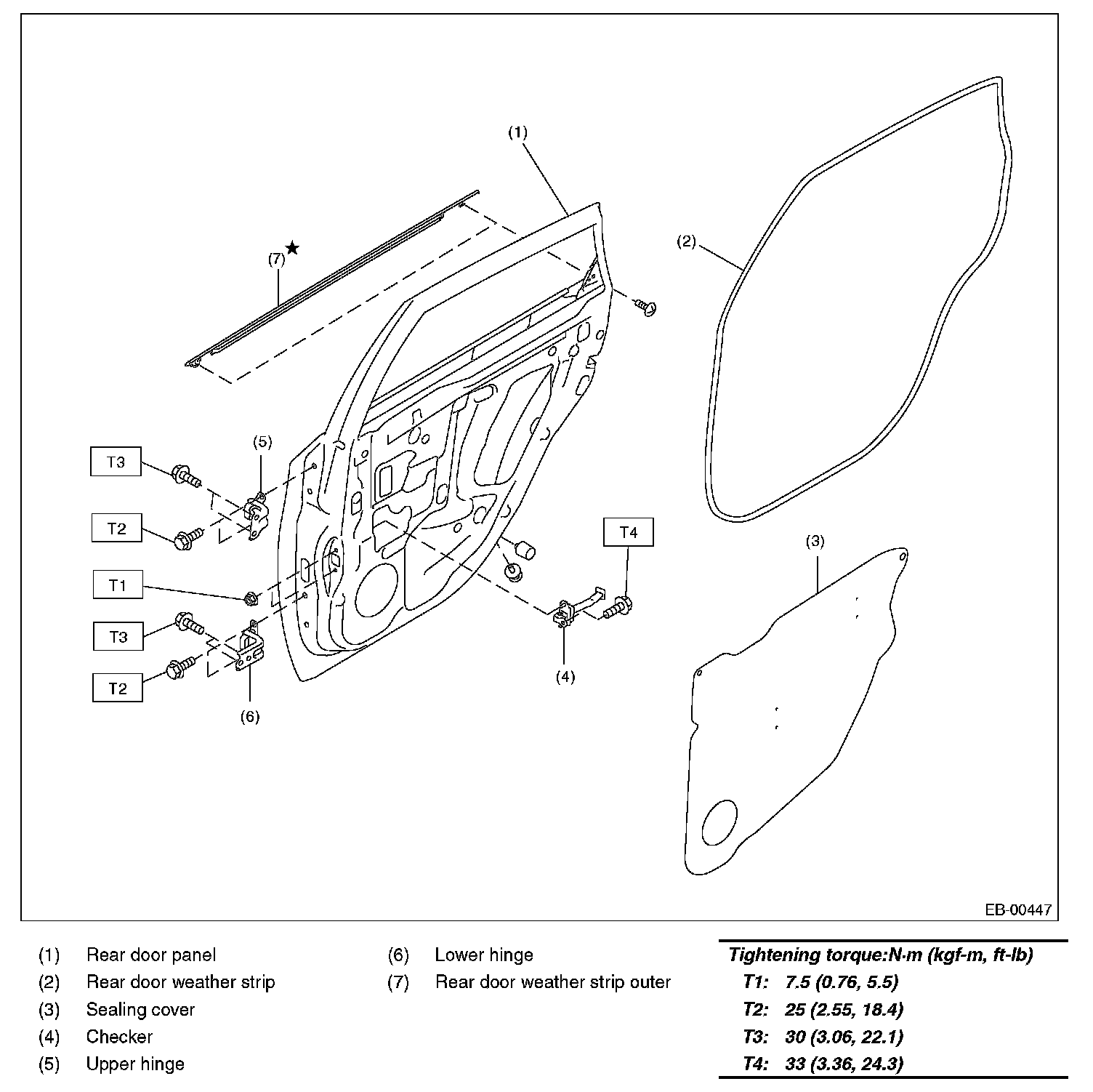

REAR DOOR
Rear Door:
5.

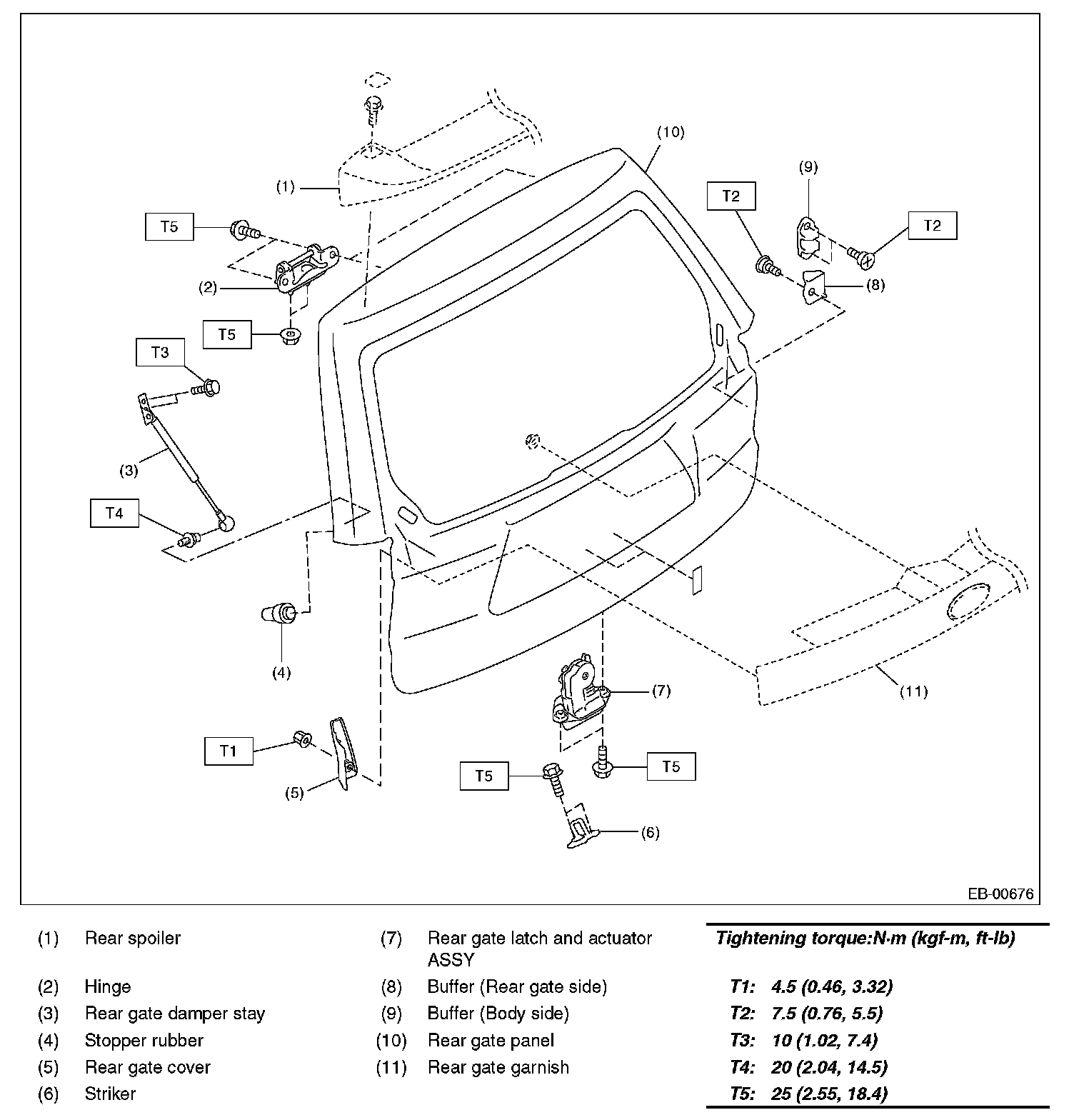

REAR GATE
Rear Gate:
