Home >> Subaru >> 2010 >> Tribeca F6-3.6L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold

Intake Manifold

INTAKE MANIFOLD

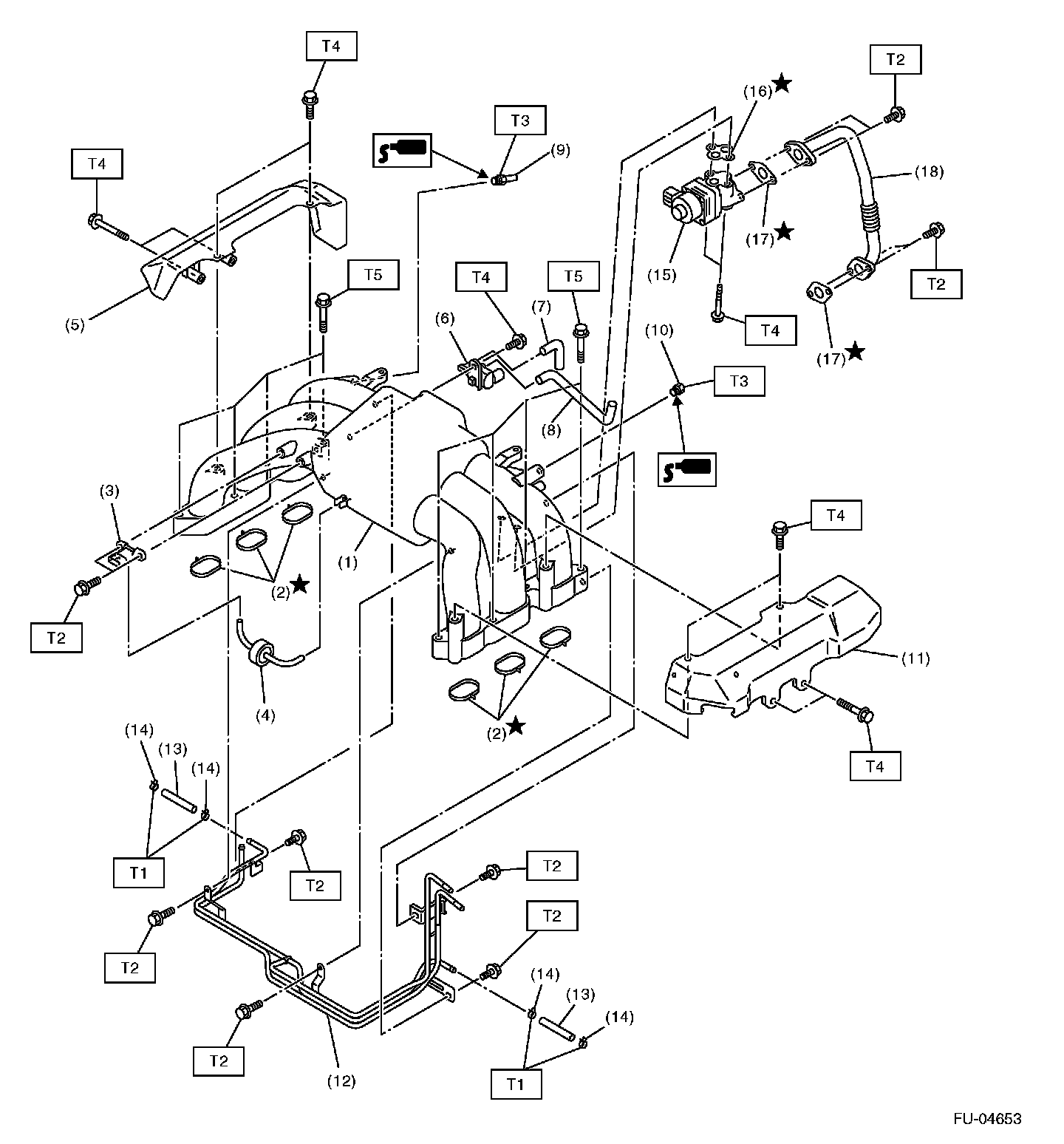

Intake Manifold (Part 1):

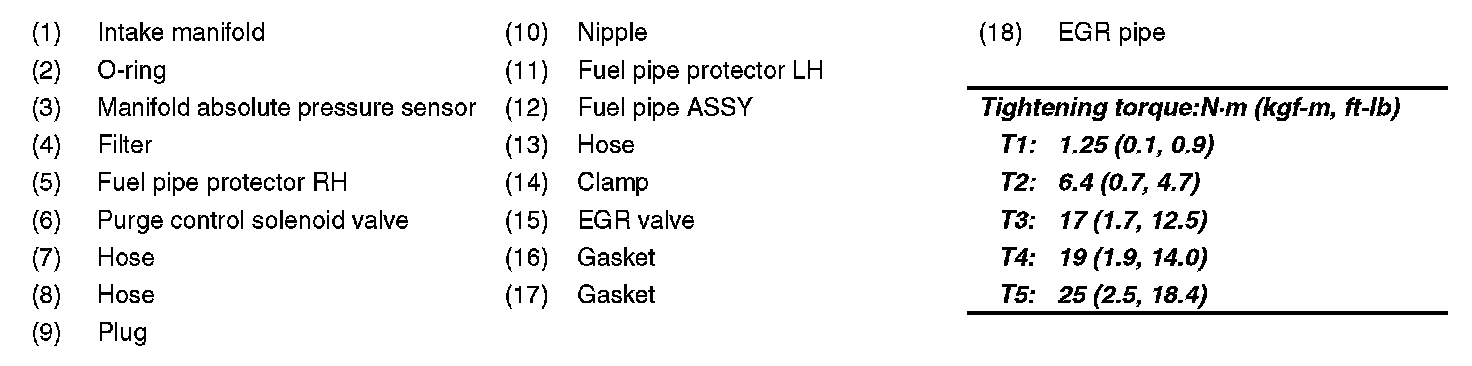

Intake Manifold (Part 2):
