Engine

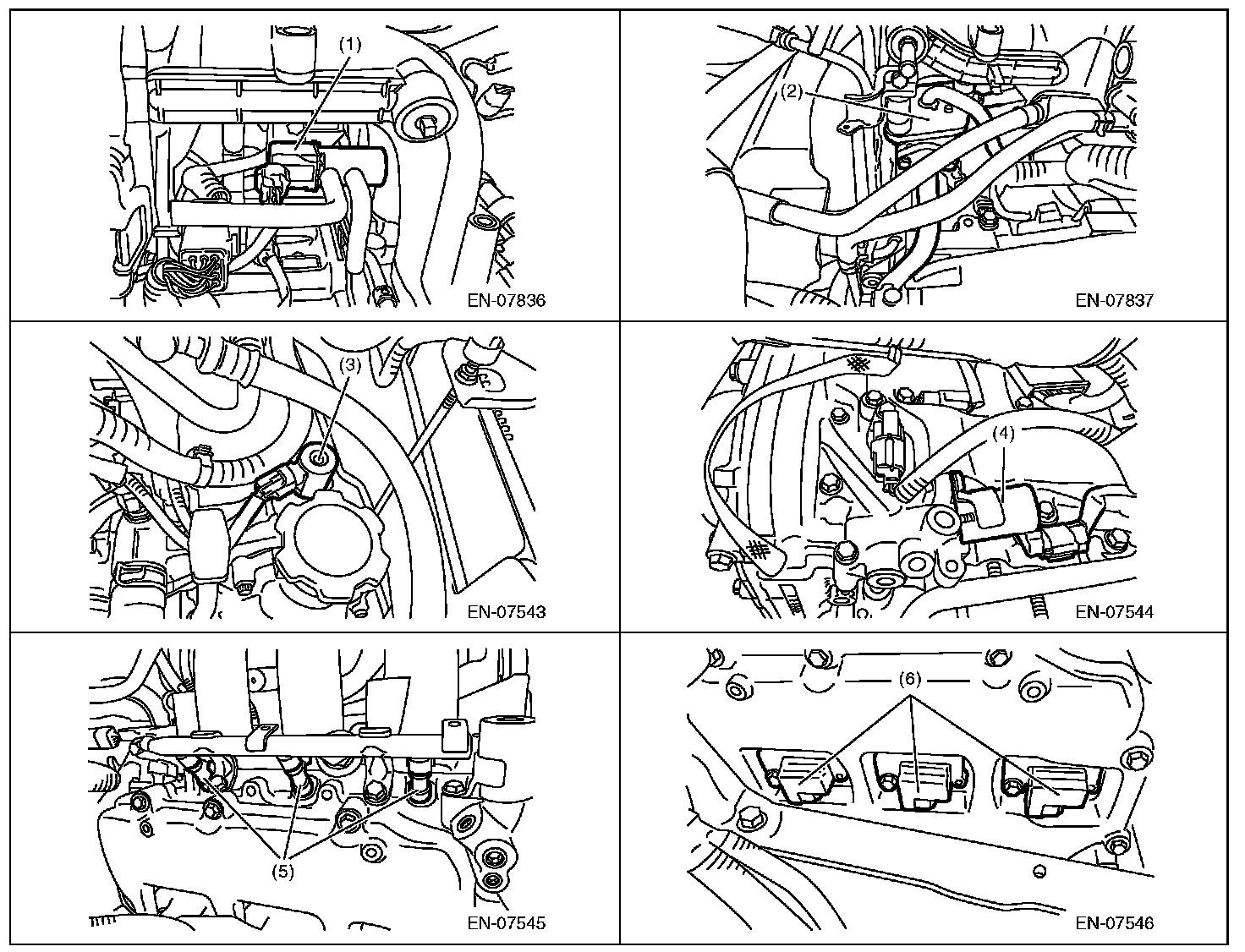

Electrical Component Location

LOCATION

1. CONTROL MODULE

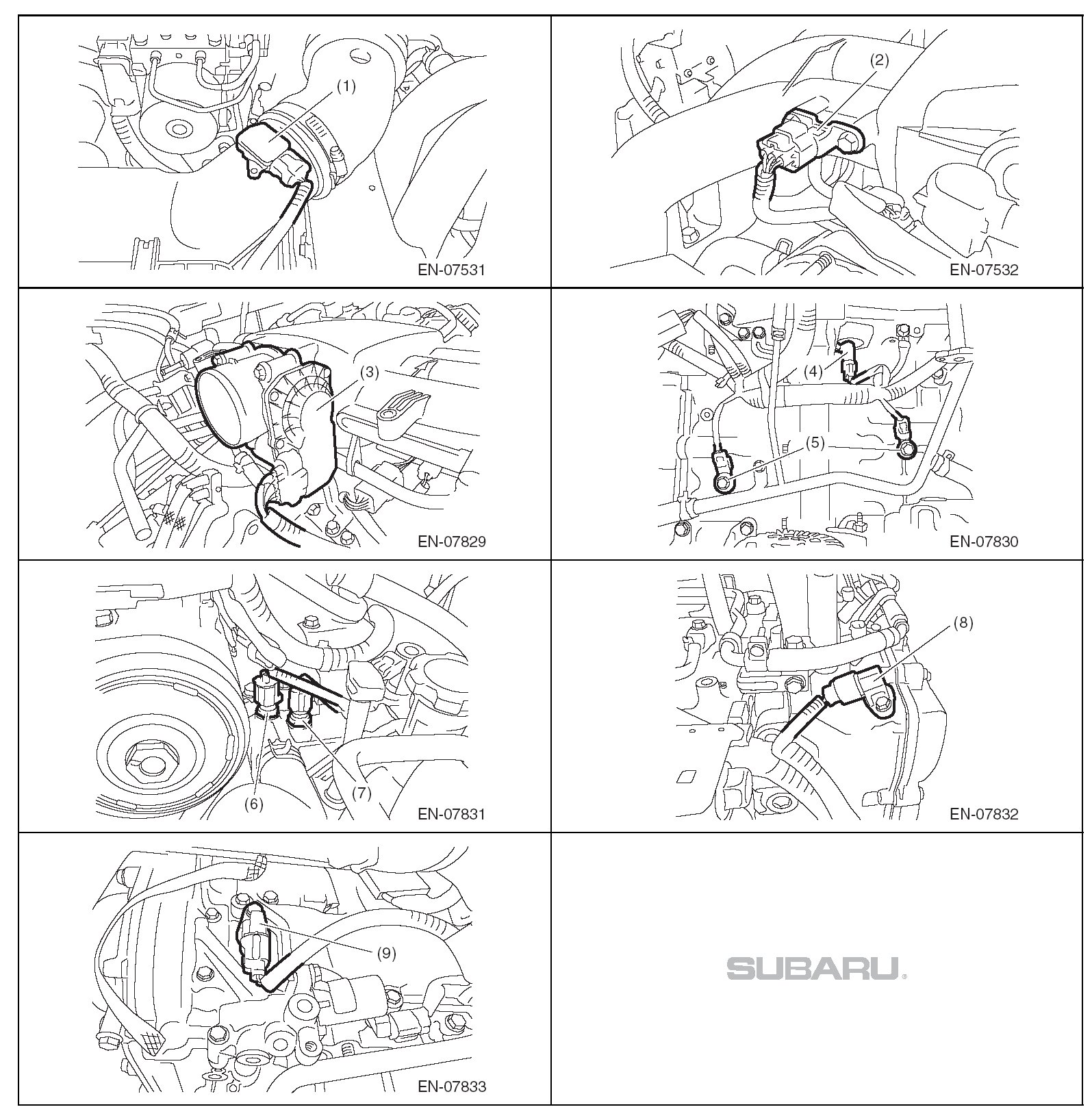

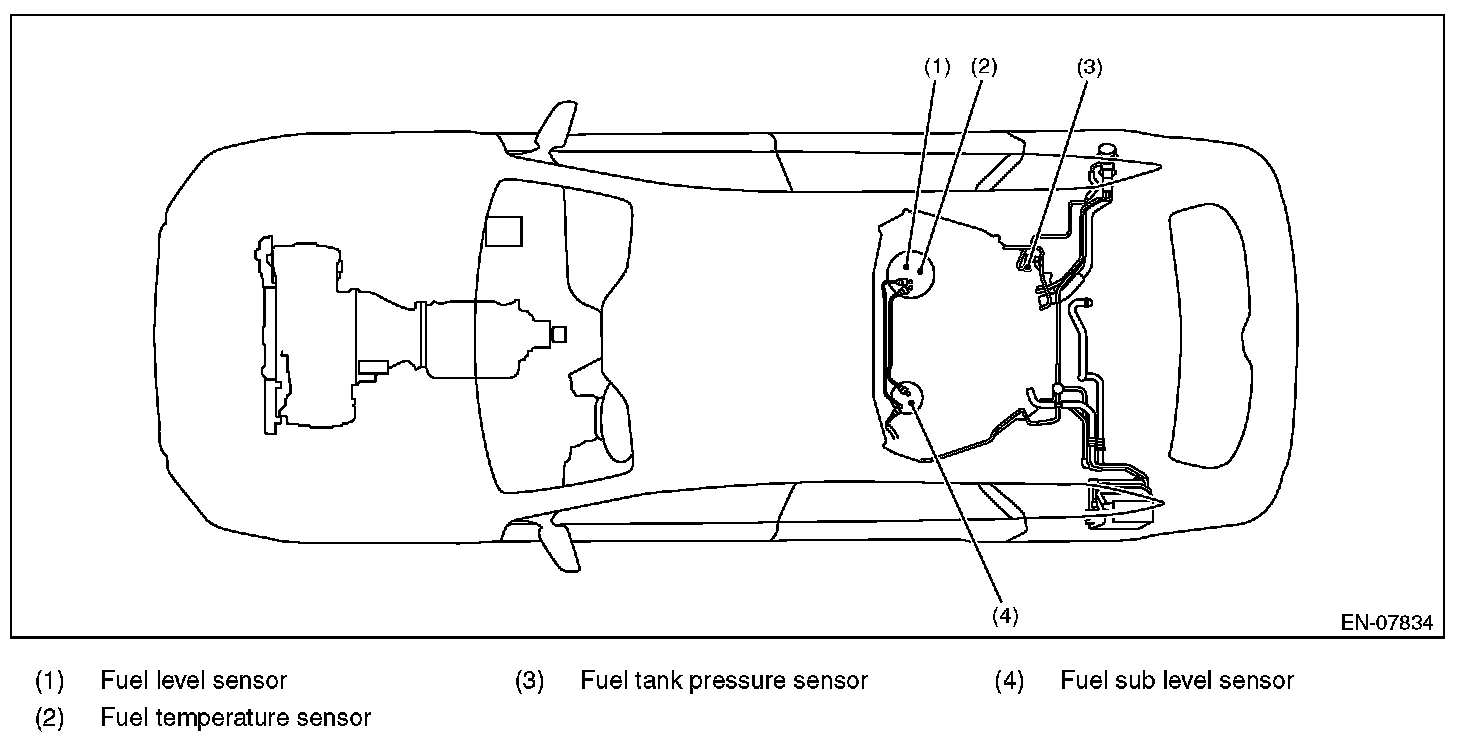

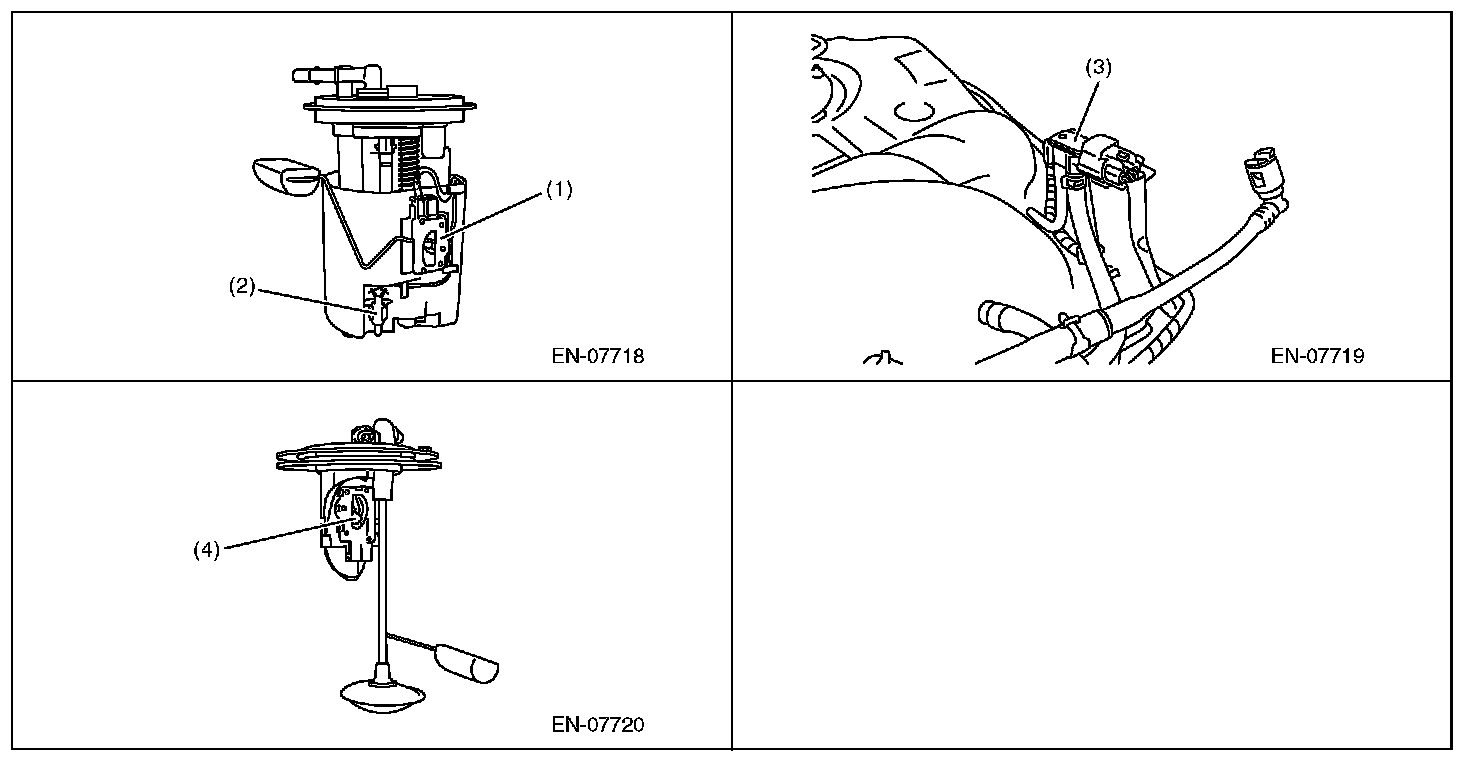

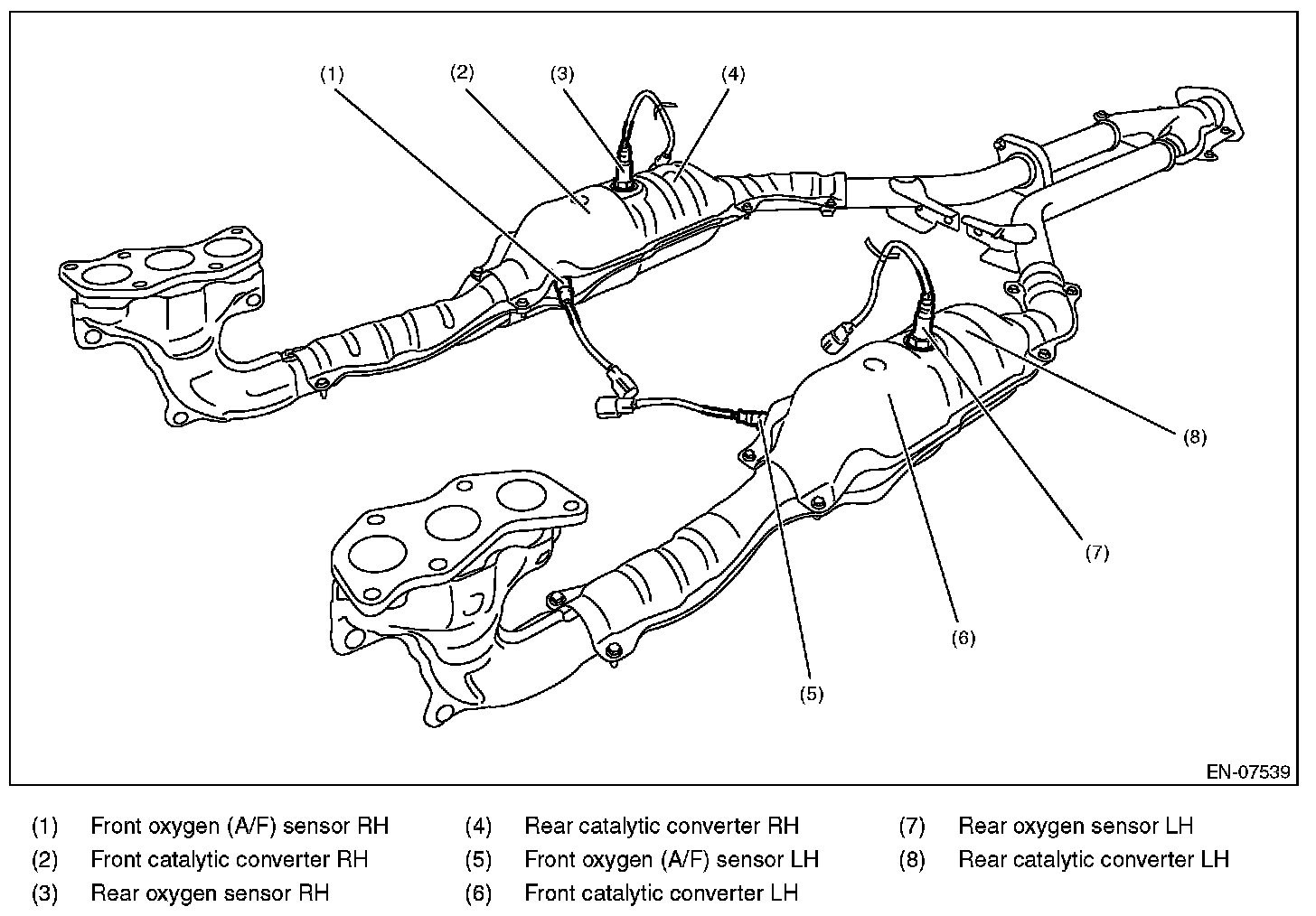

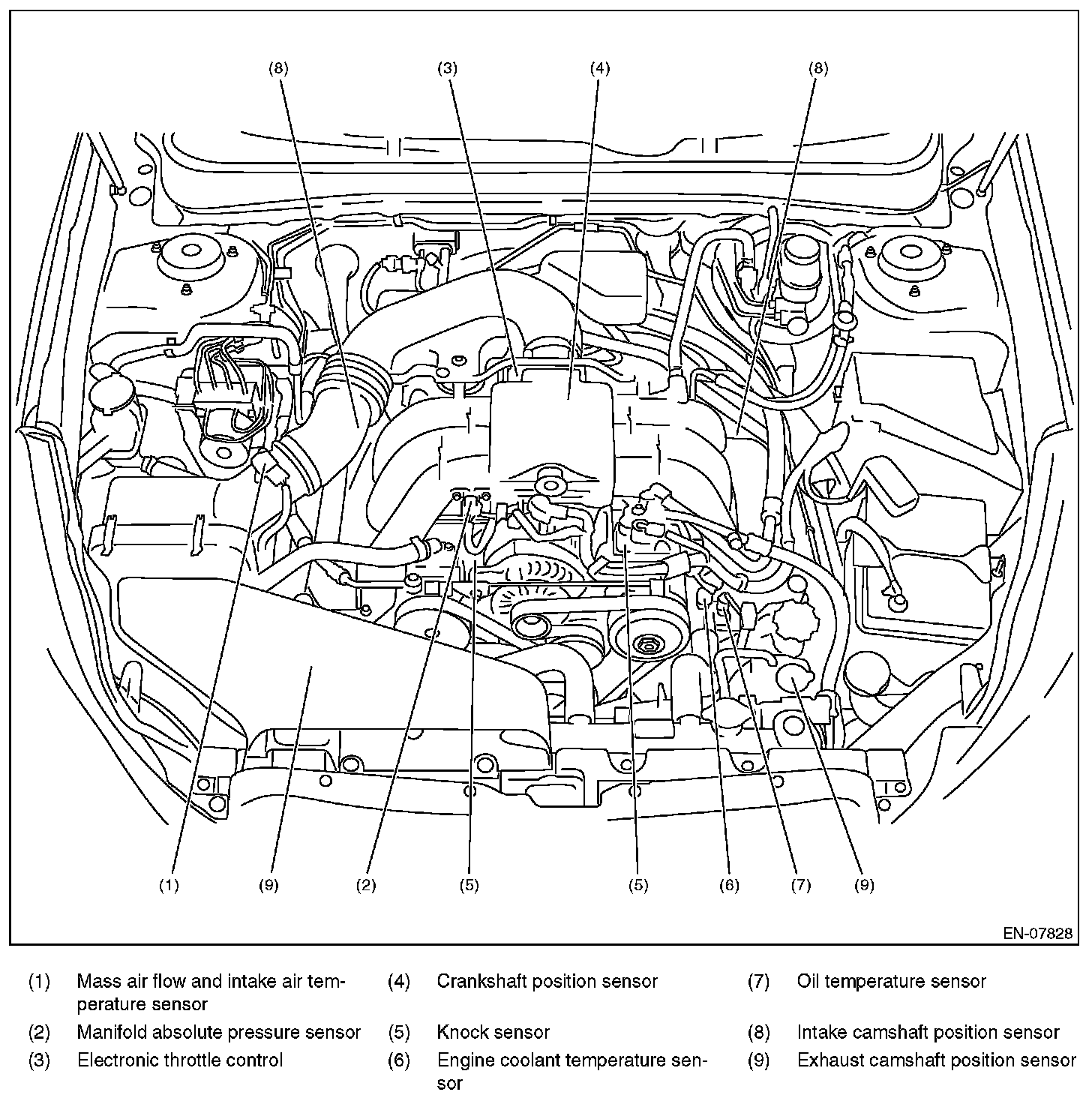

2. SENSOR

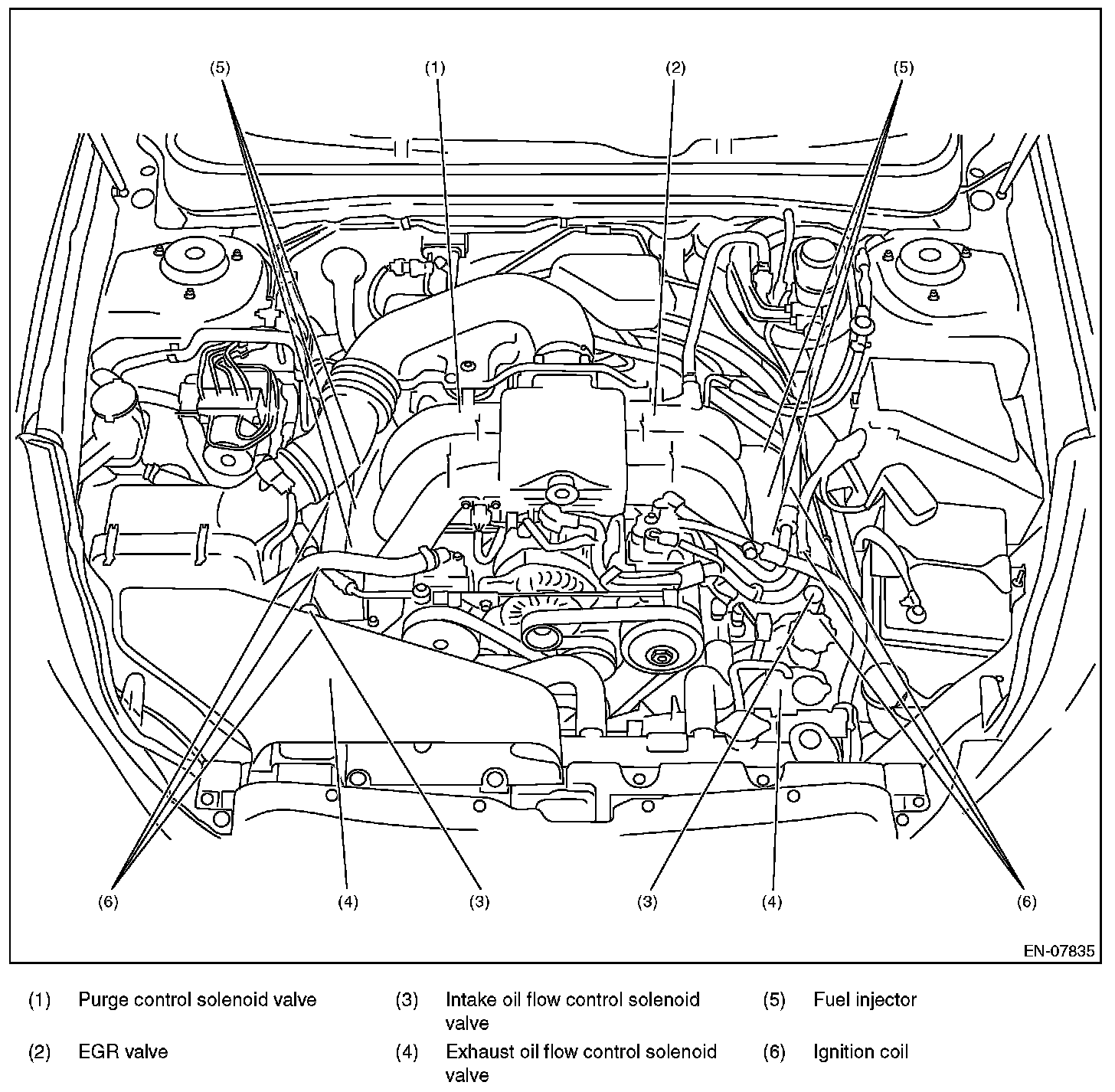

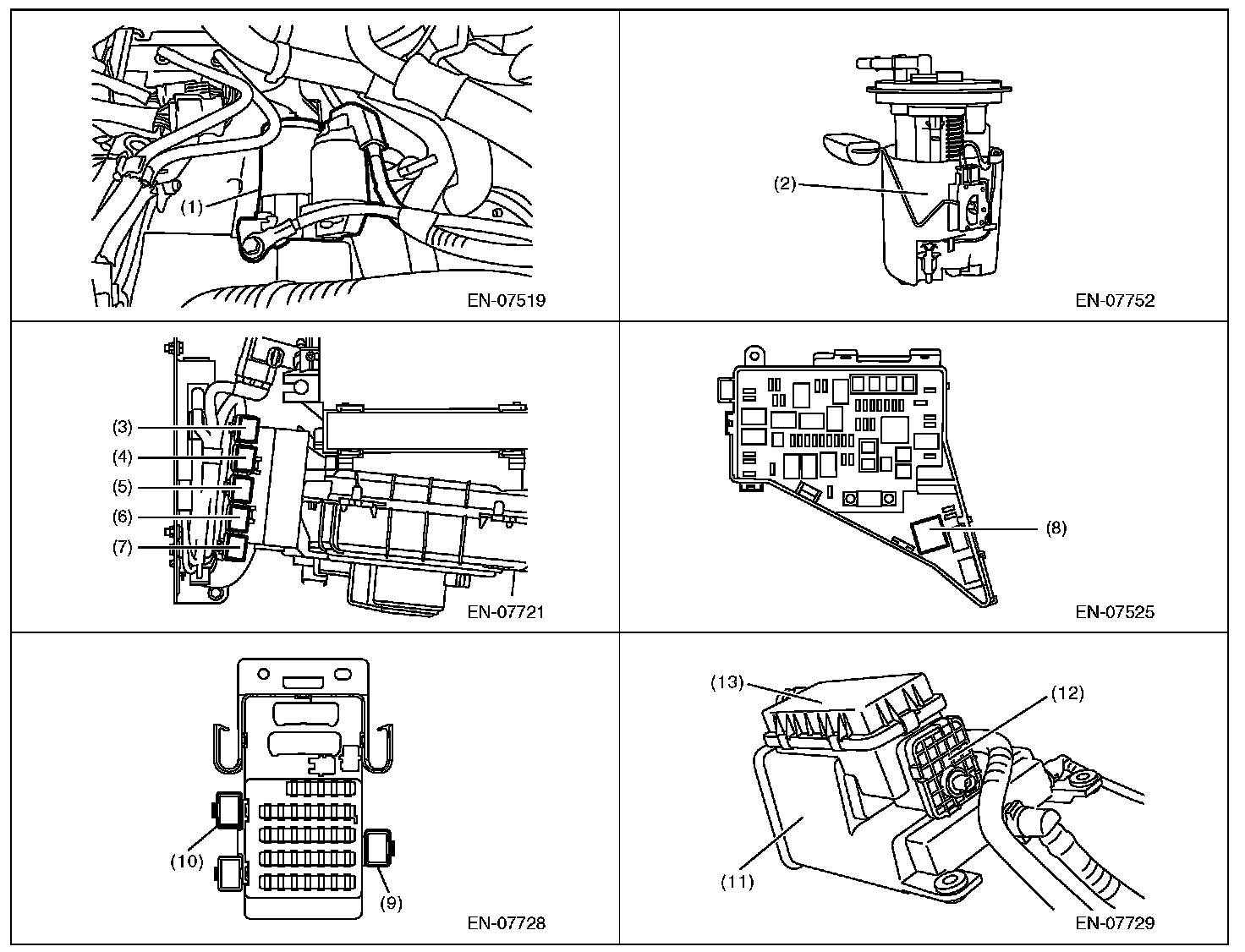

3. SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
