Engine

Electrical Component Location

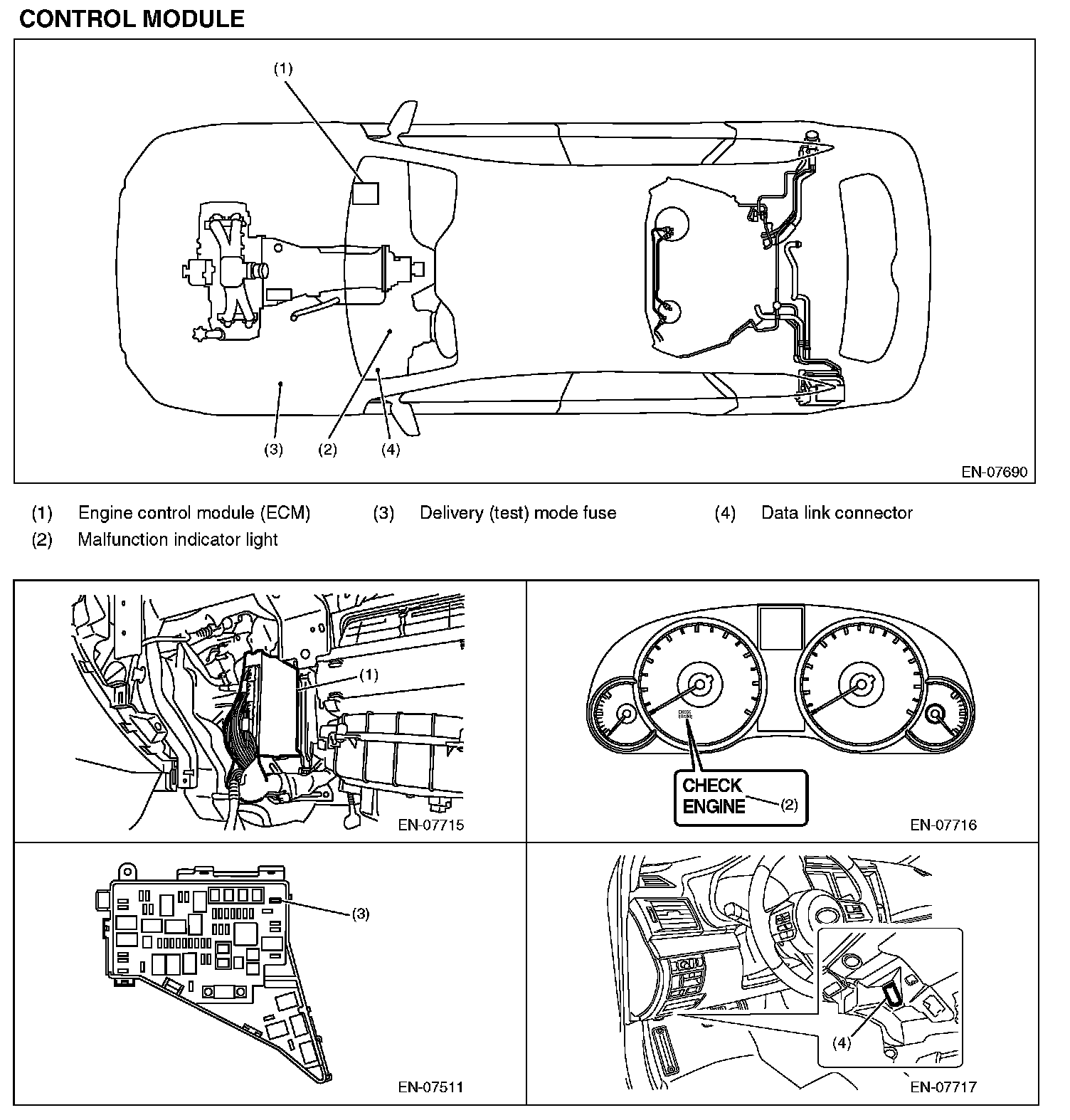

CONTROL MODULE

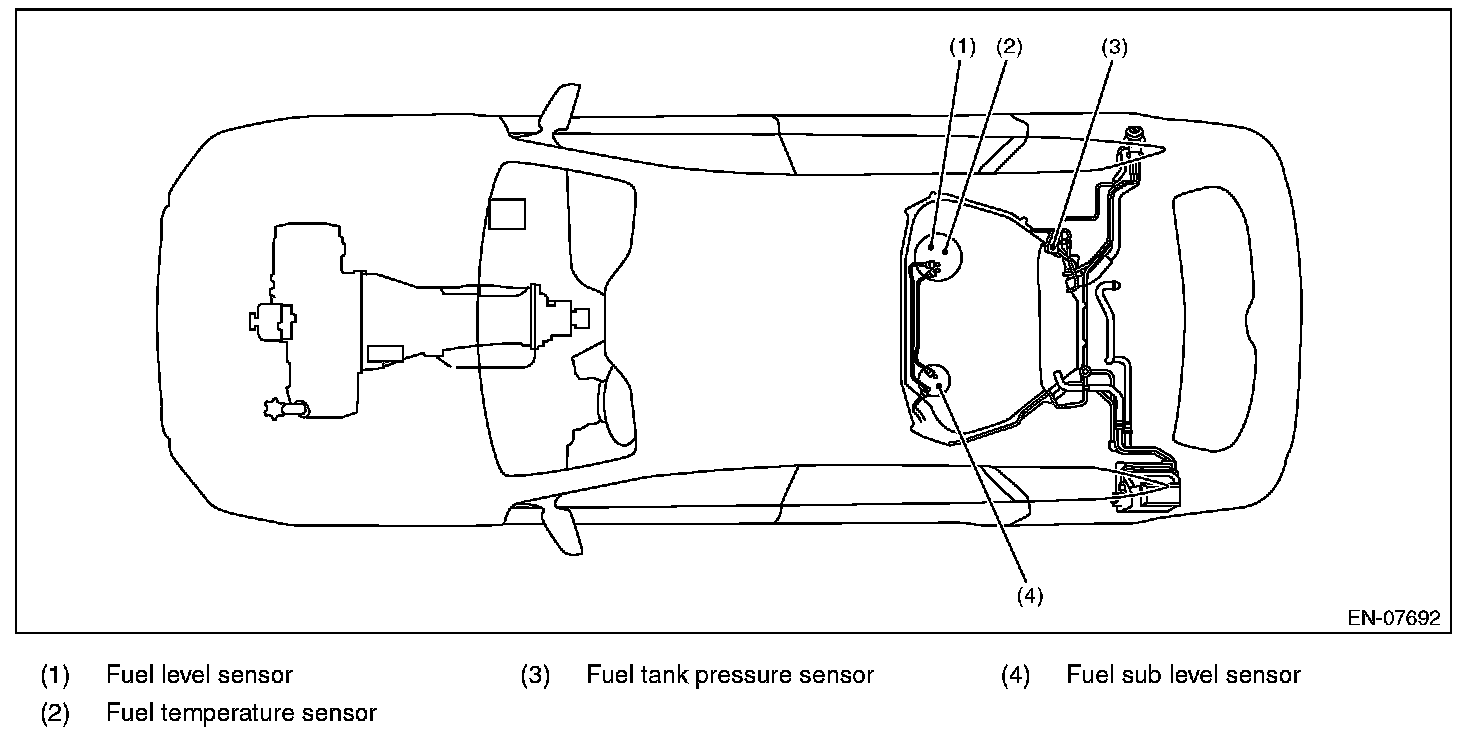

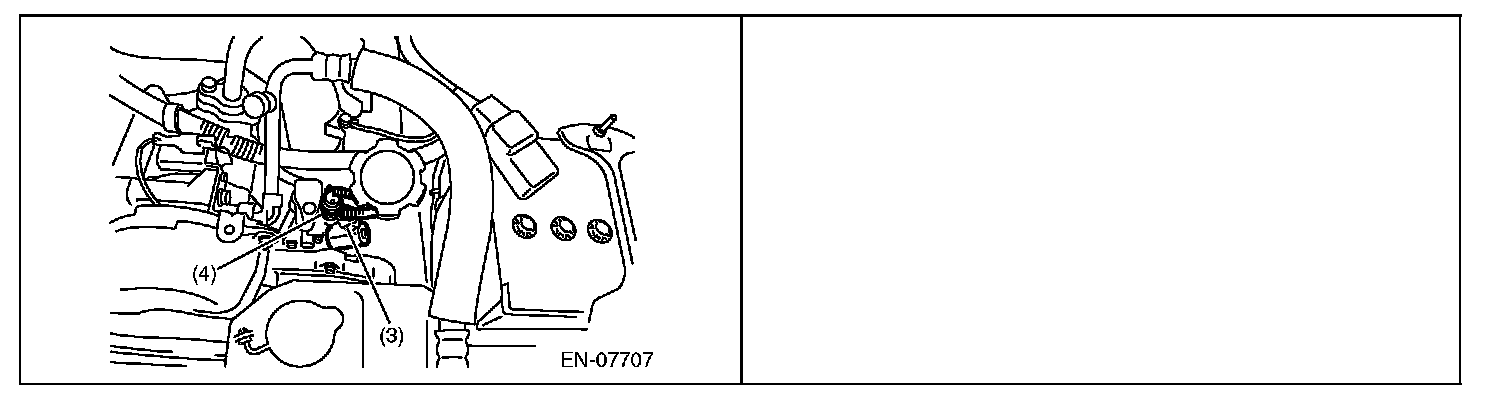

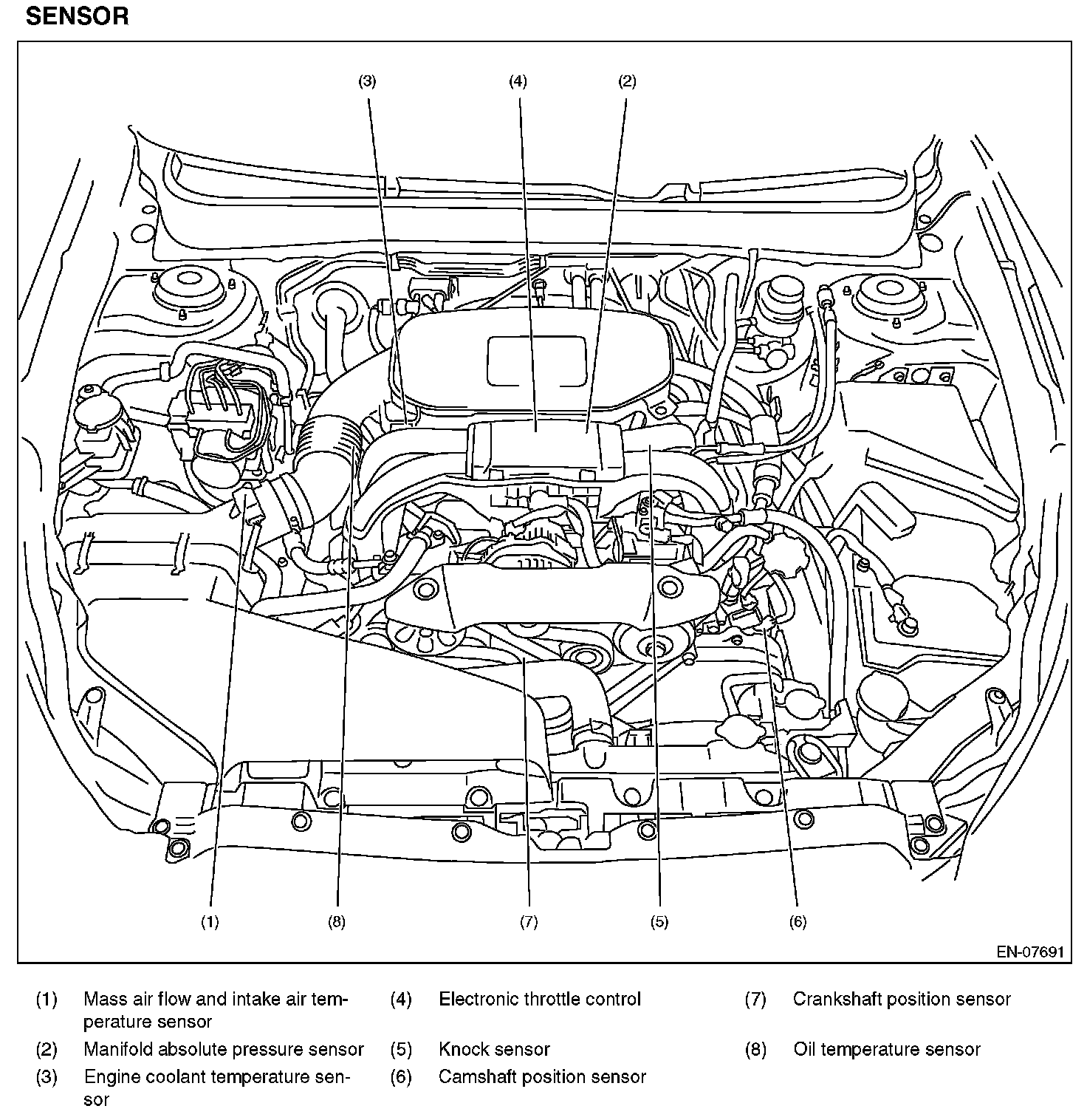

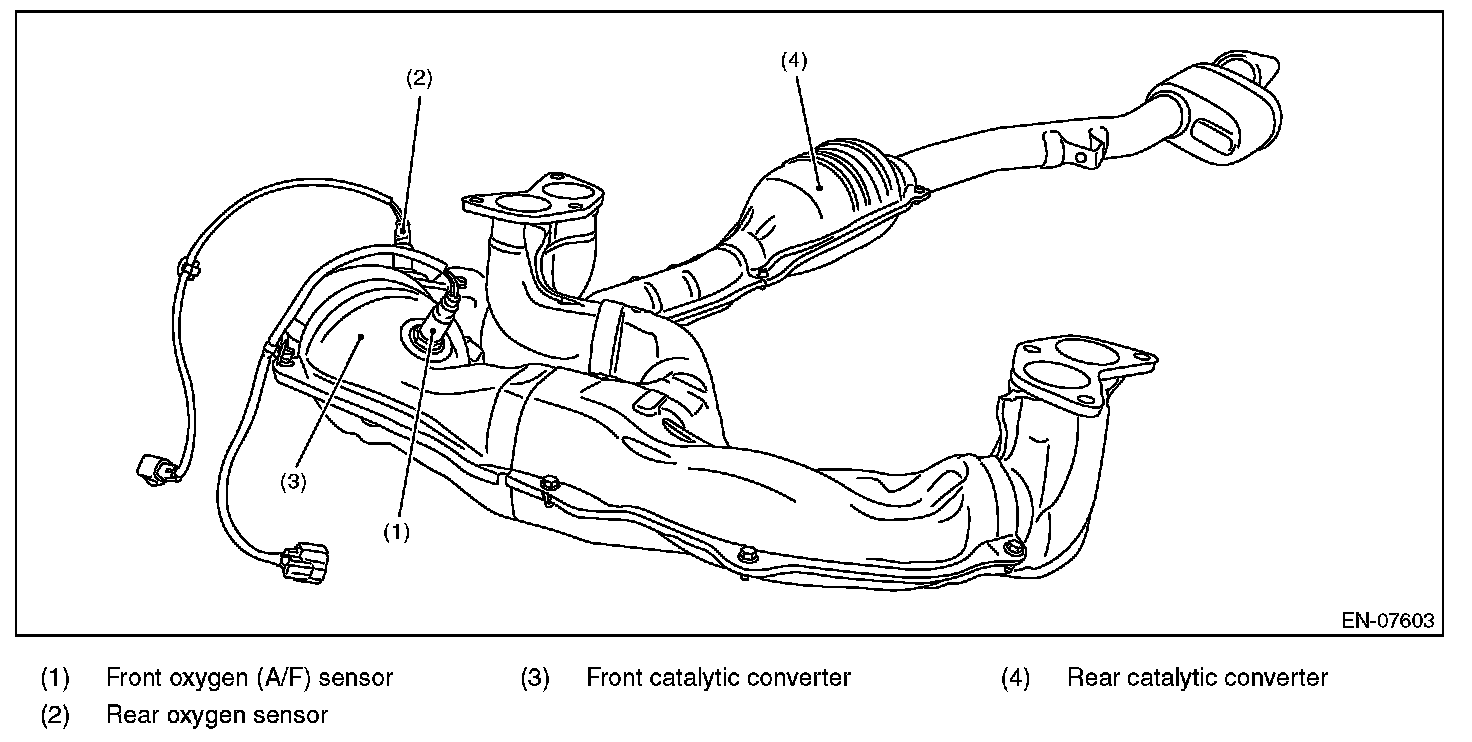

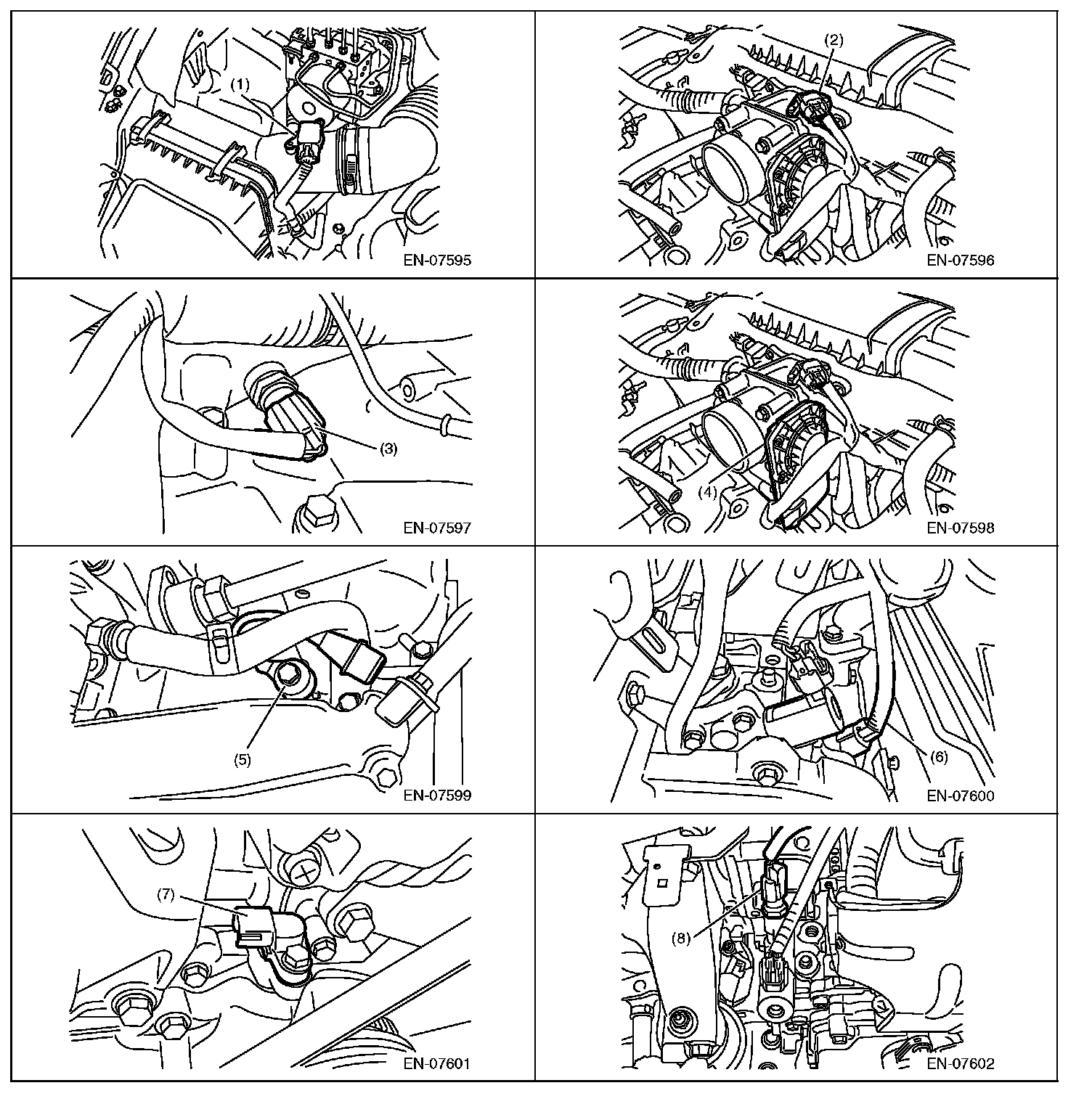

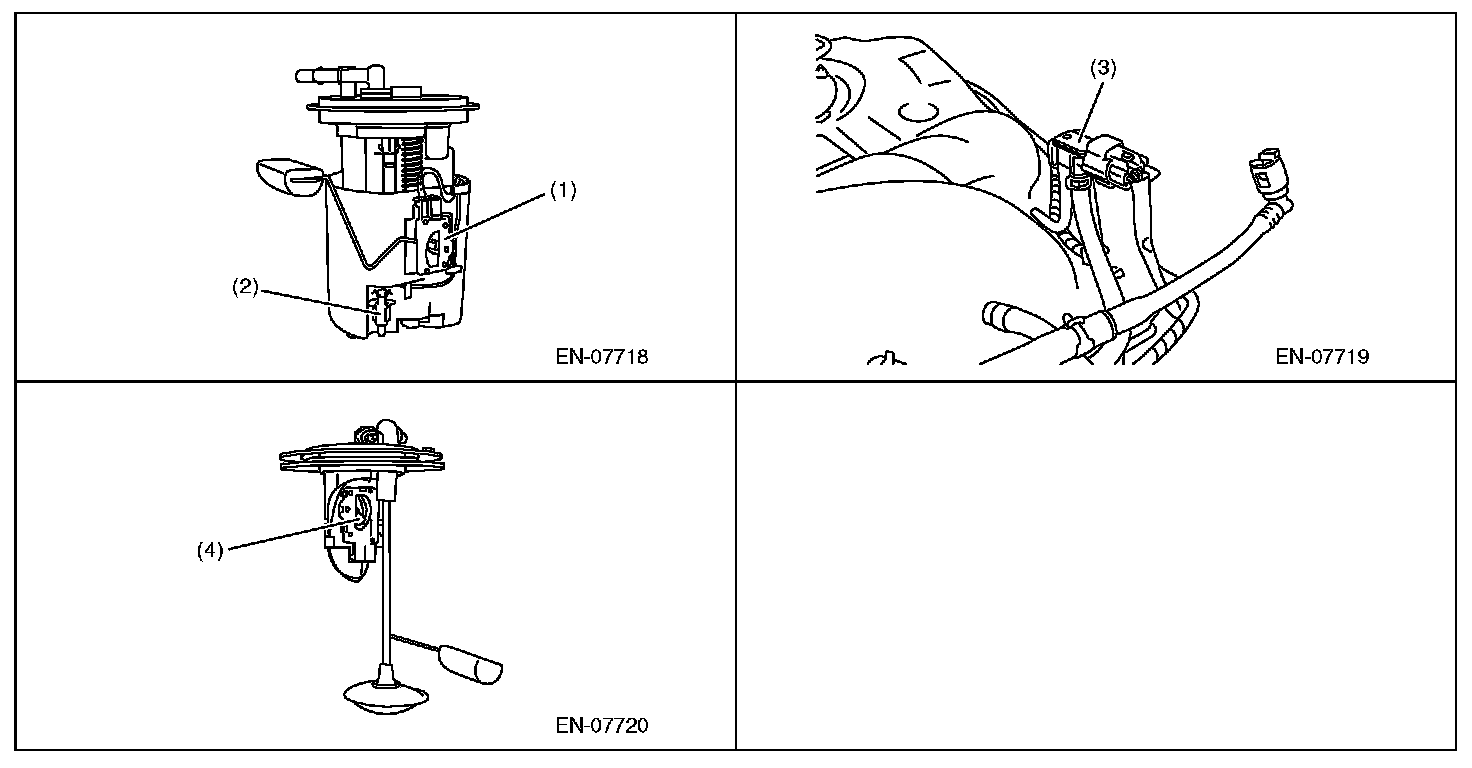

SENSOR

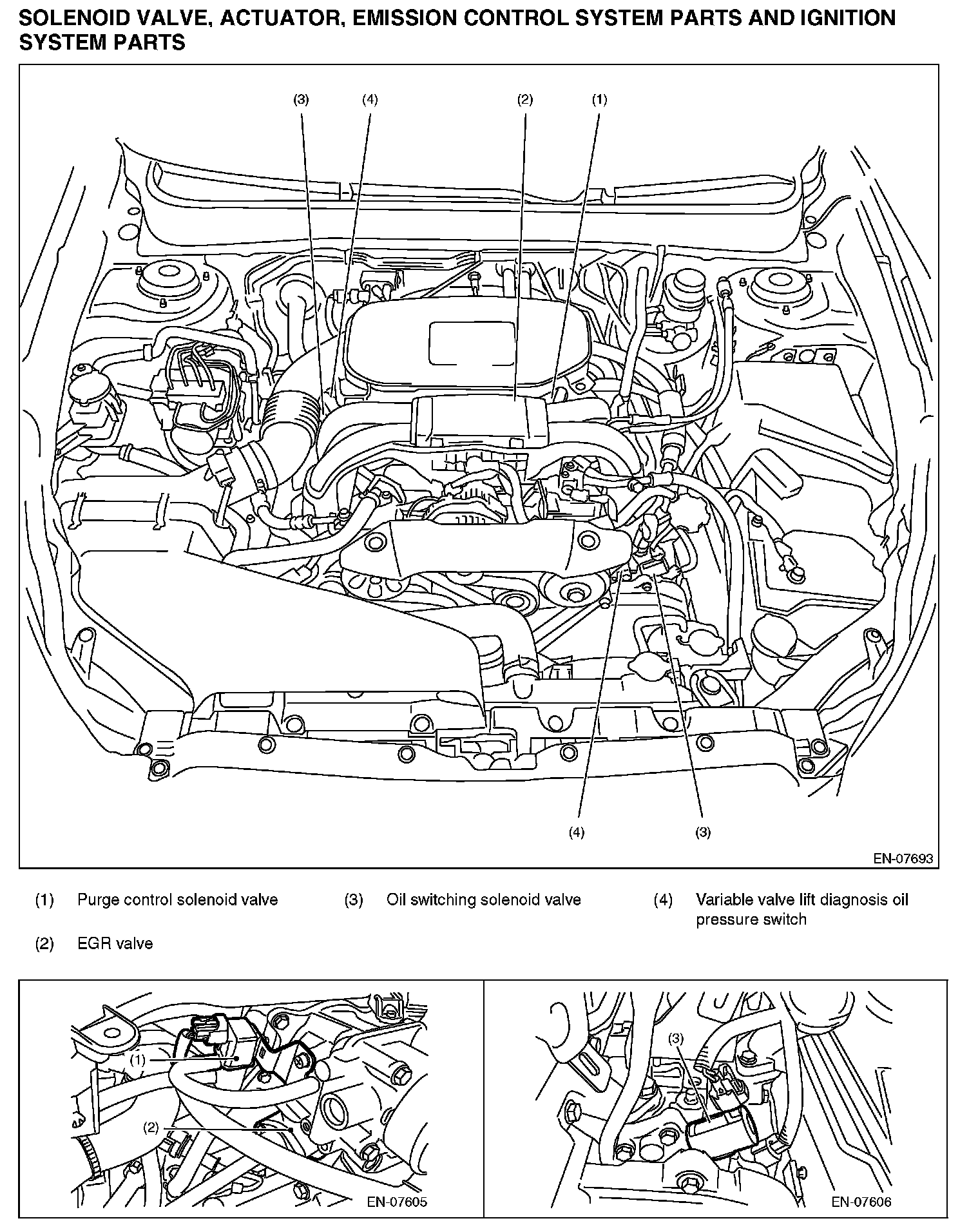

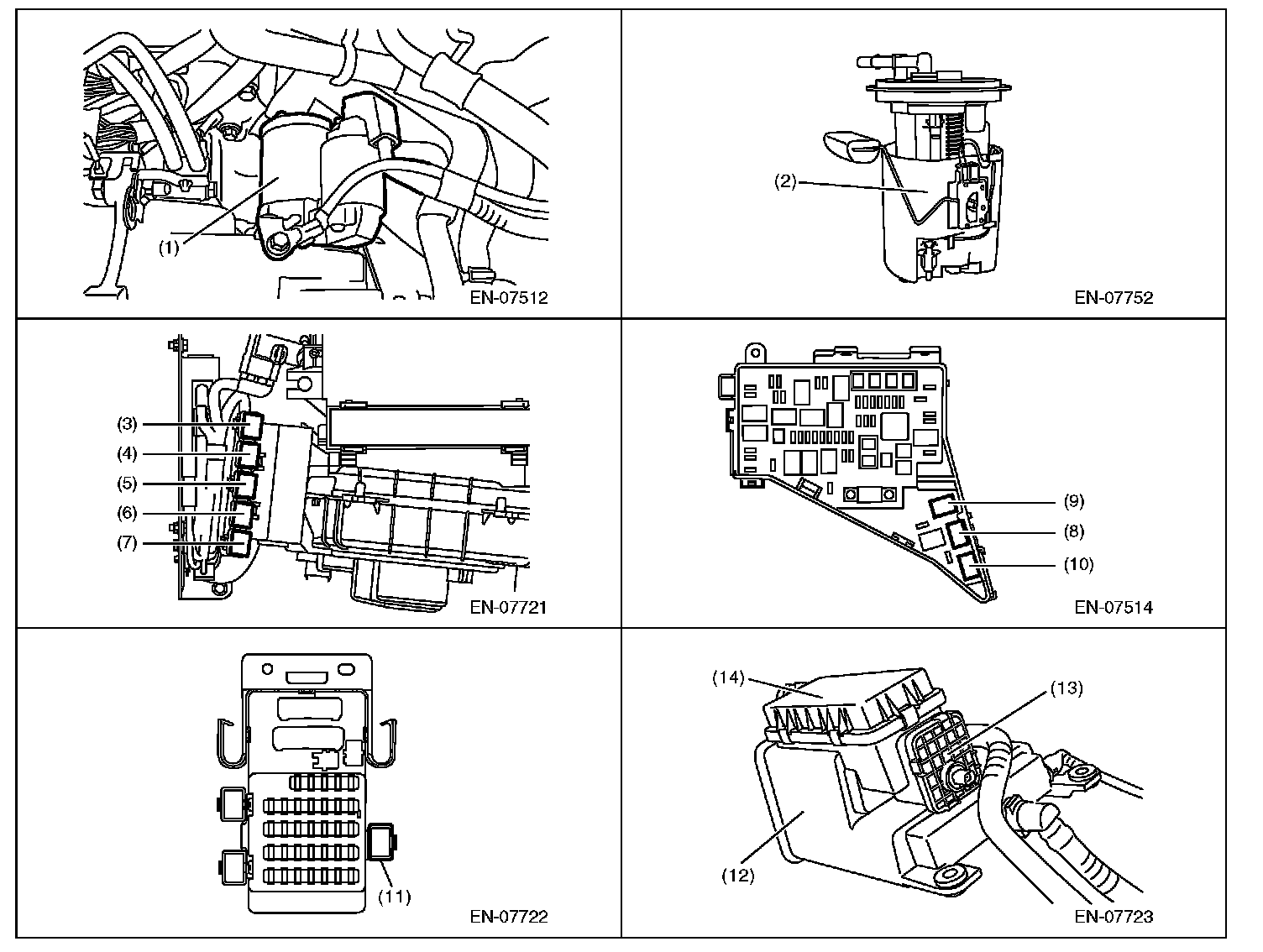

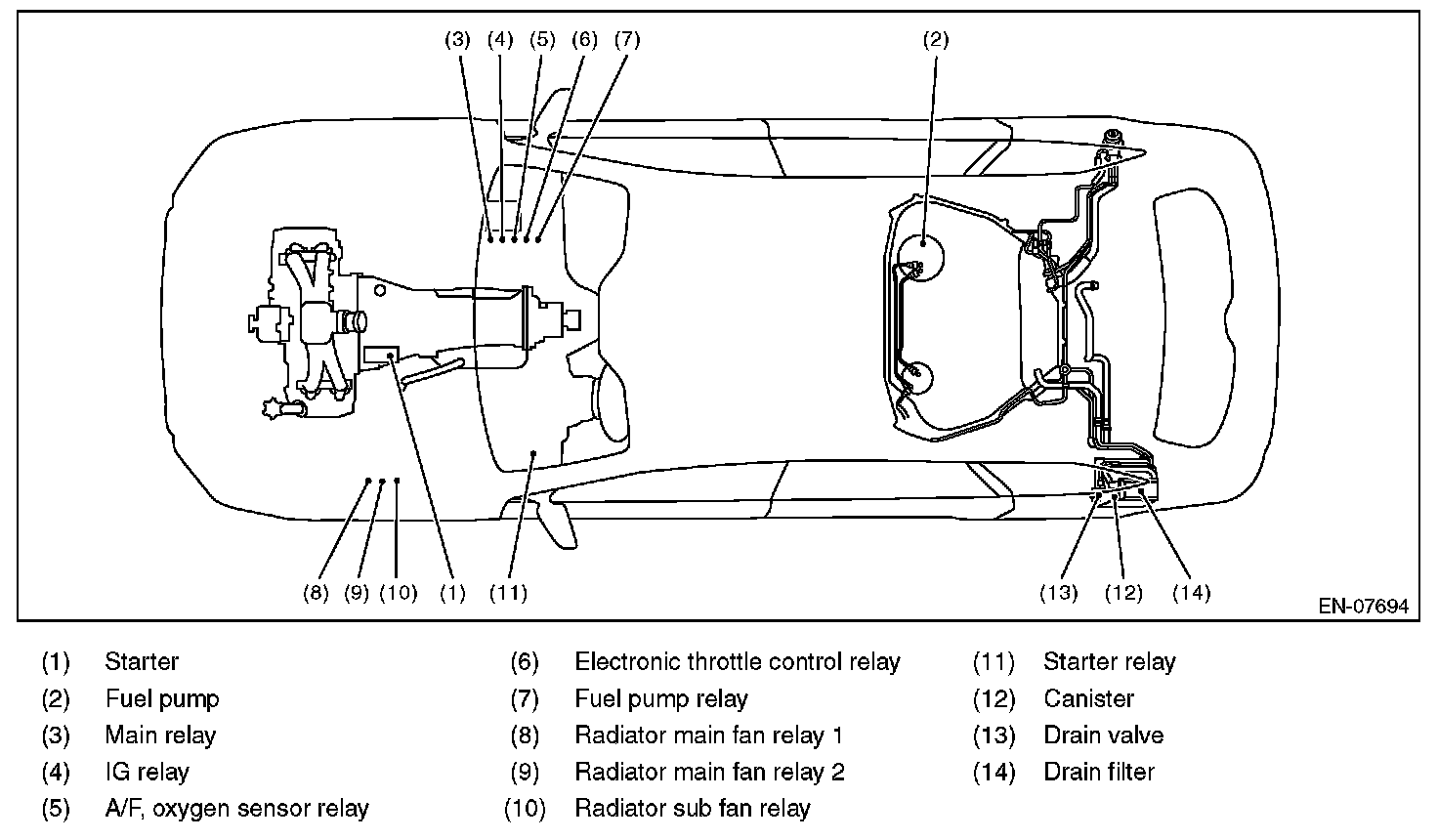

SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS

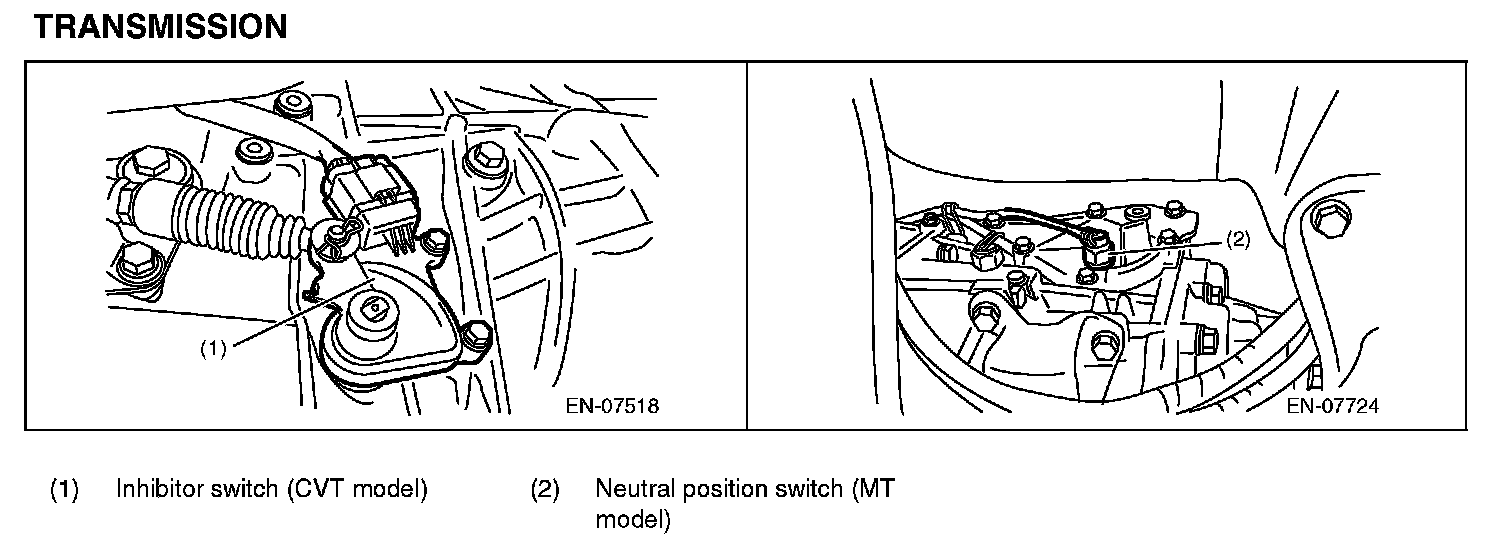

TRANSMISSION
