Power Steering Pump
Power Steering Pump
OIL PUMP

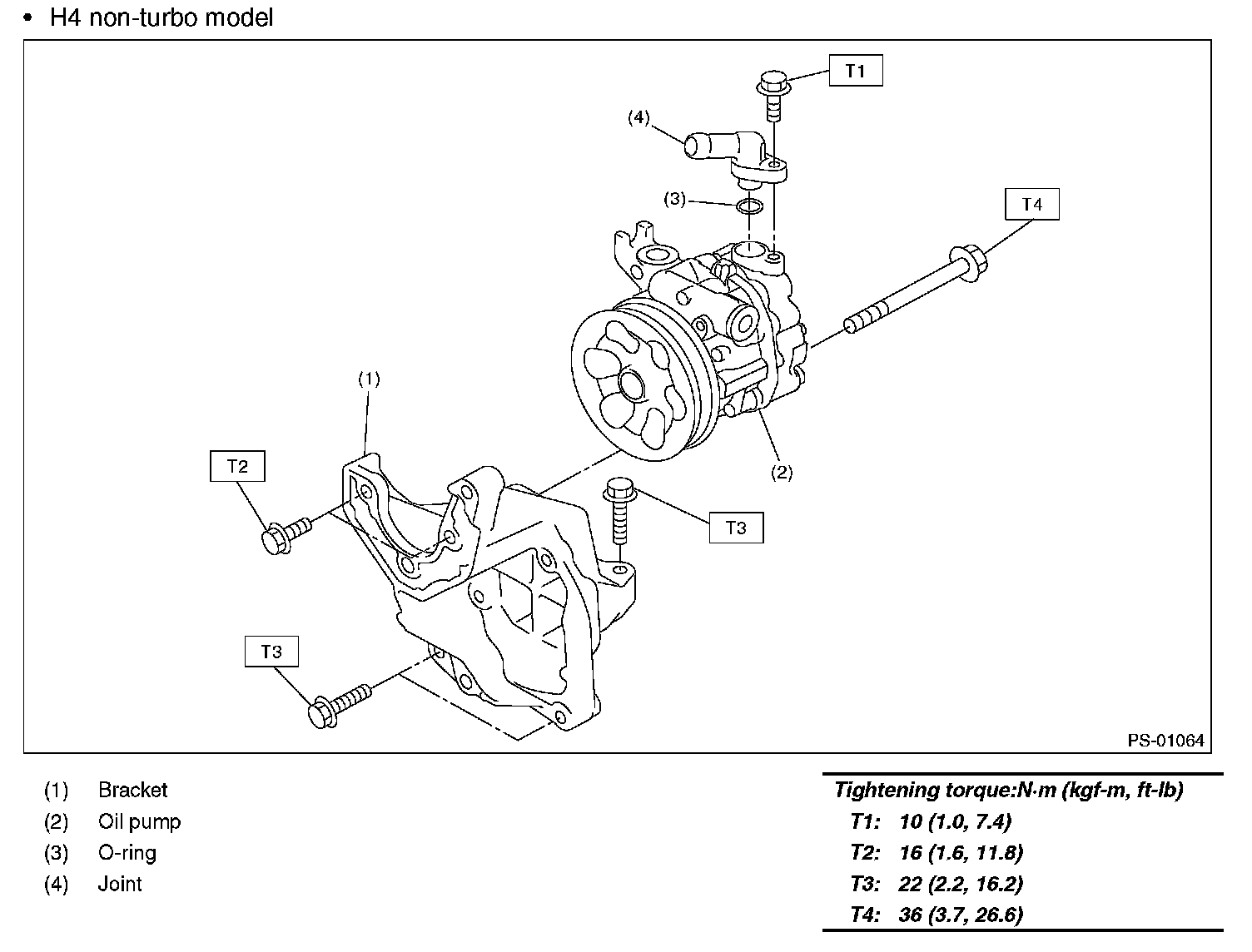

Power Steering Pump Components (H4 non-turbo model):

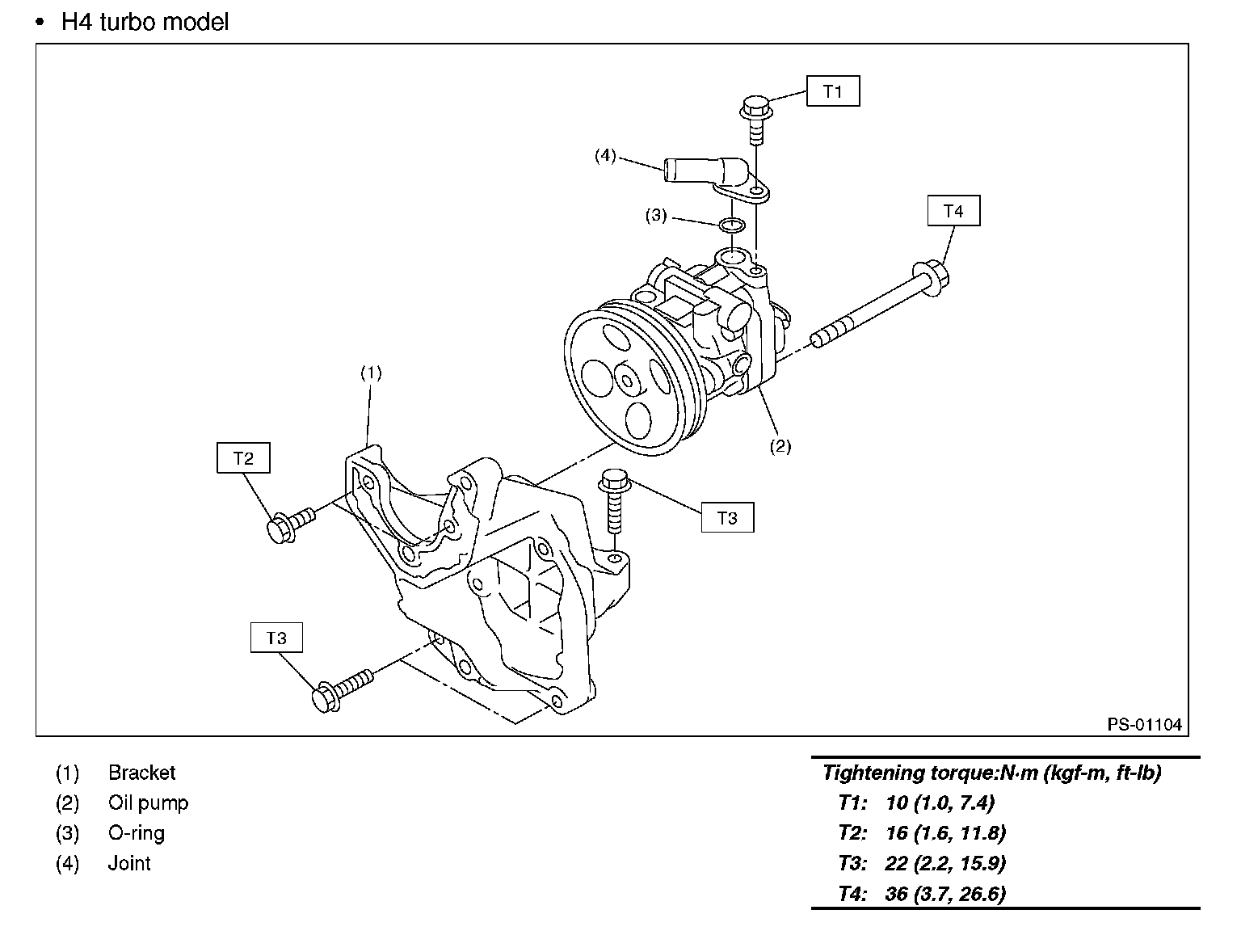

Power Steering Pump Components (H4 turbo model):

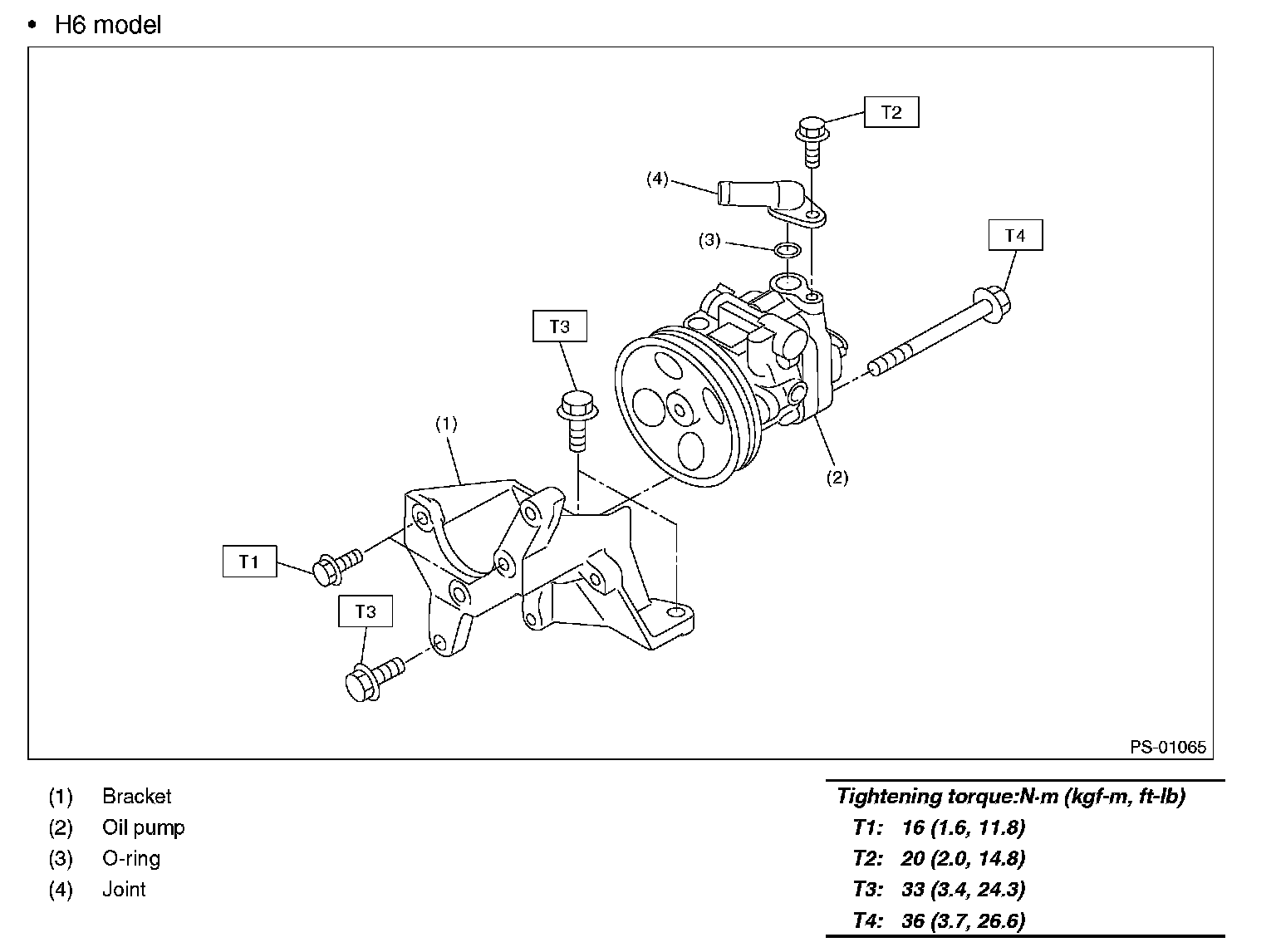

Power Steering Pump Components (H6 model):
