Home >> Subaru >> 2010 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems >> 5AT Control System >> System Overview Schematic

System Overview Schematic

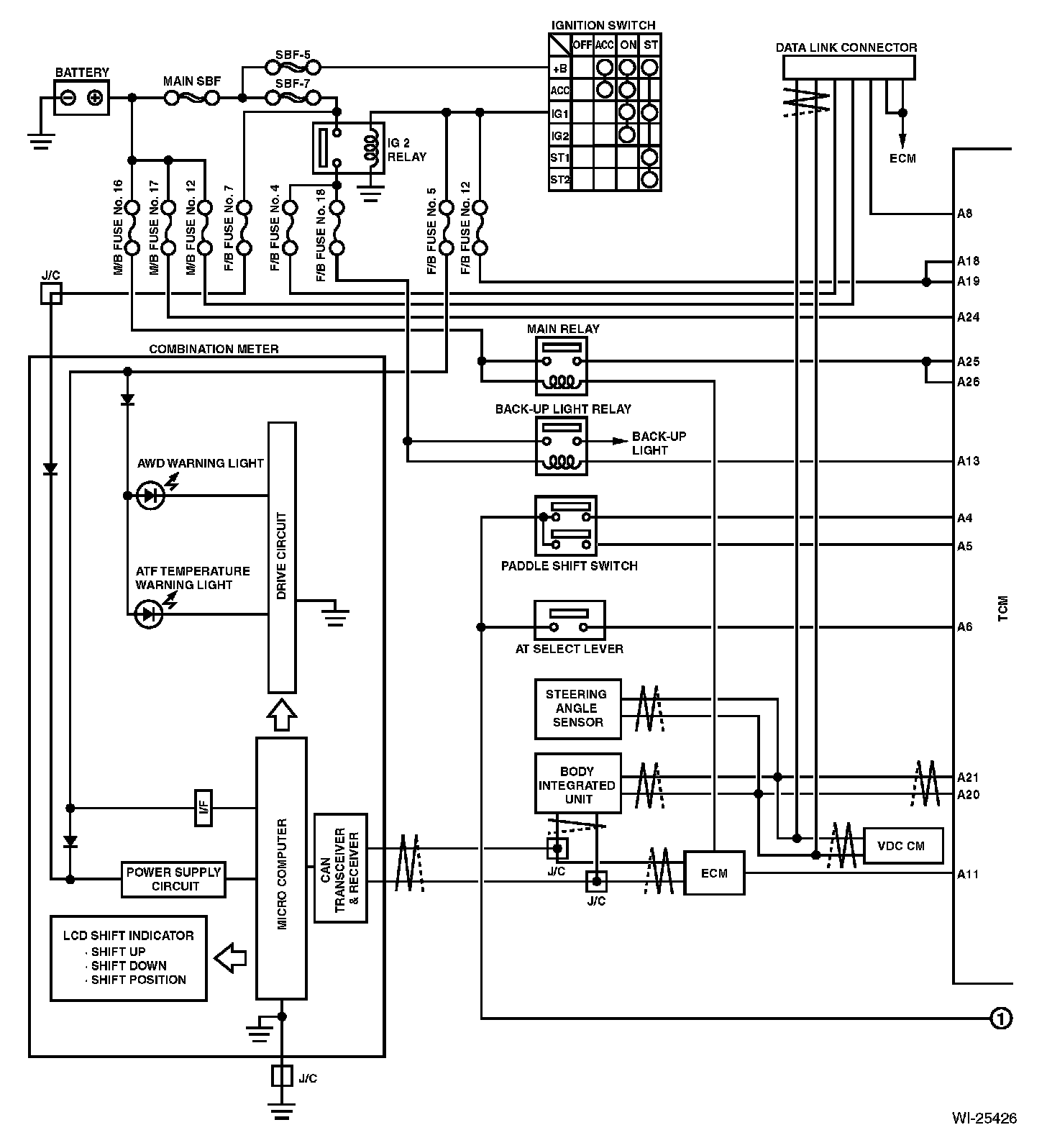

System Overview Schematic (Part 1):

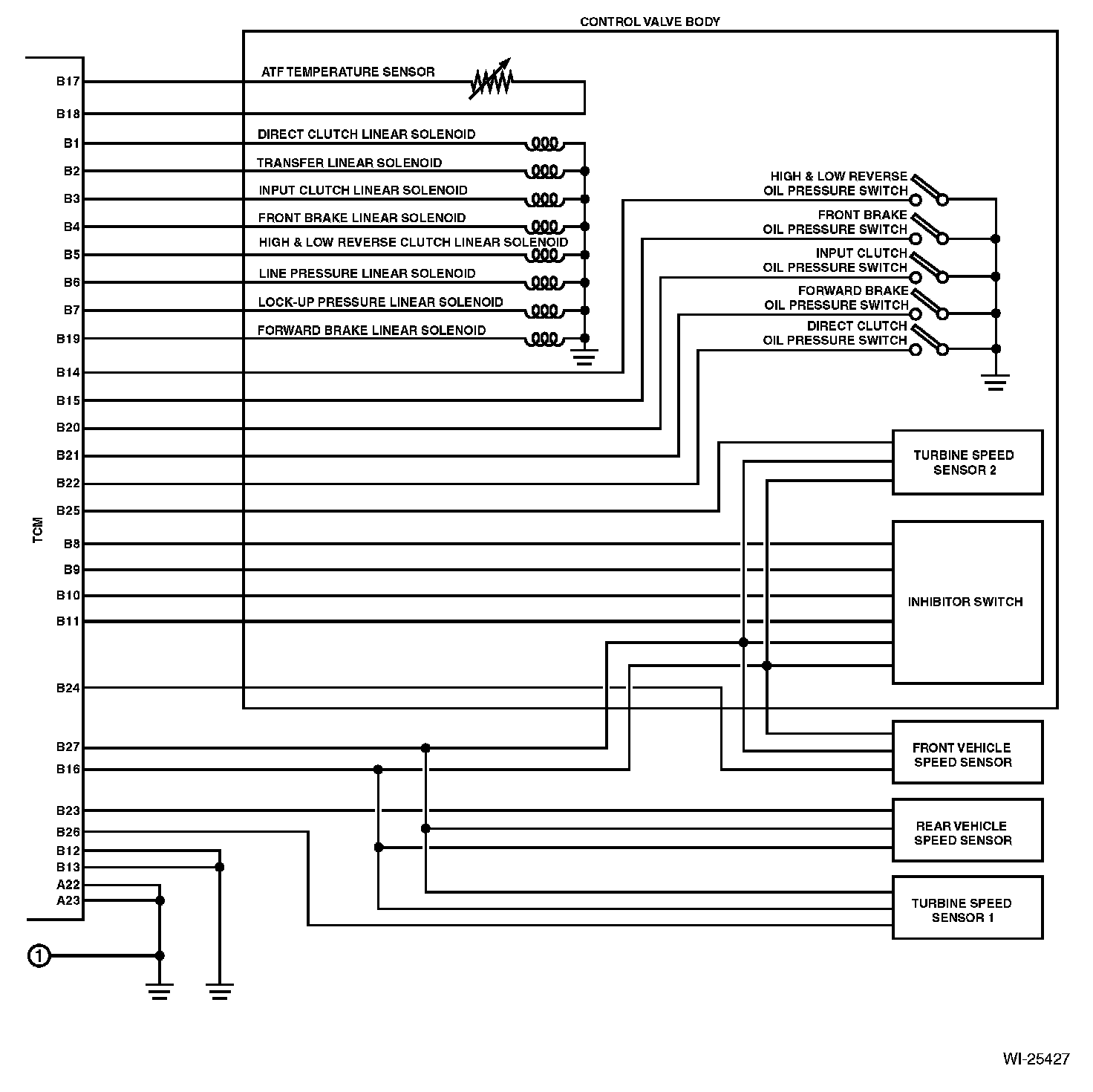

System Overview Schematic (Part 2):
