Engine

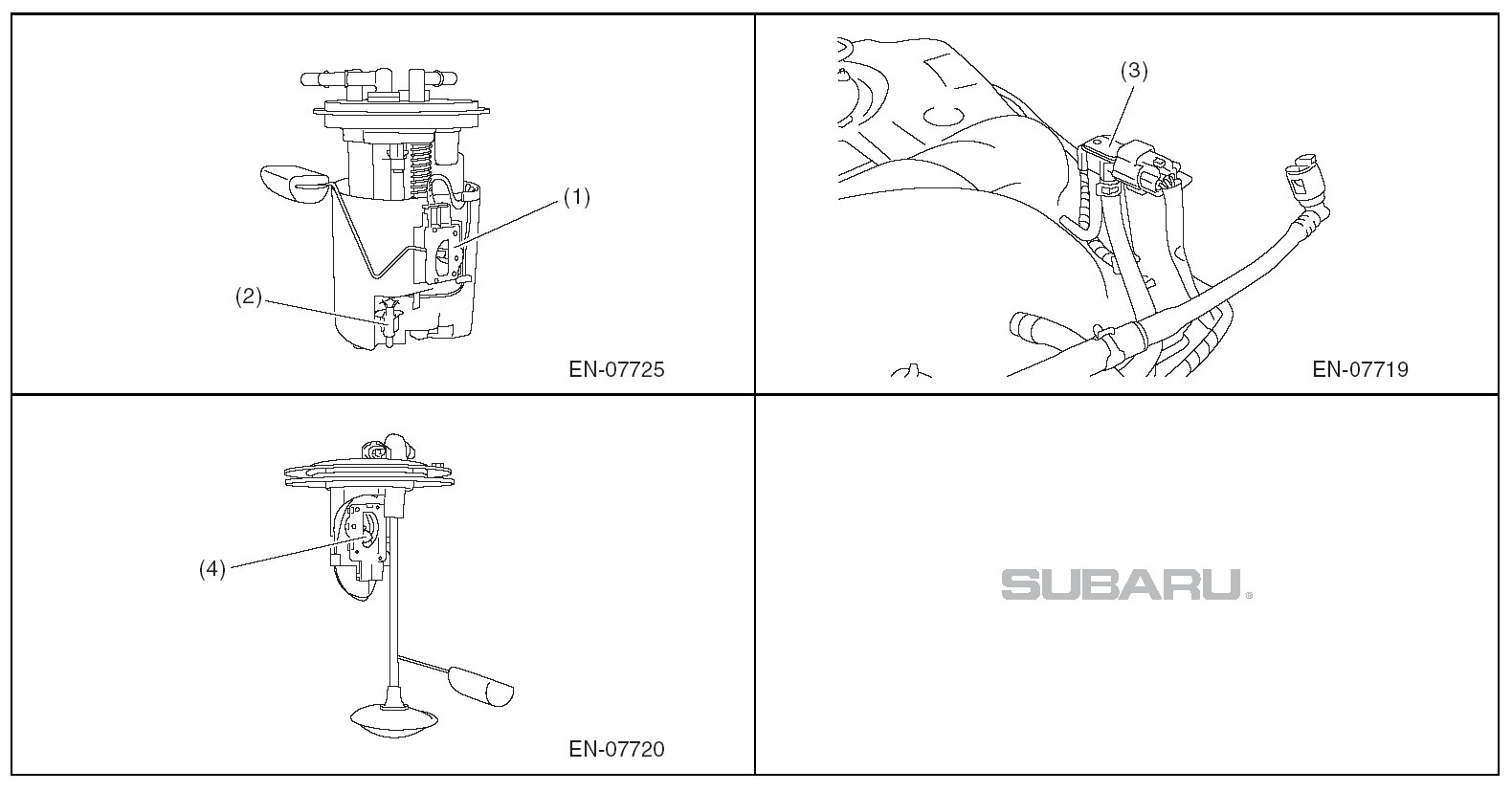

Electrical Component Location

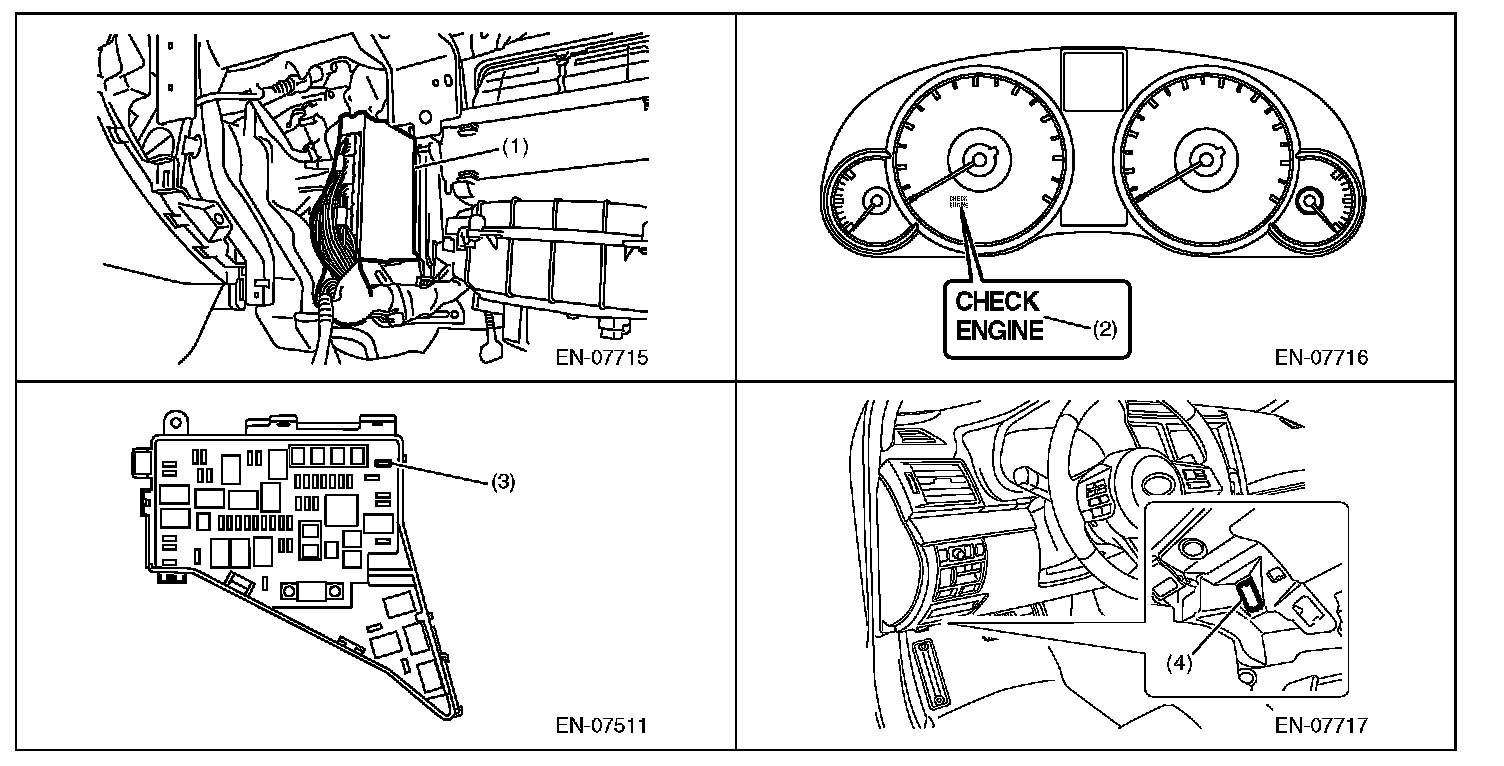

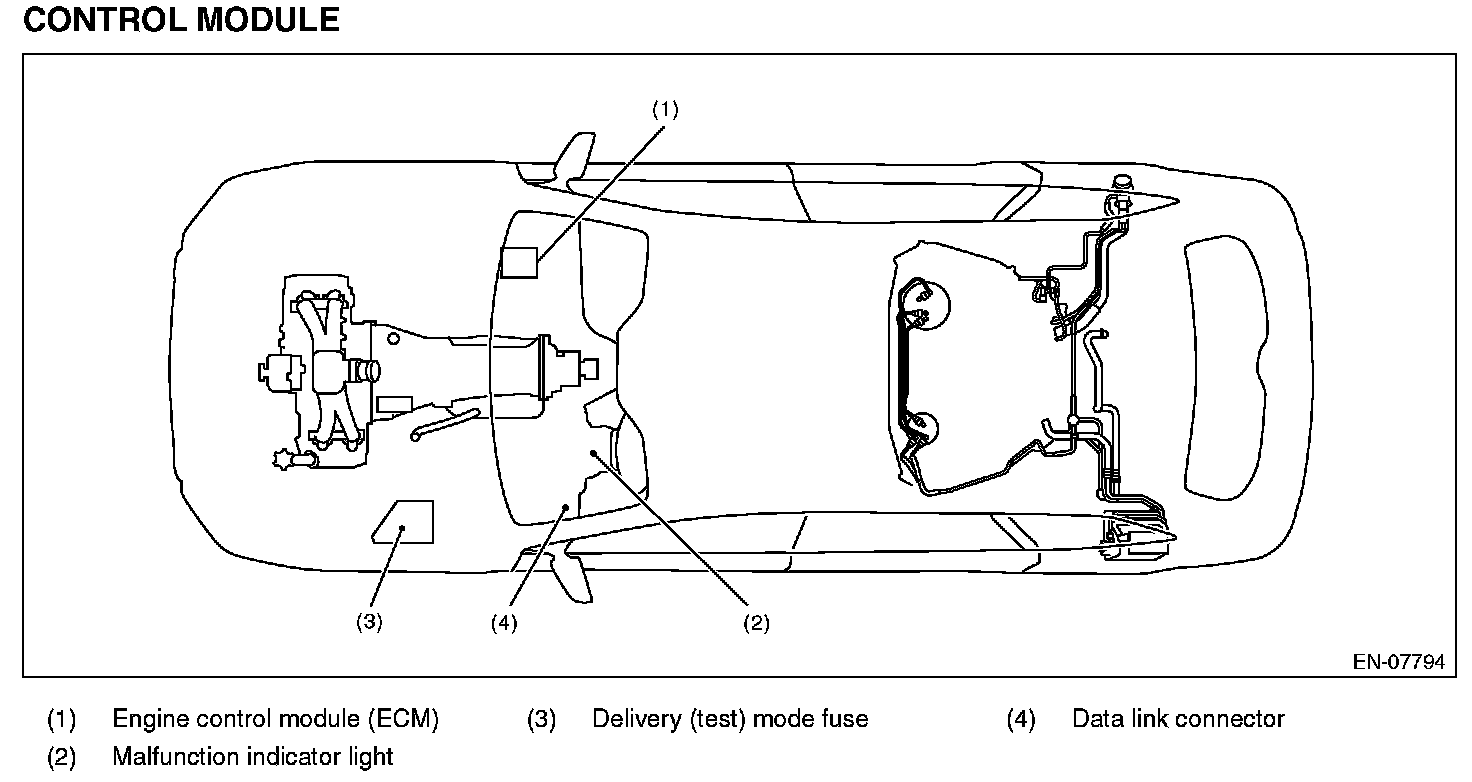

CONTROL MODULE

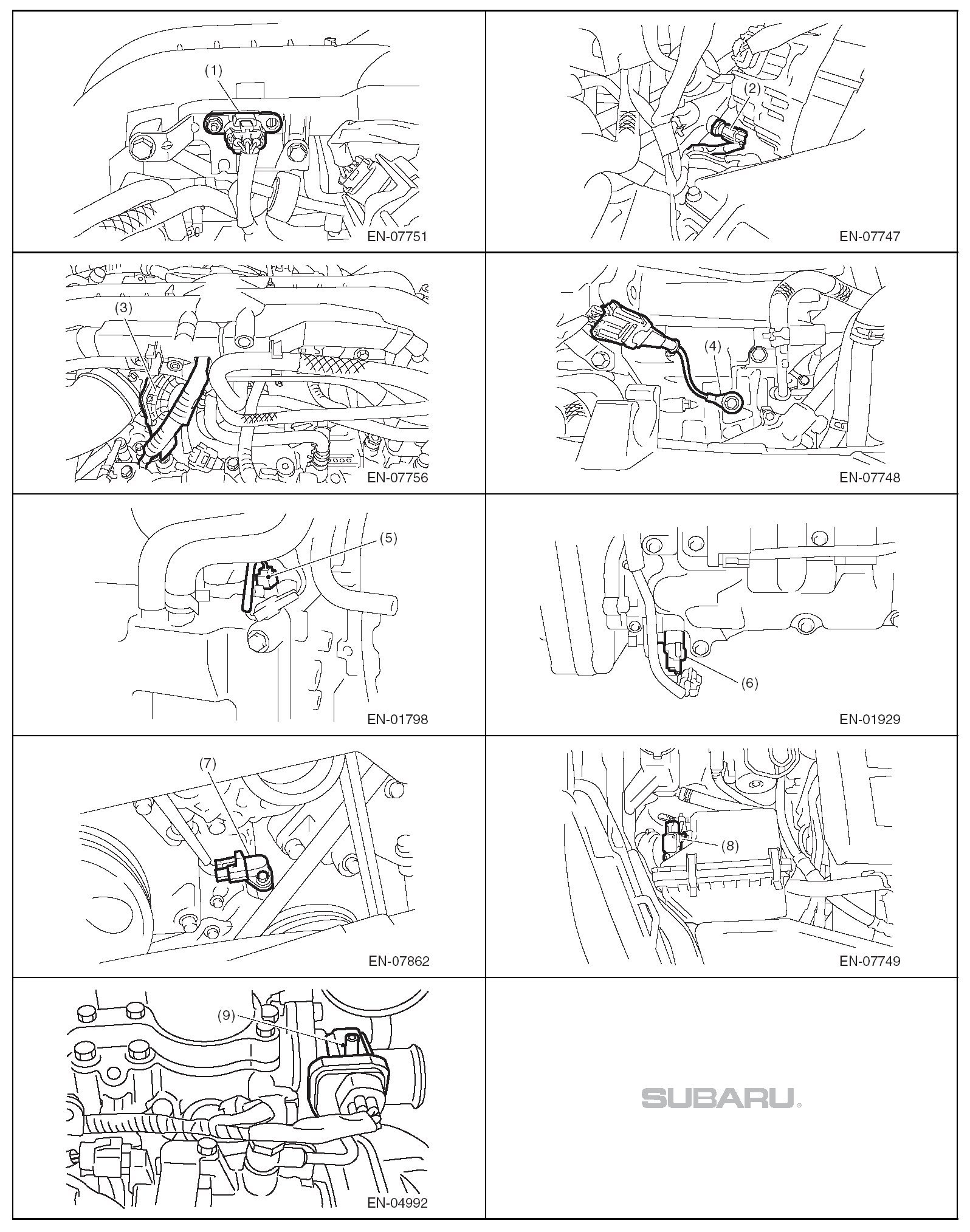

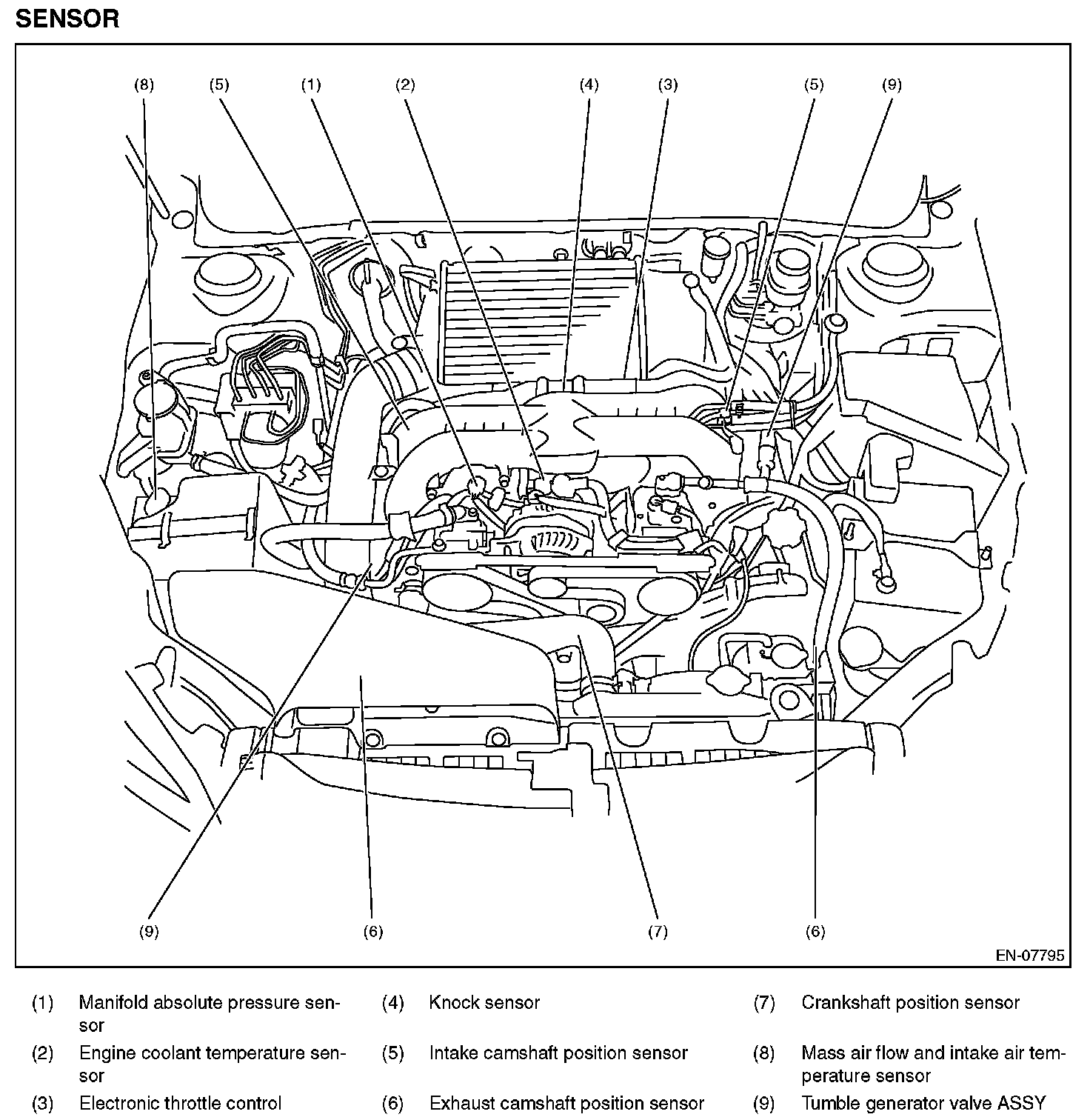

SENSOR

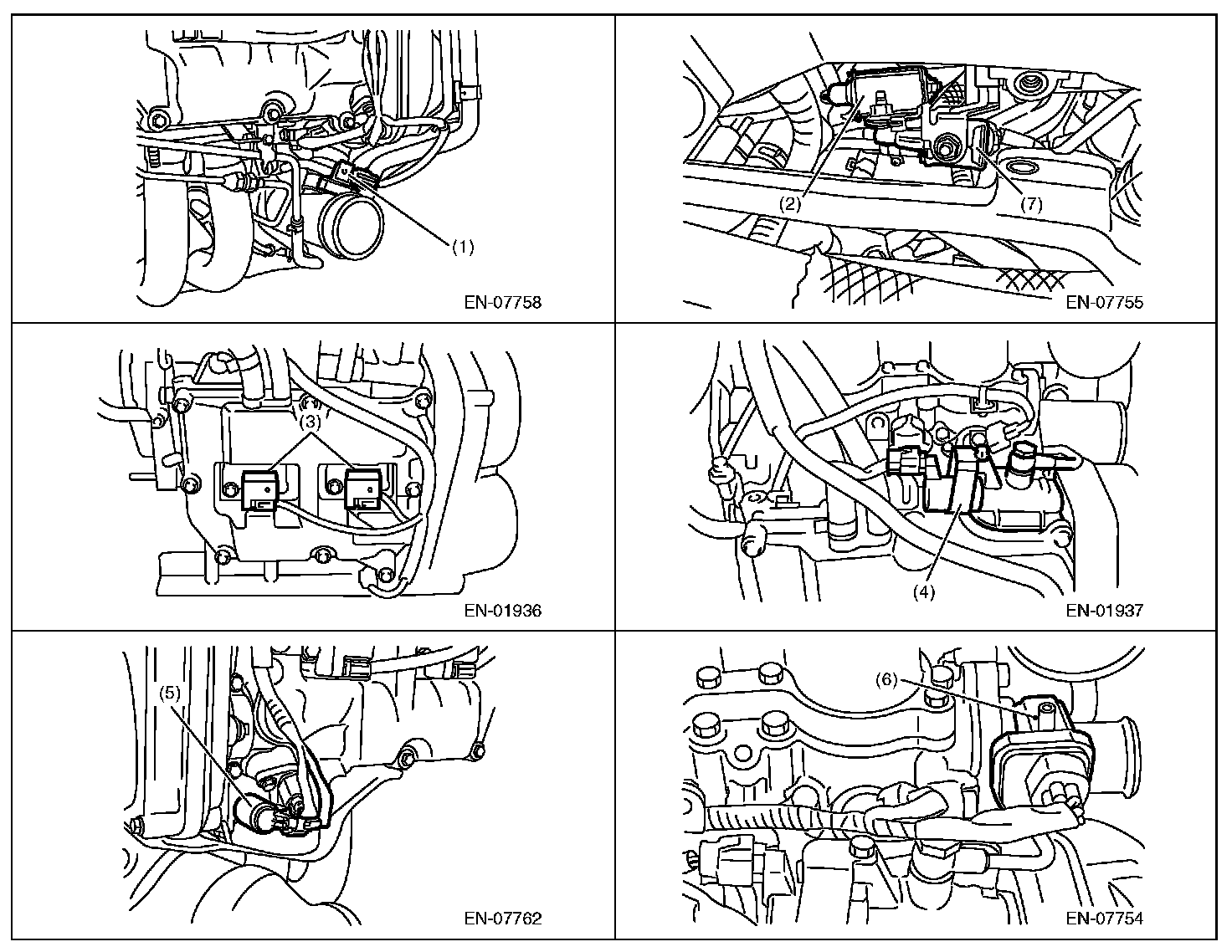

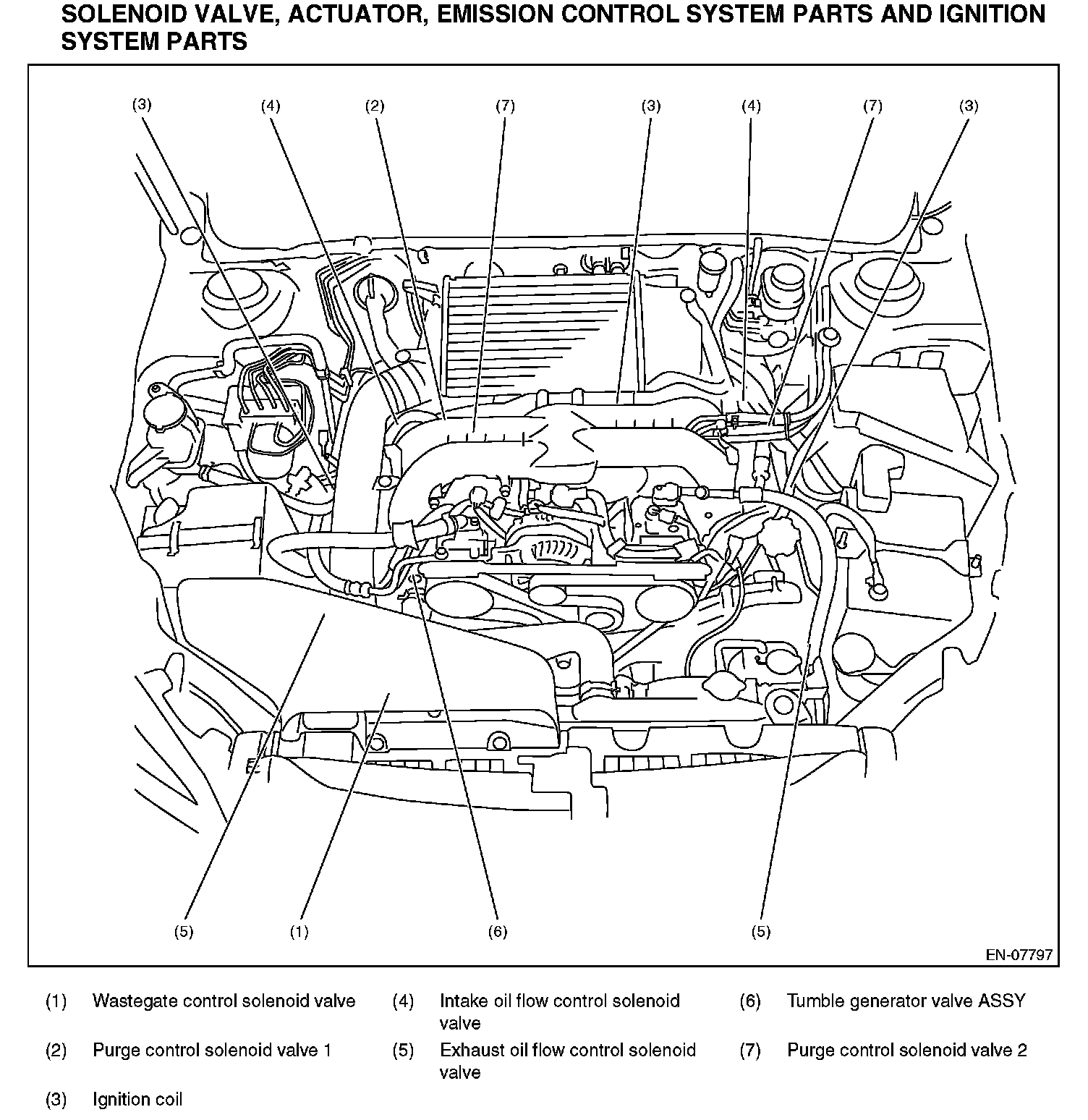

SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS

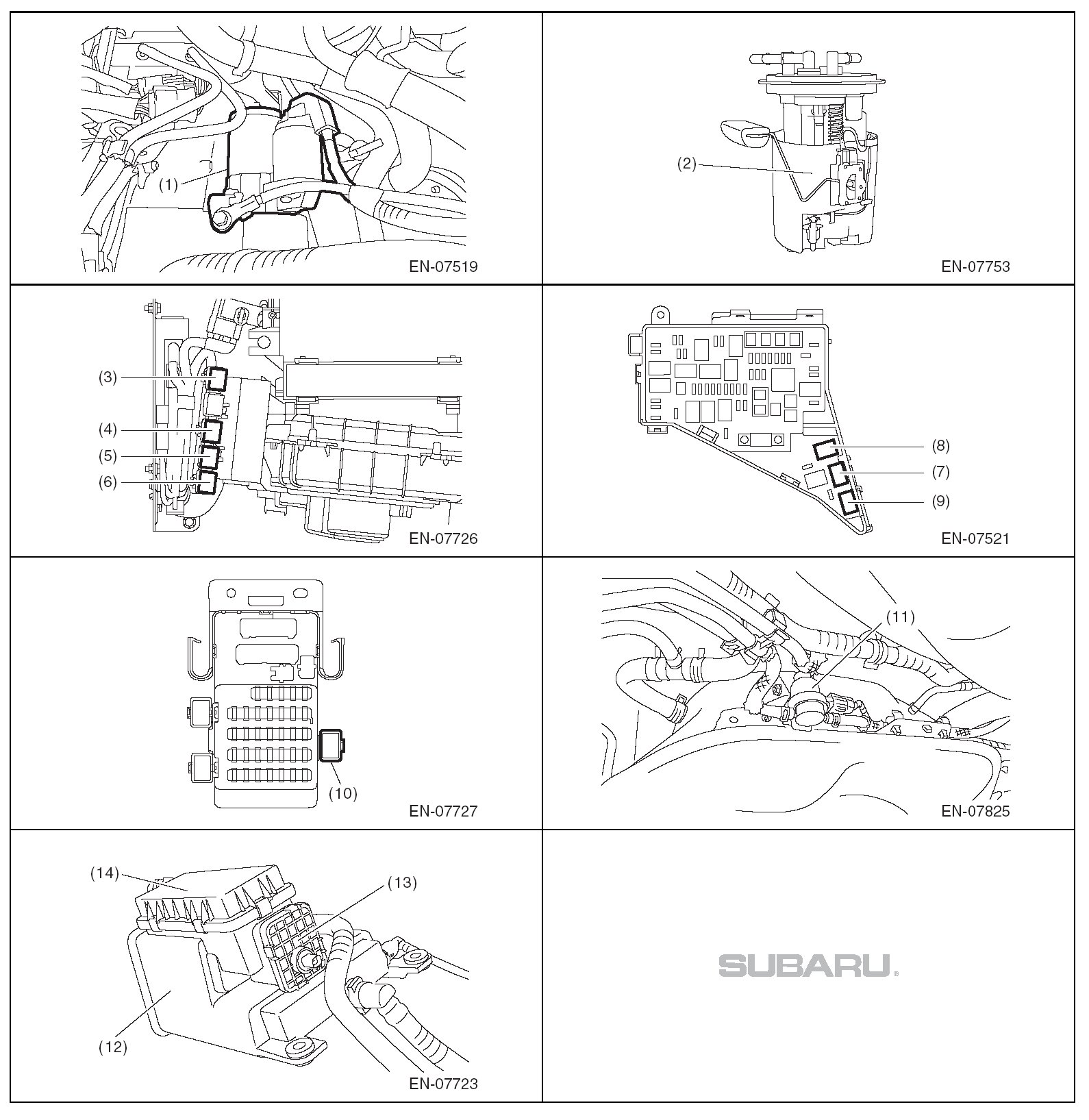

TRANSMISSION
