Keyless Entry
Keyless Entry SystemELECTRICAL SPECIFICATION

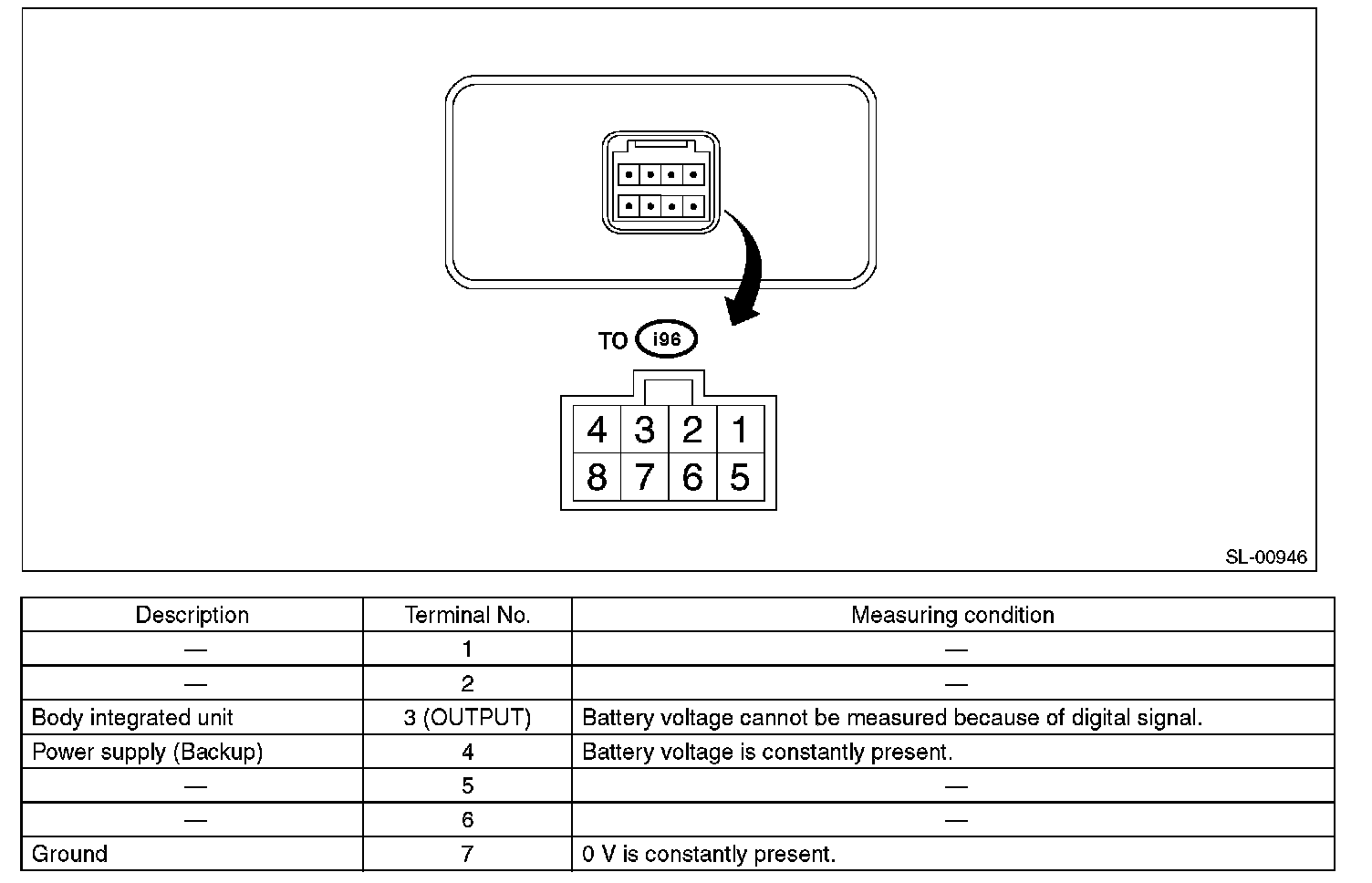

1. KEYLESS ENTRY CONTROL MODULE
2. BODY INTEGRATED UNIT
Refer to Control Module I/O Signal in the LAN SYSTEM (DIAGNOSTICS). Electrical Specification
ELECTRICAL SPECIFICATION
1. KEYLESS ENTRY CONTROL MODULE
2. BODY INTEGRATED UNIT
Refer to Control Module I/O Signal in the LAN SYSTEM (DIAGNOSTICS). Electrical Specification
