System Specifications

General Description

SPECIFICATION

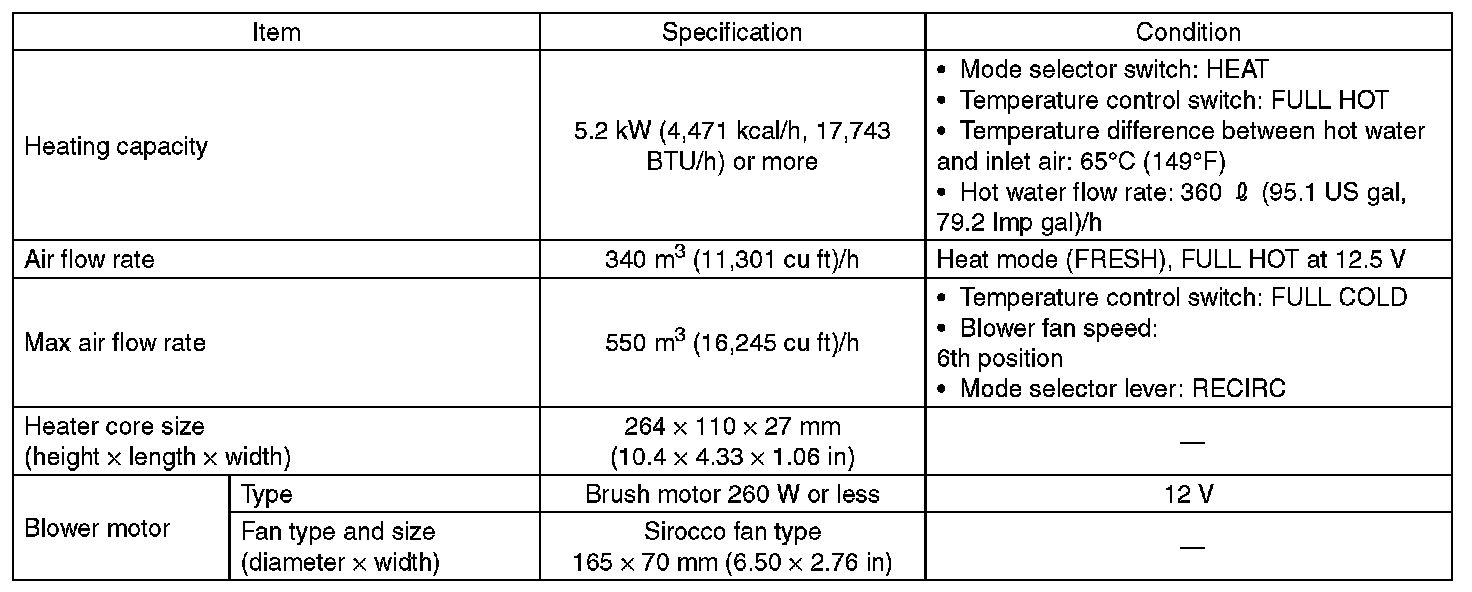

1. HEATER SYSTEM






2. A/C SYSTEM
- Single A/C model (front only)

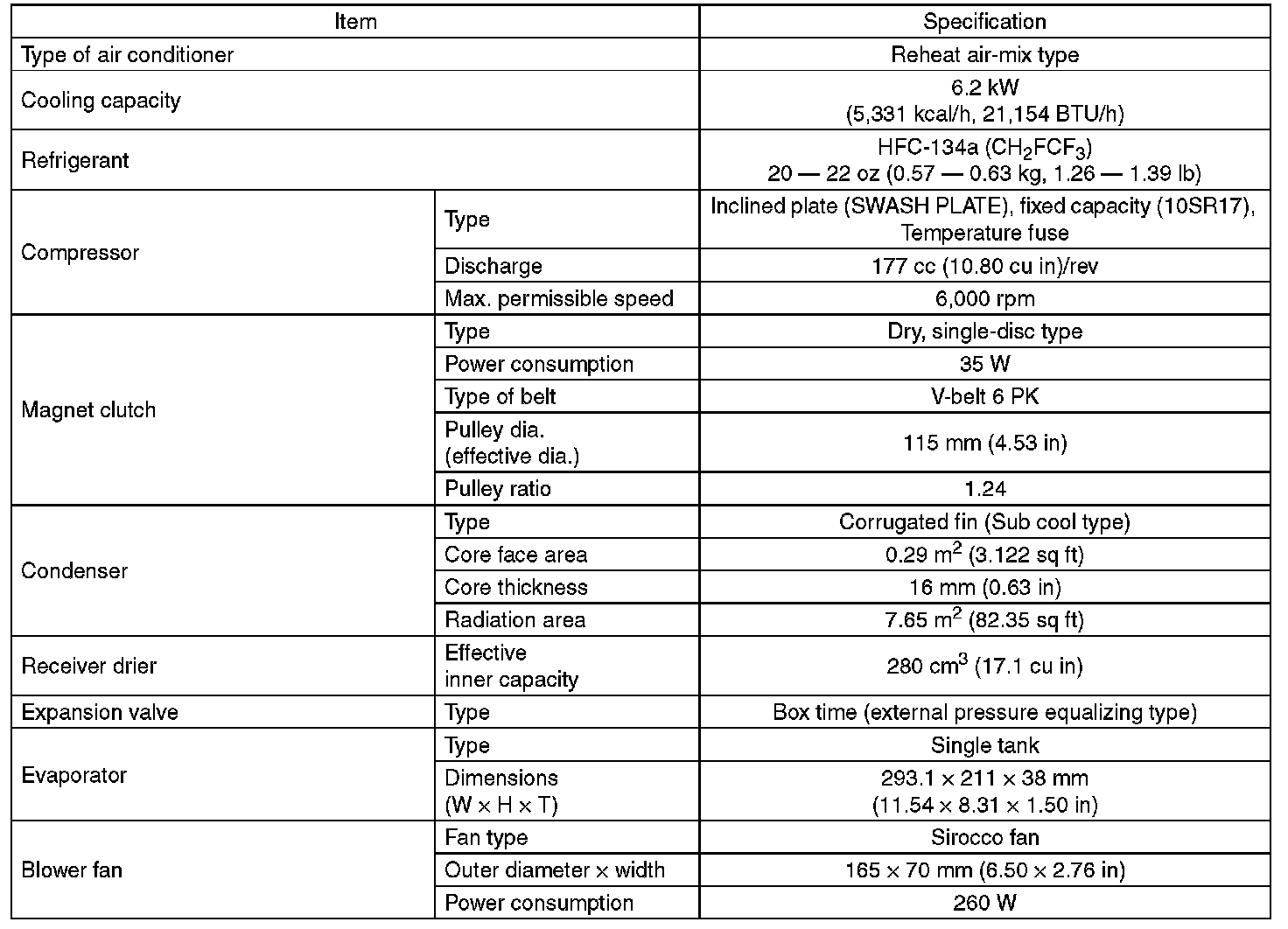

Part 1:

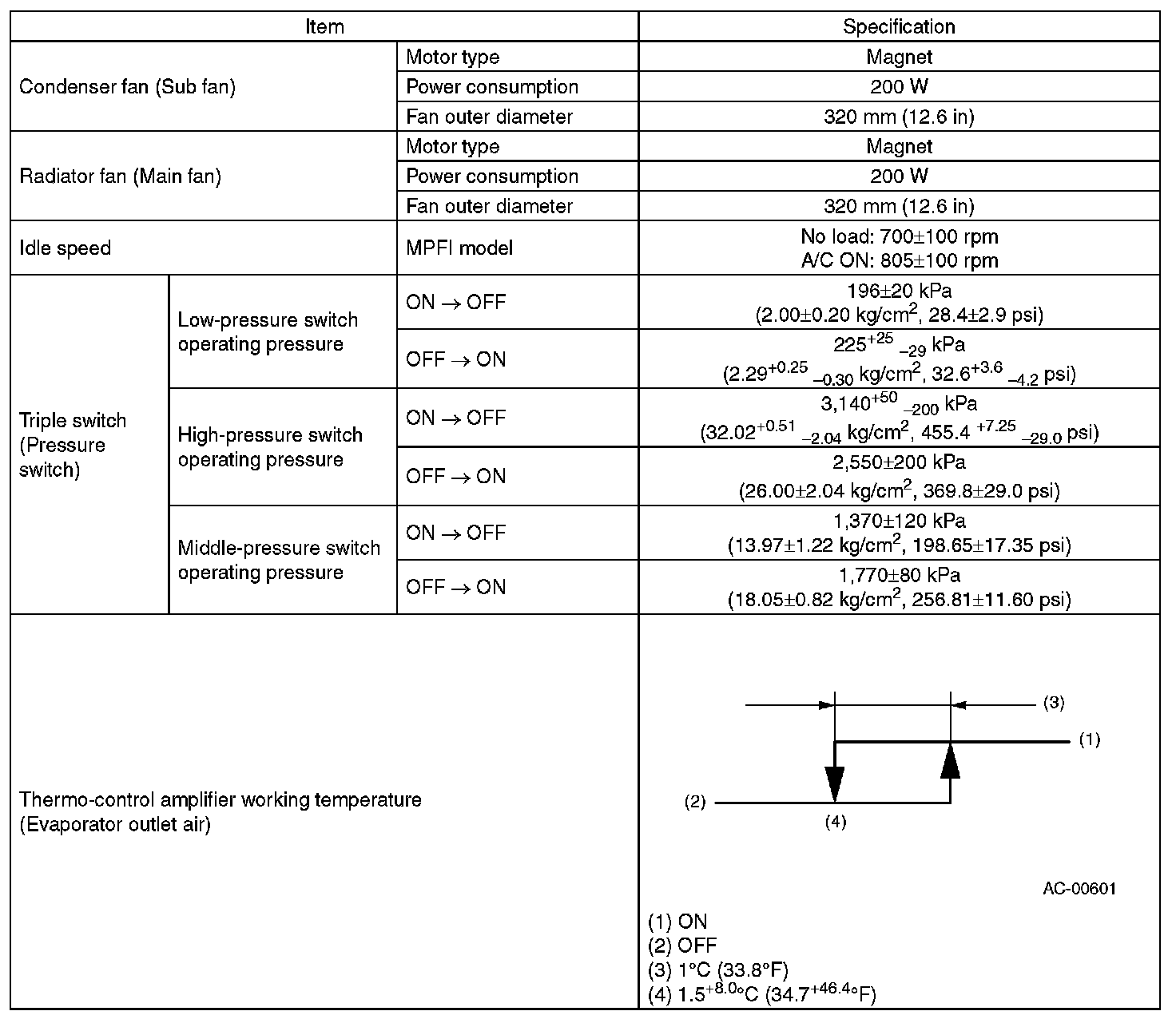

Part 2:






- Dual A/C model (Front A/C and Rear cooler)

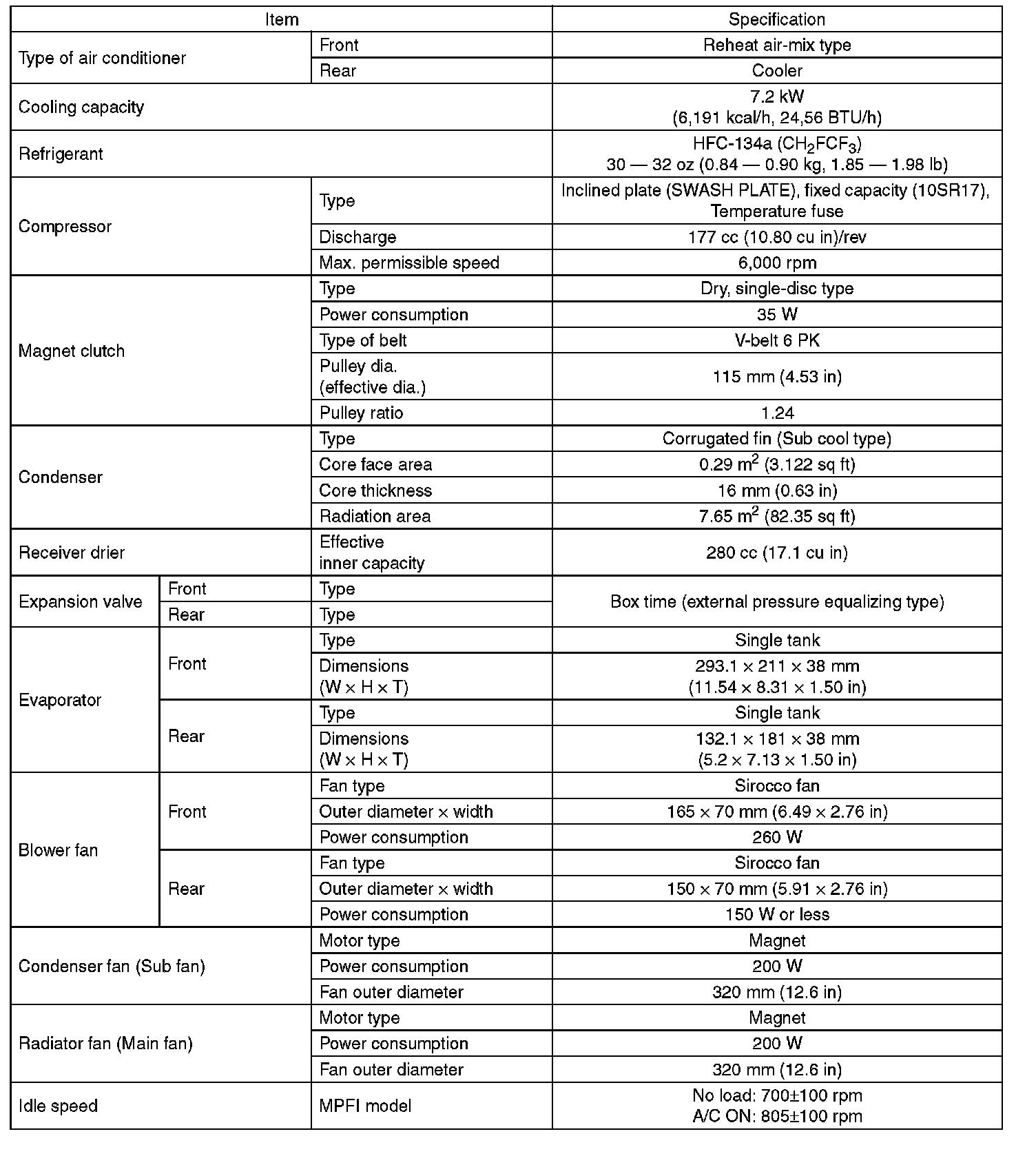

Part 1:

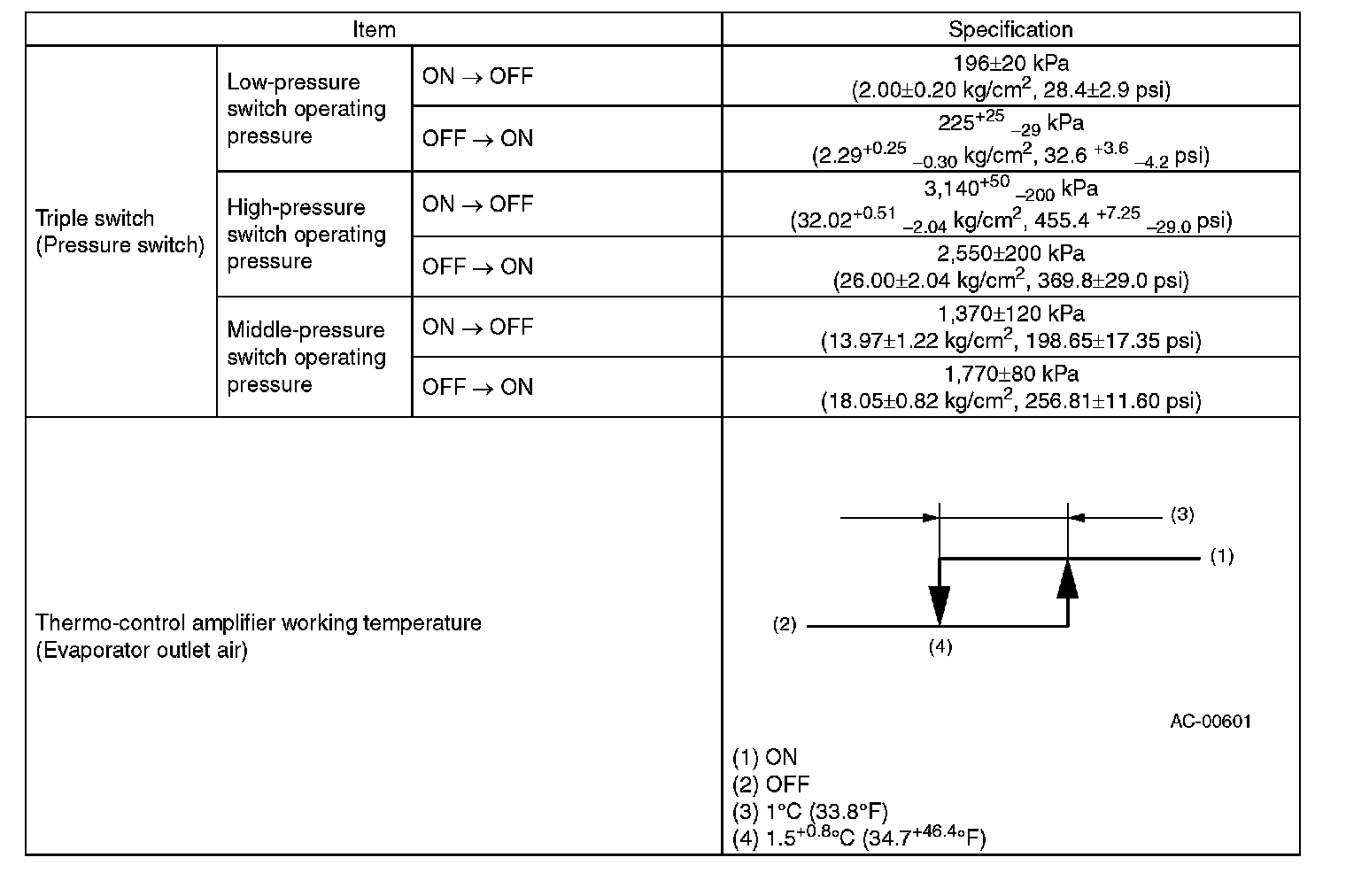

Part 2:
