Timing Component Alignment Marks: Locations

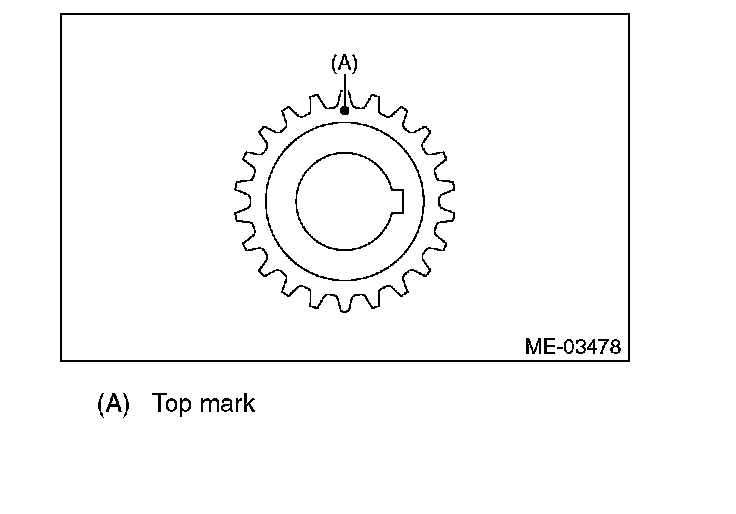

Crank sprocket

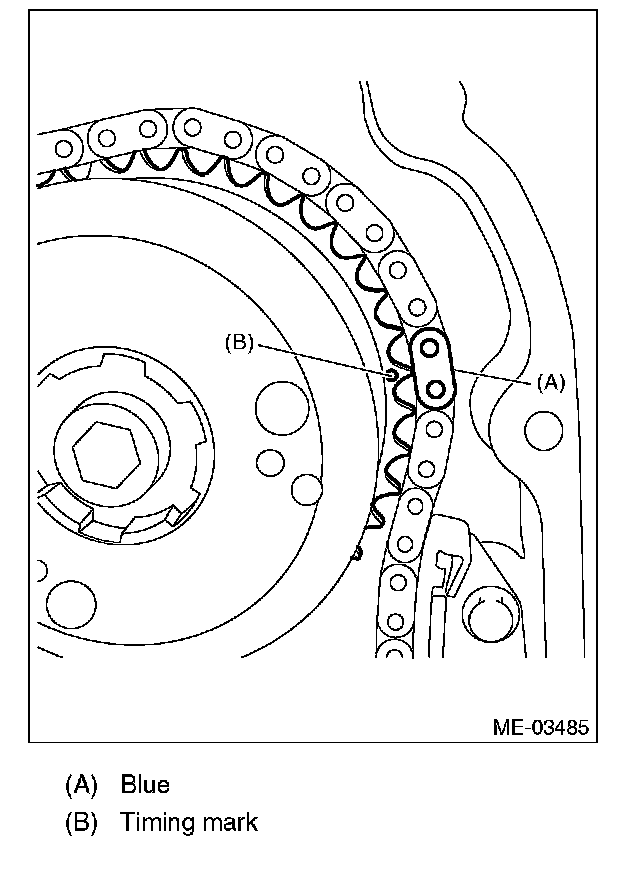

Intake cam sprocket (LH)

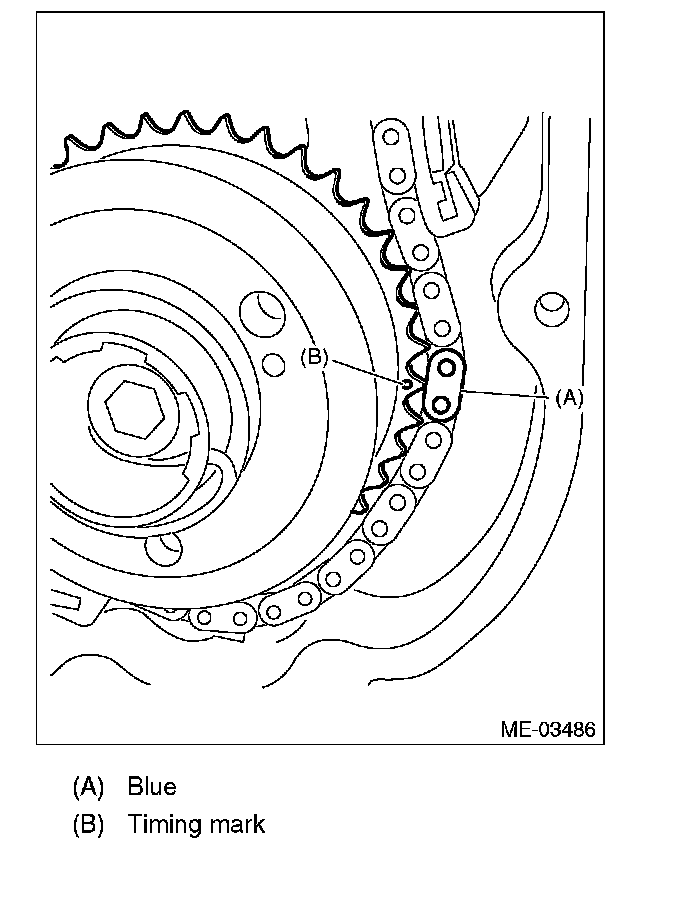

Exhaust cam sprocket (LH)

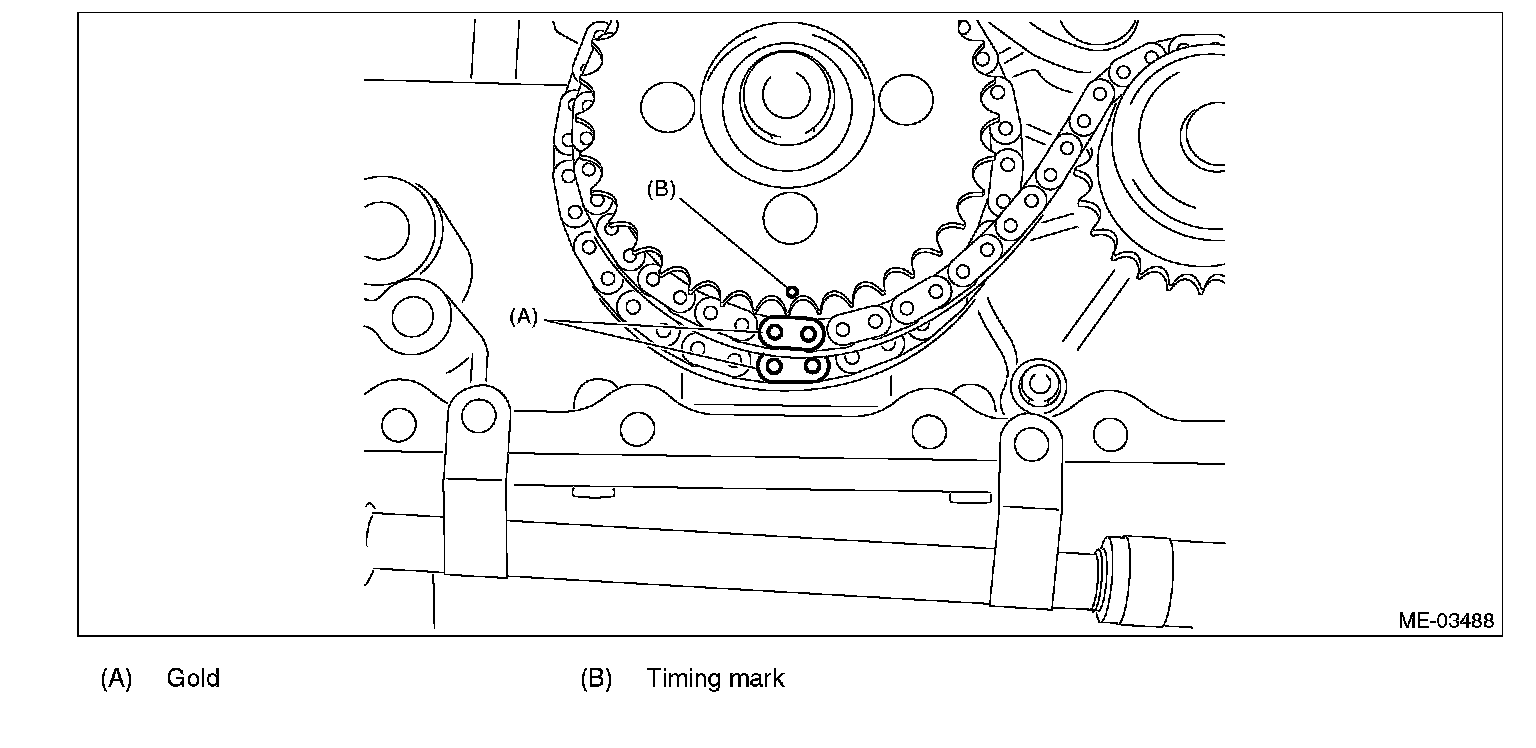

Idler sprocket timing mark to the timing chain mark (gold)

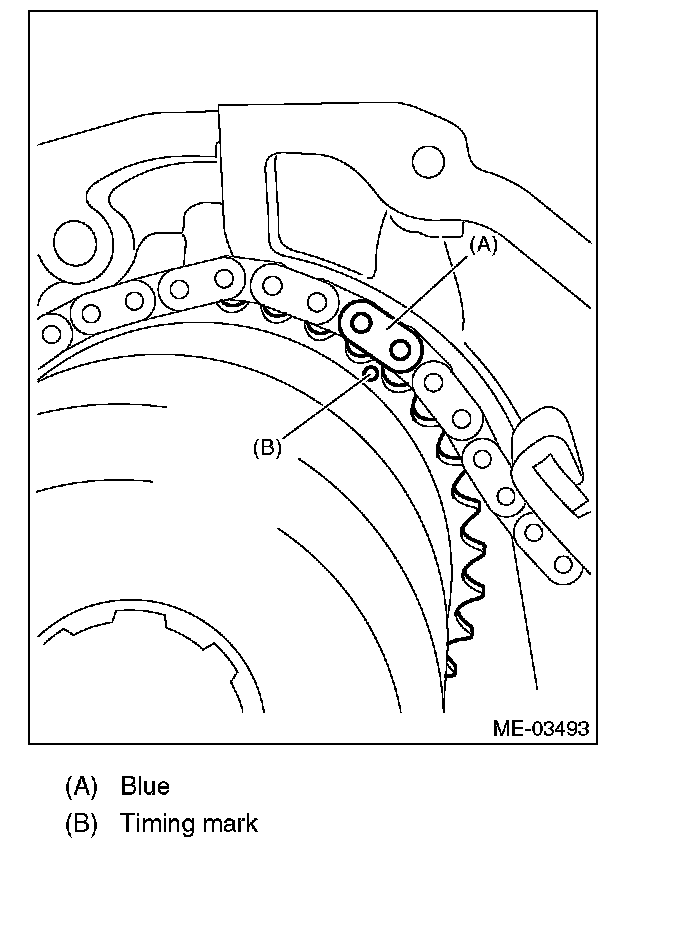

Intake cam sprocket (RH)





Exhaust cam sprocket (RH)





Idler sprocket timing mark to the timing chain mark (gold)
