Installation

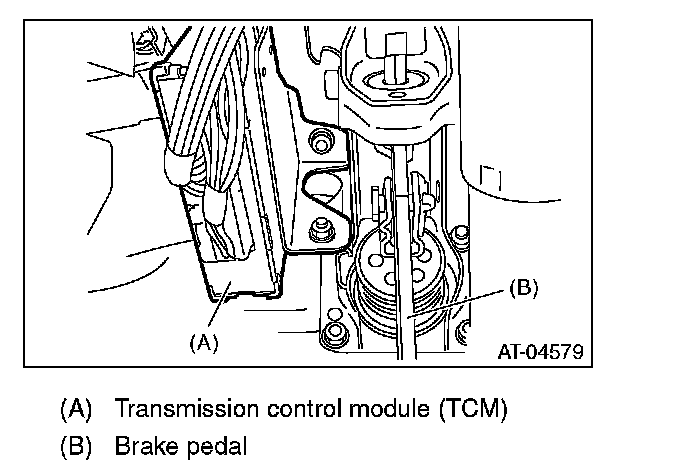

INSTALLATION1) Install the TCM.
Tightening torque:
7.5 N-m (0.8 kgf-m, 5.5 ft-lb)
2) Connect the connector to TCM.
3) Install in the reverse order of removal.
4) Perform learning control promotion. Programming and Relearning
1) Install the TCM.
Tightening torque:
7.5 N-m (0.8 kgf-m, 5.5 ft-lb)
2) Connect the connector to TCM.
3) Install in the reverse order of removal.
4) Perform learning control promotion. Programming and Relearning
