System Specifications

General Description

SPECIFICATION

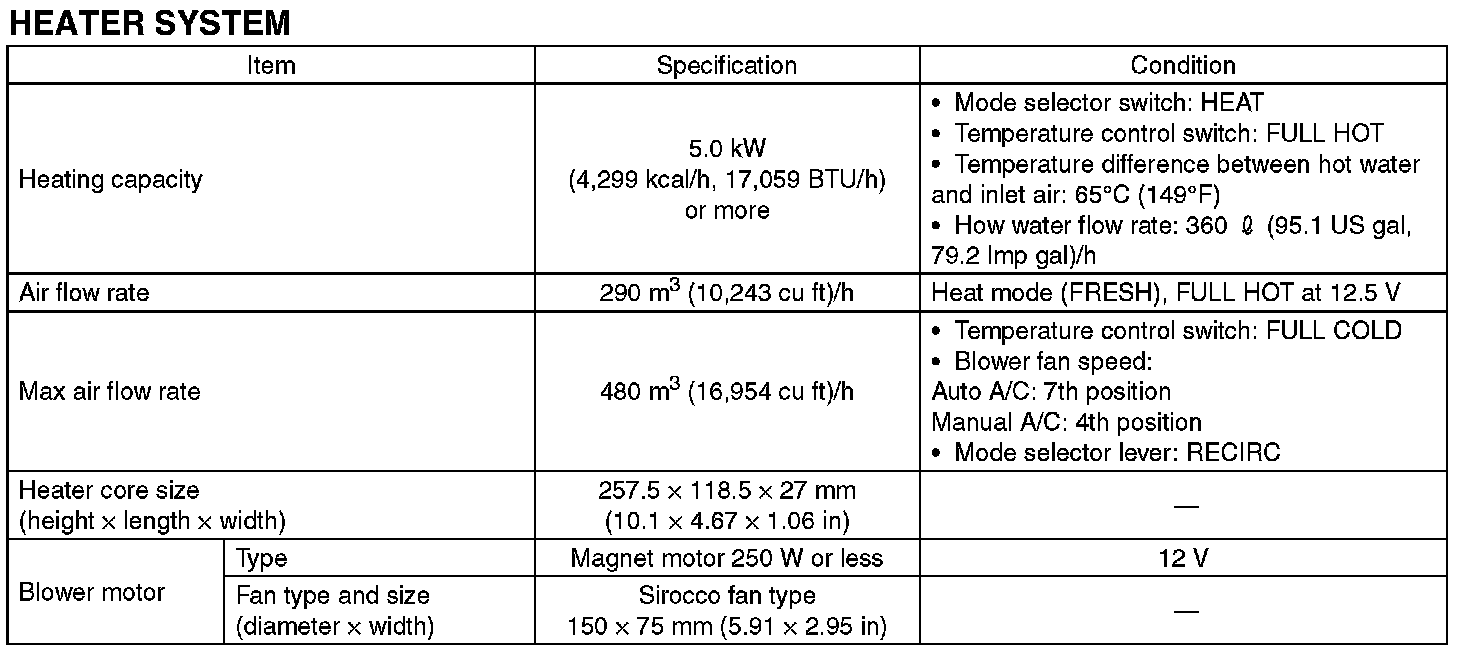

1. HEATER SYSTEM

Specification:






2. A/C SYSTEM

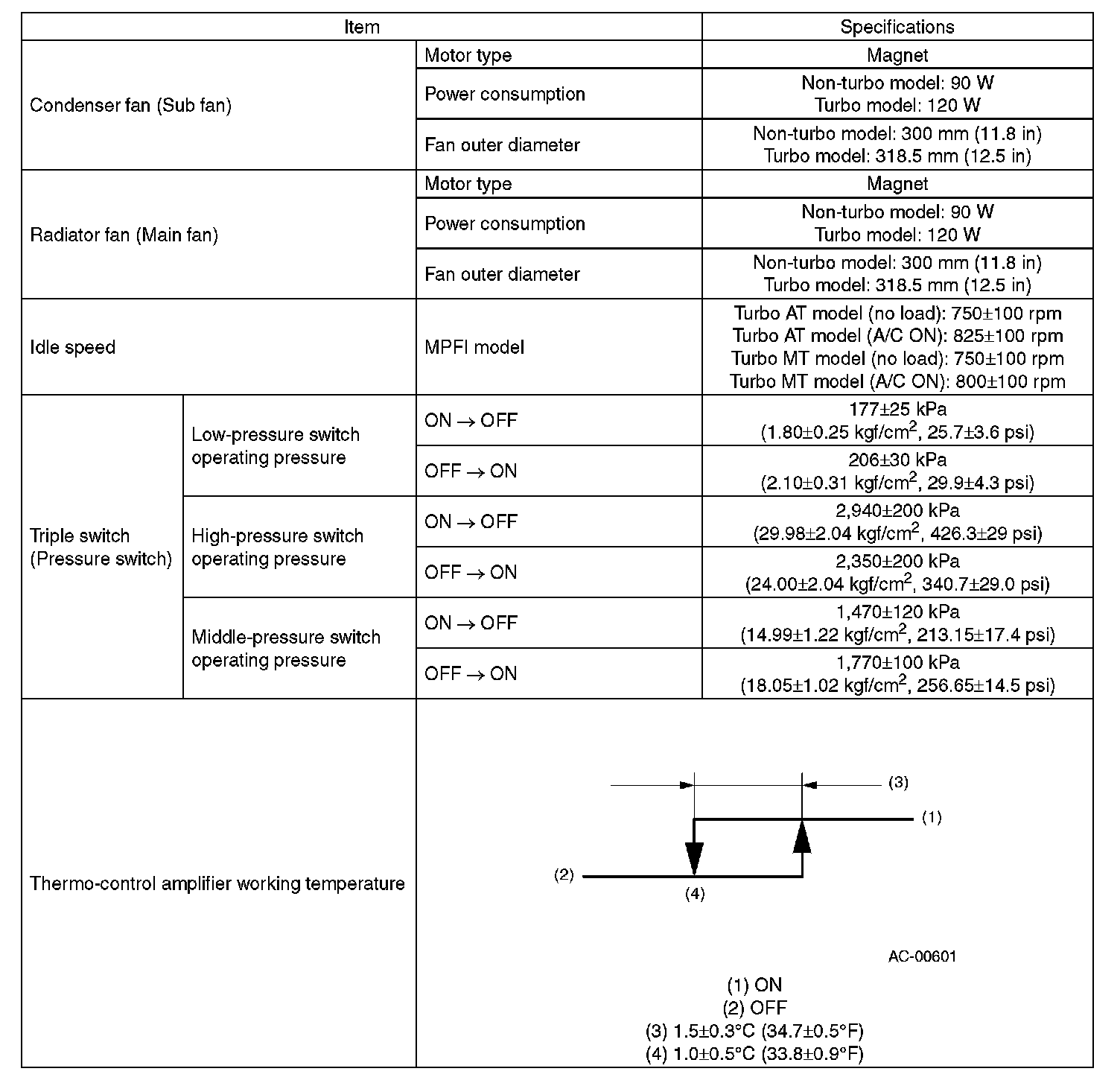

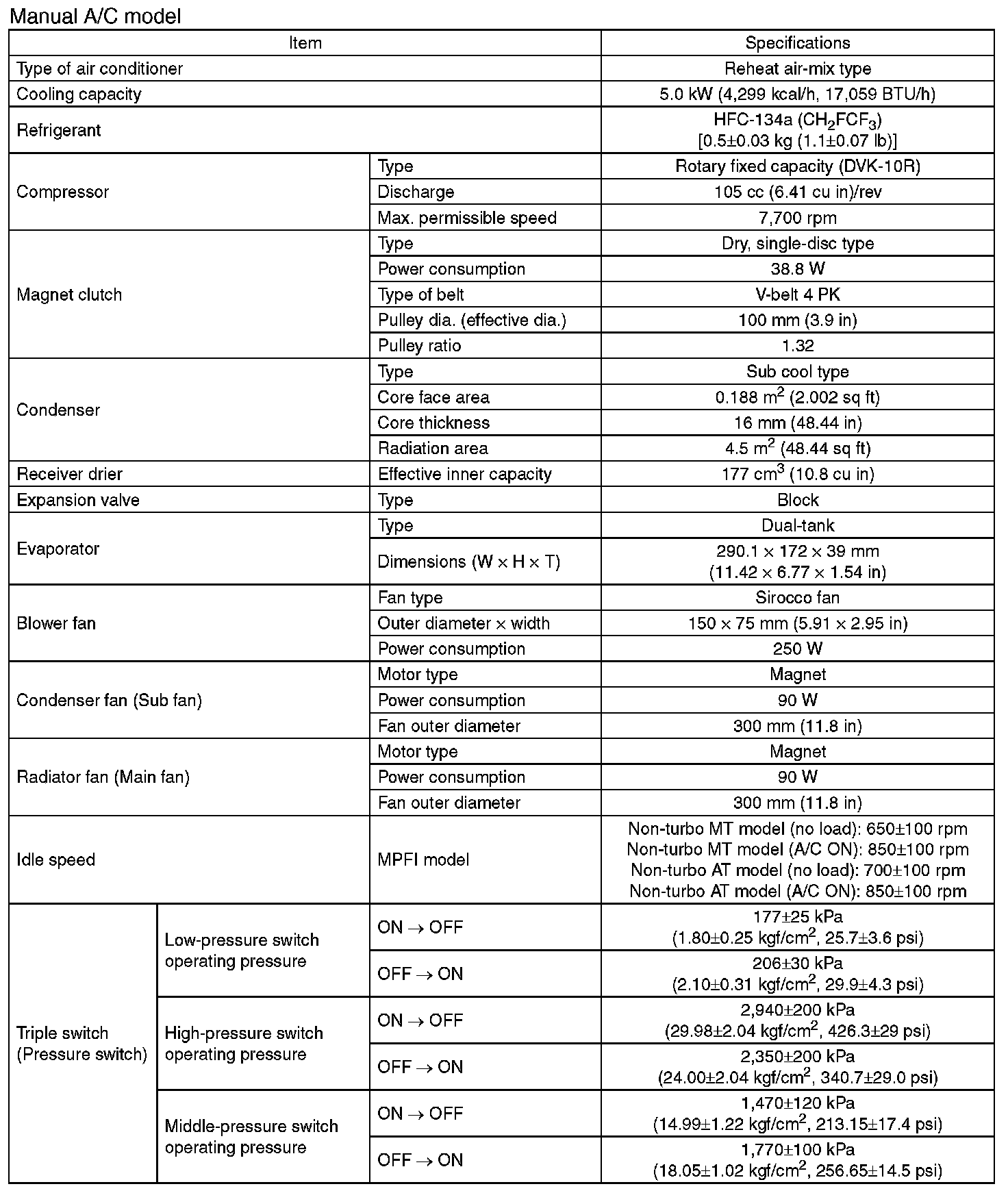

Specification (Part 1):




Specification (Part 2):

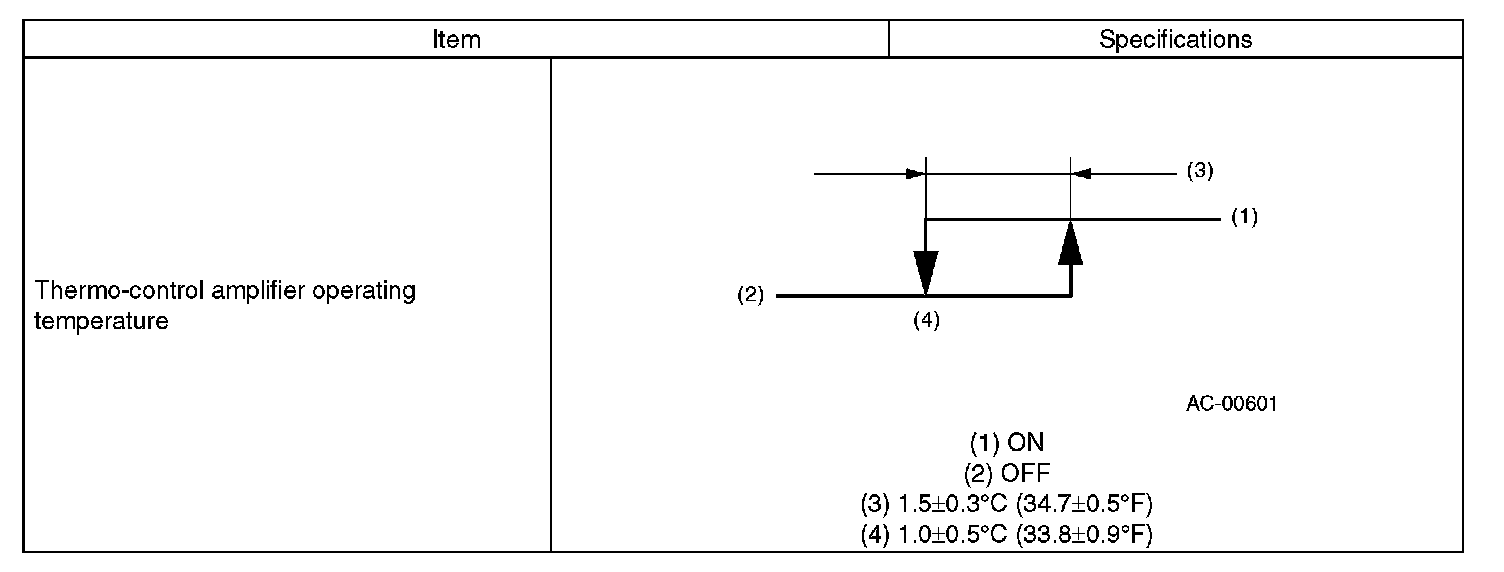

Specification (Part 1):




Specification (Part 2):
