Removal
Transmission Control Module (TCM)REMOVAL
1) Disconnect the ground cable from the battery.

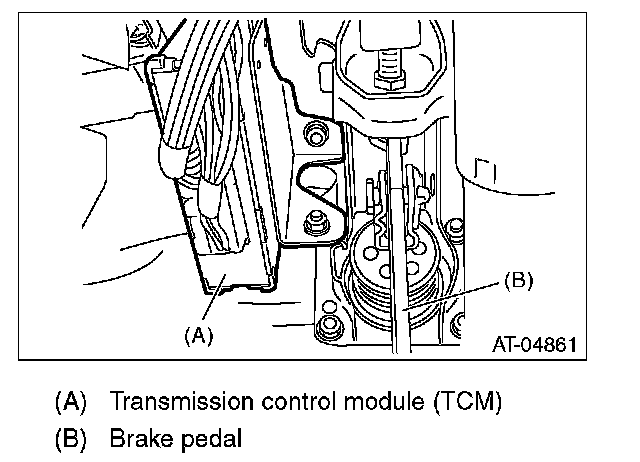

2) Remove the instrument panel lower cover and disconnect the connector.
3) Disconnect the connector from TCM.
4) Remove the TCM.
REMOVAL
1) Disconnect the ground cable from the battery.
2) Remove the instrument panel lower cover and disconnect the connector.
3) Disconnect the connector from TCM.
4) Remove the TCM.
