Home >> Subaru >> 2009 >> Forester F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Fuel Tank

Fuel Tank

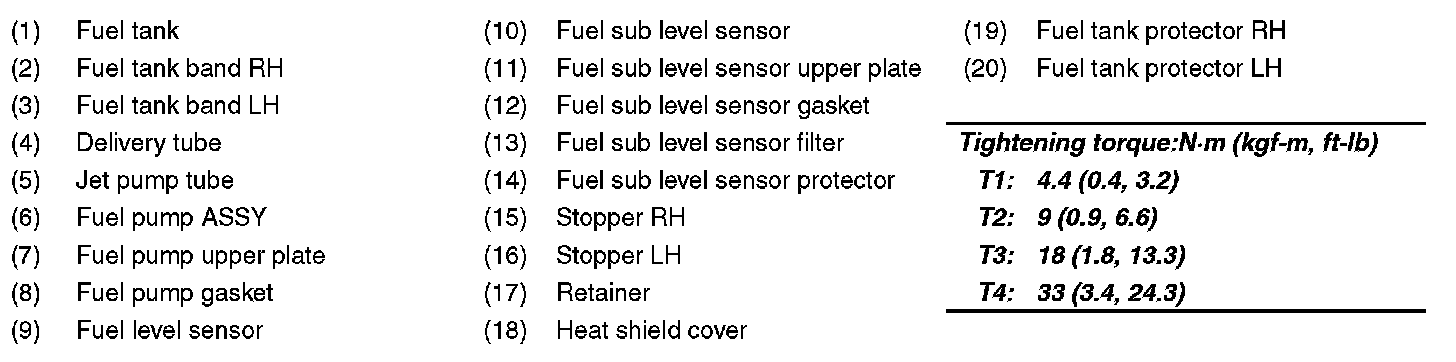

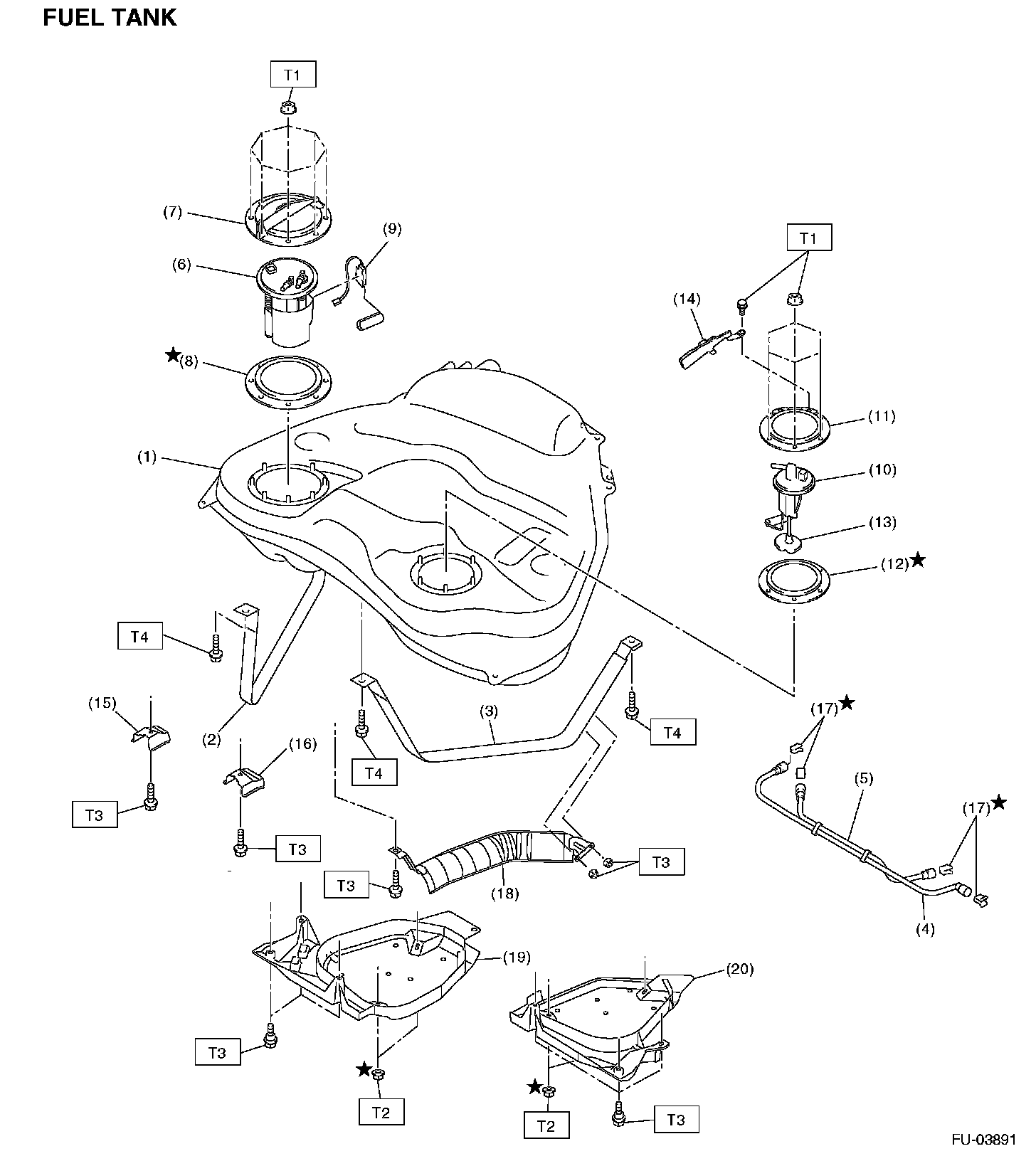

Fuel Tank (Part 1):



Fuel Tank (Part 2):
