Computers and Control Systems: Locations

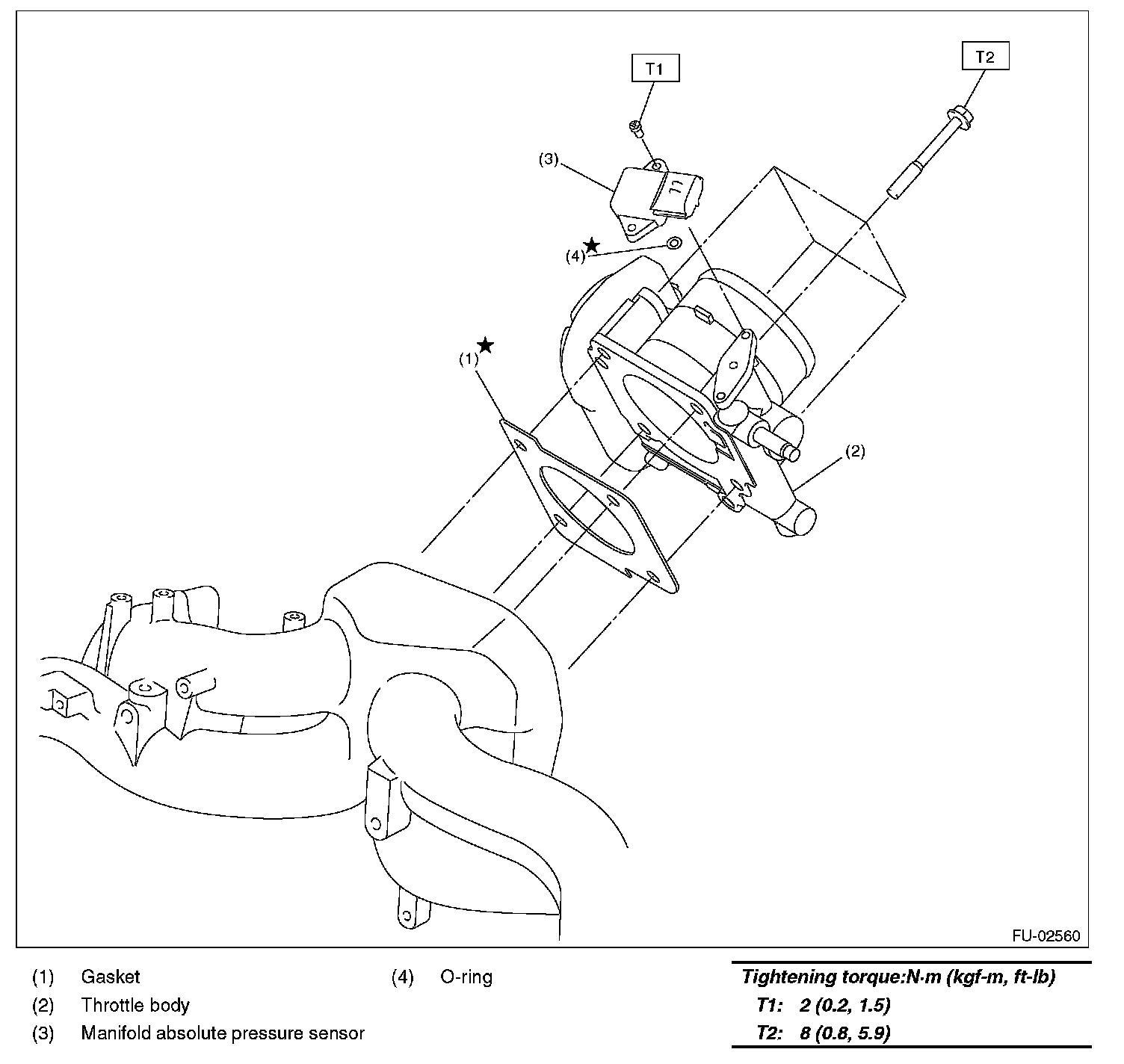

AIR INTAKE SYSTEMAir Intake System:

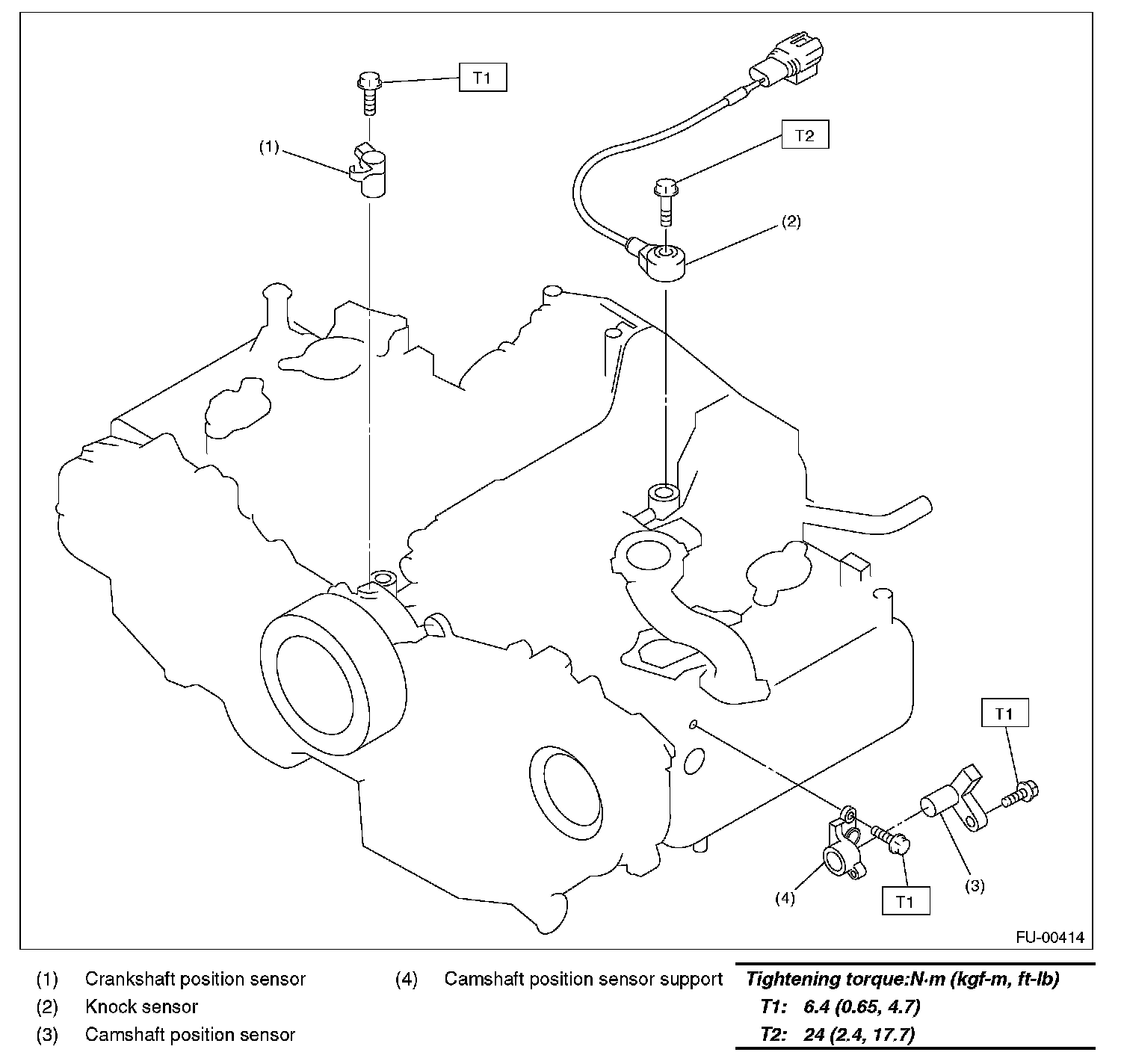

CRANKSHAFT POSITION, CAMSHAFT POSITION AND KNOCK SENSORS
Crankshaft Position, Camshaft Position And Knock Sensors:

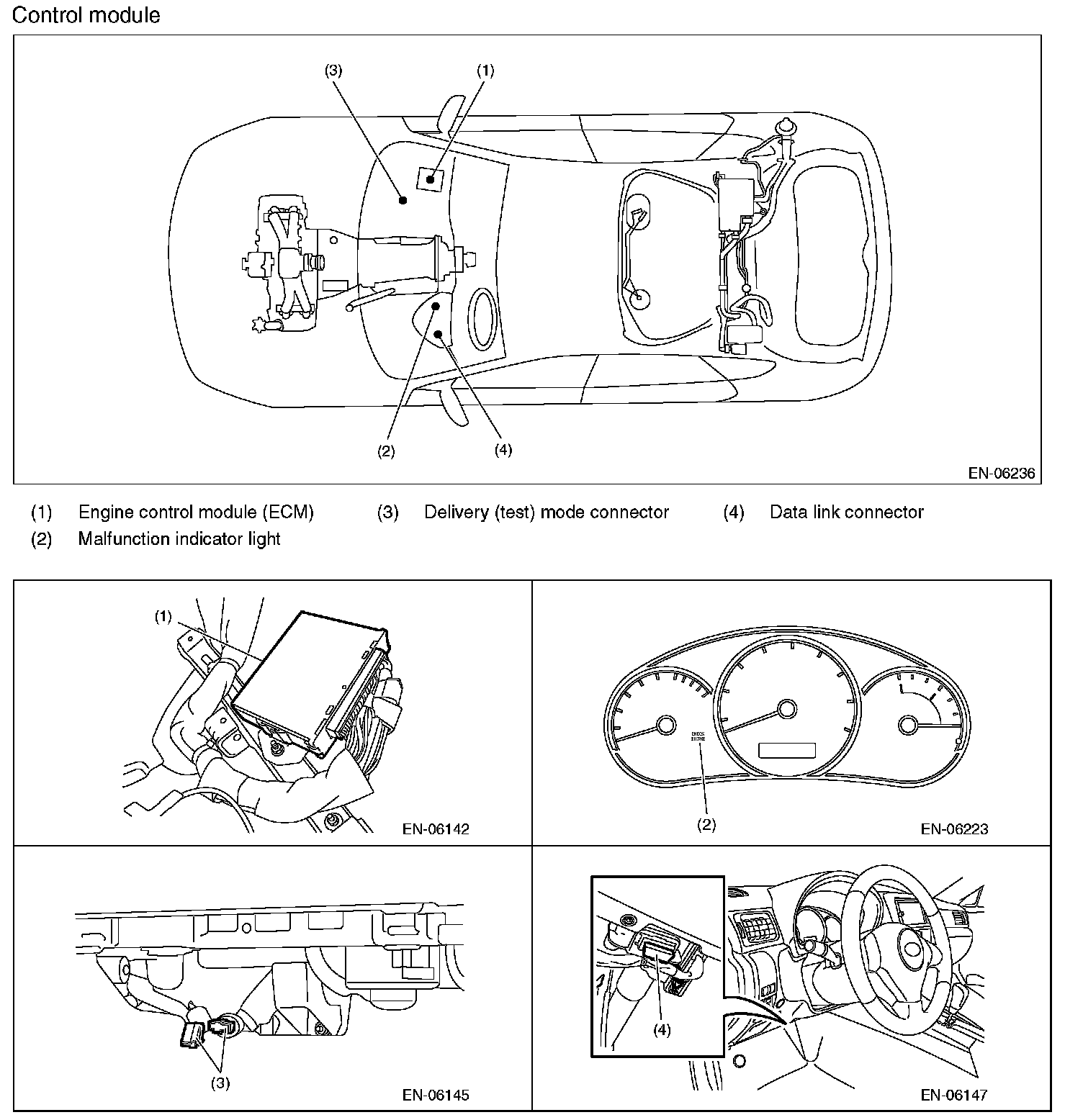

ENGINE Control module
Engine - Control Module:

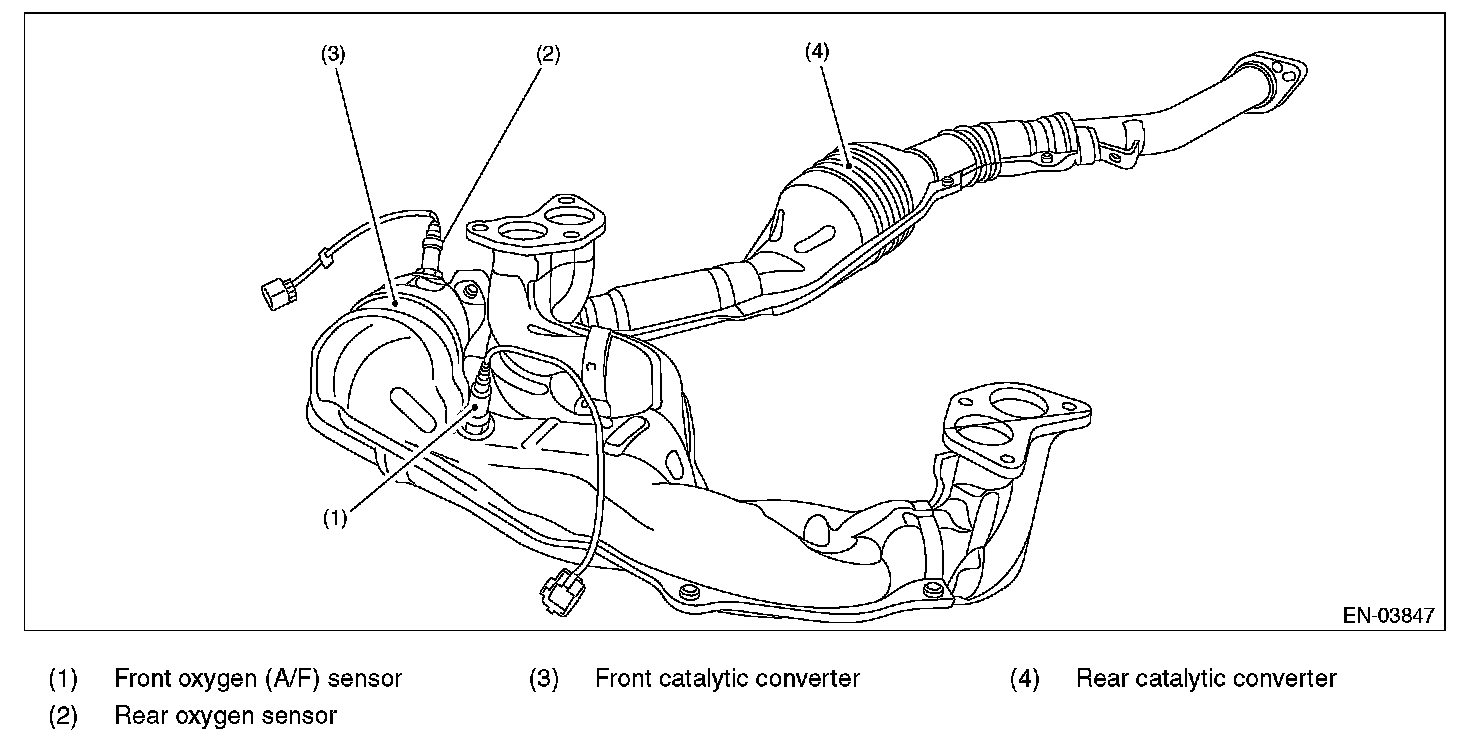

Sensor
Sensor (Part 1):
Sensor (Part 2):

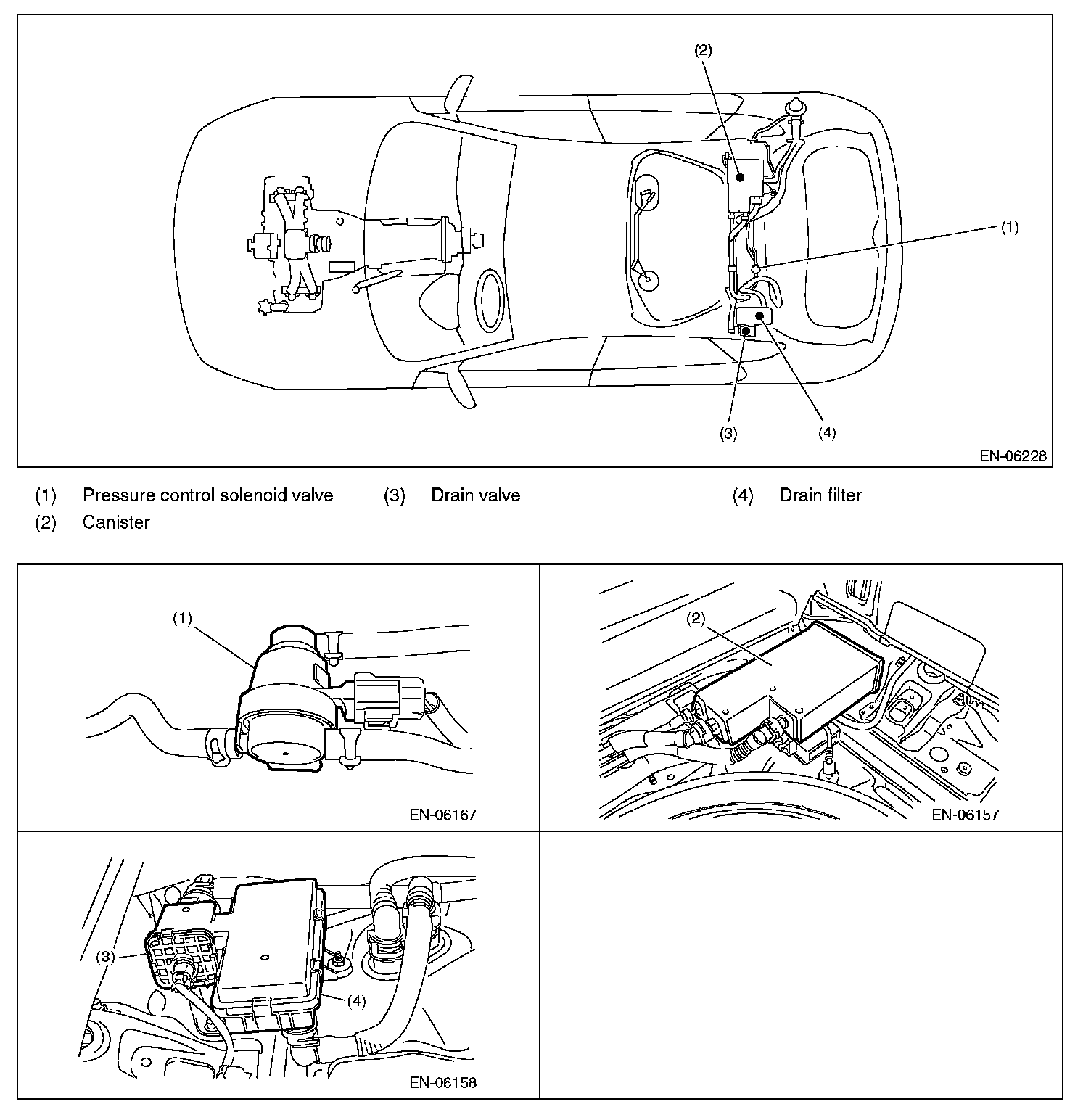

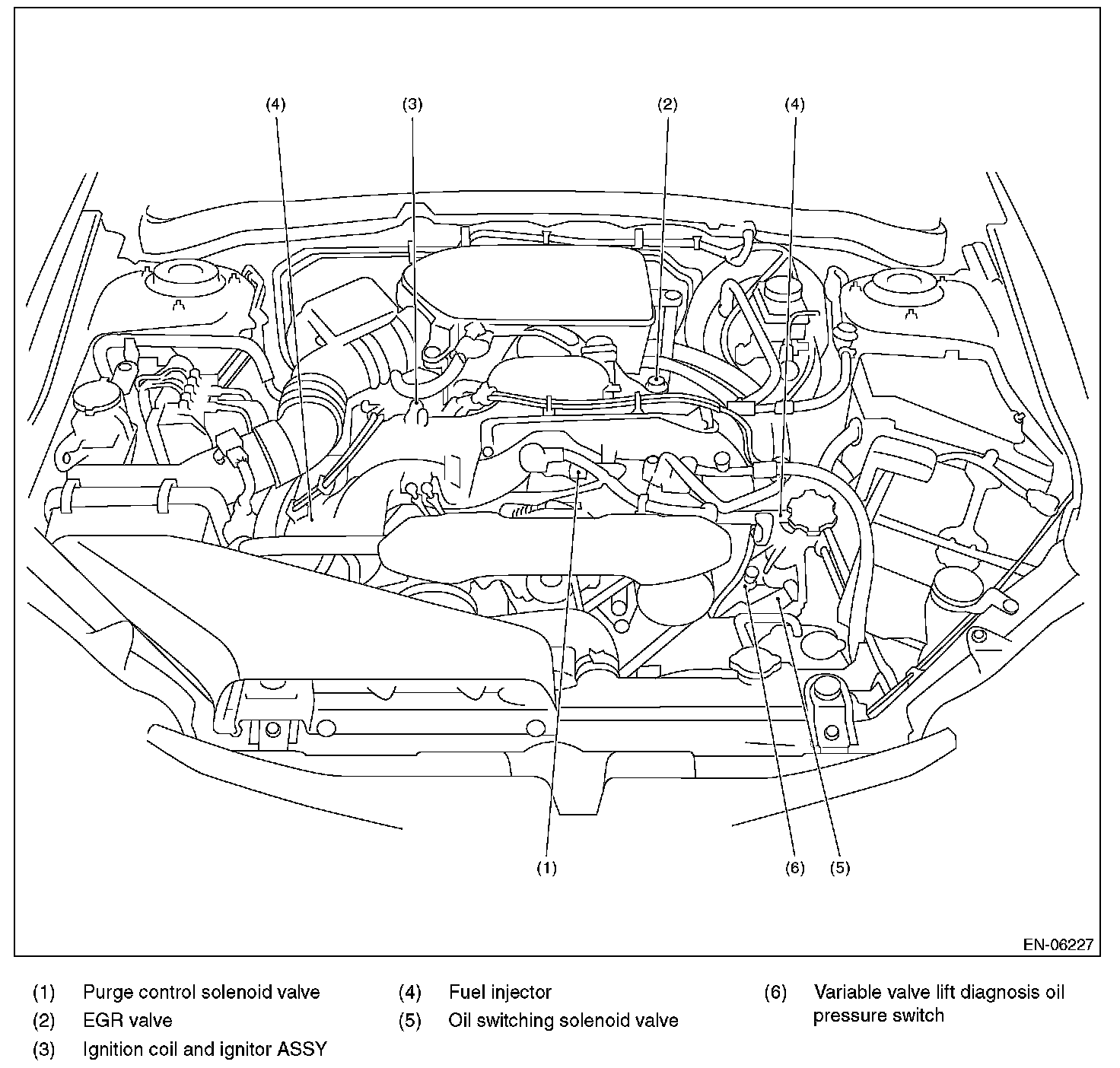

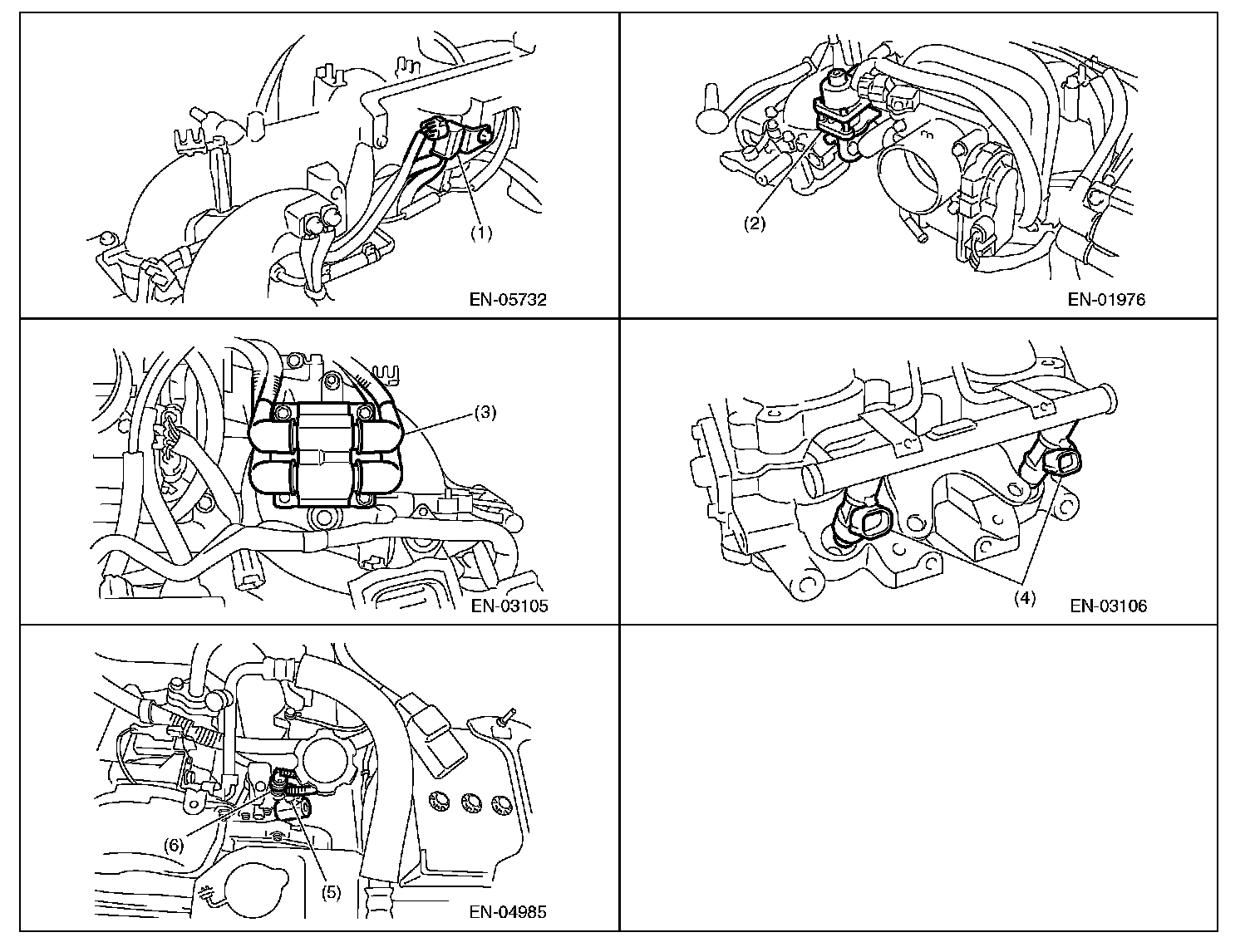

Solenoid valve, actuator, emission control system parts and ignition system parts
Solenoid Valve, Actuator, Emission Control Parts And Ignition System (Part 1):
Solenoid Valve, Actuator, Emission Control Parts And Ignition System (Part 2):
