Keyless Entry
Keyless Entry
Keyless Entry System
ELECTRICAL SPECIFICATION
1.

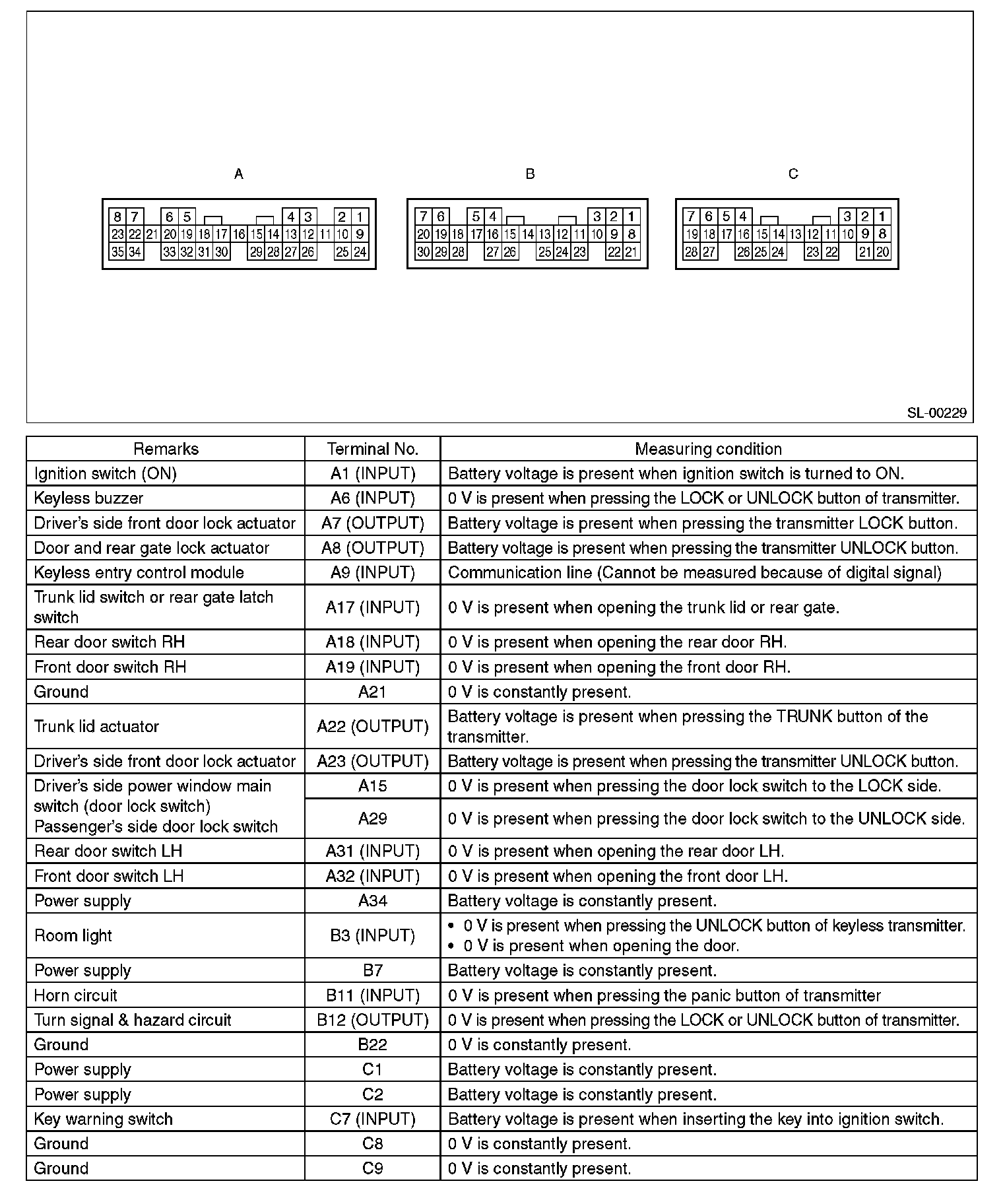

KEYLESS ENTRY
CONTROL MODULE
Keyless Entry Control Module:
2.

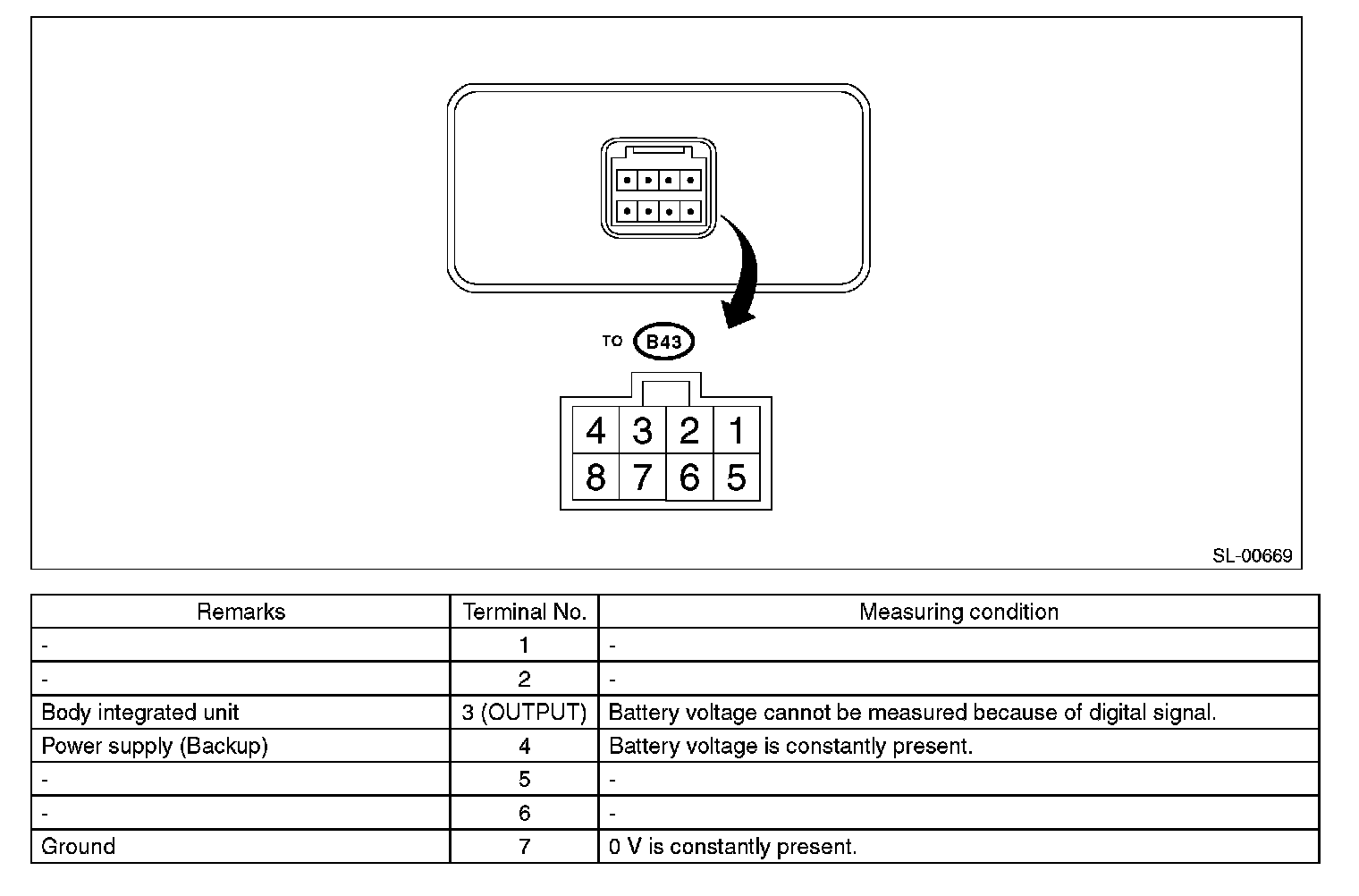

BODY INTEGRATED UNIT
Body Integrated Unit:
