Ignition System: Testing and Inspection
IGNITION CONTROL SYSTEMCAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode Clear Memory Mode and Inspection Mode

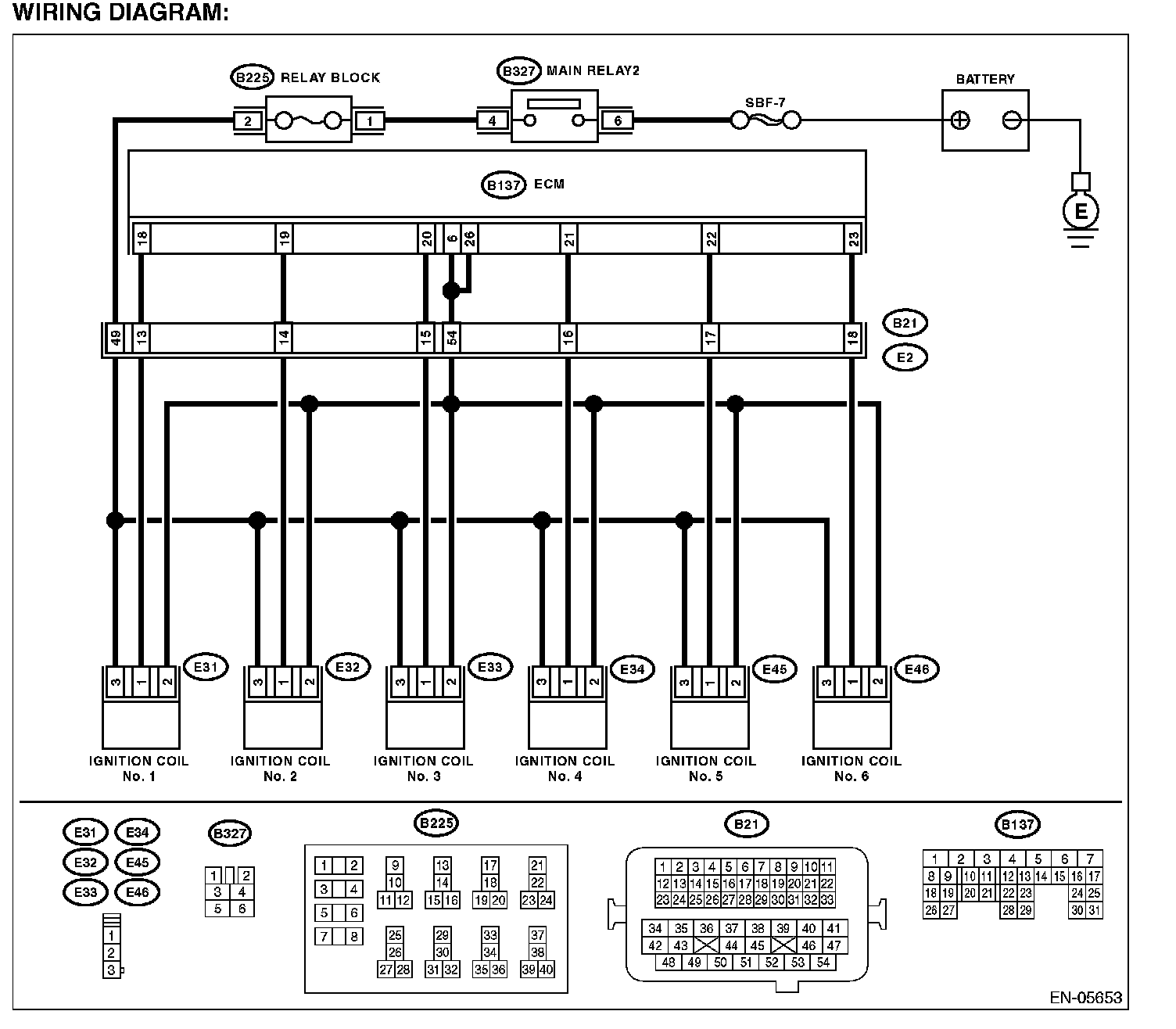

Wiring Diagram:

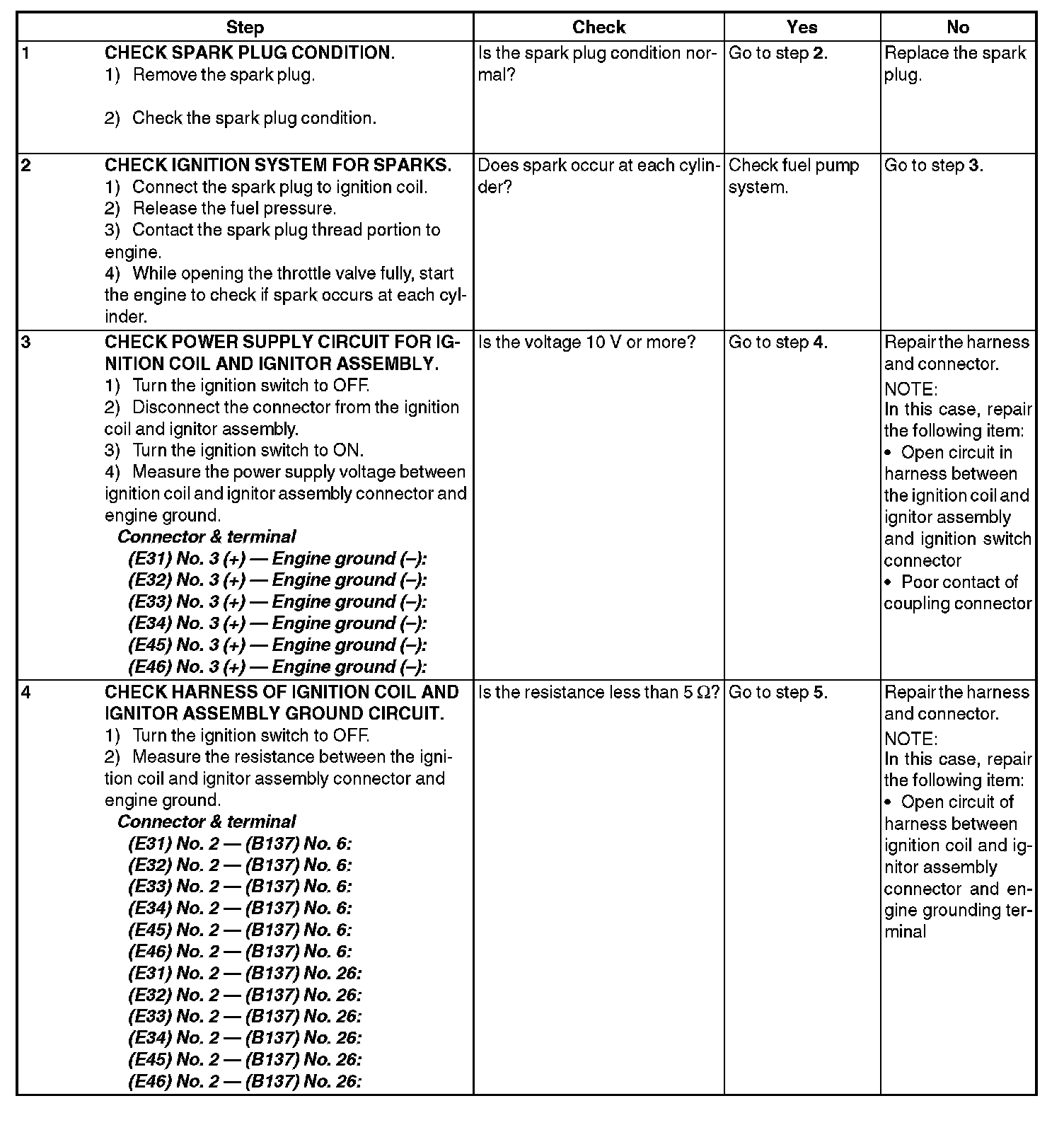

Step 1-4:

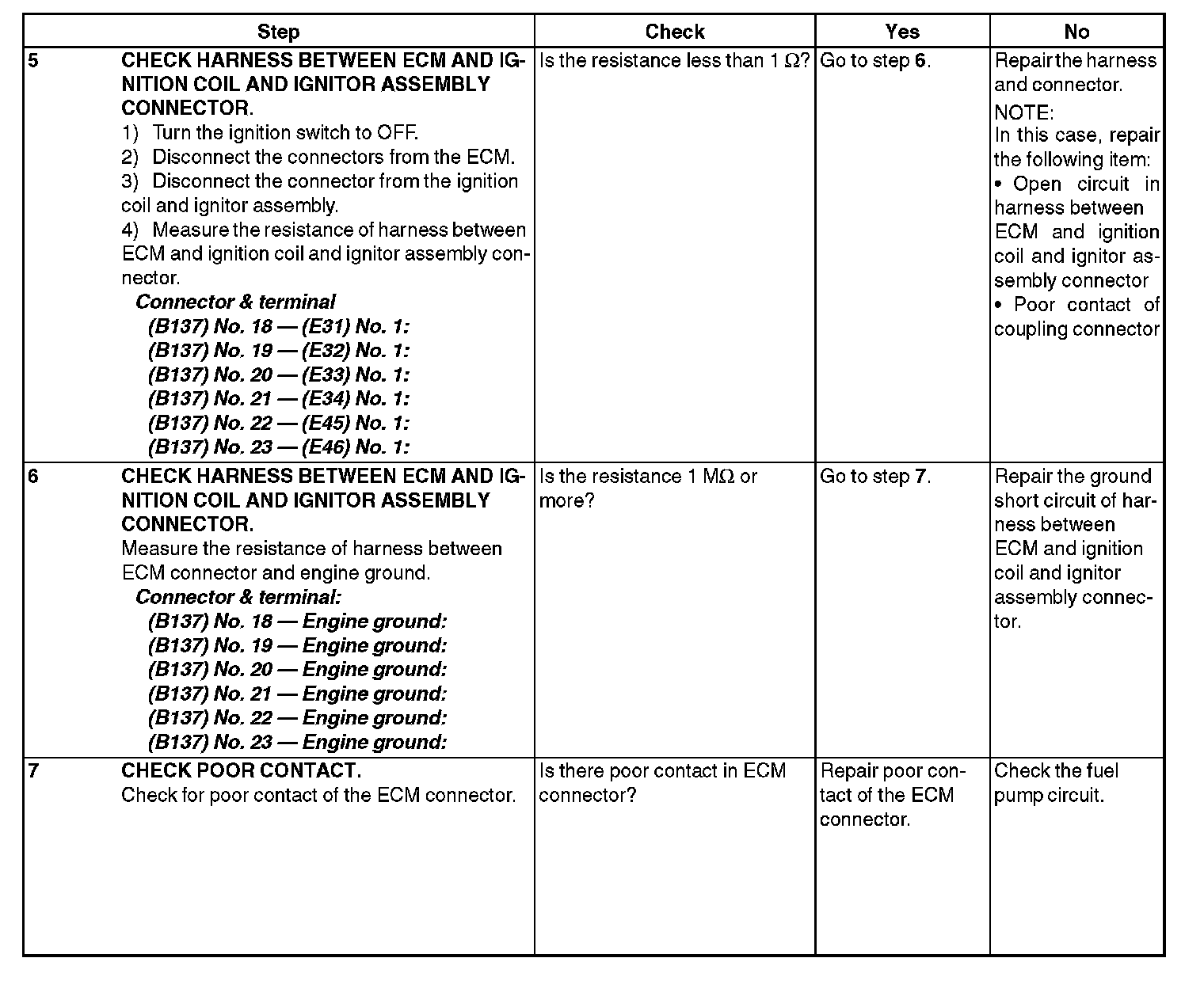

Step 5-7:
CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode Clear Memory Mode and Inspection Mode
