Home >> Subaru >> 2008 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

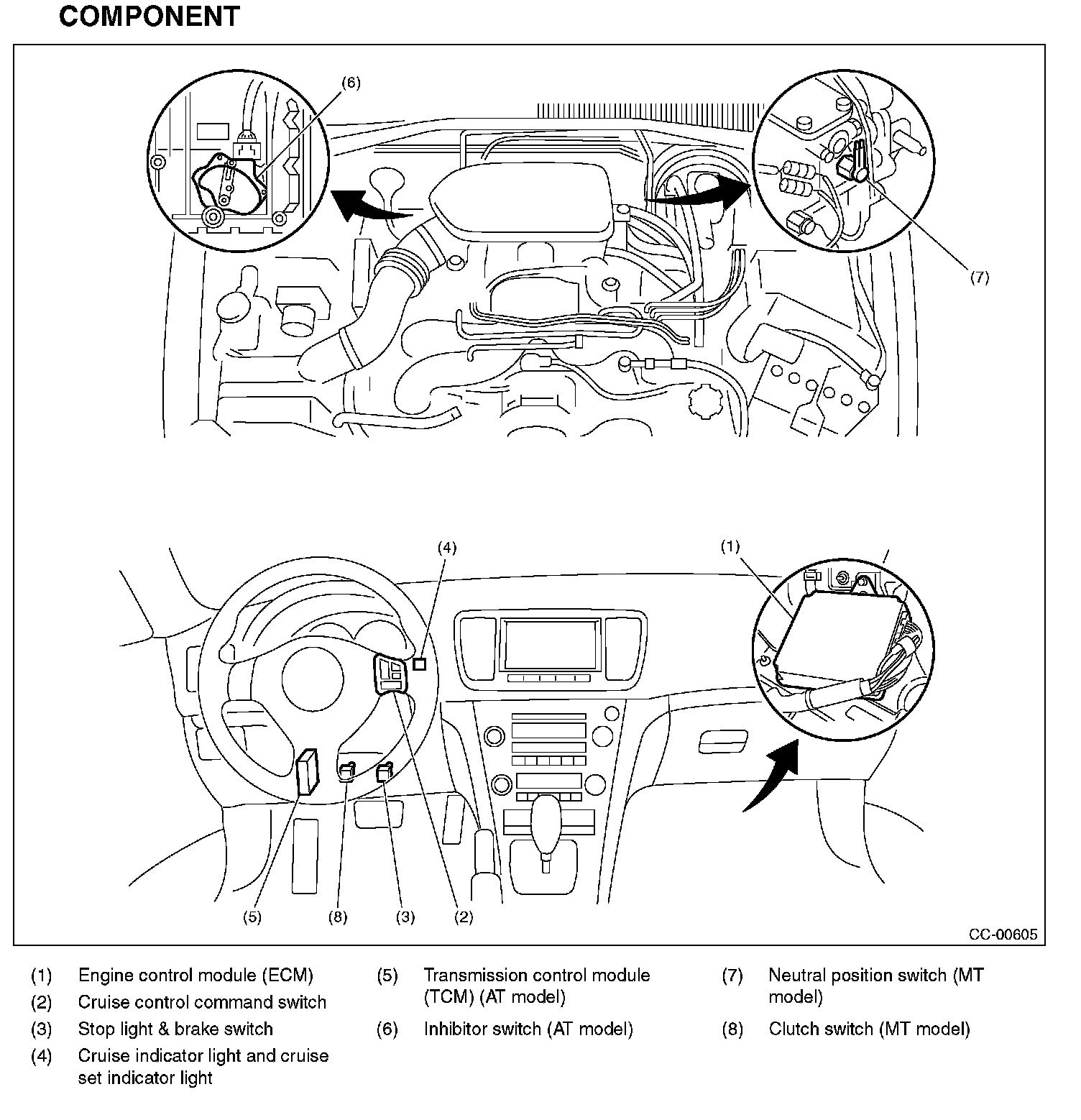

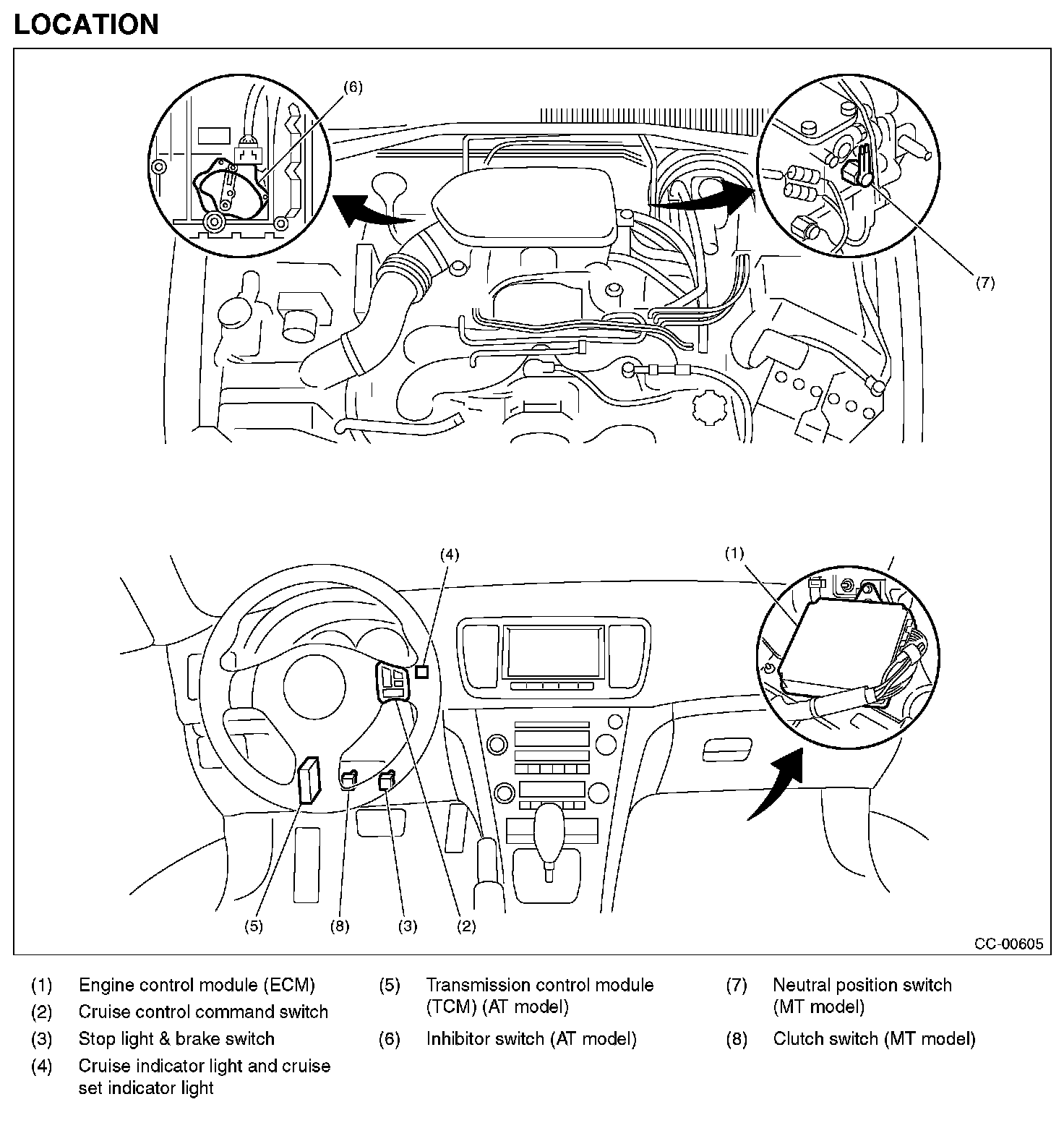

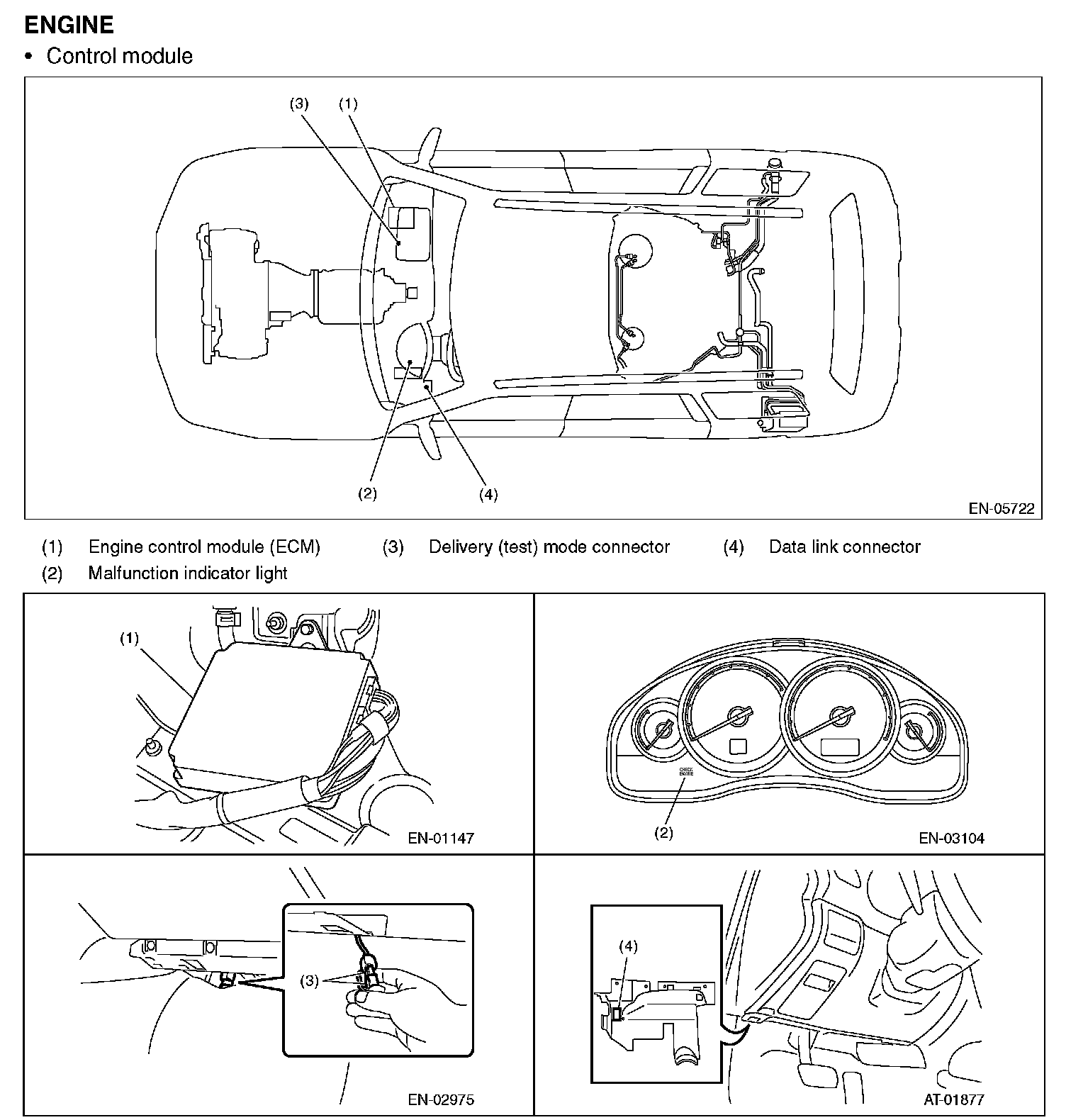

Control Module:

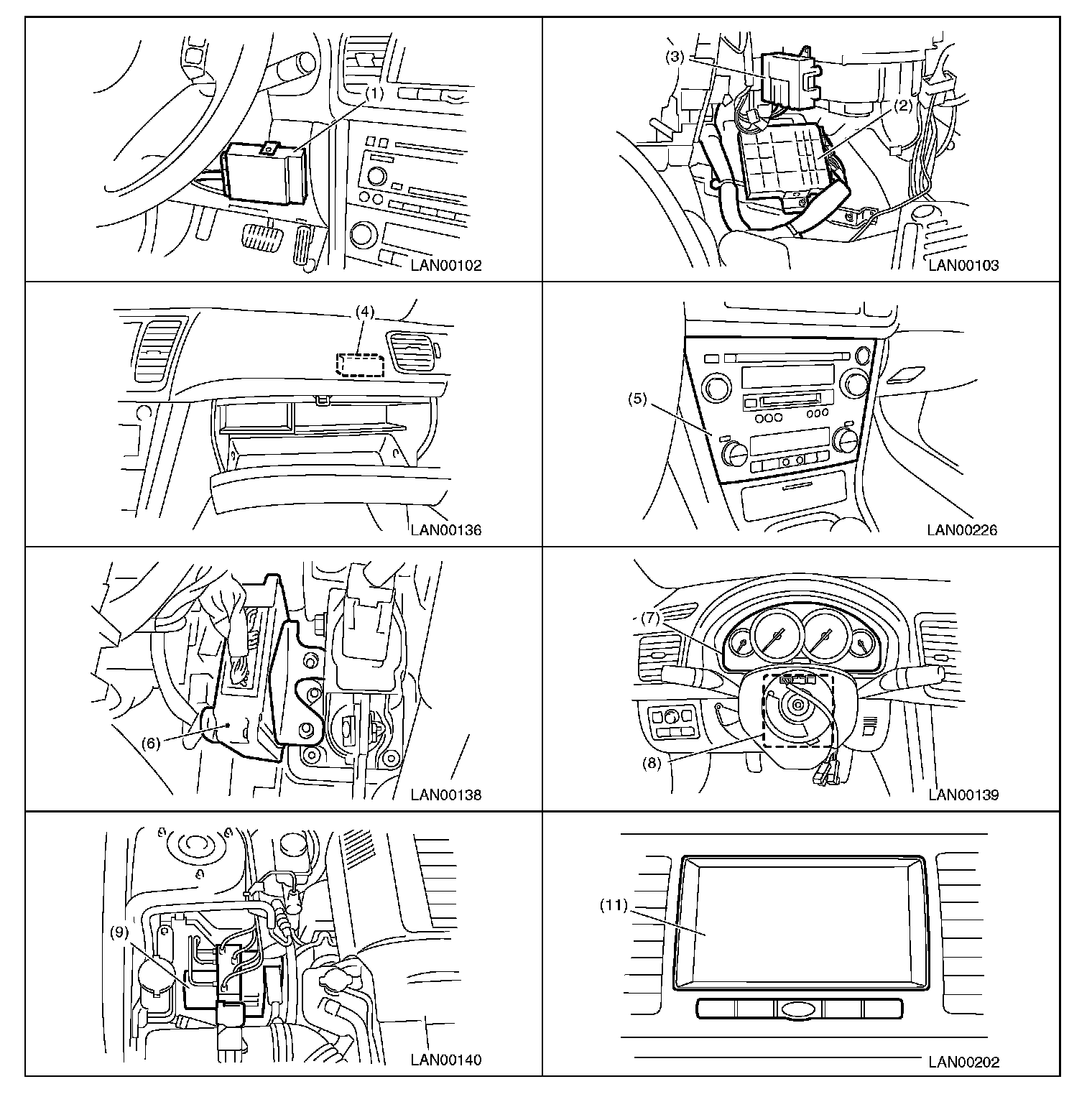

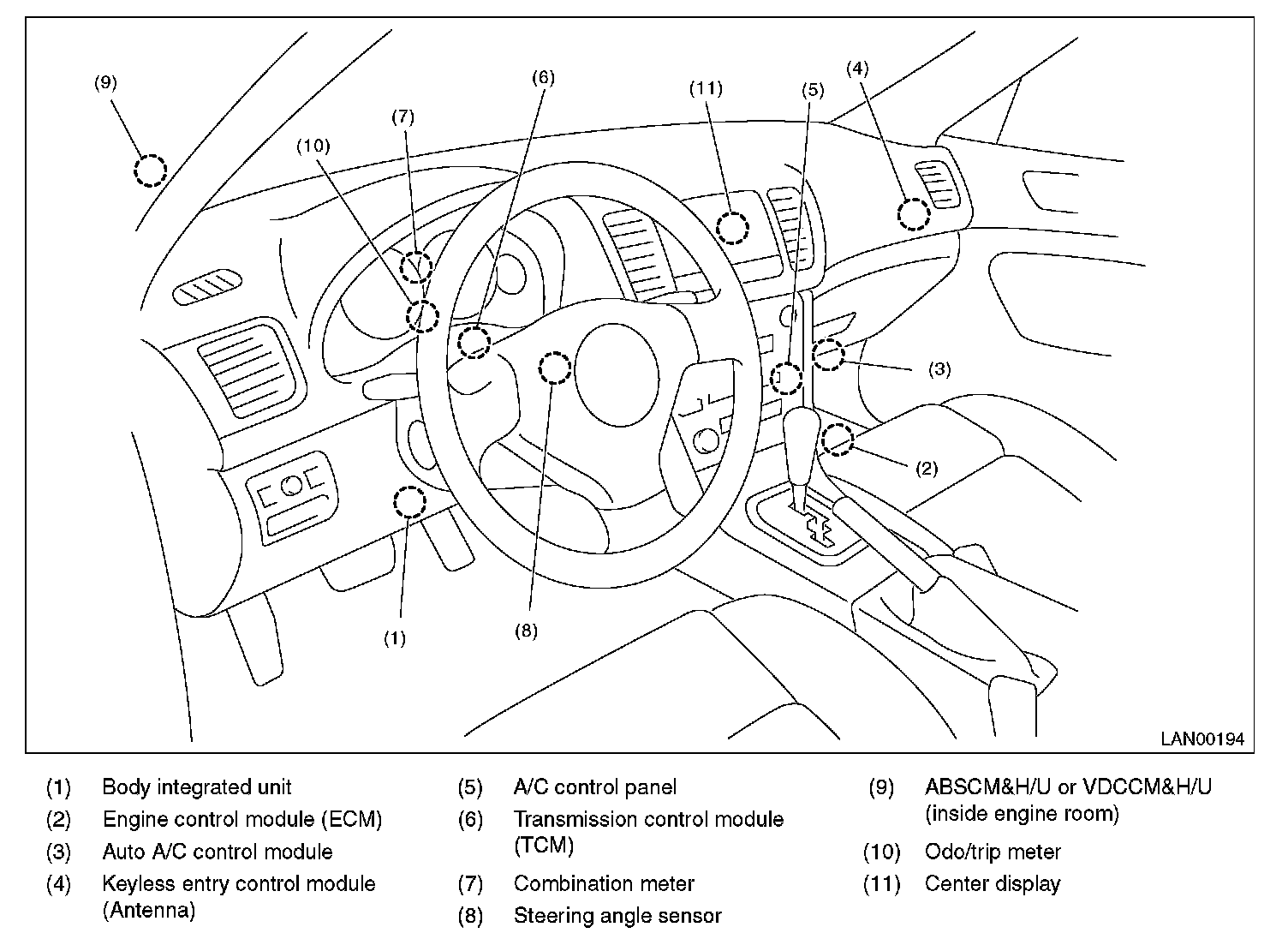

Electrical Component Location (Part 1):



Electrical Component Location (Part 2):
