Control Module I/O Signal

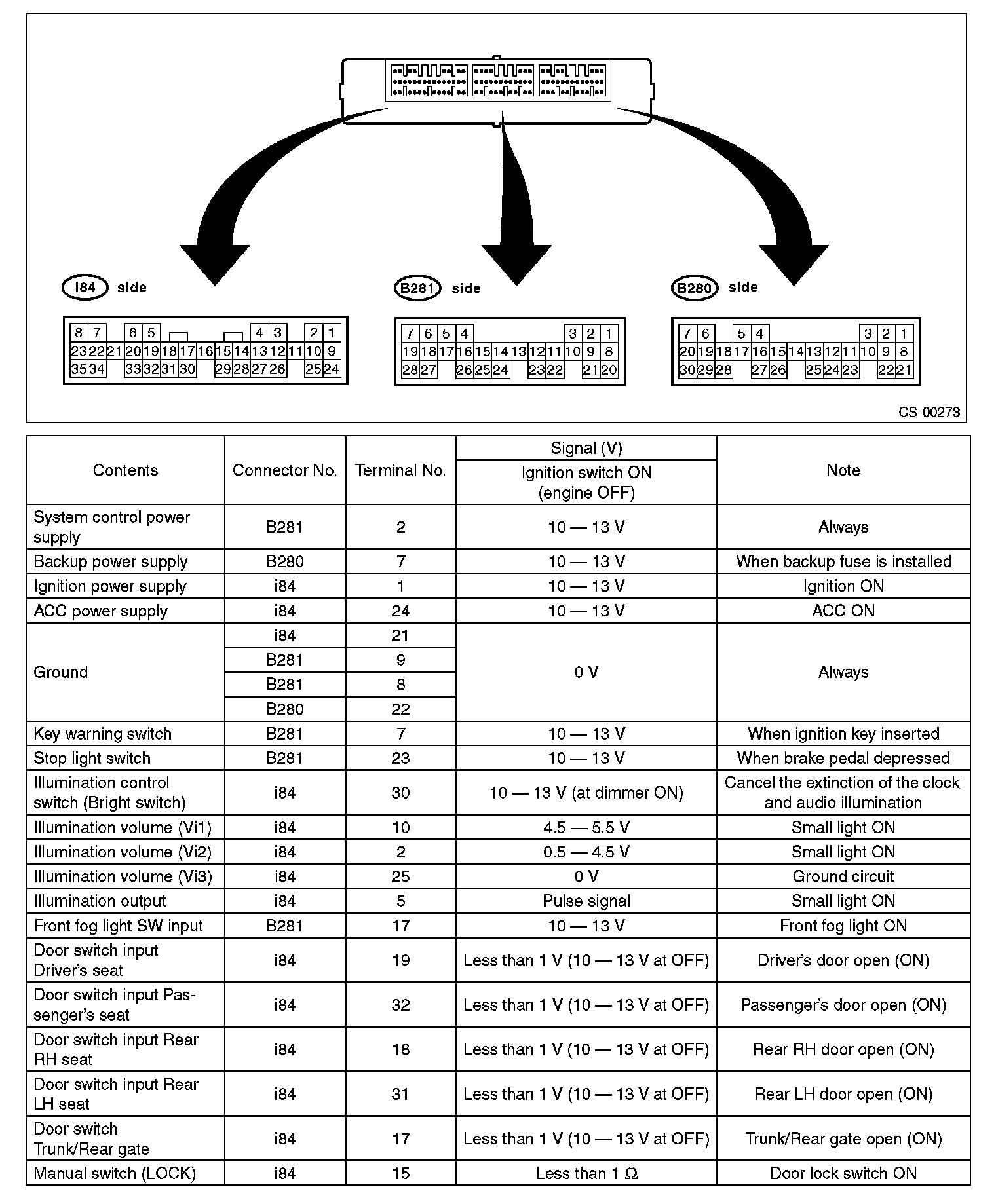

Control Module I/O Signal - Electrical Specification (Part 1):

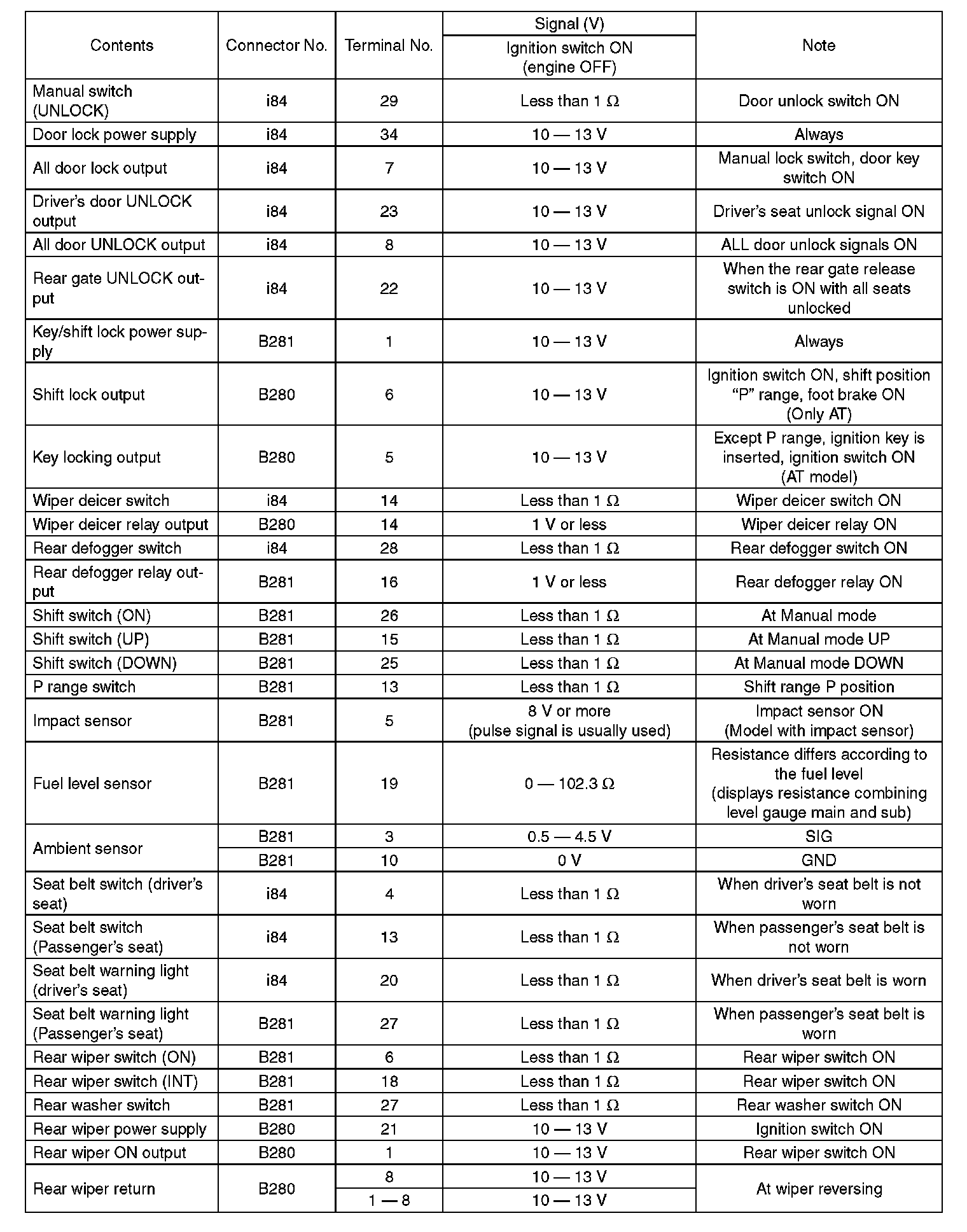

Control Module I/O Signal - Electrical Specification (Part 2):

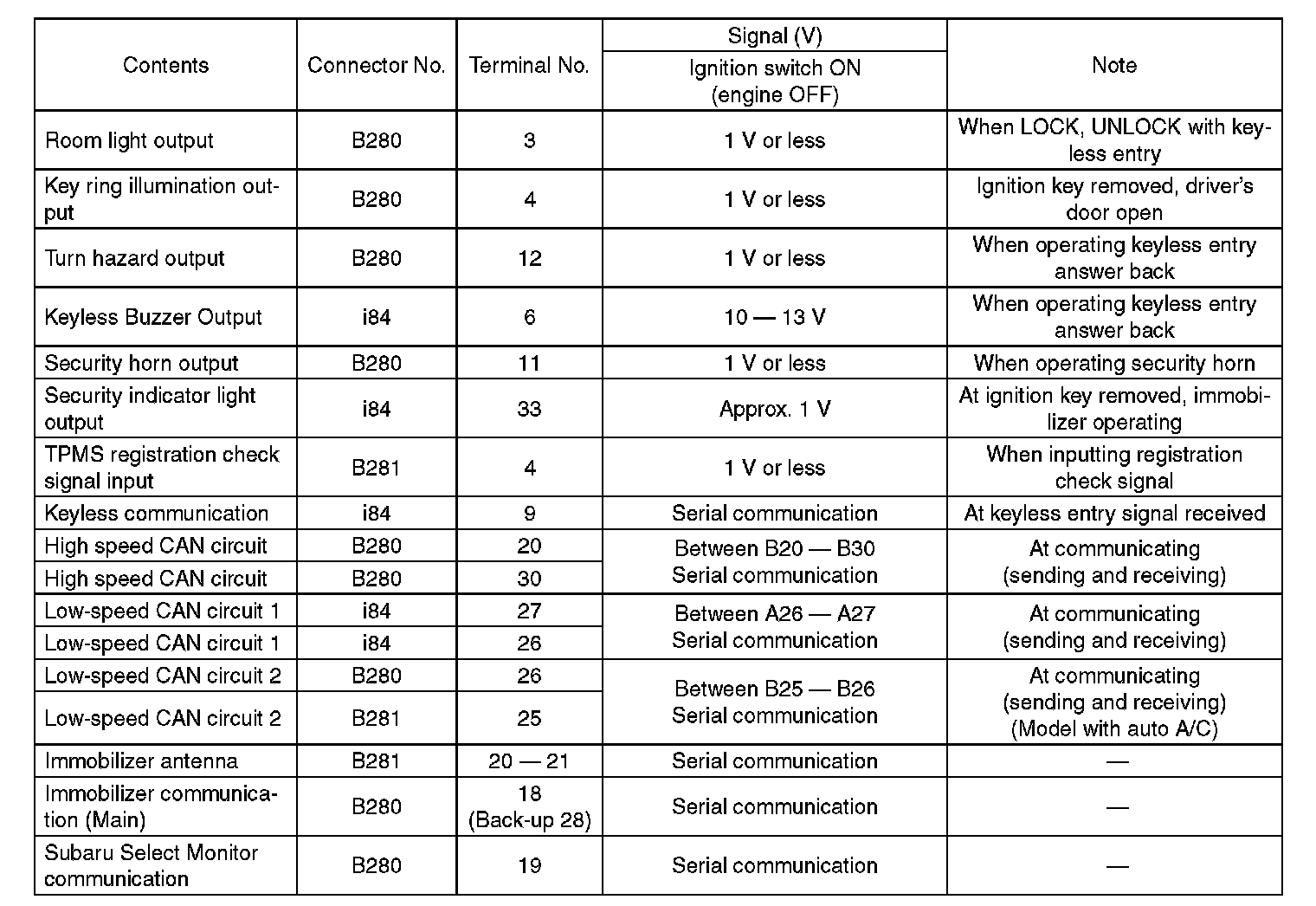

Control Module I/O Signal - Electrical Specification (Part ):
