Ignition System: Testing and Inspection

IGNITION CONTROL SYSTEM

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode. Reading and Clearing Diagnostic Trouble Codes

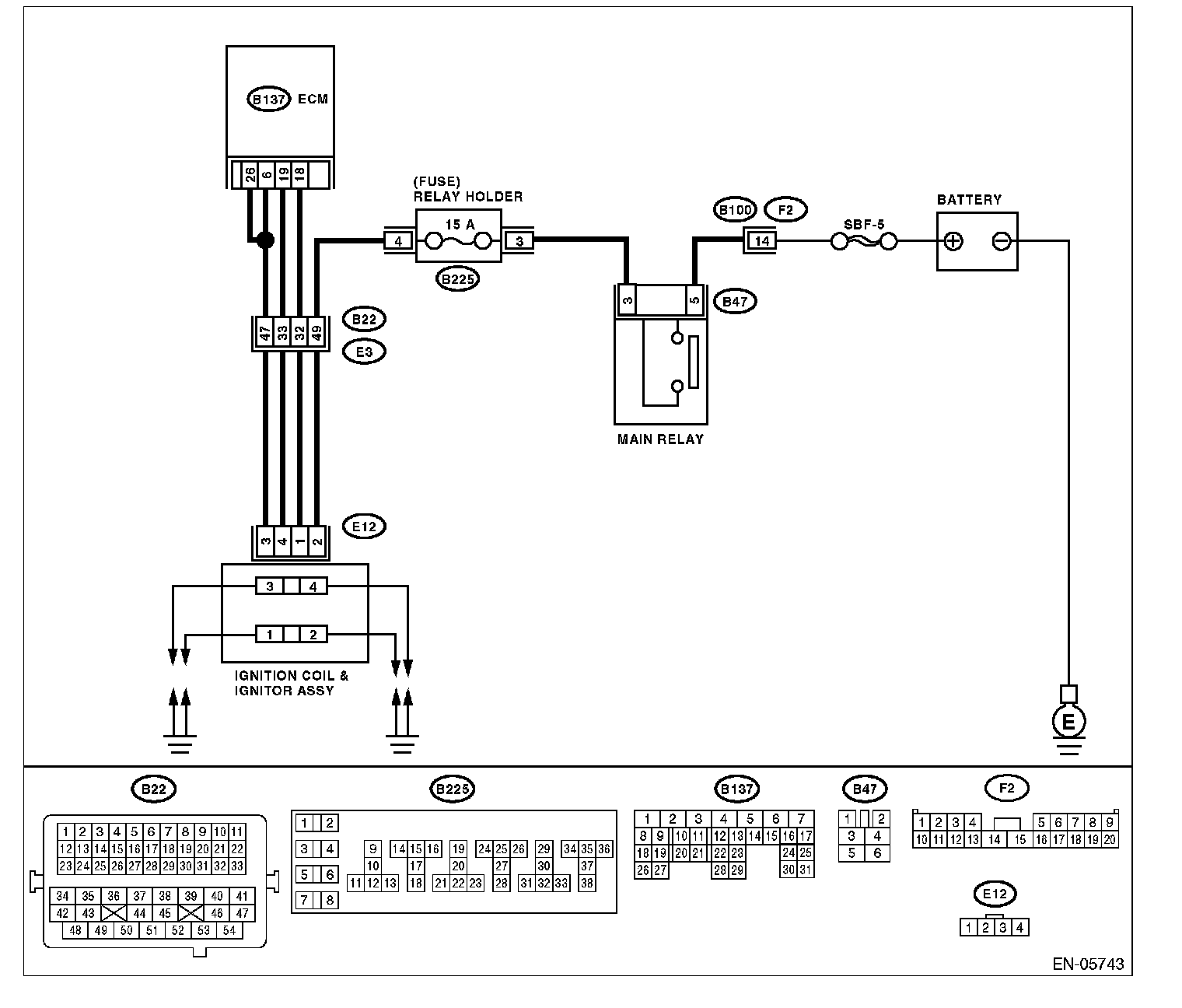

WIRING DIAGRAM:

Wiring Diagram:

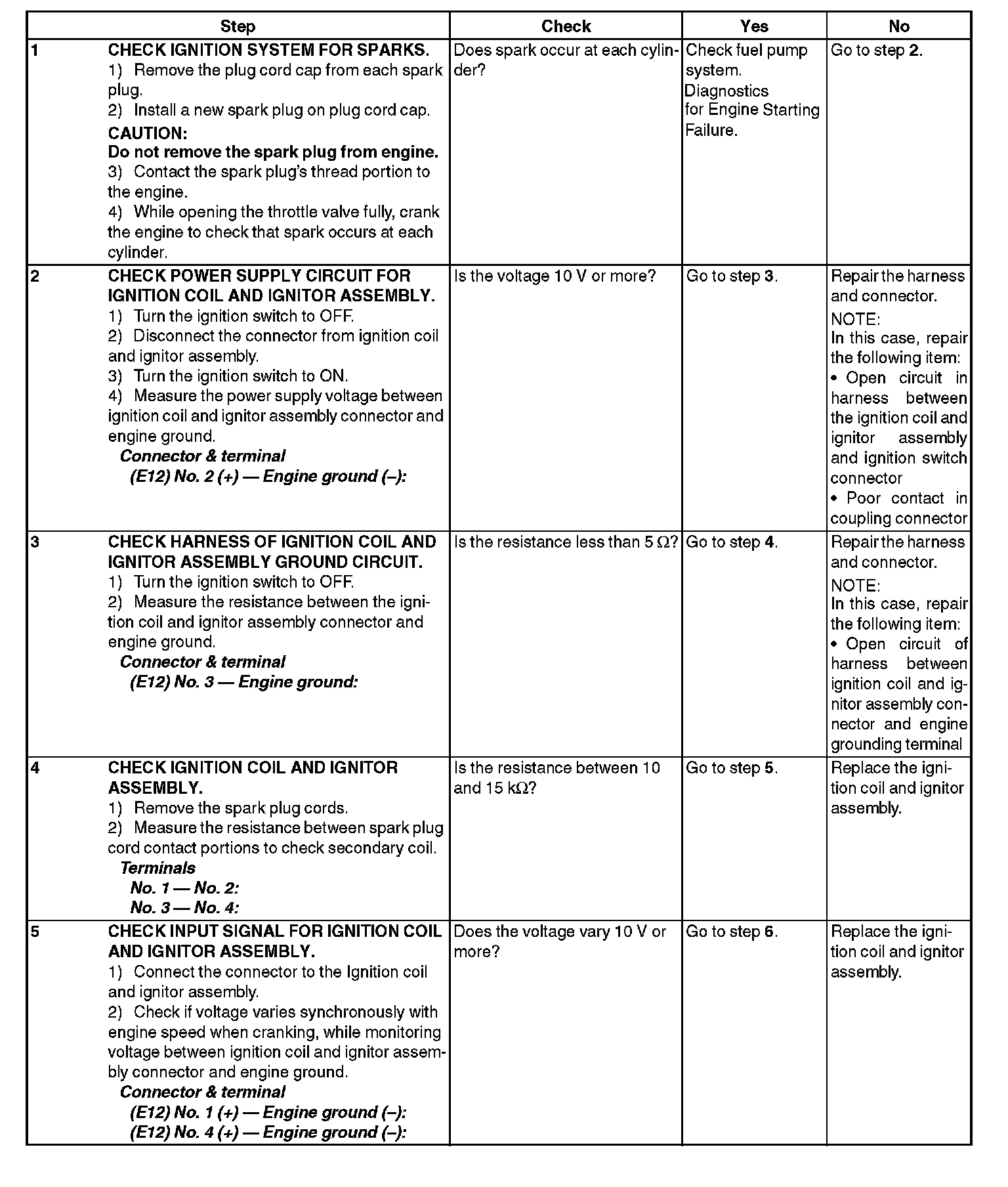

Step 1-5:

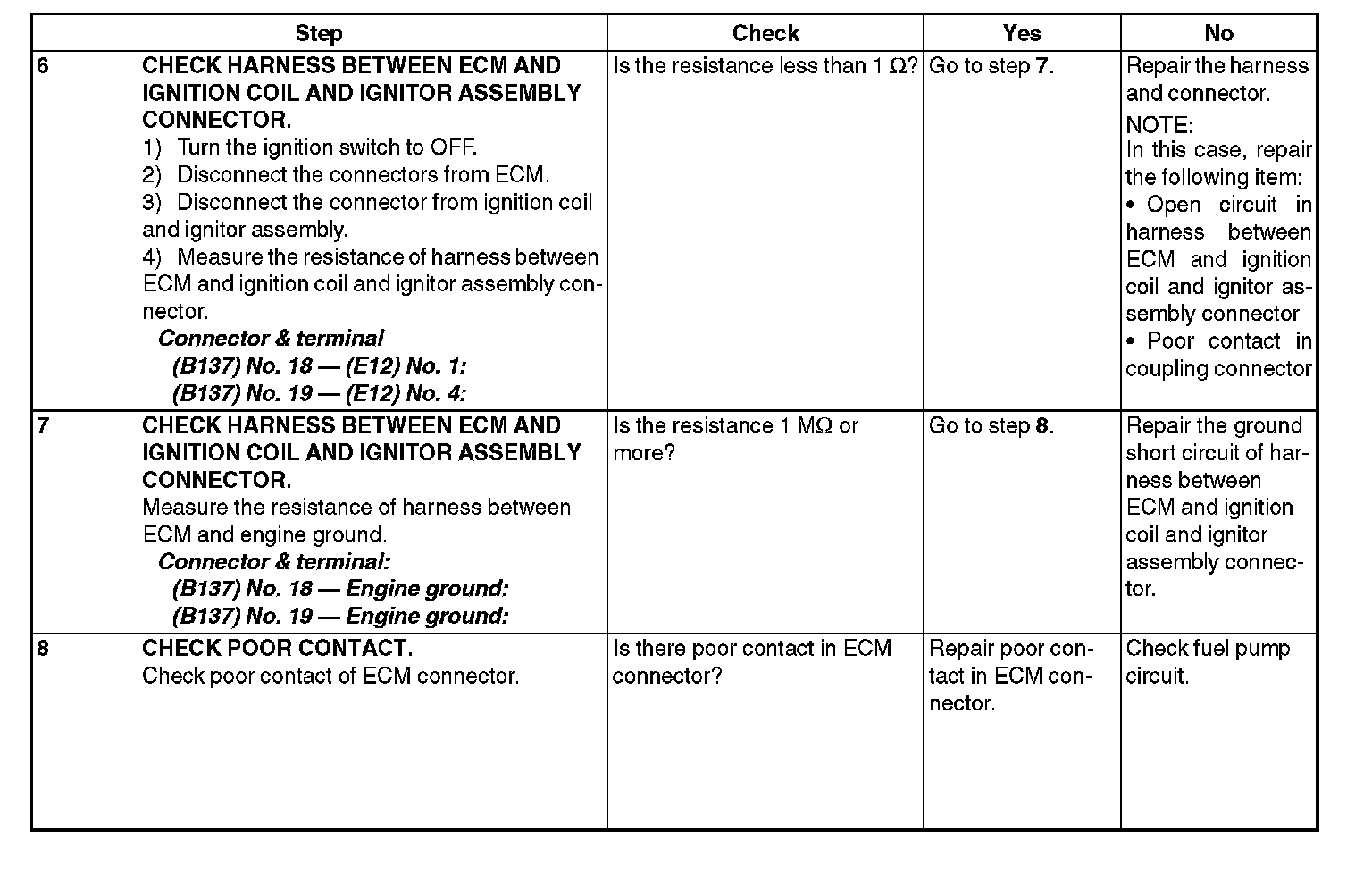

Step 6-8:
