Keyless Entry Transmitter Battery: Testing and Inspection

Transmitter

INSPECTION

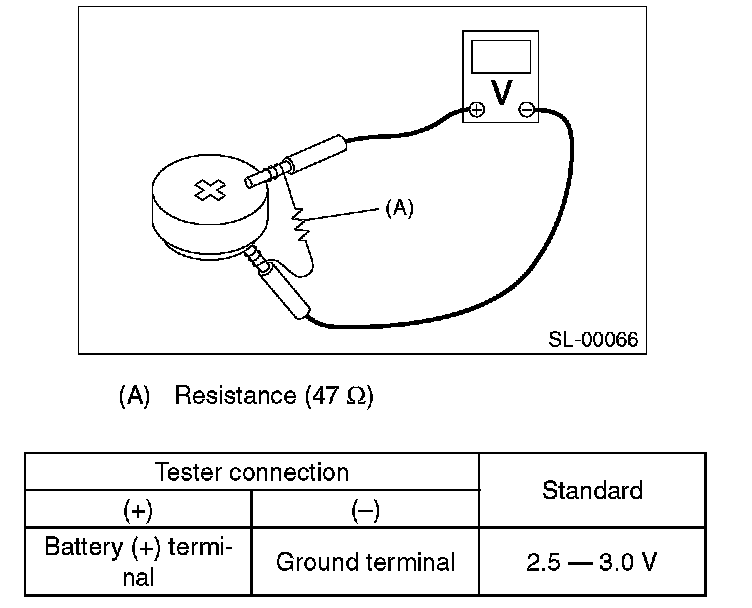

Measure the voltage between the battery (+) terminal and (-) terminal.

NOTE: The battery will discharge during the measurement. Complete the measurement within 5 seconds.






If NG, replace the battery. (Use CR2025 or equivalent.)
