lemon-mirror
:
Home
>>
Subaru
>>
2008
>>
Forester F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Body and Frame
>>
Diagrams
>>
Exploded Views
Exploded Views
COMPONENT

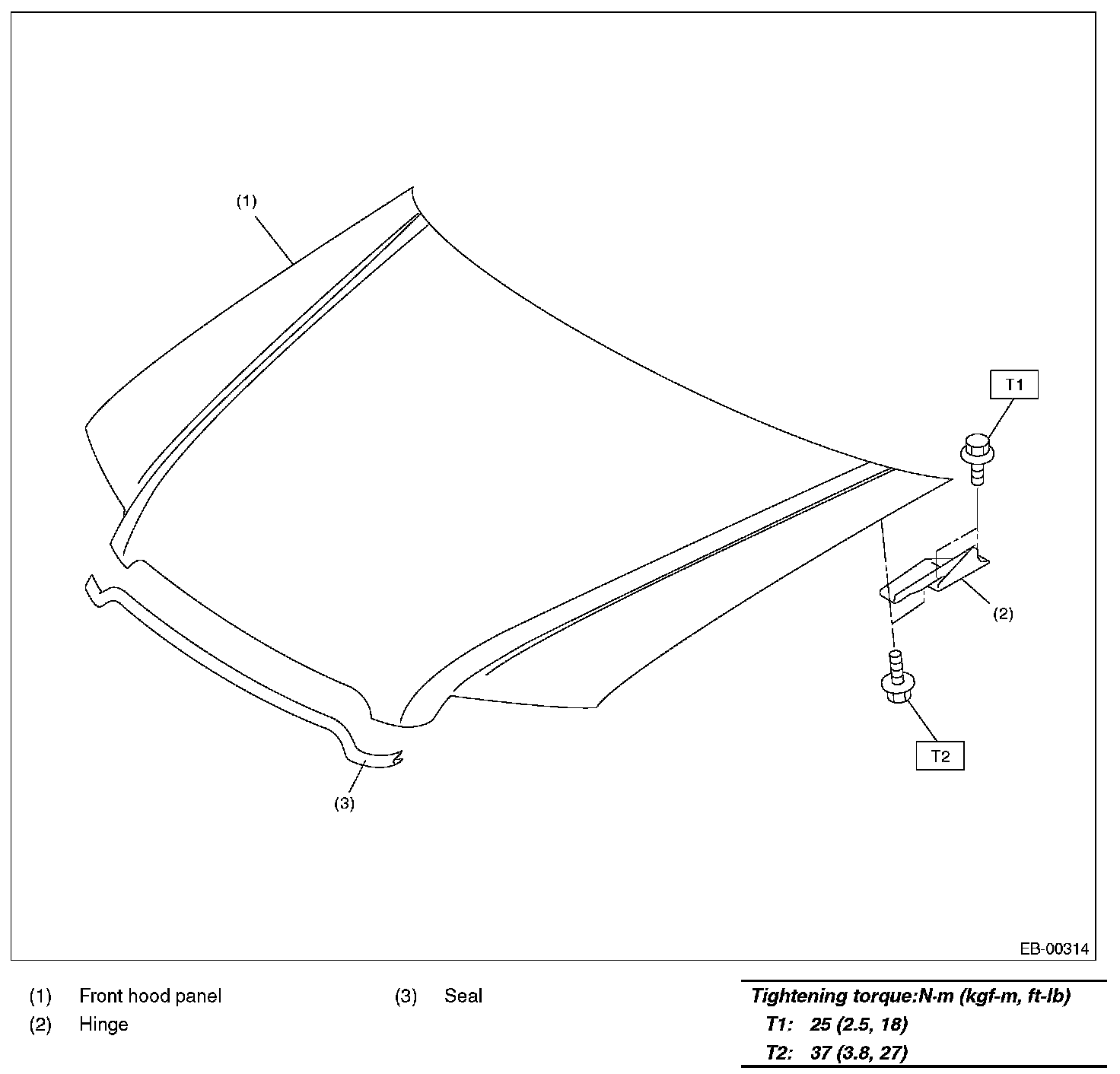

1.
FRONT
HOOD
Front Hood:

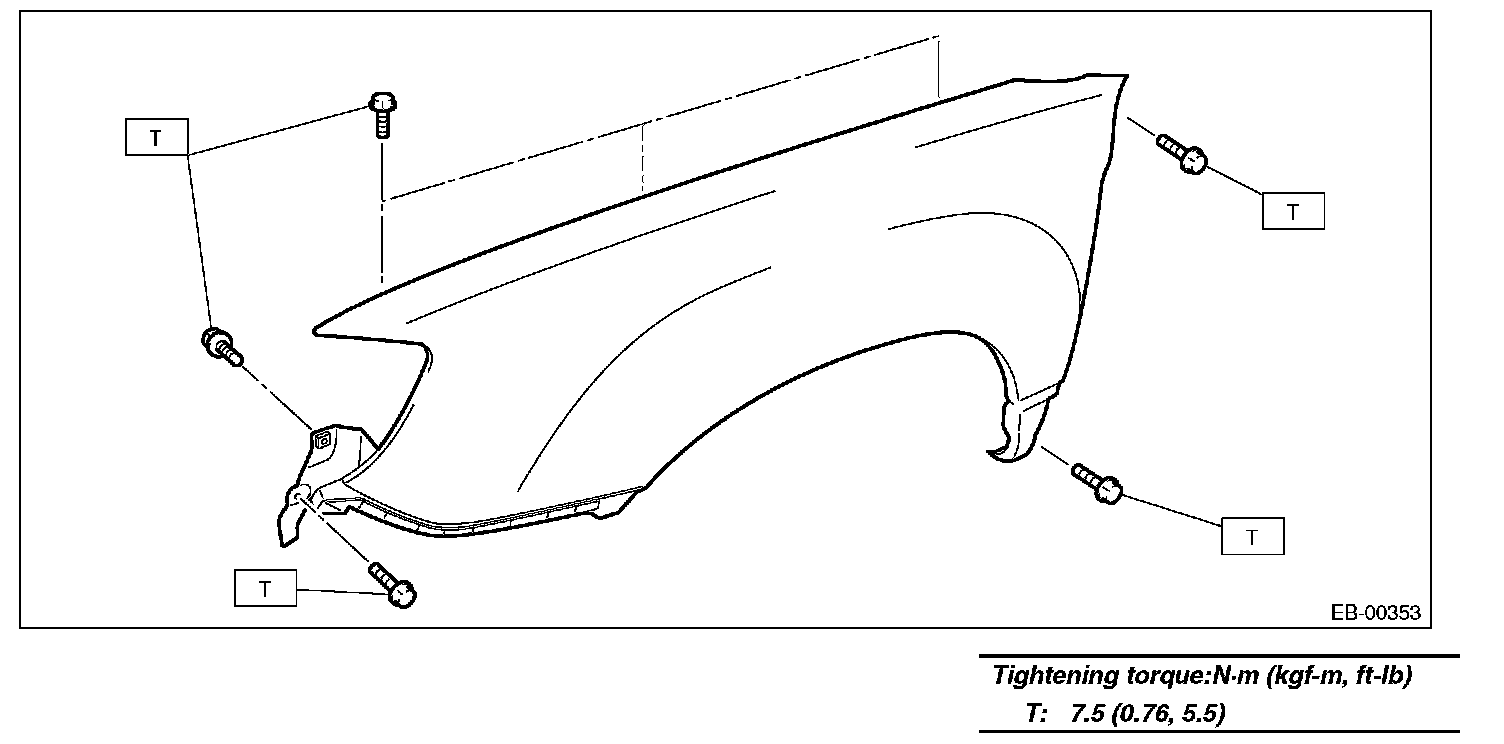

2.
FRONT
FENDER
Front Fender:

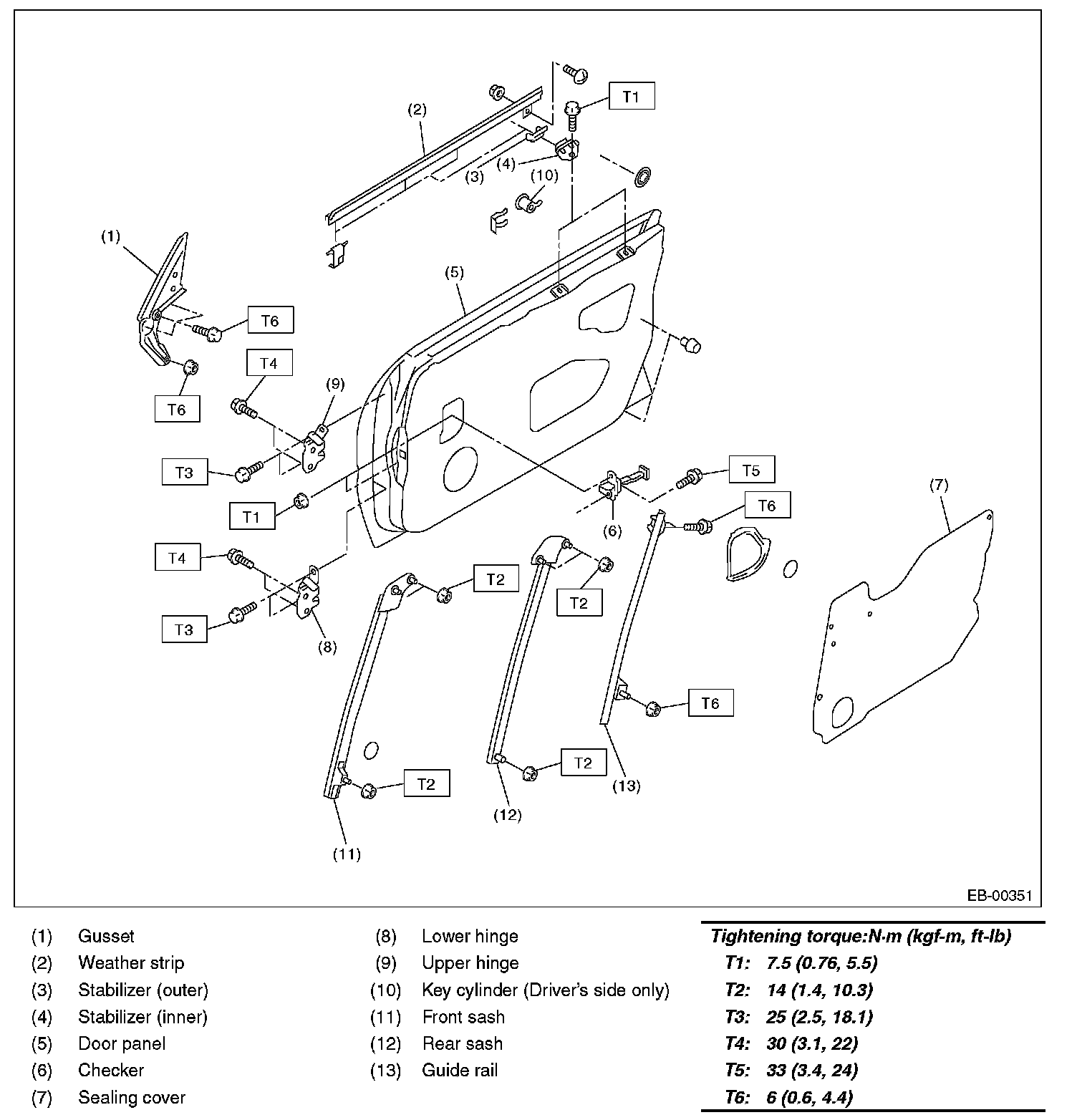

3.
FRONT DOOR
Front Door:

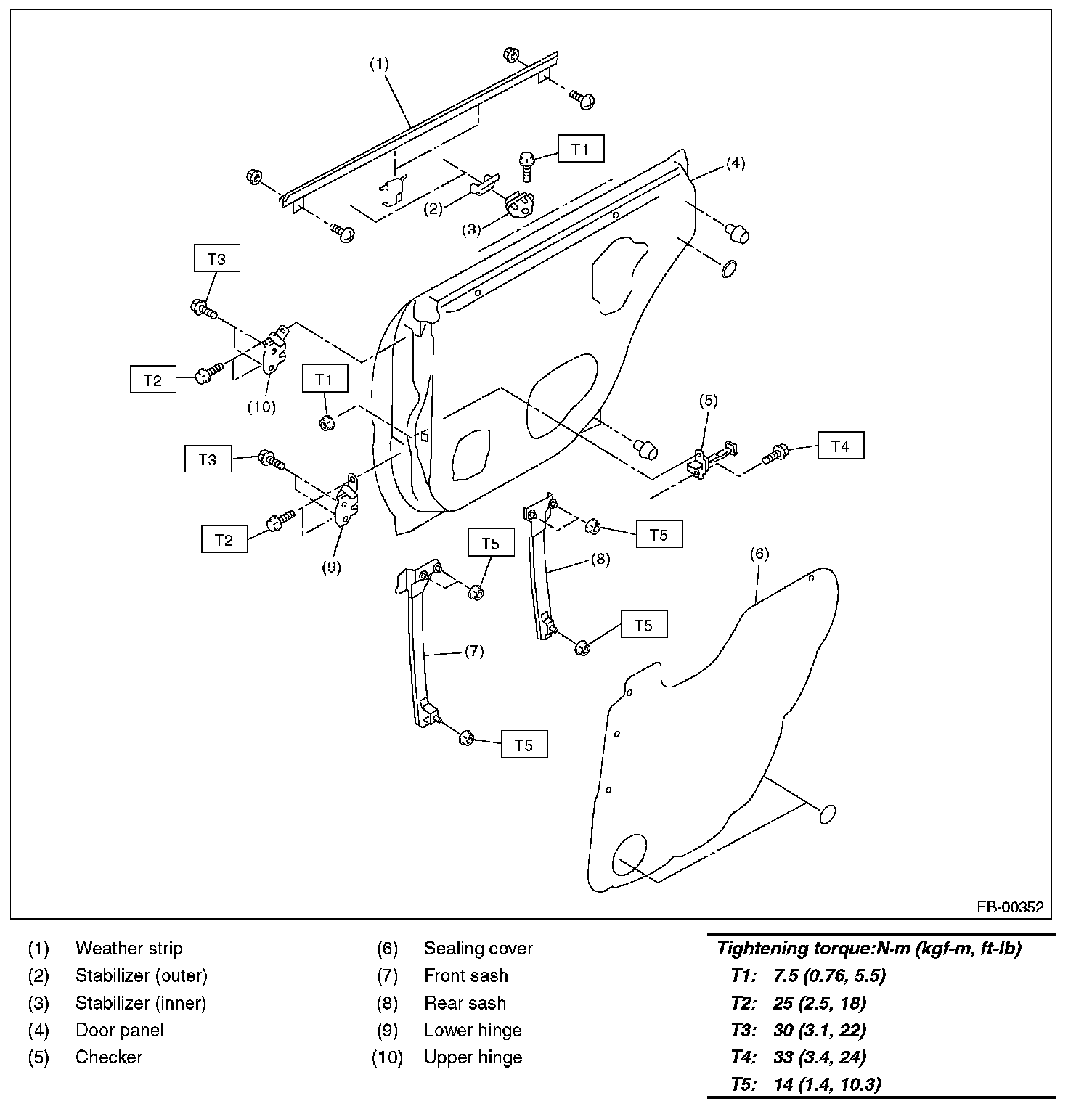

4.
REAR DOOR
Rear Door:
5.

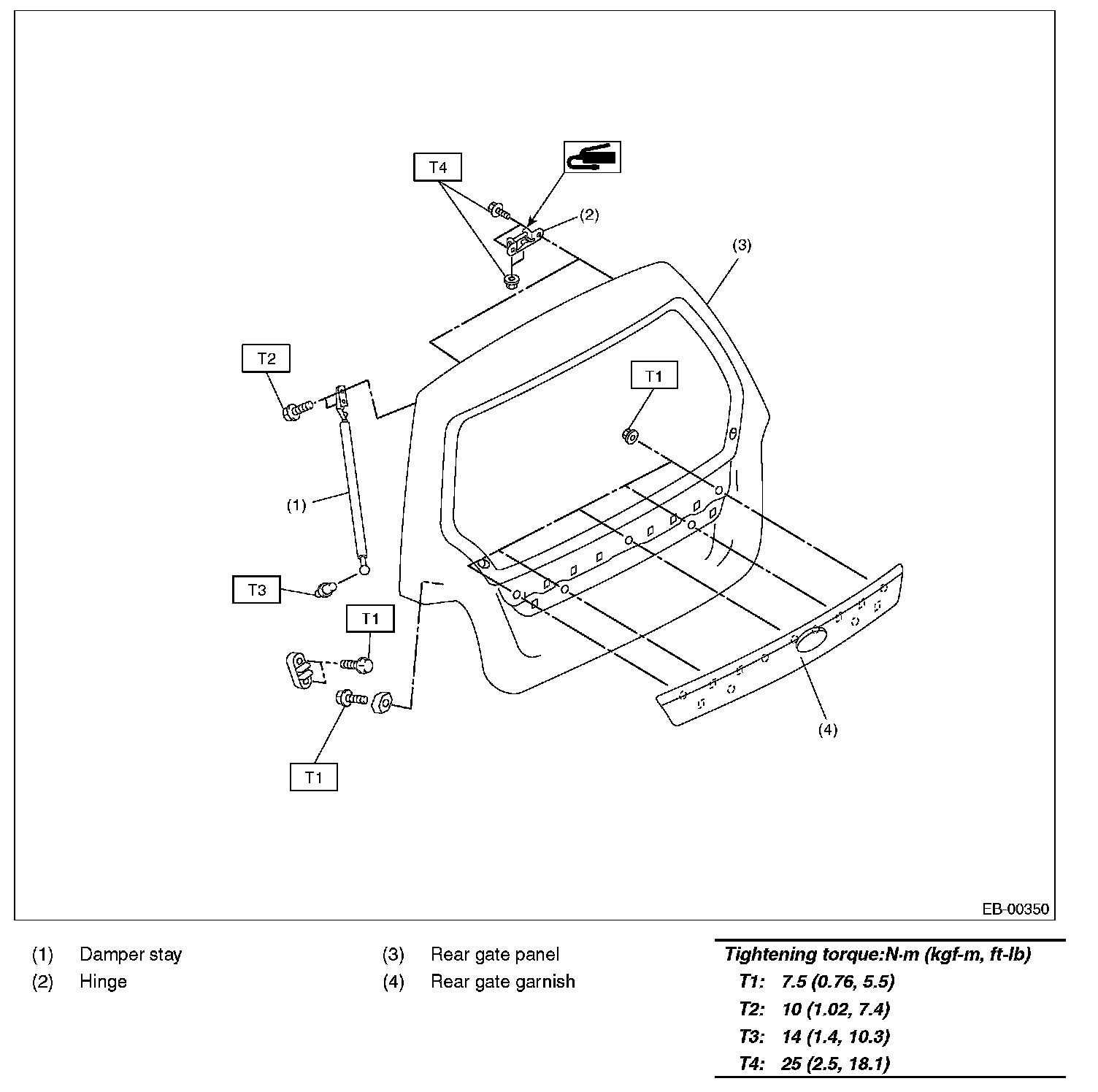

REAR GATE
Rear Gate:
