Home >> Subaru >> 2007 >> Outback Sport F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Rear Disc Brake

Rear Disc Brake

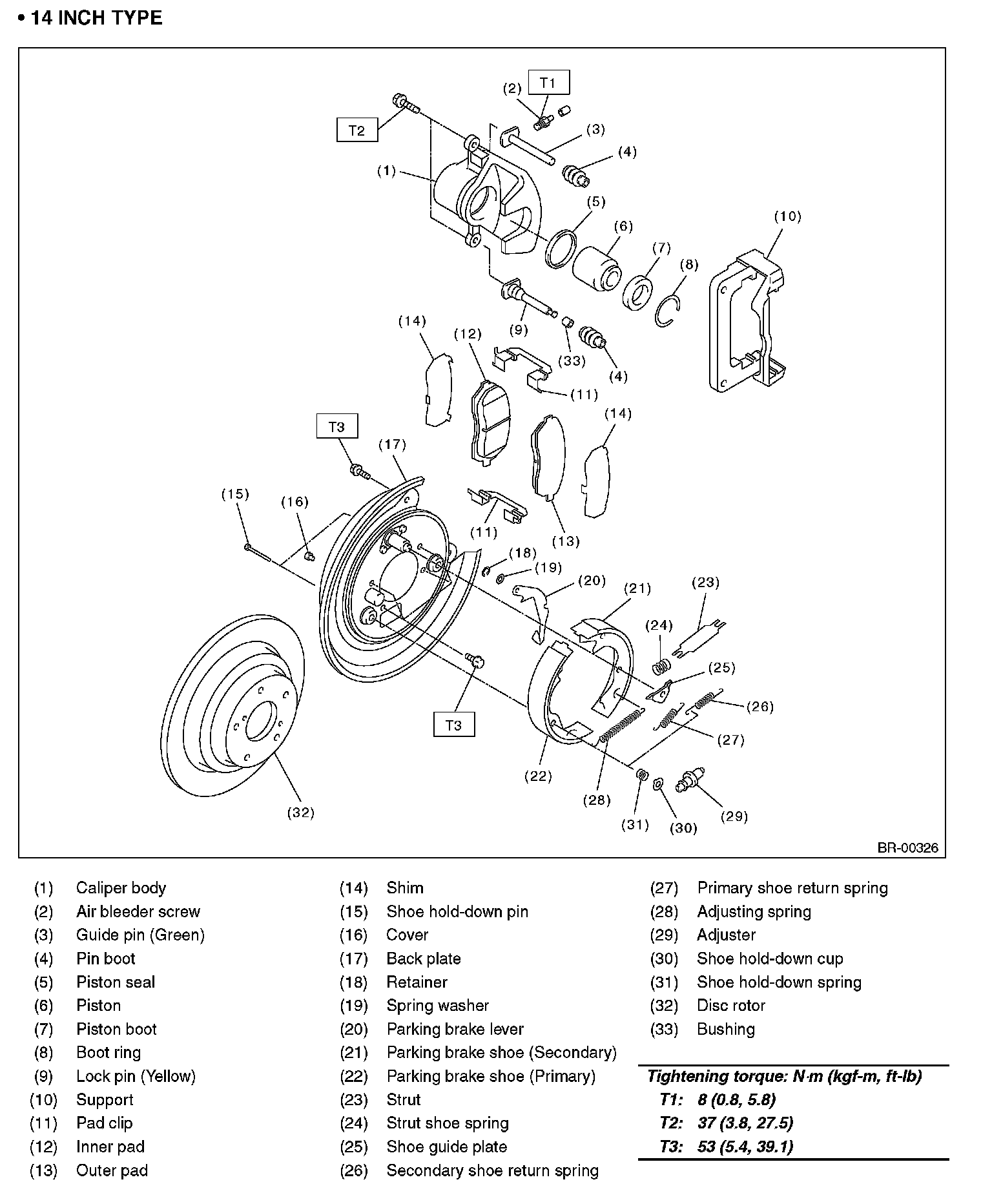

14 INCH TYPE:

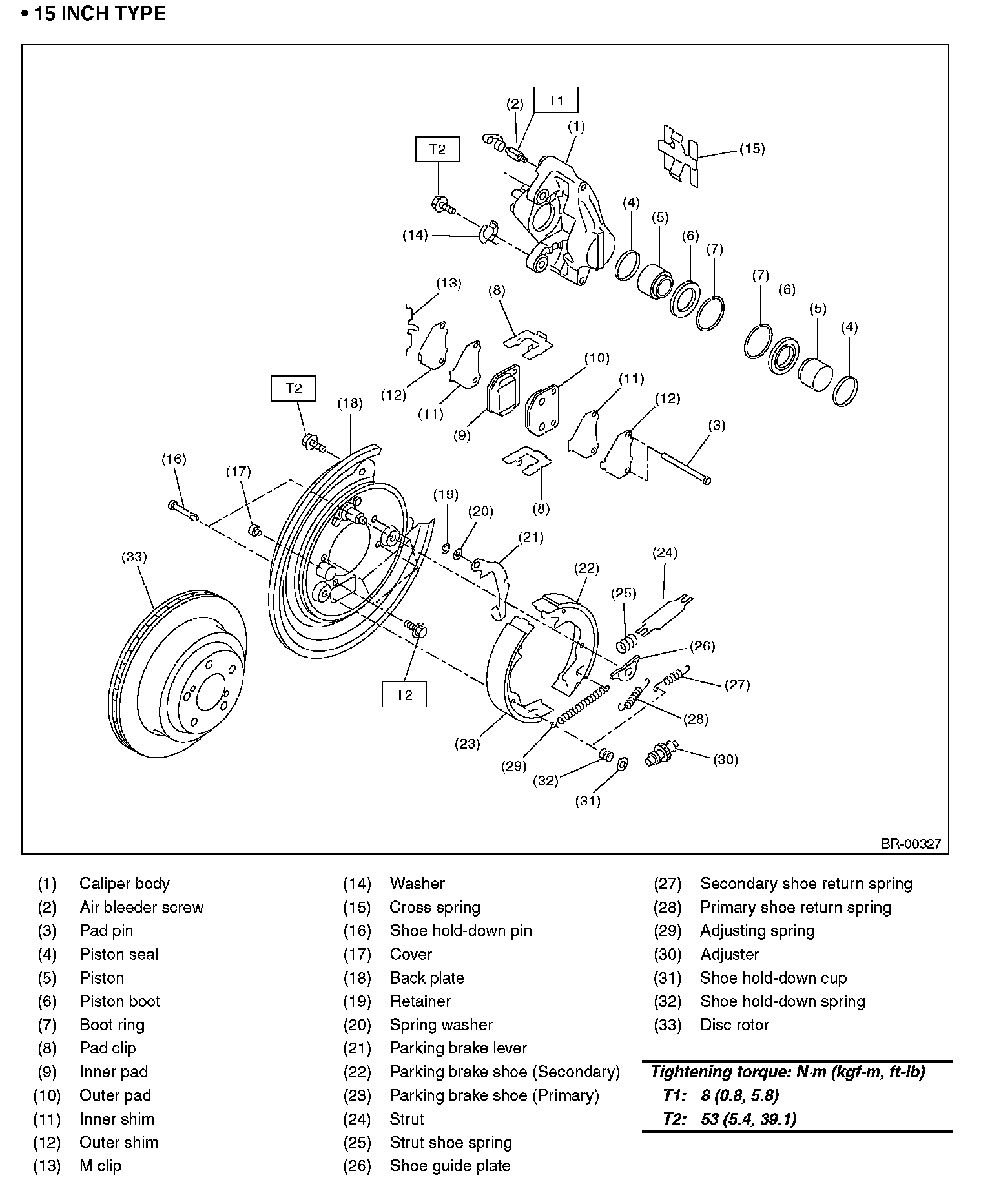

15 INCH TYPE:

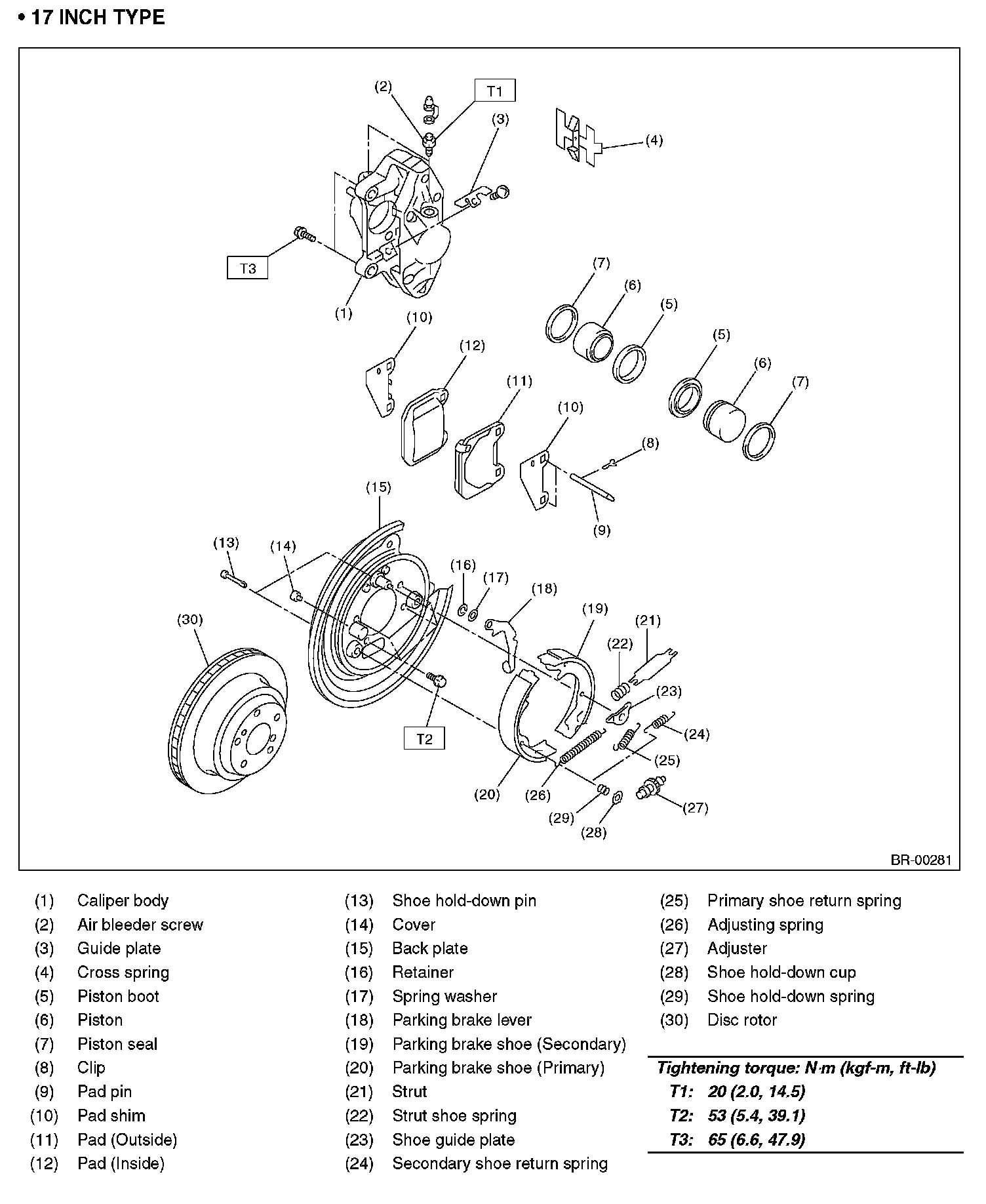

17 INCH TYPE:
