Home >> Subaru >> 2007 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations >> Control Module

Control Module

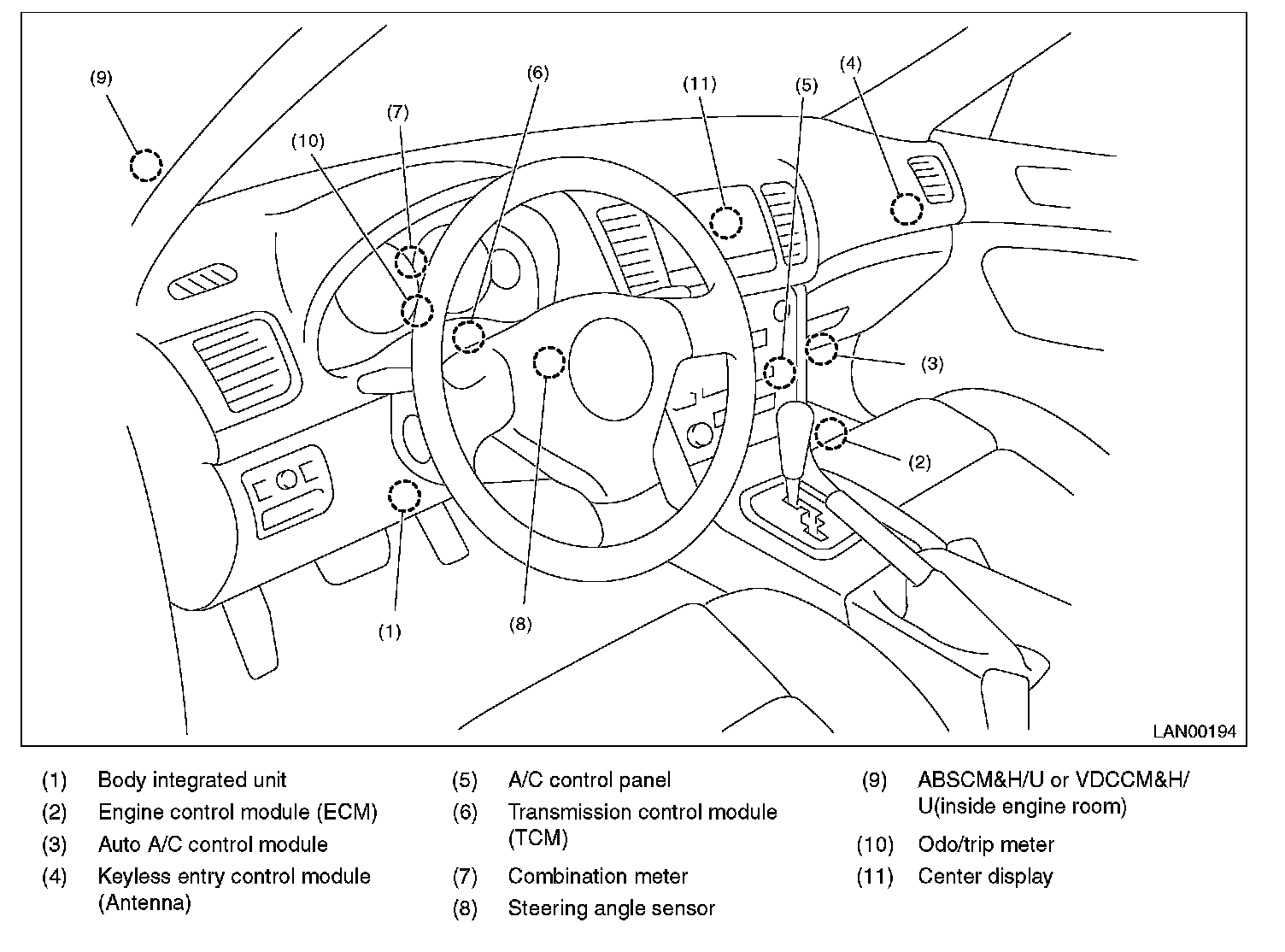

CONTROL MODULE (Part 1):

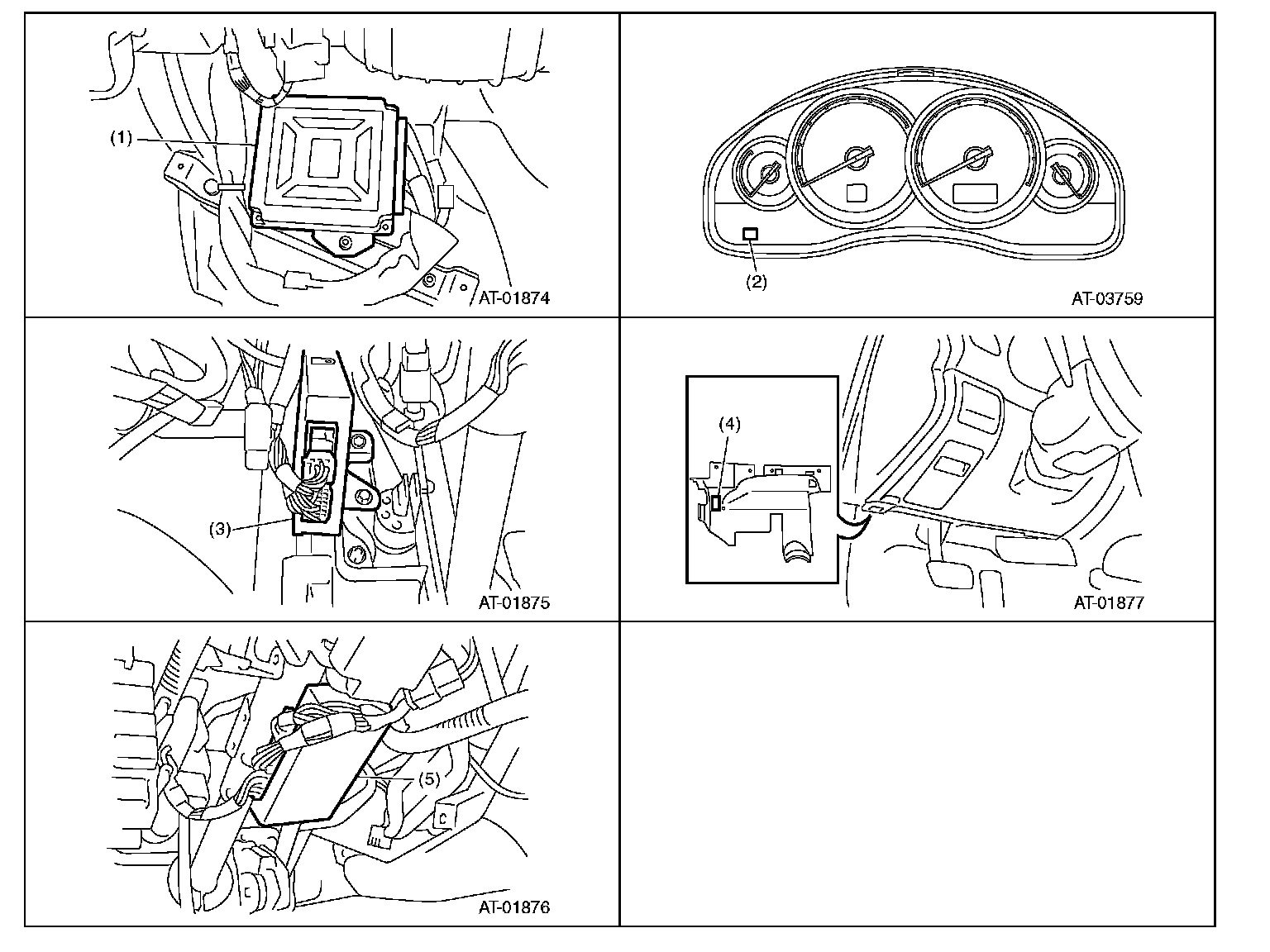

CONTROL MODULE (Part 2):

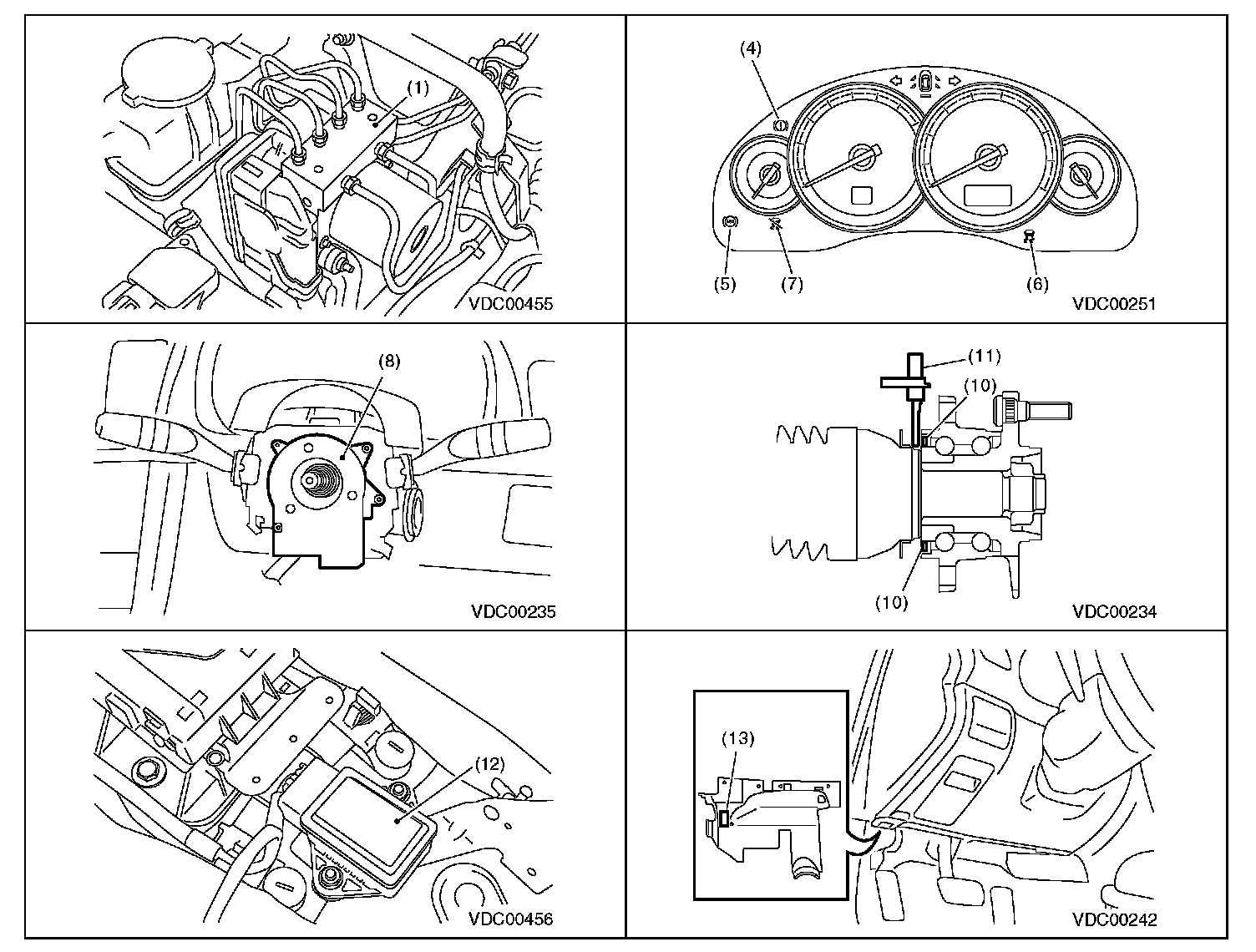

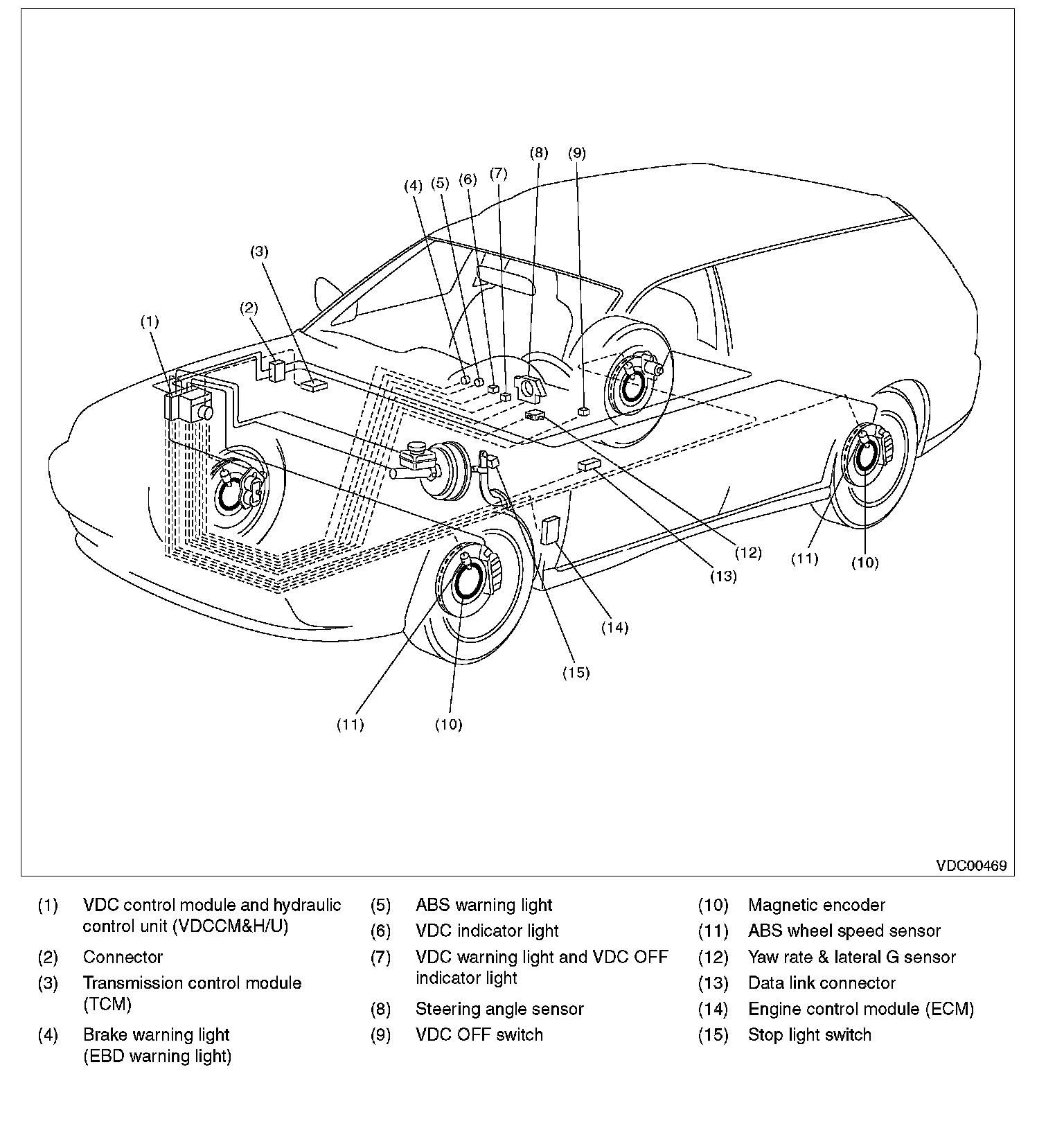

Electrical Component Location (Part 1):



Electrical Component Location (Part 2):

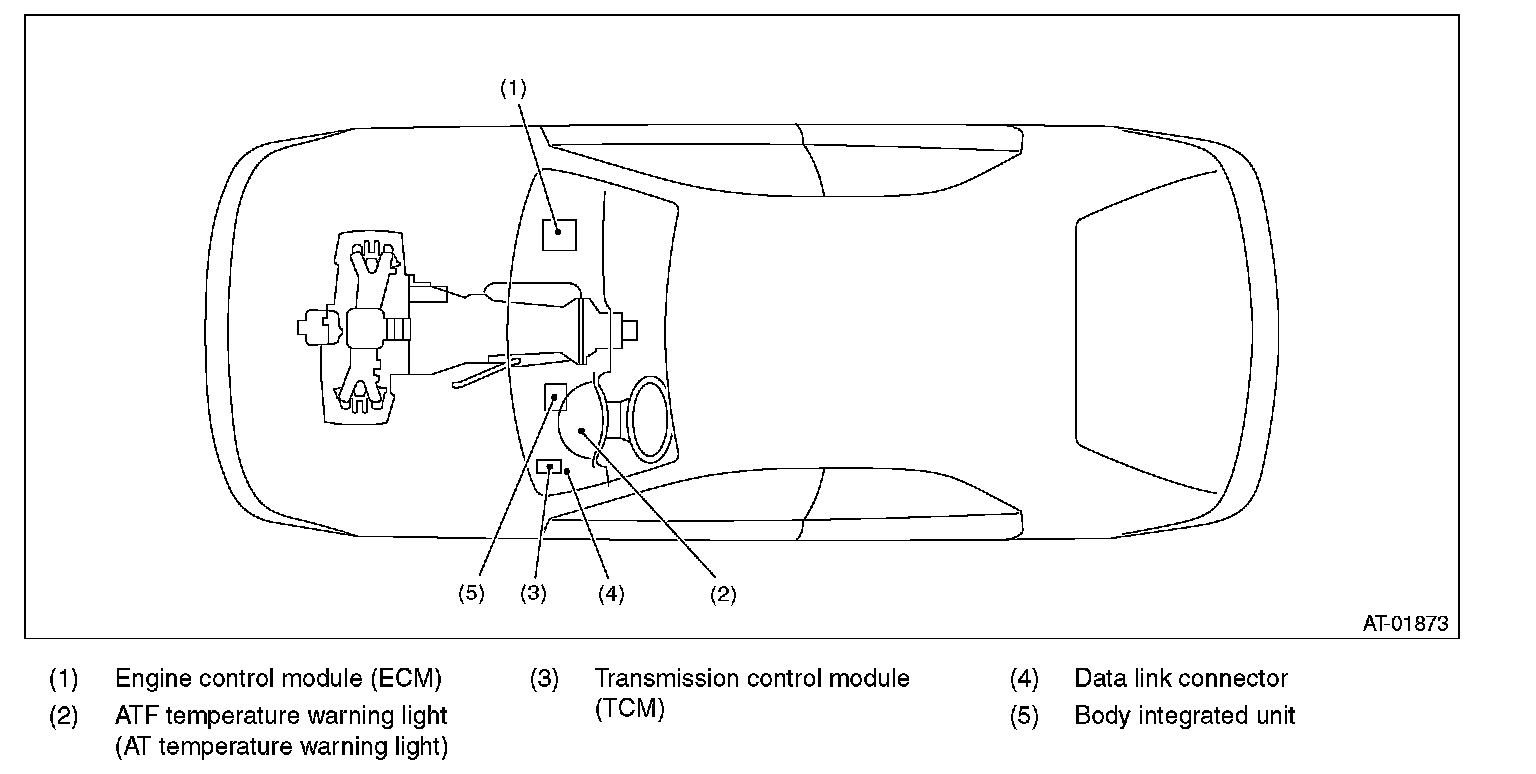

Electrical Component Location (Part 1):

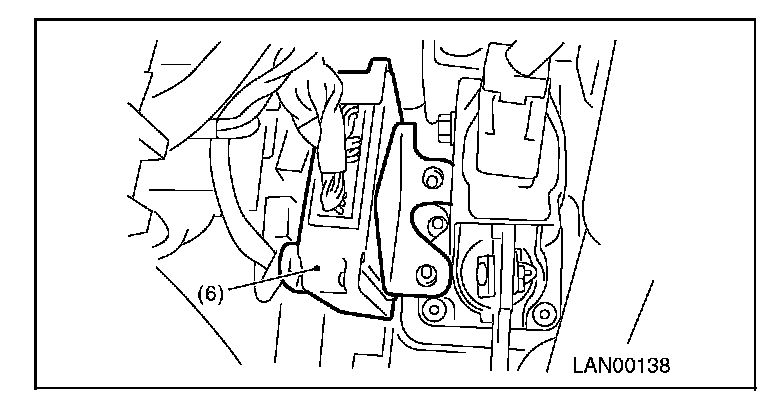

Electrical Component Location (Part 2):
