Engine Control Module: Locations

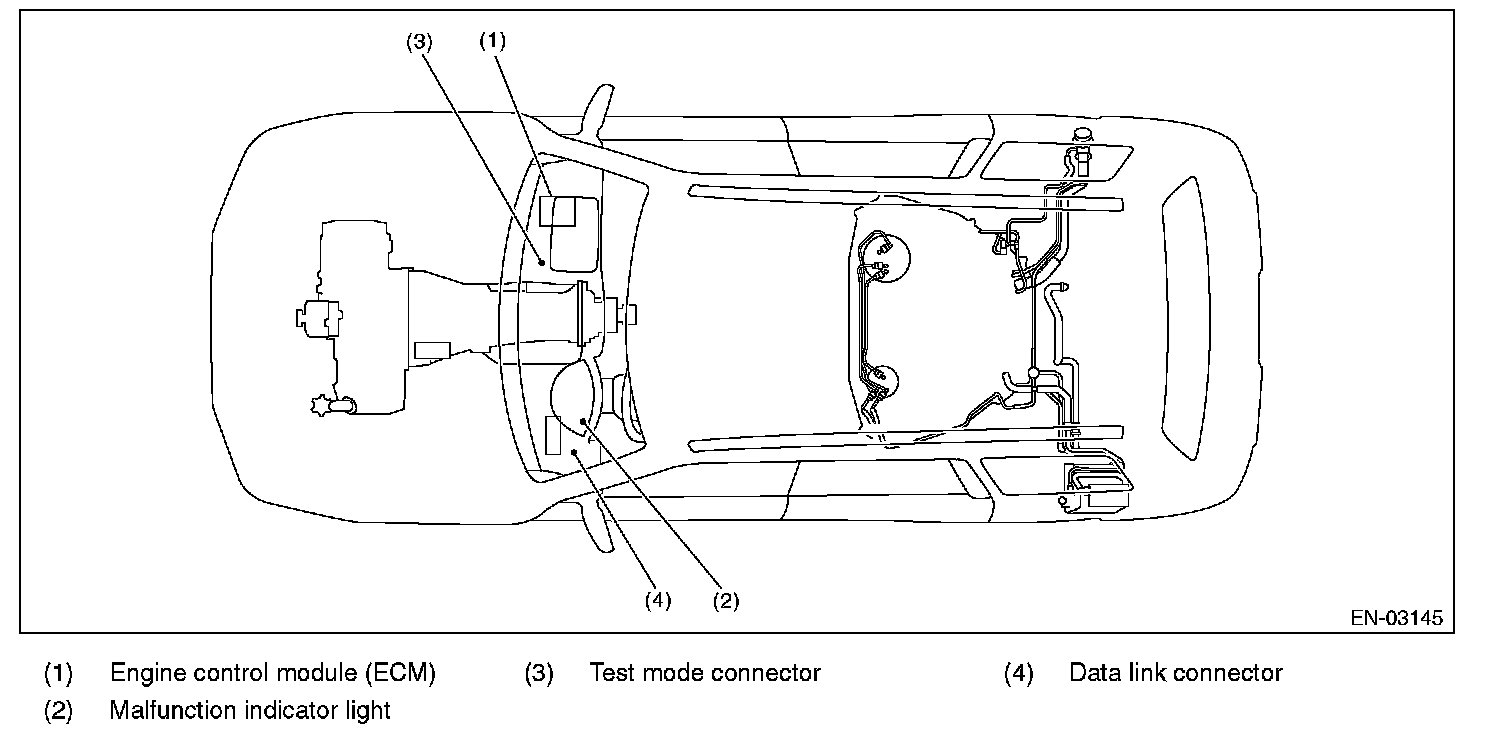

Electrical Component Location (Part 1):

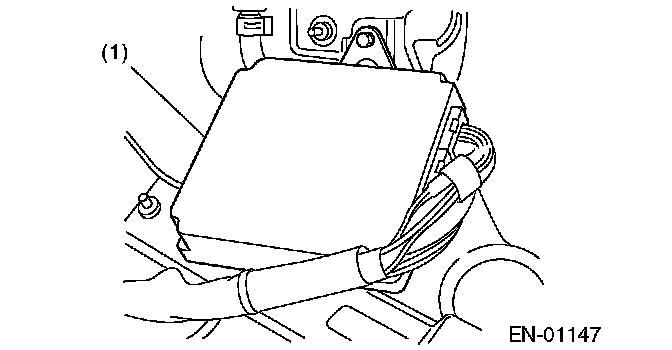

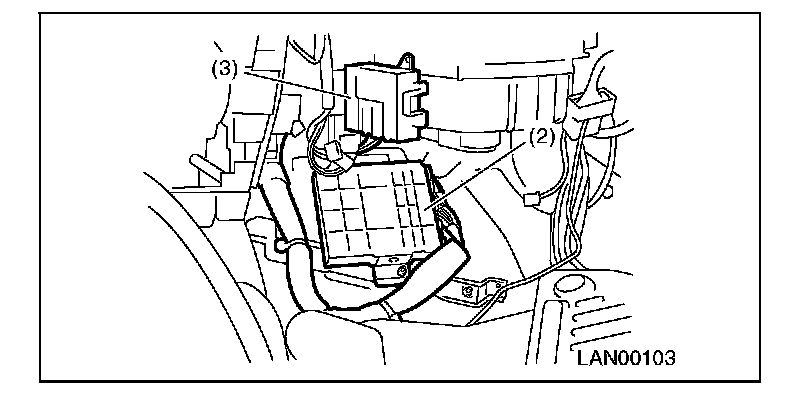

Electrical Component Location (Part 2):



Electrical Component Location (Part 1):



Electrical Component Location (Part 2):
