Home >> Subaru >> 2007 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Control Module Pinout Values

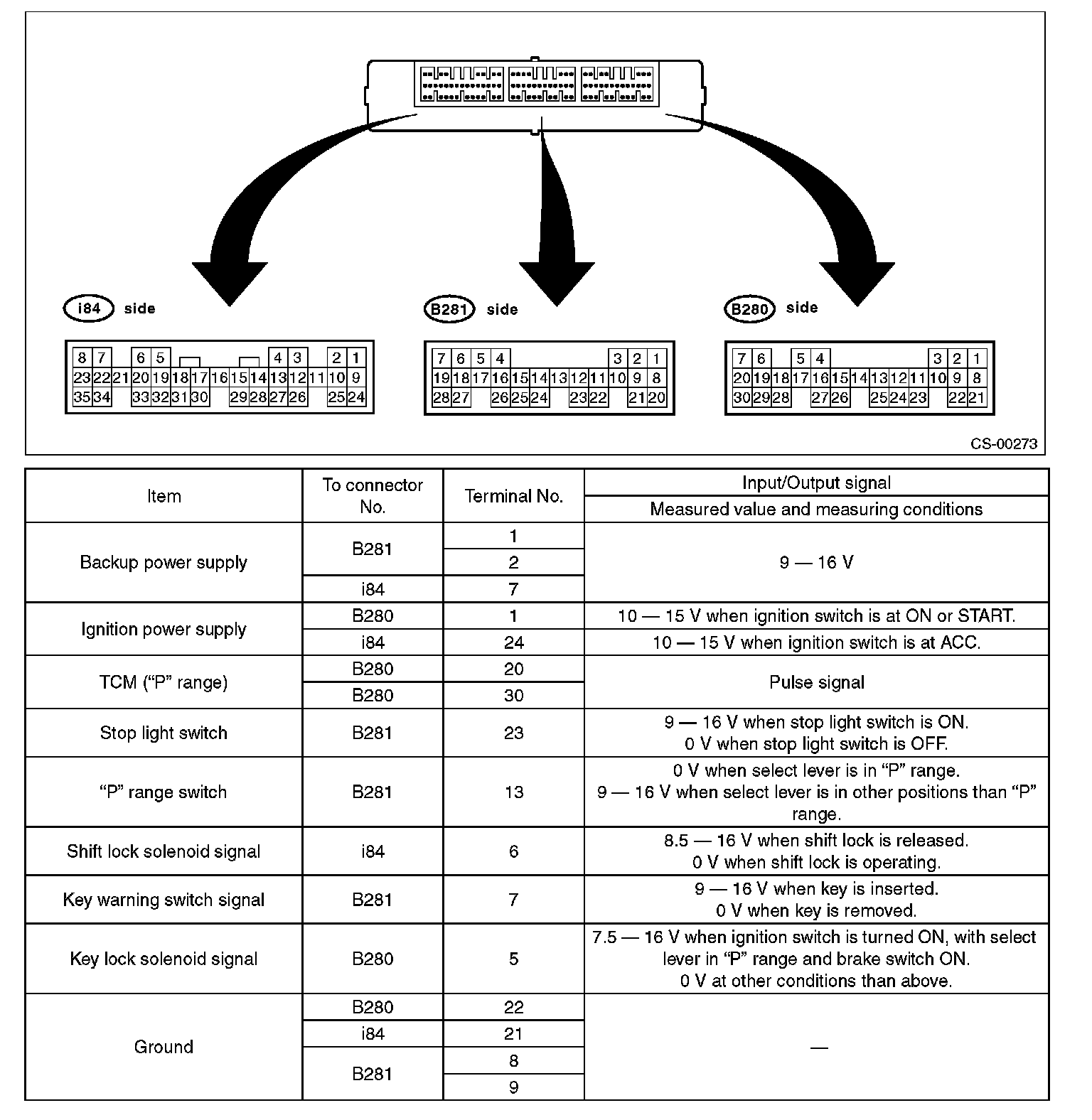

Control Module Pinout Values

ELECTRICAL SPECIFICATION

ELECTRICAL SPECIFICATION:
