Solar Sensor: Service and Repair

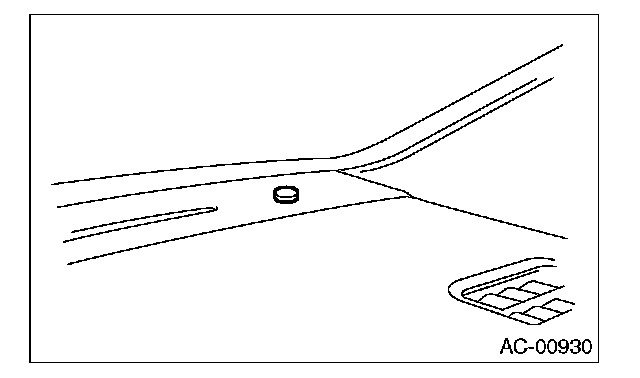

Sunload Sensor (Auto A/C Model)

REMOVAL
1. Disconnect the ground cable from battery.
2. Disconnect the connector and remove the sunload sensor.






CAUTION: Be careful not to damage the interior trims when removing the sensor.

INSTALLATION
Install in the reverse order of removal.
