Ignition System: Testing and Inspection
IGNITION CONTROL SYSTEMCAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode and Inspection Mode.

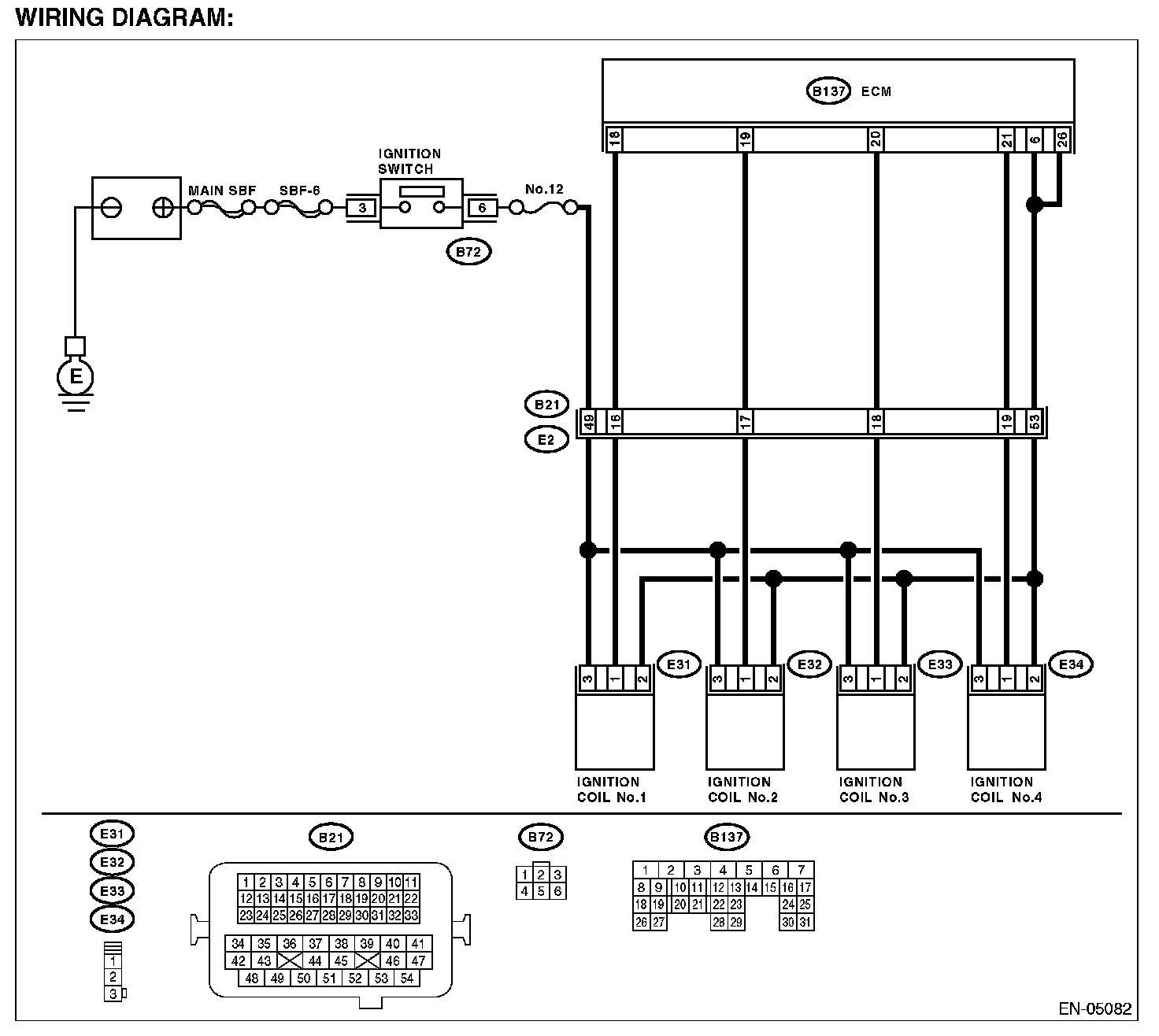

Wiring Diagram:

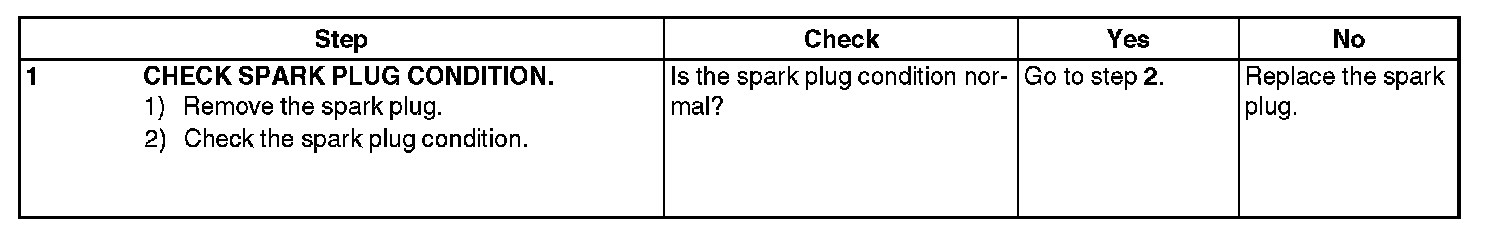

Step 1:

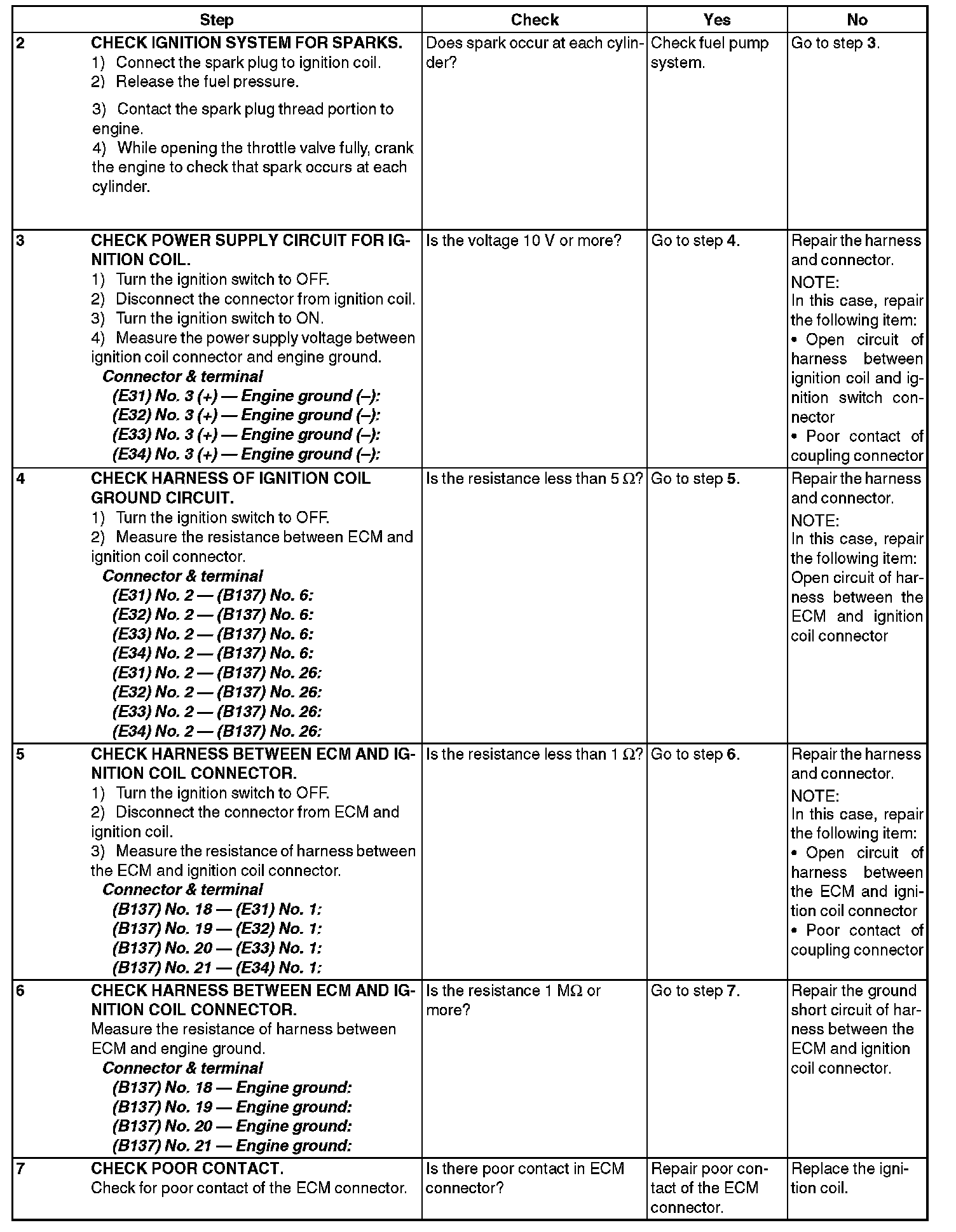

Step 2-7:
CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode and Inspection Mode.
