Home >> Subaru >> 2007 >> Outback F4-2.5L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram >> Cylinder Block

Cylinder Block

CYLINDER BLOCK

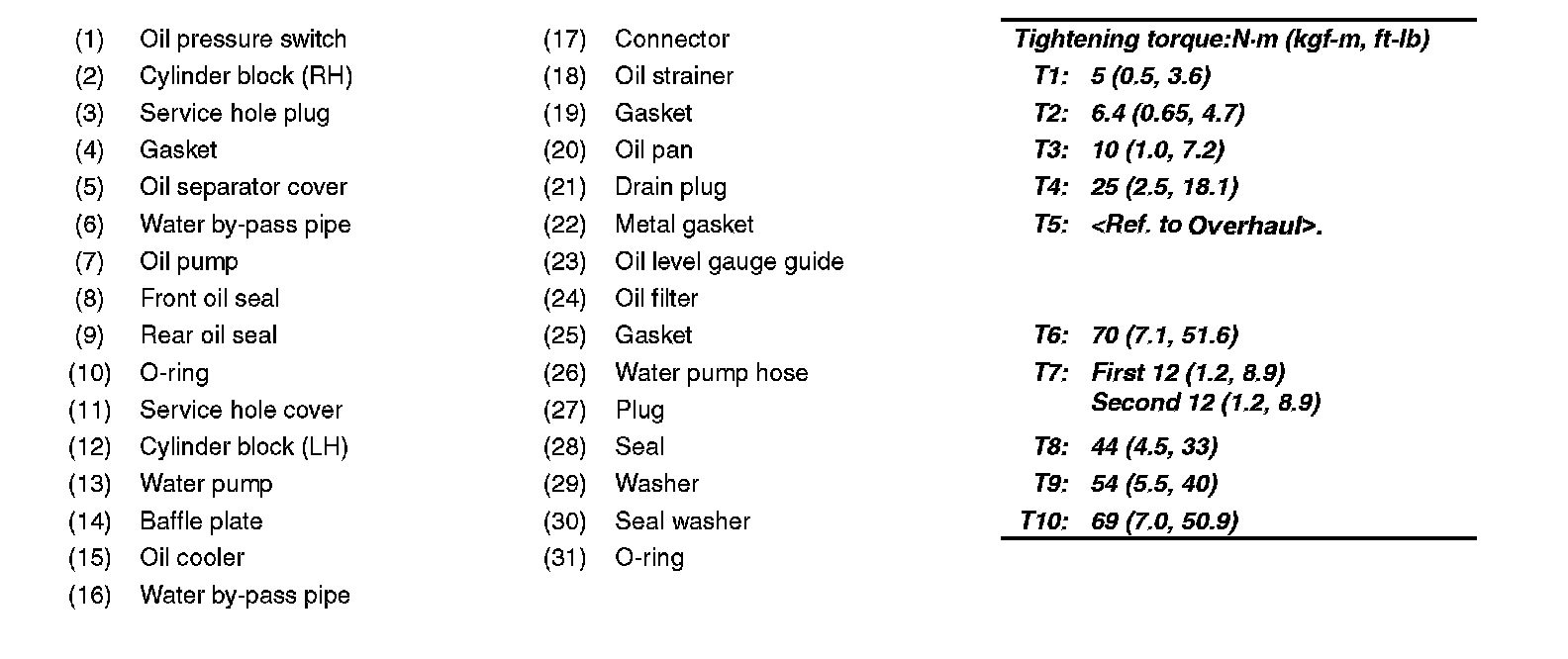

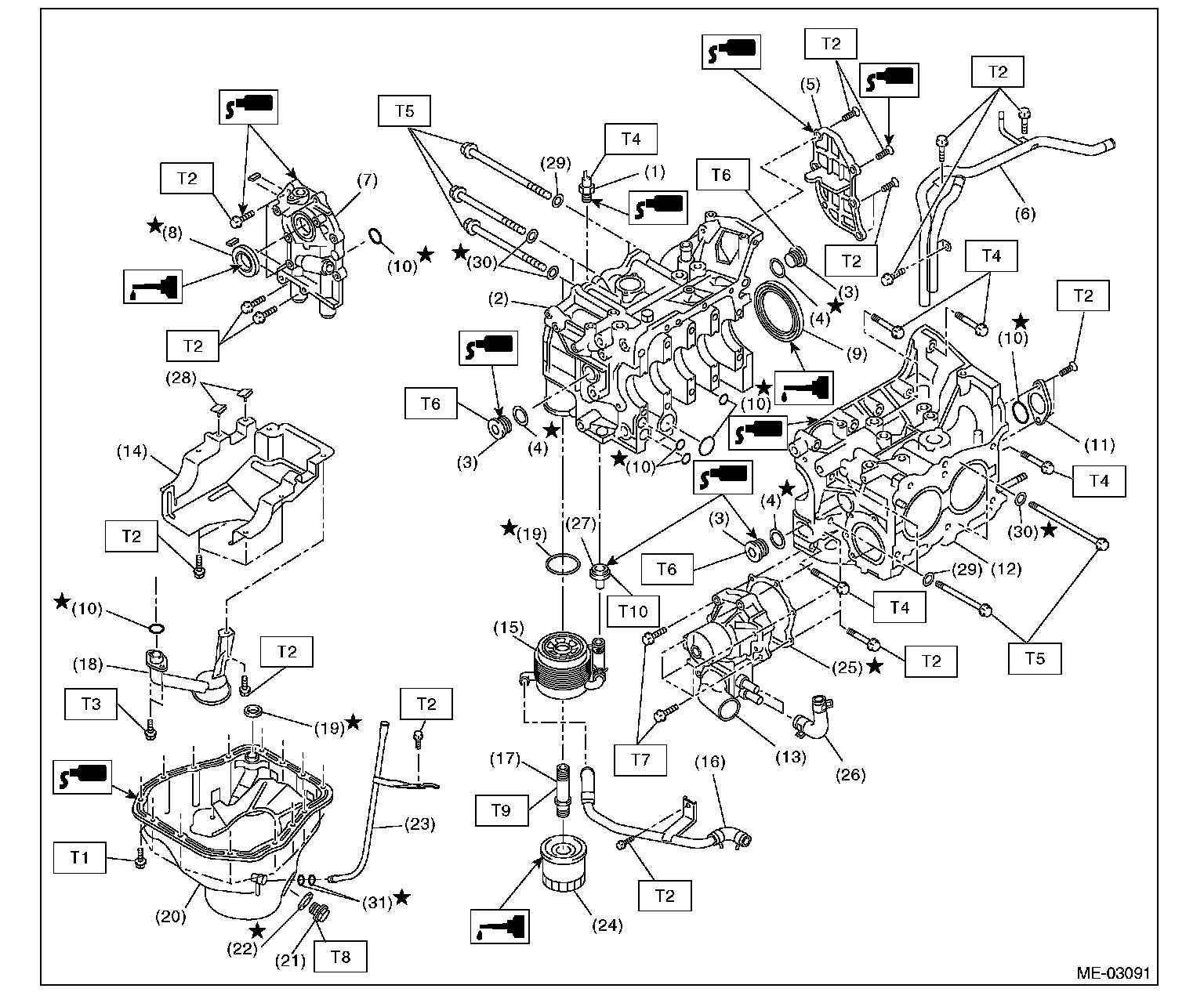

CYLINDER BLOCK (PART 1):




CYLINDER BLOCK (PART 2):
